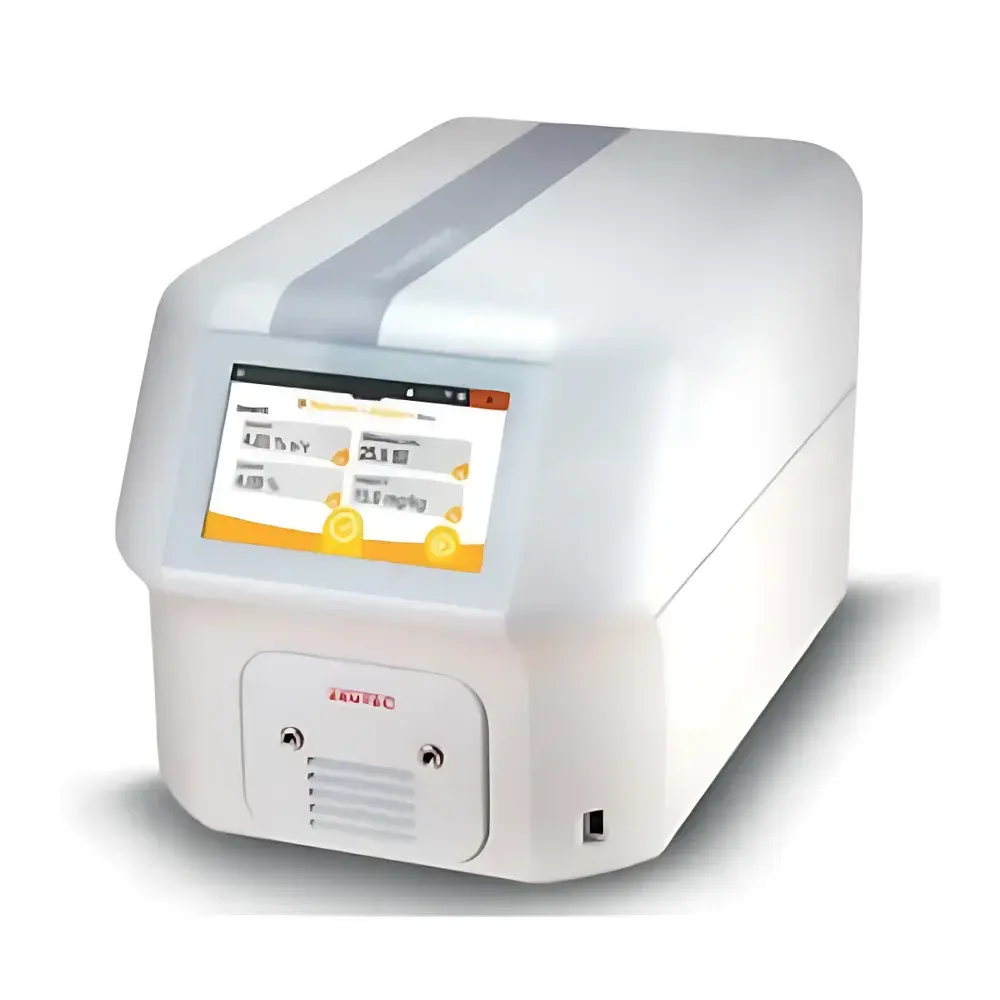

JHX BRAUMEISTER Beer Analyzer

Overview

The JHX BRAUMEISTER Beer Analyzer is a benchtop optical measurement instrument engineered for rapid, reagent-free, multi-parameter quality assessment in brewing laboratories and production facilities. It integrates dual-mode optical detection—multi-wavelength ultraviolet-visible (UV-Vis) spectrophotometry and precision density/refractometric correlation—to deliver quantitative results for over 15 critical brewing parameters without manual dilution, chemical derivatization, or hazardous reagents. Unlike conventional single-parameter instruments (e.g., standalone alcohol meters or colorimeters), the BRAUMEISTER applies chemometric calibration models validated against reference methods defined in ISO 11290, EBC Analytica, and ASBC Methods of Analysis. Its optical architecture is optimized for turbid, colored, and carbonated liquid matrices—including wort, green beer, mature lager, craft ale, cider, and mixed malt beverages—ensuring high reproducibility (RSD < 0.8% for ABV at 4–8% v/v) across daily operational shifts.

Key Features

• Sub-45-second analysis cycle for full parameter sets—enabling real-time process feedback during lautering, fermentation, and filtration stages
• Non-invasive optical path design with temperature-controlled cuvette chamber (±0.1 °C stability) to minimize thermal drift in density and spectral readings
• Pre-loaded, brewery-specific calibration libraries covering >120 malt varieties, hop cultivars, and yeast strains—each traceable to NIST-traceable reference standards
• Automatic bubble detection and CO₂ compensation algorithm for accurate dissolved CO₂ quantification in un-degassed samples
• IP54-rated enclosure with spill-resistant sample port and integrated waste reservoir—designed for wet industrial environments
• Modular firmware architecture supporting future expansion to include polyphenol index (PVI), diacetyl, or free amino nitrogen (FAN) prediction models via spectral deconvolution

Sample Compatibility & Compliance

The BRAUMEISTER accepts undiluted, unfiltered liquid samples ranging from 0.5 mL to 3.0 mL in standard 10-mm pathlength quartz cuvettes. It accommodates high-turbidity worts (up to 1,200 NTU), low-pH ciders (pH 2.8–4.2), and high-alcohol specialty beers (up to 14% ABV) without signal saturation or photometric deviation. All optical components comply with IEC 61000-4 electromagnetic compatibility standards and are housed in stainless-steel-shielded optics bays to prevent stray-light interference. The analyzer meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). For regulated environments, optional 21 CFR Part 11-compliant software enables electronic signatures, role-based access control, and immutable audit logs for QC/QA documentation.

Software & Data Management

BRAUMEISTER Control Suite (v4.2+) provides native integration with LIMS platforms via ASTM E1384-compliant HL7 and CSV export protocols. Raw absorbance spectra (190–1100 nm, 1 nm resolution), density curves, and derived parameter histories are stored in SQLite databases with SHA-256 hash integrity verification. Batch reporting includes statistical process control (SPC) charts aligned with ISO 7870-2:2013, automatic outlier flagging based on Westgard multirules, and configurable pass/fail thresholds per parameter (e.g., IBU ±0.5 units, EBC ±0.3 units). Data backups are encrypted using AES-256 and support network-attached storage (NAS) or cloud sync via TLS 1.3.

Applications

• Wort analysis pre-boil and post-boil: tracking apparent extract loss, hop utilization efficiency, and Maillard reaction progression via EBC color kinetics
• Fermentation monitoring: real-time ABV and residual extract trends to determine optimal diacetyl rest termination and cold crash initiation
• Final product release testing: concurrent validation of alcohol content, bitterness balance (IBU:EBC ratio), and microbial stability indicators (pH, total acidity)
• Cider and fruit beer QA: quantification of malic acid degradation, SO₂ binding status, and fermentable sugar profiles without enzymatic assays
• Contract brewing compliance: generation of certified test reports meeting BRCGS Food Safety Issue 9 Annex 11 and Brewers Association Quality Standards

FAQ

Does the BRAUMEISTER require daily recalibration?
No. Factory-installed NIST-traceable calibrations remain stable for ≥12 months under routine use; annual verification with certified reference materials (CRM) is recommended per ISO/IEC 17025.

Can it analyze hazy or dry-hopped beers without filtration?
Yes. Its adaptive scattering correction algorithm compensates for Mie scattering effects up to 800 NTU, eliminating the need for centrifugation or membrane filtration.

Is method validation documentation available for regulatory audits?
Yes. Full validation packages—including specificity, linearity (R² ≥ 0.9992), LOD/LOQ, robustness, and inter-laboratory reproducibility data—are supplied with each unit and updated quarterly.

What maintenance is required beyond routine cleaning?
Only quarterly optical alignment verification and biannual density sensor zeroing using certified water standards; no consumables or lamp replacements are needed within the first 5 years.
