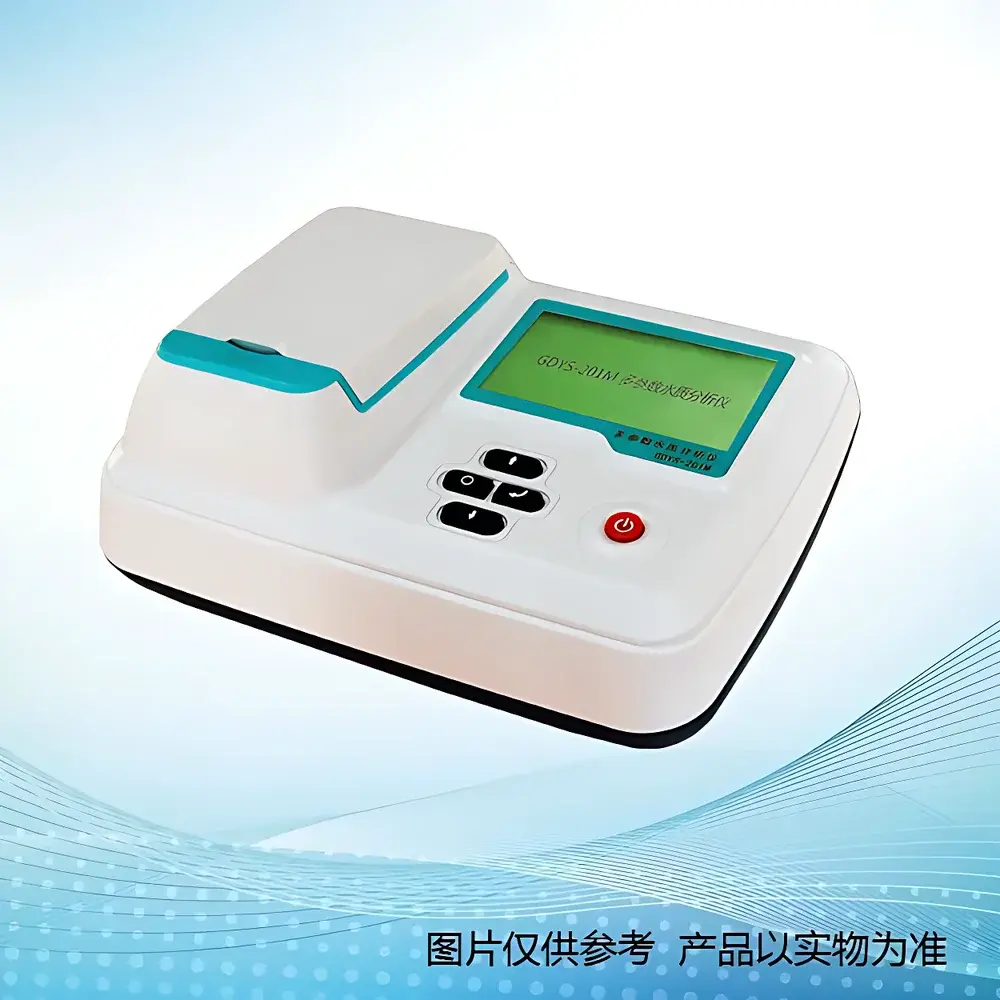

Jiada Xiaotianshe GDYS-201M Portable Multi-Parameter Water Quality Analyzer

Overview

The Jiada Xiaotianshe GDYS-201M is a field-deployable, microprocessor-controlled multi-parameter water quality analyzer engineered for rapid, on-site quantification of up to 65 physicochemical and contaminant parameters in drinking water, surface water, wastewater, seawater, and industrial process streams. Unlike benchtop spectrophotometric or electrochemical platforms, the GDYS-201M integrates standardized colorimetric, titrimetric, and potentiometric methodologies—each aligned with established Chinese national standards (GB/T series)—into a single handheld architecture. Its operational principle relies on reagent-specific chromogenic reactions (e.g., DPD for free chlorine, APDC for heavy metals), calibrated photometric detection across multiple wavelength bands (420 nm, 470 nm, 520 nm, 580 nm, 610 nm), and temperature-compensated electrode-based measurements (pH, ORP, conductivity, dissolved oxygen). The system supports both direct-read and titration-based assays, enabling precise quantification without laboratory-grade infrastructure. Designed for environmental technicians, municipal water operators, and emergency response teams, it delivers laboratory-comparable reproducibility under variable ambient conditions—within ±5% RSD for most parameters when operated per protocol.

Key Features

• Portable, battery-powered design with integrated rechargeable Li-ion pack (≥8 hours continuous operation)
• Large backlit monochrome LCD display with intuitive Chinese-language menu navigation and real-time graphical feedback
• Dual-mode measurement support: fixed-wavelength photometry (5 channels) and digital electrode interfaces (pH, DO, EC, TDS, salinity, temperature)
• Onboard memory stores ≥1,000 test records with timestamp, operator ID, location tag (via optional GPS module), and method versioning
• Pre-programmed calibration curves for all 65 parameters; user-accessible calibration verification and slope adjustment
• Integrated thermal block (0–120 °C, ±0.5 °C accuracy) for controlled digestion in COD_Mn, total phosphorus, and ammonia nitrogen assays
• USB 2.0 interface compliant with Windows OS for firmware updates and bulk data export to CSV or Excel-compatible formats
• Modular reagent kit architecture—each parameter-specific set includes pre-measured reagents, cuvettes, and standard solutions (50 determinations per kit)

Sample Compatibility & Compliance

The GDYS-201M accepts liquid samples ranging from 1.0 mL to 50 mL, accommodating raw, filtered, digested, or neutralized matrices per method requirements. It is validated for use with tap water, groundwater, river/lake water, treated effluent, swimming pool water, cooling tower water, and diluted seawater (salinity ≤28%). All analytical procedures conform to GB/T 5750.x (Standard Methods for Examination of Drinking Water), GB/T 12997–1991 (Water Quality—Determination of pH), GB/T 11893–1989 (Total Phosphorus), and GB/T 7475–1987 (Heavy Metals by Atomic Absorption—adapted for colorimetric equivalence). While not FDA 21 CFR Part 11 or ISO/IEC 17025 accredited out-of-the-box, its audit trail functionality (user log, calibration history, result modification timestamps) supports GLP-aligned documentation workflows in regulated environments where local regulatory acceptance of GB methods applies.

Software & Data Management

The included PC software (GDYS DataLink v3.2) provides full traceability: method selection, instrument configuration, batch-level calibration management, statistical reporting (mean, SD, CV%, confidence intervals), and customizable certificate generation. Raw absorbance values, electrode mV outputs, and calculated concentrations are stored with metadata including ambient temperature, humidity, and operator credentials. Audit logs record every parameter change, calibration event, and data export action—enabling compliance with internal QA protocols. Data export supports UTF-8 encoding for multilingual report generation and integrates with LIMS via delimited text import. Firmware updates preserve historical calibration coefficients and user-defined custom methods.

Applications

• Routine surveillance of municipal drinking water distribution systems (free/total chlorine, turbidity, pH, iron, manganese, fluoride)
• Wastewater treatment plant influent/effluent monitoring (COD_Cr/COD_Mn, NH₃-N, NO₂⁻-N, PO₄³⁻, total hardness, alkalinity)
• Environmental field campaigns assessing eutrophication (TP, TN, chlorophyll-a proxy via turbidity correlation), heavy metal contamination (Pb, Cd, Cr(VI), As, Hg), and emerging pollutants (formaldehyde, cyanuric acid, hydrazine)
• Industrial hygiene screening in food processing, pharmaceutical manufacturing, and power generation (cleaning agent residuals, biocide dosing verification, boiler feedwater purity)
• Disaster response and mobile lab deployment during flood or chemical spill events (rapid triage of cyanide, phenol, ClCN, ozone, residual oxidants)

FAQ

Is the GDYS-201M suitable for regulatory reporting under U.S. EPA or EU WFD requirements?
No—the instrument implements GB/T methods and is intended for use in jurisdictions recognizing Chinese national standards. For EPA-compliant analysis, refer to instruments validated against Standard Methods 2012 or EPA-approved methods (e.g., Method 334.0 for chlorine, Method 365.4 for phosphate).
Can third-party reagents be used with this analyzer?
Only reagents supplied by Jiada Xiaotianshe or certified partners are guaranteed to maintain accuracy and repeatability. Non-OEM reagents may invalidate calibration curves and compromise detection limits.
What is the typical maintenance interval for optical and electrode components?
Photometer LED sources require no scheduled replacement (rated >10,000 hours); cuvette pathlength verification is recommended quarterly. pH and DO electrodes should be cleaned and recalibrated before each sampling shift; membrane replacement every 3–6 months depending on sample fouling potential.
Does the device support external GPS or Bluetooth connectivity?
GPS is supported via optional USB-connected GNSS module (not included); Bluetooth is not implemented—data transfer is USB-only to ensure secure, deterministic file handling.
How is measurement uncertainty estimated for each parameter?
Uncertainty budgets follow GUM principles and incorporate contributions from reagent lot variability (±2%), photometric noise (±0.5% FS), temperature drift (±0.3% per °C), and operator technique (±3% RSD at low concentration extremes). Full uncertainty statements are available in the technical validation report (Order Code: GDYS-TR-201M-2024).
