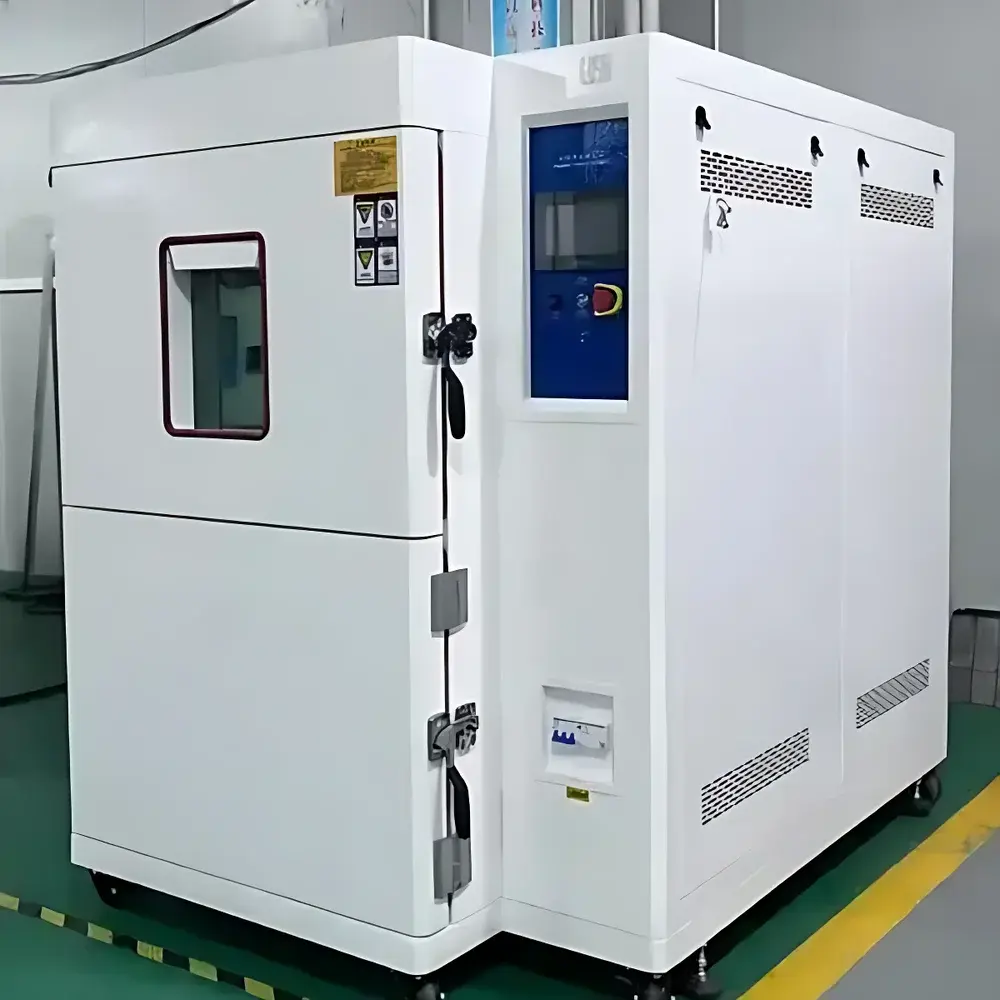

Jianhu JH-CTC Series Thermal Shock Test Chamber with Dual-Cooling Mode Switching Logic Optimization

Overview

The Jianhu JH-CTC Series Thermal Shock Test Chamber is engineered for high-fidelity simulation of rapid temperature transitions—typically between −65 °C and +180 °C—in accordance with ASTM D5229, IEC 60068-2-14, MIL-STD-810H Method 503.5, and GB/T 2423.22. Its core thermal management architecture integrates two independent cooling pathways: air-cooled condensation (fan-driven finned heat exchangers) and water-cooled condensation (closed-loop chilled water circuit). Unlike conventional fixed-threshold switching schemes, the JH-CTC’s control logic is designed to support algorithmic optimization—enabling adaptive mode selection based on real-time thermal load estimation, rather than static temperature setpoints alone. This architecture addresses fundamental limitations in transient thermal response, system stability during mode transition, and energy efficiency under variable-duty-cycle operation.

Key Features

• Multi-parameter dynamic switching logic supporting concurrent input from PT100 temperature sensors (±0.15 °C accuracy), thermocouple arrays, humidity transducers (±2 % RH), and current/vibration monitors on compressors, pumps, and blowers
• Modular hybrid heat rejection module integrating axial fans, copper-aluminum microchannel heat exchangers, and brazed-plate water-to-refrigerant evaporators—minimizing fluid inertia and pressure surge during mode transition
• Variable-frequency drives (VFDs) for both condenser fans and primary coolant pumps, enabling continuous modulation of airflow (0–12,000 m³/h) and water flow (0–15 L/min)
• Automated purge-and-drain subsystem with solenoid-controlled vent valves and gravity-assisted residual water evacuation—preventing freeze damage during cold-soak cycles and eliminating air entrapment in water circuits
• Embedded dual-core ARM Cortex-A53 controller running deterministic real-time OS (RTOS), compliant with IEC 61508 SIL2 for safety-critical thermal regulation functions

Sample Compatibility & Compliance

The JH-CTC accommodates test specimens up to 500 L internal volume (standard chamber) or 1,000 L (custom configuration), with uniformity maintained within ±1.0 °C across the working zone per ISO 16750-4 Annex B. It supports standard specimen mounting fixtures (e.g., DIN 40050-9 compliant trays) and accommodates non-metallic enclosures, PCB assemblies, optical modules, and hermetically sealed packages without requiring mechanical modification. All firmware and data logging comply with FDA 21 CFR Part 11 requirements for electronic records and signatures—including audit trail generation, user role-based access control, and immutable event timestamping. The system meets CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), RoHS 2011/65/EU, and is certified to ISO 9001:2015 for design and manufacturing processes.

Software & Data Management

Jianhu’s proprietary JH-TestControl v4.2 software provides closed-loop thermal trajectory planning, multi-channel data acquisition at 10 Hz sampling rate, and export-ready reporting in CSV, PDF, and XML formats compatible with LabVIEW, MATLAB, and JMP. The platform implements a time-synchronized event log that correlates thermal profiles with actuator status, sensor health flags, and power consumption metrics. For regulatory environments, optional GxP validation packages include IQ/OQ documentation templates, calibration traceability to NIST-traceable standards, and 21 CFR Part 11-compliant e-signature workflows. Remote monitoring via TLS-encrypted MQTT protocol enables integration into enterprise MES/SCADA systems—supporting predictive maintenance alerts triggered by deviation analysis of compressor discharge temperature gradients or pump motor current harmonics.

Applications

The JH-CTC serves mission-critical reliability testing across aerospace (DO-160G Section 4.9 thermal shock qualification), automotive electronics (AEC-Q200 stress screening), semiconductor packaging (JEDEC JESD22-A106B), and medical device sterilization validation (ISO 11137-1). Its optimized switching logic is particularly advantageous for accelerated life testing of MEMS inertial sensors, where repeated −40 °C ↔ +125 °C transitions induce cumulative thermo-mechanical fatigue; and for optoelectronic modules operating near glass transition thresholds, where overshoot-induced condensation must be avoided. Universities and national labs—including Tsinghua University, Harbin Institute of Technology, and CNRS-affiliated institutes—utilize the JH-CTC for materials science research involving polymer crystallinity evolution, solder joint intermetallic growth kinetics, and thin-film adhesion failure mechanisms under cyclic thermal strain.

FAQ

What distinguishes the JH-CTC’s switching logic from legacy thermal shock chambers?

It replaces binary temperature-threshold triggers with a physics-informed thermal load estimator that fuses real-time temperature derivative (dT/dt), refrigerant superheat, ambient humidity, and compressor power draw—enabling preemptive mode engagement before thermal error accumulates.

Can the system operate continuously in water-cooled mode only?

Yes—user-configurable operational modes include air-only, water-only, and auto-switching. Water-only operation requires connection to a chiller unit with minimum 15 °C inlet temperature and stable 3–5 bar supply pressure.

Is hardware retrofitting required to implement advanced control algorithms?

No—the embedded controller includes firmware-upgradable capability for LSTM-based thermal prediction models and PID gain scheduling routines, deployable via secure OTA update without field service intervention.

How does the system handle condensate management during rapid low-temperature transitions?

Integrated dew-point tracking and pre-chill sequencing activate drain heaters and purge fans prior to cold soak initiation, ensuring all moisture is evacuated from air paths and heat exchanger fins before sub-zero exposure.

Does Jianhu provide validation support for GLP/GMP-regulated environments?

Yes—qualified validation engineers offer full lifecycle support including URS review, risk assessment (FMEA), protocol execution, and final report sign-off aligned with ISO/IEC 17025 and Annex 11 expectations.
