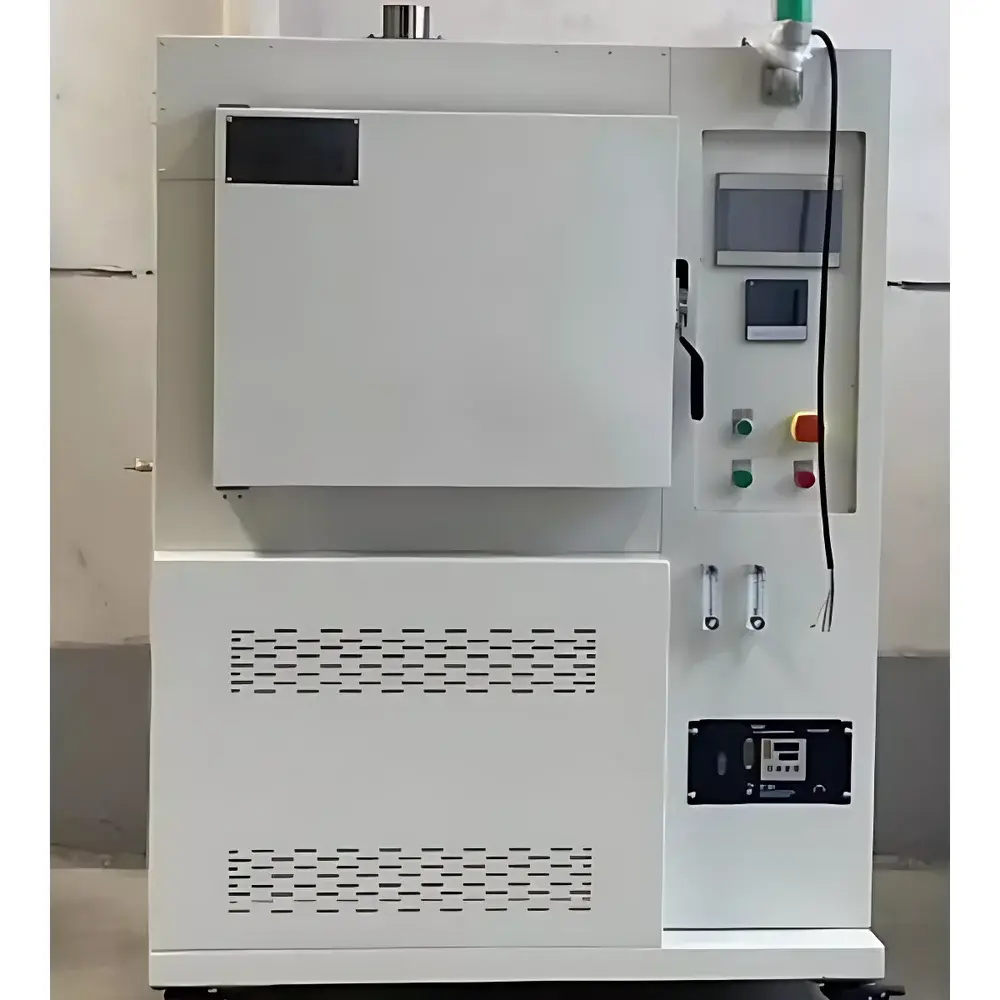

Jianhu JH-N2 Series High-Temperature Nitrogen-Purged Oven for Wafer & Semiconductor Packaging

Overview

The Jianhu JH-N2 Series High-Temperature Nitrogen-Purged Oven is an engineered thermal processing system designed specifically for critical pre-bake, post-encapsulation, and moisture removal steps in semiconductor wafer fabrication, IC packaging, and automotive-grade chip manufacturing. Operating on inert atmosphere control principles, the oven maintains a continuous nitrogen purge to suppress oxidation, minimize particle generation, and eliminate residual moisture—key requirements for high-reliability microelectronic device processing. Unlike general-purpose industrial ovens, the JH-N2 integrates Class 100 (ISO 5) cleanroom-compatible chamber construction with real-time O₂ concentration monitoring, precision temperature profiling (±0.5 °C uniformity), and programmable ramp/soak cycles compliant with JEDEC J-STD-033 and IPC-7530 standards. Its architecture supports both batch processing of 8″–12″ wafers and discrete carrier-based loading for QFN, BGA, and SiP packages—ensuring process repeatability across R&D, pilot-line, and high-volume production environments.

Key Features

• Class 100 (ISO 5) stainless-steel chamber with electropolished, seamless welded interior—minimizing particulate shedding and enabling ISO 14644-1-compliant cleaning protocols
• Integrated nitrogen purification system delivering sustained O₂ concentration ≤100 ppm (≤50 ppm optional), verified via built-in electrochemical O₂ sensor with NIST-traceable calibration
• Precision temperature control: 50 °C to 250 °C operating range; ±0.5 °C setpoint accuracy; ≤±1.0 °C uniformity across full working volume (ASTM E2203 validated)
• Programmable multi-segment thermal profiles with independent ramp rate control (0.1–10 °C/min), dwell time resolution down to 1 second
• Redundant safety architecture: dual independent overtemperature cut-offs, nitrogen flow interlock, door-open purge suspension, and real-time gas pressure monitoring
• Modular design supporting custom cavity dimensions (standard: 300 × 300 × 300 mm; scalable to 600 × 600 × 600 mm), quartz or ceramic tray options, and integration-ready I/O ports (RS485, Ethernet, dry contact)

Sample Compatibility & Compliance

The JH-N2 accommodates standard FOUPs, SMIF pods, metal carriers, and ceramic trays—compatible with 150 mm, 200 mm, and 300 mm silicon wafers, as well as leadframe-based discrete packages (QFP, SOIC, DFN). All internal materials comply with SEMI F57 (outgassing limits) and USP (extractables testing for polymer components). The system meets CE marking requirements (2014/30/EU EMC Directive, 2014/35/EU LVD Directive), conforms to ISO 9001:2015 quality management systems, and supports GLP/GMP documentation workflows—including electronic audit trails, user access levels, and 21 CFR Part 11–compliant data archiving when paired with optional software modules.

Software & Data Management

Equipped with Jianhu’s proprietary JH-ControlSuite™ v3.2 firmware, the oven provides intuitive touchscreen HMI with multilingual UI (English, Japanese, Korean, Simplified Chinese), real-time graphical trend logging, and CSV export of temperature, O₂ ppm, nitrogen flow rate, and chamber pressure. Optional Ethernet/IP connectivity enables integration into MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk) via Modbus TCP or OPC UA. Data integrity features include automatic timestamping, digital signature-enabled report generation, and encrypted local storage (16 GB onboard SSD) retaining ≥12 months of full-cycle logs. Firmware updates are delivered via secure HTTPS portal with SHA-256 verification.

Applications

• Pre-bake of photoresist-coated wafers prior to lithography (reducing standing wave effects and improving adhesion)
• Post-mold cure stabilization for epoxy-encapsulated ICs—preventing popcorning and wire bond lift during reflow
• Moisture desorption of moisture-sensitive devices (MSL 2a–6) per JEDEC J-STD-020 and J-STD-033
• Low-oxygen annealing of power semiconductor substrates (SiC, GaN) to preserve dopant profiles
• Automotive AEC-Q200 qualification baking for ADAS sensor modules and infotainment SoCs under extended thermal cycling conditions
• Research-scale thermal aging studies for advanced packaging materials (EMC, underfill, TIMs)

FAQ

Does the JH-N2 support validation documentation (IQ/OQ/PQ)?
Yes—Jianhu provides factory-verified IQ/OQ templates aligned with ASTM E2500 and Annex 15 guidelines. PQ execution support includes calibrated reference sensors and protocol review by certified validation engineers.

Can the oven be integrated into a Class 100 cleanroom environment?
Yes—the unit is rated for ISO Class 5 environments; optional HEPA-filtered recirculation mode and static-dissipative chassis grounding are available.

What nitrogen supply specifications are required?
Standard operation requires ≥99.999% purity N₂ at 0.4–0.6 MPa inlet pressure and ≥30 L/min flow rate; optional on-site nitrogen generator integration kits are available.

Is remote monitoring supported without additional hardware?
Yes—built-in Ethernet port enables web-based status viewing, alarm notification via SMTP/SNMP, and secure cloud sync (optional subscription service).

How is temperature uniformity verified across the chamber?
Each unit undergoes ASTM E2203-compliant 9-point mapping test at three load conditions (empty, 50% loaded, full load) prior to shipment; full calibration certificate included.
