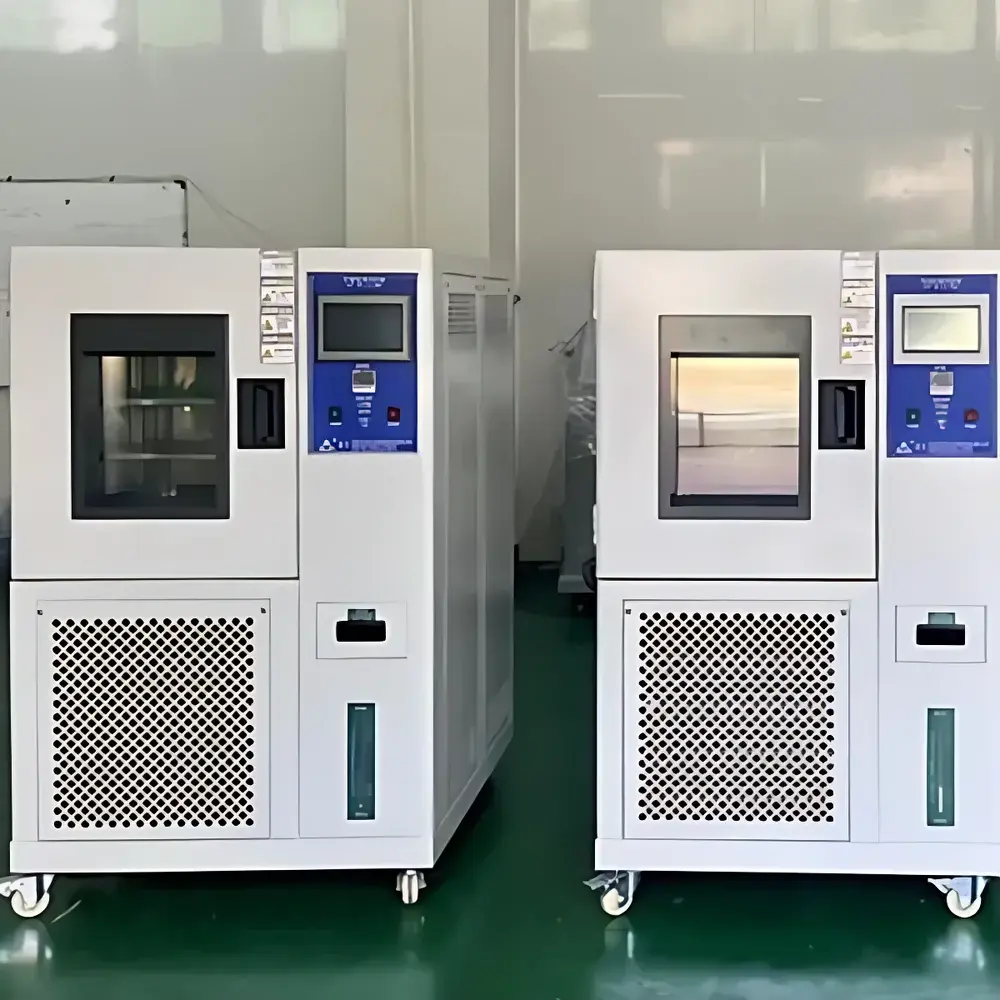

Jianhu JH-RTP Series Rapid Temperature Change Chamber

Overview

The Jianhu JH-RTP Series Rapid Temperature Change Chamber is an engineered environmental simulation system designed for accelerated reliability assessment under dynamic thermal stress conditions. It operates on the principle of forced-air convection combined with a dual-stage cascade refrigeration cycle and high-efficiency resistive heating elements, enabling precise, repeatable transitions between extreme temperature extremes. Unlike static thermal chambers, the JH-RTP series delivers controlled ramp rates up to 15 °C/min (typical, dependent on load and setpoint span), making it suitable for compliance testing against IEC 60068-2-14 (change of temperature), IEC 60068-2-38 (combined temperature/humidity cycling), and GB/T 2423.34—standards widely adopted in electronics qualification, automotive component validation, and aerospace hardware screening. Its architecture supports both single-step and multi-segment thermal profiles, facilitating test protocols such as HALT (Highly Accelerated Life Testing), ELT (Environmental Stress Screening), and qualification per MIL-STD-810G Method 503.4.

Key Features

• Temperature range spanning −70 °C to +150 °C, validated across full operational envelope using NIST-traceable PT100 sensors
• Dual-stage cascade compressor system with environmentally compliant R404A/R23 refrigerant blend, optimized for rapid cooldown without oil carryover or frost accumulation
• Explosion-proof configuration available (ATEX II 2G Ex db IIB T4 Gb / IECEx DBE22.0001X), meeting requirements for battery cell testing, solvent-based material evaluation, and hazardous area deployment
• Stainless steel 304 interior chamber and insulated double-wall construction ensure long-term corrosion resistance and thermal integrity
• Microprocessor-based controller with 7-inch color touchscreen interface, supporting profile programming, real-time trend display, alarm logging, and USB data export
• Onboard data logger stores ≥200,000 timestamped records (temperature, time, alarm status), compliant with GLP/GMP audit trail requirements
• Optional Ethernet/RS485 communication ports enable integration with MES, LIMS, or SCADA systems via Modbus TCP or ASCII protocol

Sample Compatibility & Compliance

The JH-RTP chamber accommodates diverse sample geometries—from PCB assemblies and semiconductor packages to EV battery modules and medical device enclosures—via customizable interior dimensions (100 L to 1000 L standard; non-standard builds supported). All units undergo factory calibration per ISO/IEC 17025-accredited procedures and are supplied with a Certificate of Conformance detailing traceability to national standards. The system meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and safety standards per IEC 61010-1. For regulated industries, optional features include 21 CFR Part 11-compliant electronic signatures, user access level management (admin/operator/guest), and encrypted audit logs. Validation documentation (IQ/OQ/PQ templates) is provided upon request to support FDA, ISO 13485, or IATF 16949 implementation.

Software & Data Management

Jianhu’s proprietary ChamberControl™ software (Windows-compatible, license-free) enables remote monitoring, automated report generation (PDF/CSV), and synchronized multi-chamber coordination. Data integrity safeguards include cyclic redundancy check (CRC) validation for all stored records, write-protection for historical datasets, and automatic backup to network drives or cloud storage (AWS S3 or Azure Blob). The system supports configurable alarm thresholds (deviation, rate-of-change, duration), email/SMS notification via SMTP gateway, and integration-ready APIs for custom dashboard development. All firmware updates are digitally signed and delivered through secure HTTPS channels to prevent unauthorized modification.

Applications

• Electronics: Thermal cycling of ICs, connectors, and flex circuits per JEDEC JESD22-A104D
• Automotive: Validation of ADAS sensors, power electronics, and battery management systems under ISO 16750-4
• Aerospace: Environmental screening of avionics housings and composite panels per RTCA DO-160 Section 4
• Energy Storage: Safety and performance testing of lithium-ion cells and modules under UN 38.3 thermal abuse protocols
• Pharmaceutical Packaging: Stability assessment of primary containers per ICH Q1A(R2) guidelines
• Academic Research: Controlled thermal stress experiments in materials science, polymer degradation, and MEMS reliability studies

FAQ

Does the JH-RTP chamber support programmable ramp-and-soak profiles?
Yes—up to 99 segments per program, with independent control of ramp rate, soak duration, and dwell temperature. Profile recall and editing are supported via touchscreen or ChamberControl™ software.

What certifications accompany standard delivery?
All units ship with CE marking, RoHS declaration, Factory Calibration Report, and compliance statement referencing IEC 60068-2-14 and GB/T 2423.34. Optional third-party certification (SGS, TÜV, UL) is available at additional cost.

Can the chamber be integrated into an existing laboratory automation framework?
Yes—Modbus TCP, RS485 ASCII, and OPC UA drivers are supported. API documentation and sample Python/C# code are provided for custom integration projects.

Is on-site installation and operator training included?
Standard delivery includes freight-inclusive shipping to destination port, on-site commissioning by certified field engineers, and two-day hands-on operator training covering calibration verification, preventive maintenance, and emergency shutdown procedures.

What is the warranty coverage and service response commitment?
12-month comprehensive warranty (parts and labor), extended 24-month coverage for refrigeration compressors and controller hardware. Technical support is available 24/7; remote diagnostics response within 1 hour; on-site engineer dispatch guaranteed within 48 business hours for critical failures.
