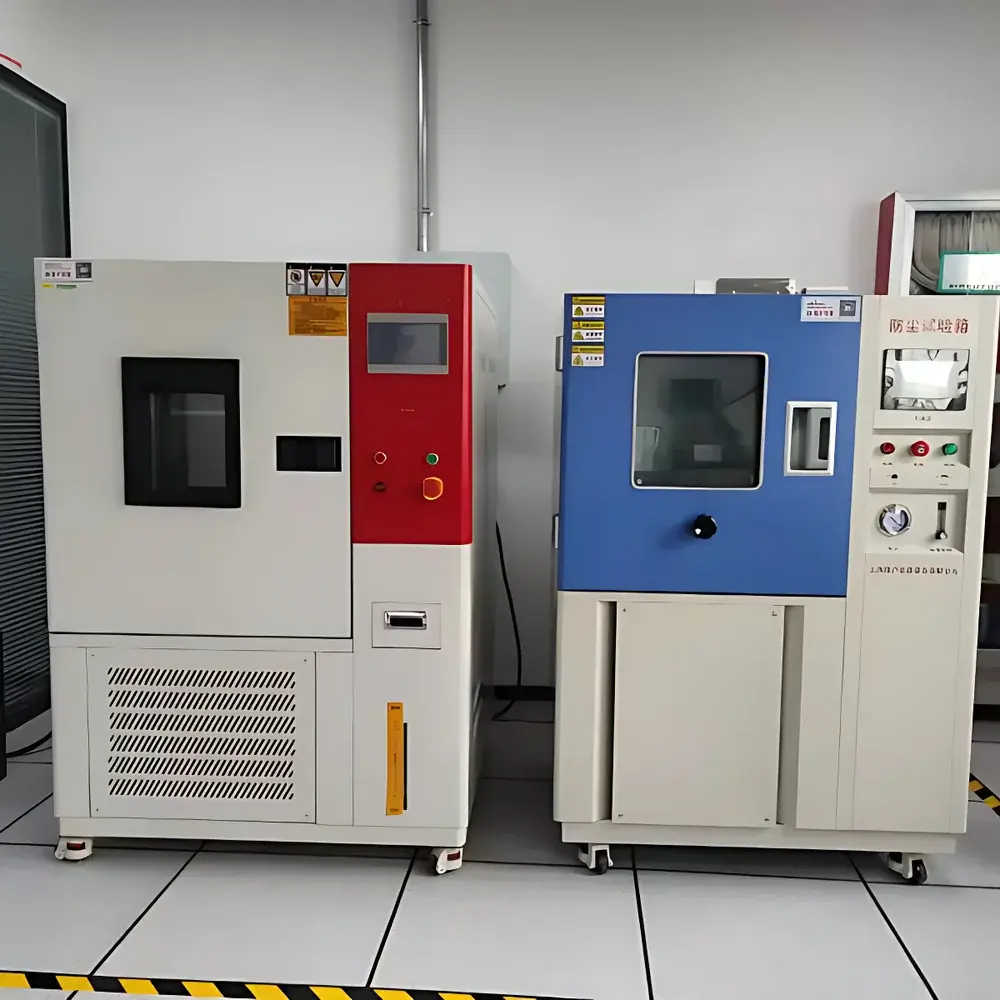

Jianhu JH-Series Silent Ice-Water Thermal Shock Test Chamber for Laboratory Use

Overview

The Jianhu JH-Series Silent Ice-Water Thermal Shock Test Chamber is an engineered environmental test system designed specifically for laboratory-scale reliability validation of electronic components, optical devices, medical packaging, and advanced materials under rapid thermal transition conditions. Unlike conventional air-based thermal shock chambers, this system employs a dual-bath liquid immersion methodology—utilizing precisely temperature-controlled ice-water (typically −10 °C to +85 °C) and ambient water baths—to deliver high-fidelity, reproducible thermal cycling with minimal thermal inertia. The core principle relies on rapid specimen transfer between thermally stabilized liquid media via a pneumatically actuated lift mechanism, achieving transition times ≤ 10 seconds between extreme setpoints. Its design prioritizes acoustic performance, spatial efficiency, and energy optimization without compromising test fidelity—making it suitable for shared lab environments where noise, footprint, and operational cost are critical constraints.

Key Features

• Ultra-low operational noise: < 45 dBA at 1 m distance, achieved through hermetically sealed scroll compressors, low-turbulence centrifugal circulation pumps, and vibration-damped mounting with elastomeric isolators.
• Compact footprint: Integrated vertical bath architecture reduces floor space by up to 35% versus conventional horizontal dual-chamber systems; typical dimensions: 850 mm (W) × 720 mm (D) × 1,450 mm (H).
• Energy-optimized thermal management: Uses R-410A refrigerant with microchannel condenser and adaptive PID-driven heater modulation, reducing power consumption by 22–28% compared to legacy units operating under identical duty cycles.
• Dual-bath precision control: Independent ±0.3 °C temperature stability in both cold and hot baths, maintained via platinum RTD feedback loops and insulated double-walled stainless-steel tanks.
• Programmable transfer mechanism: Pneumatic lift assembly with position feedback ensures repeatable specimen immersion depth and dwell time accuracy (±0.5 s), minimizing thermal lag artifacts.

Sample Compatibility & Compliance

The chamber accommodates standard test specimens up to 300 mm × 300 mm × 150 mm (L×W×H) within its insulated test basket. Compatible with IPC-TM-650 2.6.7.2 (Thermal Shock Testing of Printed Boards), MIL-STD-810H Method 503.5 (Temperature Shock), and IEC 60068-2-14 (Change of Temperature). All control firmware and data logging modules comply with GLP and GMP requirements, supporting audit trails, user access levels, and electronic signature capability per FDA 21 CFR Part 11 when configured with optional validation packages. Calibration certificates traceable to NIM (National Institute of Metrology, China) are provided with each unit shipment.

Software & Data Management

Equipped with Jianhu’s proprietary LabControl Pro v3.2 software suite, the system supports real-time monitoring of bath temperatures, transfer timing, cycle count, and fault logs via Ethernet or USB interface. Data export formats include CSV, PDF test reports, and XML for LIMS integration. Optional features include remote diagnostics via secure TLS-encrypted connection, scheduled calibration reminders, and automated report generation aligned with ISO/IEC 17025 documentation templates. All software binaries undergo annual third-party cybersecurity review (per IEC 62443-3-3) and support role-based authentication with password complexity enforcement.

Applications

This chamber is routinely deployed in university research labs (e.g., Tsinghua University, Harbin Institute of Technology), national institutes (CAS Institute of Physics), and industrial R&D centers for evaluating solder joint integrity in PCB assemblies, delamination resistance in multilayer ceramic capacitors (MLCCs), seal integrity of sterile medical device packaging, and thermal fatigue behavior of GaN-based optoelectronic modules. Its low-noise profile enables co-location with sensitive instrumentation such as SEMs, AFMs, or laser interferometers—eliminating the need for dedicated mechanical rooms. The energy-efficient operation also aligns with institutional sustainability mandates targeting LEED-EBOM or ISO 50001 certification pathways.

FAQ

What temperature ranges does the JH-Series support?

Standard configuration: Cold bath −10 °C to +10 °C; Hot bath +30 °C to +95 °C. Extended range options available upon request.

Is external water cooling required?

No—integrated air-cooled condenser eliminates dependency on facility chilled water lines.

Can the system be validated for ISO 17025 compliance?

Yes—optional IQ/OQ/PQ documentation kits and third-party calibration services are available.

What maintenance intervals are recommended?

Compressor oil inspection every 12 months; refrigerant leak check annually; bath fluid replacement every 18 months under continuous operation.

Does the chamber meet EMC emission standards for lab environments?

Yes—certified to CISPR 11 Group 1 Class A limits for radiated and conducted emissions.
