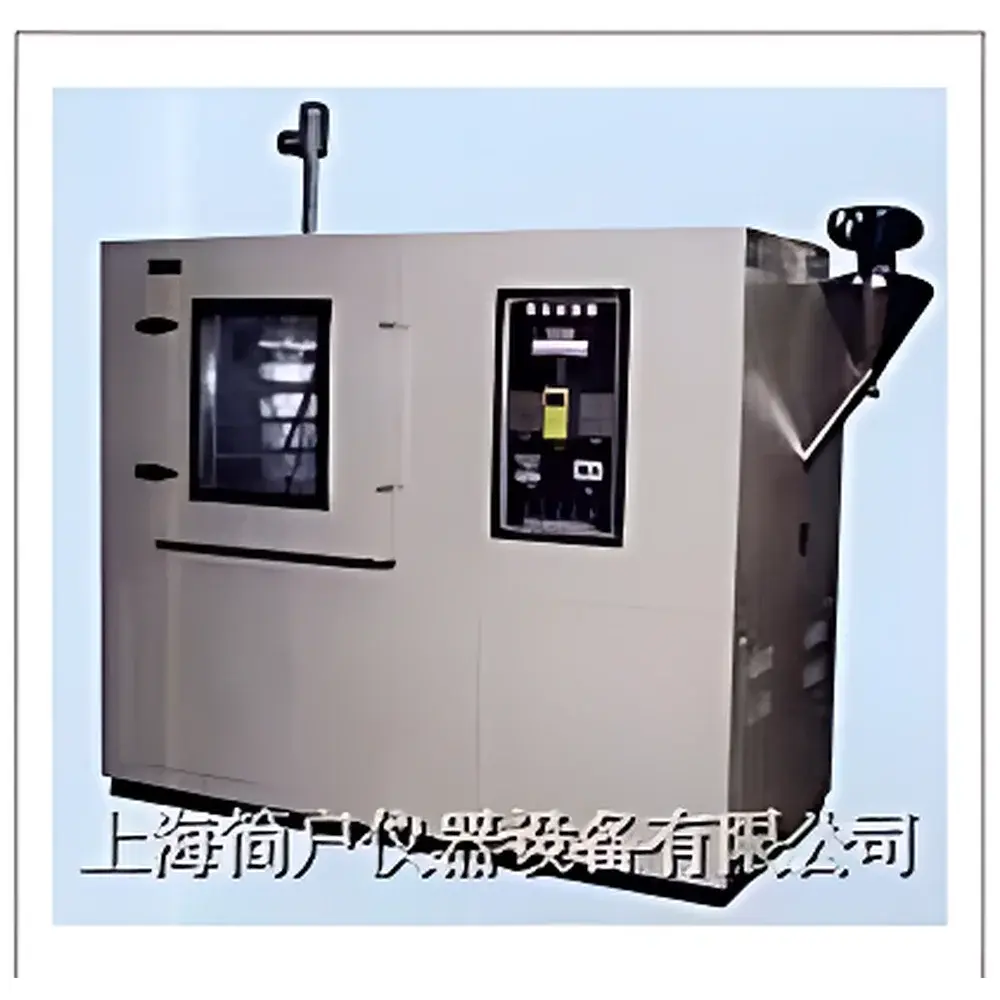

Jianhu JHF-1500 Ingress Protection Dust Test Chamber (IP5X/IP6X Compliant)

Overview

The Jianhu JHF-1500 Ingress Protection Dust Test Chamber is an engineered environmental simulation system designed to evaluate the dust ingress resistance of electrical enclosures, automotive components, consumer electronics, and industrial equipment in accordance with IEC 60529 (IP Code), ISO 20653, and GB/T 4208. It operates on the principle of controlled turbulent suspension and directional particulate impingement—using calibrated silica-based test dust (ISO 12103-1 A2 Fine Test Dust or equivalent) circulated under regulated airflow velocity, concentration, and distribution patterns. Unlike static dust settling chambers, the JHF-1500 integrates programmable air-handling subsystems—including centrifugal blowers, cyclonic separators, and adjustable nozzles—to replicate real-world exposure conditions such as desert windblown sand, factory-floor airborne particulates, and off-road vehicle underhood environments. Its dual-blow configuration (top-down and bottom-up) enables comprehensive evaluation of sealing integrity across multiple orientation-dependent entry paths, supporting both IP5X (dust-protected) and IP6X (dust-tight) validation protocols.

Key Features

• Robust stainless-steel chamber construction with electrostatically coated exterior and sealed observation window for real-time visual monitoring without compromising containment integrity.
• Configurable airflow direction: independent top-blow and bottom-blow modes, each with adjustable nozzle arrays and flow regulators to meet ISO 20653 Annex C requirements for directional dust projection.
• Integrated temperature control module (RT+10°C to 75°C, optional) enabling combined thermal-dust stress testing per MIL-STD-810H Method 510.7 and automotive OEM specifications (e.g., VW TL 82003).
• Precision-engineered dust dispersion system utilizing a calibrated vibratory feeder and pneumatic suspension manifold to maintain stable dust concentration between 2–4 kg/m³ over extended test durations (up to 8 hours continuous operation).
• Compliance-grade sieve assembly: stainless-steel mesh with nominal 50 µm wire diameter and 75 µm center-to-center spacing, traceably aligned to ISO 12103-1 particle size distribution standards.
• Real-time monitoring interface with digital display of airflow velocity (m/s), chamber temperature (°C), and elapsed test time; RS-485 communication port for external SCADA integration.

Sample Compatibility & Compliance

The JHF-1500 accommodates samples up to 1000 mm (W) × 1500 mm (D) × 1000 mm (H), including large-format enclosures, EV battery housings, lighting assemblies, and agricultural machinery control units. Its internal volume (1.5 m³) exceeds minimum chamber size recommendations defined in IEC 60529 Annex B for IP6X validation. All operational parameters—including dust mass concentration, particle suspension dynamics, and airflow uniformity—are verifiable via third-party calibration reports (traceable to NIM or CNAS-accredited labs). The system supports full audit trails required under ISO/IEC 17025 and GLP-compliant testing workflows, with optional data logging compliant with FDA 21 CFR Part 11 when paired with validated software packages.

Software & Data Management

While the base JHF-1500 operates via embedded microcontroller with local parameter setting, optional PC-based control software (Jianhu DustTest Suite v3.2) provides enhanced functionality: automated test sequencing (predefined IP5X/IP6X profiles), real-time graphing of temperature and airflow stability, event-triggered image capture via integrated HD camera, and exportable CSV/PDF test reports containing timestamped metadata, operator ID, calibration certificate references, and pass/fail determinations per IEC 60529 Clause 14. Audit logs record all parameter modifications, start/stop commands, and alarm events with user authentication—ensuring full traceability for regulatory submissions and internal quality audits.

Applications

• Validation of IP ratings for outdoor LED luminaires, solar inverters, and telecom cabinets exposed to arid or industrial environments.
• Pre-certification dust resistance testing for automotive ECUs, ADAS sensors, and charging connectors under SAE J2340 and UNECE R100 requirements.
• Reliability screening of medical device enclosures (e.g., portable diagnostic monitors) subjected to hospital maintenance corridor dust exposure.
• Material compatibility studies evaluating gasket degradation, filter clogging kinetics, and lubricant contamination under cyclic dust loading.
• Research applications in aerosol physics, including particle deposition efficiency mapping and boundary layer interaction analysis on complex geometries.

FAQ

Does the JHF-1500 comply with IEC 60529 for official IP6X certification testing?
Yes—when operated with certified A2 test dust, calibrated mesh, and documented procedural adherence, the JHF-1500 meets all physical and methodological requirements for IP6X verification. Final certification remains the responsibility of accredited third-party laboratories.
Can the chamber be used for combined temperature-dust testing?
Yes—the optional temperature control module enables simultaneous thermal and particulate stress application, supporting test plans aligned with MIL-STD-810H Method 510.7 and VDA 238-100.
What dust type is recommended for routine qualification?
ISO 12103-1 A2 Fine Test Dust is the standard reference material; alternative dusts (e.g., Arizona Road Dust) require prior correlation studies per ISO 16232.
Is remote monitoring supported?
Standard RS-485 interface allows integration with building management systems or centralized lab monitoring platforms; Ethernet/WiFi modules available as factory-installed options.
What maintenance intervals are specified for long-term reliability?
Daily filter inspection, bi-weekly cyclone cleaning, and annual blower bearing lubrication per the manufacturer’s Maintenance Logbook (included with shipment).
