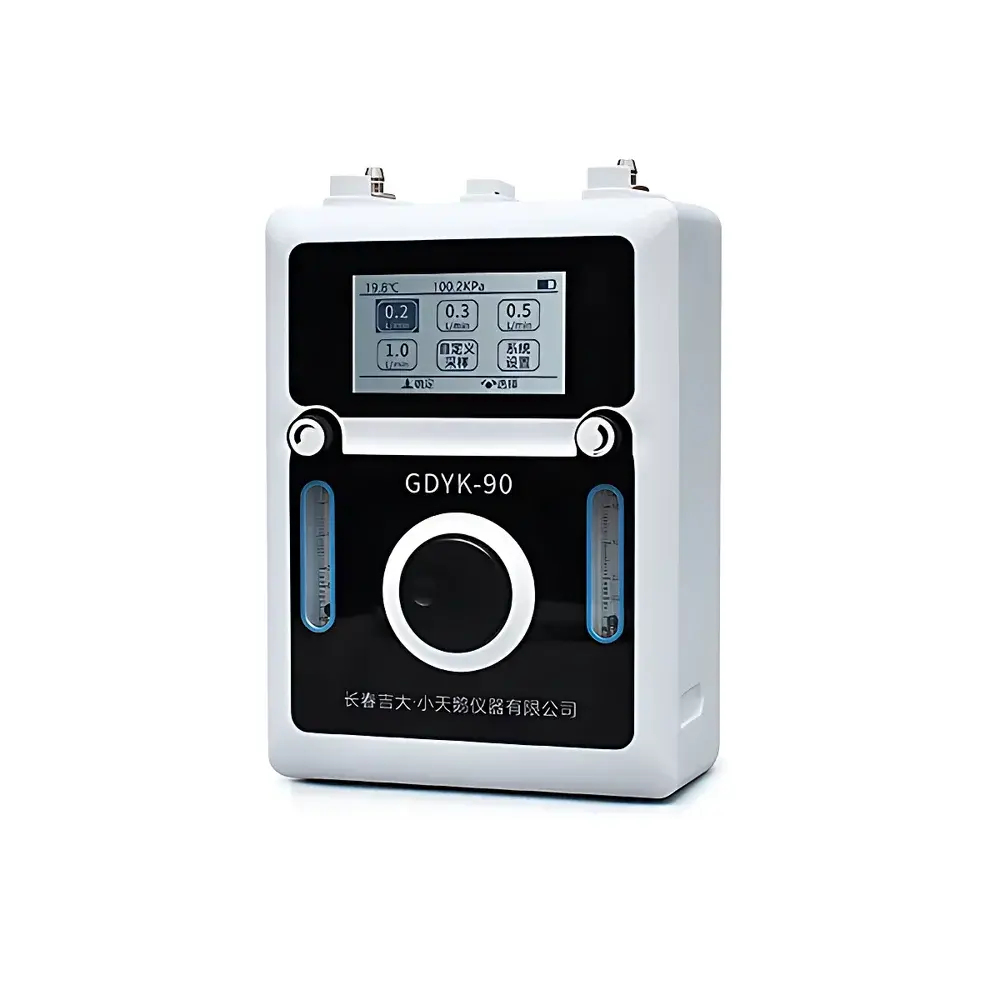

JiDa Xiaotian’e GDYK-90 Dual-Channel Ambient Air Sampler

Overview

The JiDa Xiaotian’e GDYK-90 Dual-Channel Ambient Air Sampler is an engineered solution for time-weighted, low-flow active sampling of airborne contaminants in occupational and ambient environments. Designed in accordance with the fundamental principles of volumetric gas sampling—where a known flow rate is maintained across a calibrated filter or sorbent tube over a defined duration—the GDYK-90 enables quantitative collection of particulate matter (e.g., total suspended particulates, respirable dust) and gaseous analytes (e.g., formaldehyde, benzene, sulfur dioxide) for subsequent laboratory analysis via gravimetric, spectrophotometric, or chromatographic methods. Its dual independent sampling channels operate simultaneously yet separately, allowing parallel collection under identical or differing flow conditions—critical for comparative exposure assessment, method validation, or co-sampling of complementary analytes.

Key Features

• Dual-channel architecture with fully independent flow control, real-time monitoring, and individual calibration—eliminating cross-channel interference and supporting ISO 13137-compliant personal exposure sampling protocols.
• Precision electromechanical flow regulation within 0.1–1.5 L/min range, achieving ≤2% flow repeatability and ≤5% stability over 8-hour continuous operation—meeting NIOSH Manual of Analytical Methods (NMAM) performance thresholds for low-flow samplers.
• Integrated environmental sensors provide concurrent display of ambient temperature (±2 °C) and atmospheric pressure—enabling automatic standard volume (STP: 25 °C, 101.3 kPa) correction per EPA Method TO-15 and ISO 16000-2 requirements.
• High-contrast dot-matrix LCD with user-configurable backlight and auto-dimming; readable under direct sunlight and compatible with gloved operation in field conditions.
• Programmable sampling parameters including start delay (0–999 min, 1 s resolution), preset volume termination (1–50 L), and customizable auto-shutdown timeout after inactivity—enhancing protocol adherence and operator efficiency.
• 9600 mAh rechargeable lithium-ion battery delivers ≥8 hours of uninterrupted dual-channel sampling at 1.0 L/min per channel—validated per IEC 62133 safety standards and suitable for full-shift monitoring without mid-shift battery swaps.

Sample Compatibility & Compliance

The GDYK-90 supports standard 37-mm and 47-mm diameter filter cassettes (e.g., PVC, mixed cellulose ester, quartz fiber), as well as thermal desorption tubes (e.g., Tenax TA, Carbopack B/C) and impinger-based liquid absorbent media. Its flow accuracy and stability align with ASTM D1357 (sampling plan development), ISO 7708 (particle size-selective inlet compatibility), and OSHA ID-121/NIOSH 5515 for respirable dust sampling. While not intrinsically certified for hazardous locations, its robust housing and low-power electronics meet IP54 ingress protection for outdoor and industrial site use. Data logging and parameter configuration comply with GLP documentation expectations, though native audit trail functionality requires external configuration management.

Software & Data Management

The GDYK-90 operates as a standalone field instrument with no proprietary PC software dependency. All operational parameters—including flow setpoints, sampling duration, delay timers, and battery status—are configured and monitored directly via intuitive rotary encoder interface. Final sampling records (start time, stop time, actual flow average, temperature, pressure, calculated standard volume) are retained in non-volatile memory and viewable on-device. For laboratory integration, users may manually transcribe metadata into LIMS or electronic lab notebooks compliant with 21 CFR Part 11 when paired with documented procedural controls. Firmware updates—when available—are performed via USB-C connection using vendor-provided utilities under controlled change management.

Applications

• Occupational hygiene surveys in metallurgy, mining, foundry, power generation, and chemical manufacturing facilities—supporting OEL verification per ACGIH TLVs® and EU Directive 2004/37/EC.
• Indoor air quality (IAQ) assessment in newly renovated buildings, schools, and healthcare facilities—targeting VOCs, aldehydes, and PM₂.₅ associated with building materials and adhesives.
• Baseline ambient air monitoring near industrial perimeters or transportation corridors—used in conjunction with fixed-site networks for trend analysis and regulatory reporting.
• Method validation studies requiring side-by-side comparison of two sampling media or flow rates under identical environmental conditions.
• Epidemiological field campaigns where portability, battery longevity, and dual-sample redundancy are operationally decisive.

FAQ

Does the GDYK-90 support mass flow control compensation for temperature and pressure variations?

Yes—it continuously measures ambient temperature and pressure, and automatically calculates and displays the sampled volume corrected to standard temperature and pressure (25 °C, 101.3 kPa).
Can both channels be programmed with different flow rates and durations simultaneously?

Yes—each channel features independent flow setting, timer configuration, and delay initiation, enabling heterogeneous sampling protocols.
Is the device compatible with conductive sampling media for static-sensitive environments?

The unit itself is not grounded for static dissipation; users must implement external grounding straps and antistatic tubing when sampling volatile organic compounds in low-humidity settings.
What maintenance is required to ensure long-term flow accuracy?

Annual recalibration against a NIST-traceable primary standard (e.g., bubble meter or dry calibrator) is recommended; filter cassette holder seals and flow path gaskets should be inspected quarterly.
Does the GDYK-90 meet EPA or EU regulatory acceptance criteria for compliance monitoring?

It satisfies technical performance specifications referenced in EPA Compendium Method TO-11A and EN 13670 for low-flow active sampling; however, formal regulatory approval depends on local accreditation of the full analytical method—including sample handling, transport, and lab analysis.
