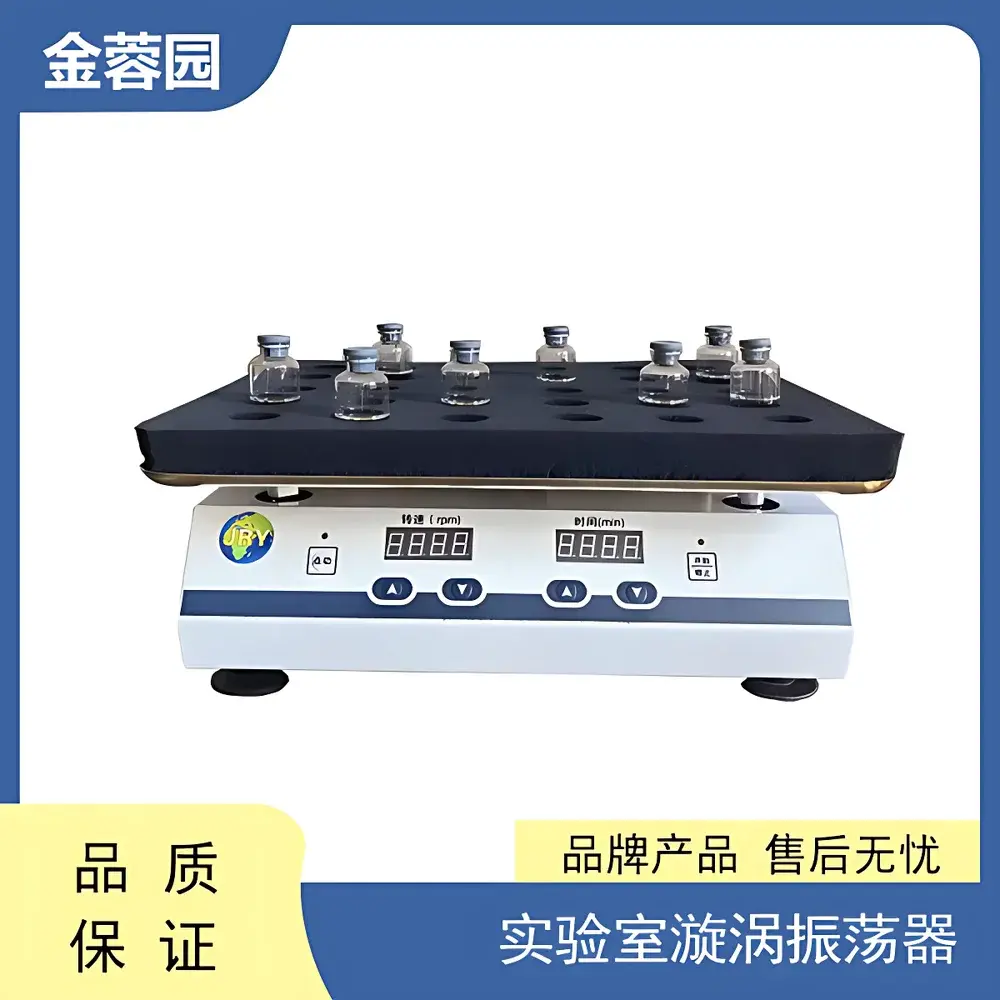

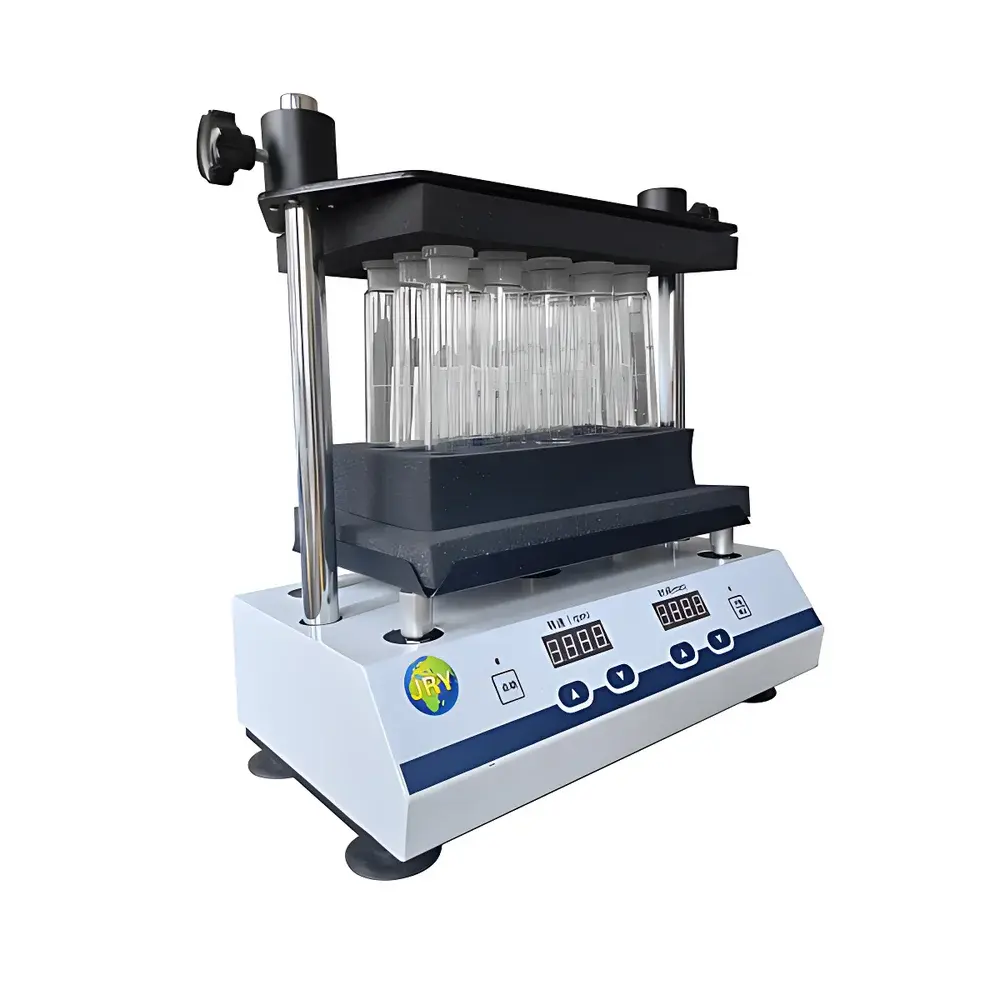

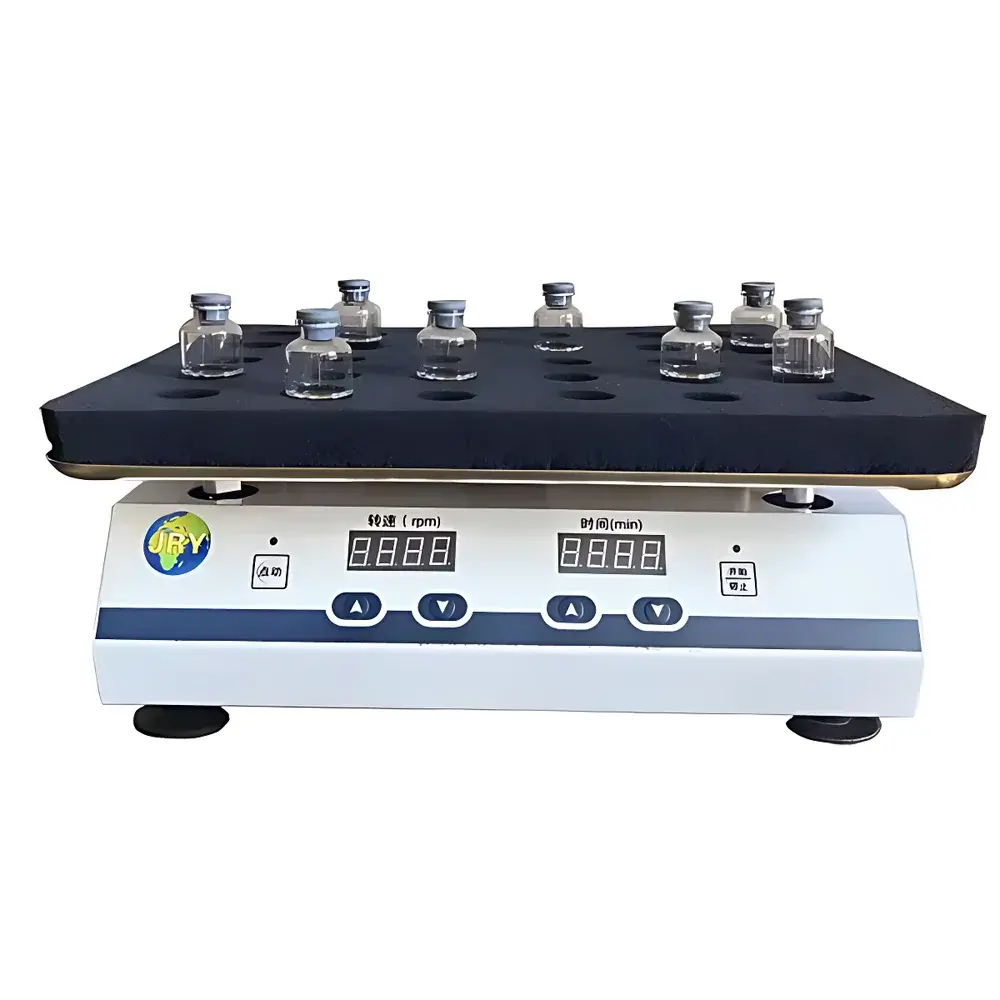

Jingrongyuan JRY-DXW Vortex Mixer

Overview

The Jingrongyuan JRY-DXW Vortex Mixer is an entry-level yet highly reliable benchtop vortex shaker engineered for consistent, reproducible sample agitation in life science, pharmaceutical, and academic laboratories. It operates on the principle of orbital oscillation—generating controlled circular motion via an eccentric drive mechanism—to induce rapid fluid mixing within tubes and vials. Unlike centrifugal or magnetic stirrers, this device delivers high-frequency mechanical energy directly to the sample container, enabling efficient suspension of particulates, dissolution of powders, homogenization of viscous solutions, and initiation of enzymatic or binding reactions. Its compact footprint, corrosion-resistant steel housing, and low-noise motor make it suitable for placement inside biosafety cabinets, laminar flow hoods, or crowded benchtop environments where space and acoustic performance are critical constraints.

Key Features

• Three operational modes: continuous run, momentary touch-activation (ideal for quick checks), and programmable timer-based operation (0–99 min, 1-min increments)
• Precisely adjustable speed control from 500 to 2500 rpm with real-time digital readout via PID-regulated display—ensuring repeatable rotational velocity across experiments
• 6 mm amplitude reciprocating oscillation optimized for uniform energy transfer across common tube formats including 0.5 mL, 1.5 mL, 2.0 mL, 15 mL, and 50 mL conical tubes
• Interchangeable foam-insert tube holders—designed for secure grip without slippage or tube deformation—support multi-size compatibility without tooling or calibration
• Low-noise brushless DC motor (<45 dB[A] at 1 m distance) combined with internal damping mounts to minimize vibration transmission to adjacent equipment
• Powder-coated steel chassis provides structural rigidity, chemical resistance against common lab solvents, and long-term dimensional stability under routine use

Sample Compatibility & Compliance

The JRY-DXW accommodates standard microcentrifuge tubes, PCR strips, culture tubes, and small-volume vials without requiring adapters. Its foam-based holder system ensures secure retention during high-speed operation while preventing cross-contamination between runs. The unit complies with IEC 61010-1:2010 safety standards for electrical equipment used in laboratory environments. While not certified for GMP or GLP-regulated production workflows, its consistent performance and traceable speed/timing parameters support documentation requirements for SOP-driven quality control labs operating under ISO/IEC 17025 frameworks. No hazardous materials are used in construction; all plastics meet RoHS Directive 2011/65/EU restrictions.

Software & Data Management

This analog-digital hybrid instrument does not incorporate embedded software or network connectivity. All settings—including speed, mode, and timer—are configured manually via front-panel controls with immediate visual feedback on the LED display. For laboratories requiring audit trails, users may integrate external logging devices (e.g., USB data loggers or camera-based time-lapse recording) to capture operational timestamps and duration. The absence of firmware eliminates cybersecurity risks associated with connected lab instruments and simplifies validation protocols in regulated settings where change control must be minimized.

Applications

• Biological sample preparation: resuspension of cell pellets, mixing of lysis buffers with tissue homogenates, and dispersion of lyophilized reagents
• Clinical diagnostics: uniform blending of whole blood samples prior to serum separation or nucleic acid extraction
• Pharmaceutical QA/QC: dissolution testing of solid dosage forms, dilution series preparation, and excipient dispersion in formulation development
• Academic teaching labs: demonstration of kinetic mixing principles, viscosity comparisons, and enzyme reaction kinetics under controlled agitation
• Environmental testing: homogenization of soil suspensions or waterborne particulate samples prior to filtration or spectrophotometric analysis

FAQ

Is the JRY-DXW compatible with glass test tubes?

Yes—when used with appropriate foam inserts designed for cylindrical glassware, though prolonged high-speed operation (>2000 rpm) with narrow-diameter glass tubes is not recommended due to risk of resonance-induced fracture.
Can the timer function be disabled to allow indefinite continuous operation?

Yes—the timer can be bypassed by selecting “Continuous” mode; no automatic shutdown occurs unless manually interrupted.
Does the unit include calibration documentation or traceable speed verification?

No factory-issued calibration certificate is provided; however, speed accuracy is maintained within ±3% of setpoint across the full range, verified during final assembly using NIST-traceable tachometry.
What maintenance is required for long-term reliability?

Routine cleaning of the platform surface and foam holders with 70% ethanol; annual inspection of motor mount integrity and display responsiveness is advised for installations operating >8 hrs/day.
Is the JRY-DXW suitable for use with hazardous or volatile solvents?

The unit is rated IP20 and not explosion-proof; it must be operated outside fume hoods when handling flammable or toxic substances—only non-volatile aqueous or buffer-based solutions are recommended for direct use on the platform.
