Jiubin JB-99 Pneumatic Cylinder Fatigue Testing System
| Brand | Jiubin Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Model | JB-99 |
| Pricing | Available Upon Request |
| Test Medium | Water or Oil |
| Maximum Pulse Pressure | 0–100 MPa (adjustable) |
| Pressure Control Accuracy | ±0.5% FS |
| Pulse Frequency Range | 0–15 cycles/min (adjustable) |
| Pressure Waveform | Square or Trapezoidal (customizable per user specification) |
| Test Medium Temperature Range | Ambient to 130 °C |
| Number of Test Stations | 3 |
Overview

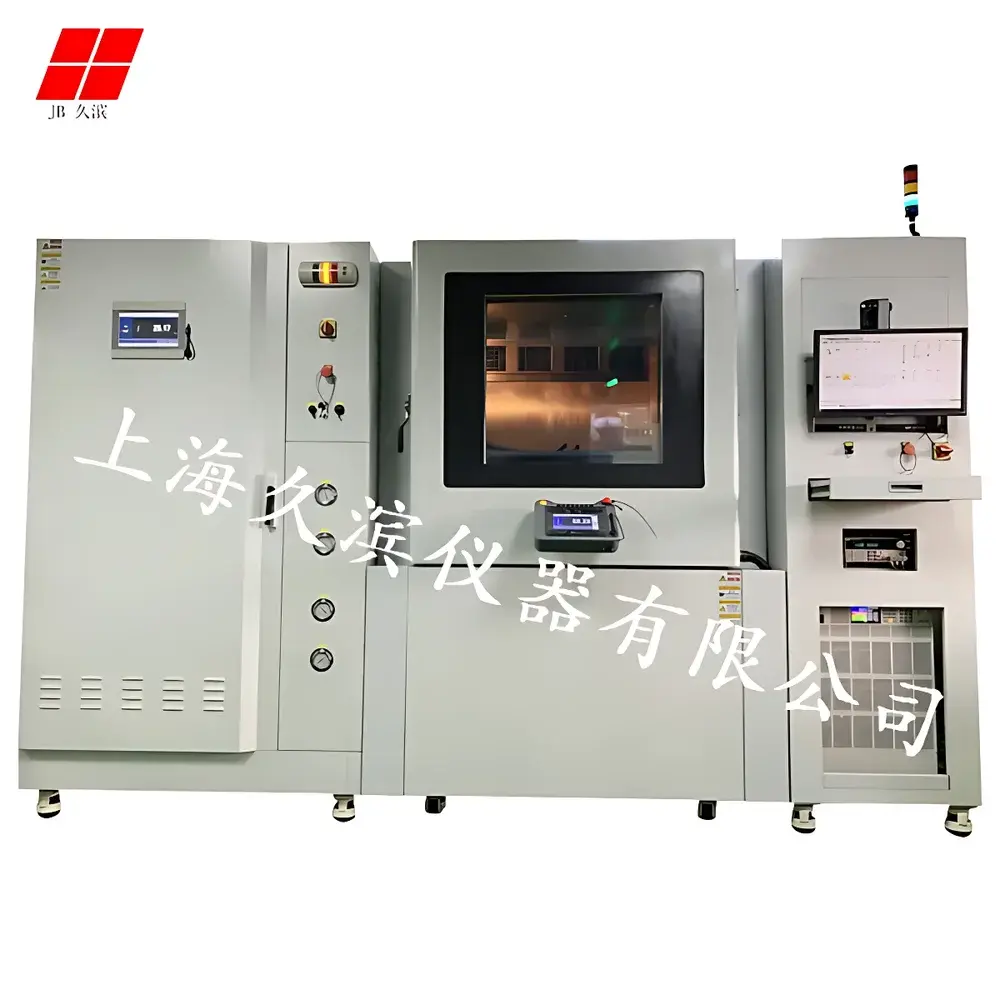

The Jiubin JB-99 Pneumatic Cylinder Fatigue Testing System is an engineered test platform designed for high-integrity pressure cycling validation of refillable compressed gas cylinders used across industrial, transportation, medical, and emergency response applications. It operates on the principle of controlled hydraulic or pneumatic pressure pulsation—applying repeated cyclic loading to simulate long-term operational stress under realistic service conditions. The system complies with core fatigue life assessment methodologies defined in GB/T 9252, which specifies procedures for determining the number of pressure cycles a cylinder can withstand before structural failure or leakage occurs. Unlike static burst testing, this dynamic approach captures progressive material degradation, weld integrity loss, composite delamination (in filament-wound units), and liner fatigue—critical failure modes not detectable via single-point pressure hold tests.
Key Features
- Triple-station independent test configuration enables concurrent evaluation of up to three cylinders under identical or individually programmed pressure profiles—improving throughput while maintaining traceability per unit.
- High-fidelity pressure control architecture delivers stable pulse amplitude within ±0.5% full-scale accuracy across the entire 0–100 MPa range, ensuring repeatability required for regulatory submission and comparative lifecycle benchmarking.
- Programmable waveform generation supports square and trapezoidal pressure transitions, allowing users to emulate real-world filling/venting dynamics—including ramp-up time, dwell duration, and decompression rate—as defined in ISO 11439 and ECE R110 Annex 6.
- Integrated temperature-controlled fluid loop maintains test medium (water or oil) between ambient and 130 °C, enabling accelerated aging studies under elevated thermal stress—a key requirement for LNG and hydrogen storage cylinder qualification per ISO 15869 and SAE J2579.
- Rugged stainless-steel frame, explosion-resistant containment housing, and redundant safety interlocks meet CE machinery directive requirements and support integration into certified Class I Division 2 hazardous locations when configured with intrinsically safe instrumentation.
Sample Compatibility & Compliance
The JB-99 accommodates cylindrical pressure vessels ranging from 0.5 L to 100 L internal volume, including seamless steel, aluminum alloy, Type III (metal liner + fiber wrap), and Type IV (polymer liner + carbon fiber composite) constructions. It is validated for testing respiratory air cylinders (EN 144-3), CNG vehicular tanks (GB 17258, ISO 11439), LPG domestic cylinders (GB 5842), fire suppression containers (GB 4351), and hydrogen service vessels (GB/T 35544). All test sequences adhere to documented procedures aligned with GB/T 9252, with audit-ready cycle logging compliant with GLP principles. Optional calibration certificates traceable to CNAS-accredited laboratories are available upon request.
Software & Data Management
The system runs on embedded real-time control firmware with optional Windows-based supervisory software (JB-FatigueSuite v3.2). This interface provides synchronized acquisition of pressure, temperature, cycle count, and elapsed time per station, with timestamped CSV export and configurable alarm thresholds. Data files include digital signatures and immutable metadata (operator ID, test protocol version, environmental conditions), supporting 21 CFR Part 11 compliance when deployed with network authentication and electronic signature modules. Raw data archives are retained for ≥15 years in accordance with ISO/IEC 17025 documentation retention policies.
Applications
- Qualification testing of newly manufactured cylinders prior to type approval and certification by TÜV, BV, or CNAS-accredited bodies.
- Design verification of prototype composite overwrapped pressure vessels (COPVs) under combined thermal–mechanical load spectra.
- Production line sampling for batch release per ISO 9809-1 Annex D fatigue acceptance criteria.
- Root cause analysis of field failures through accelerated replication of suspected service-induced stress histories.
- Research into liner–composite interfacial durability under cyclic hydrogen permeation and thermal cycling.
FAQ
Does the JB-99 support real-time pressure waveform visualization during testing?
Yes—integrated high-speed pressure transducers (10 kHz sampling) feed live waveform plots to the operator interface, with overlay capability for reference templates.
Can the system be integrated into an existing factory MES or QMS platform?
Yes—OPC UA and Modbus TCP protocols are supported for bidirectional data exchange with Siemens SIMATIC, Rockwell FactoryTalk, or custom LIMS environments.
Is third-party calibration documentation provided with shipment?
A factory calibration report with uncertainty budget is included; CNAS-traceable calibration certificates are available as an add-on service.
What maintenance intervals are recommended for long-term reliability?
Preventive maintenance is scheduled every 1,000 operating hours or annually—whichever occurs first—with documented torque verification, seal replacement, and pressure sensor zero-drift validation.
Are custom waveforms beyond square/trapezoidal supported?
Custom multi-segment waveforms (e.g., sinusoidal superimposed on step ramps) can be implemented via firmware update under engineering support contract.
