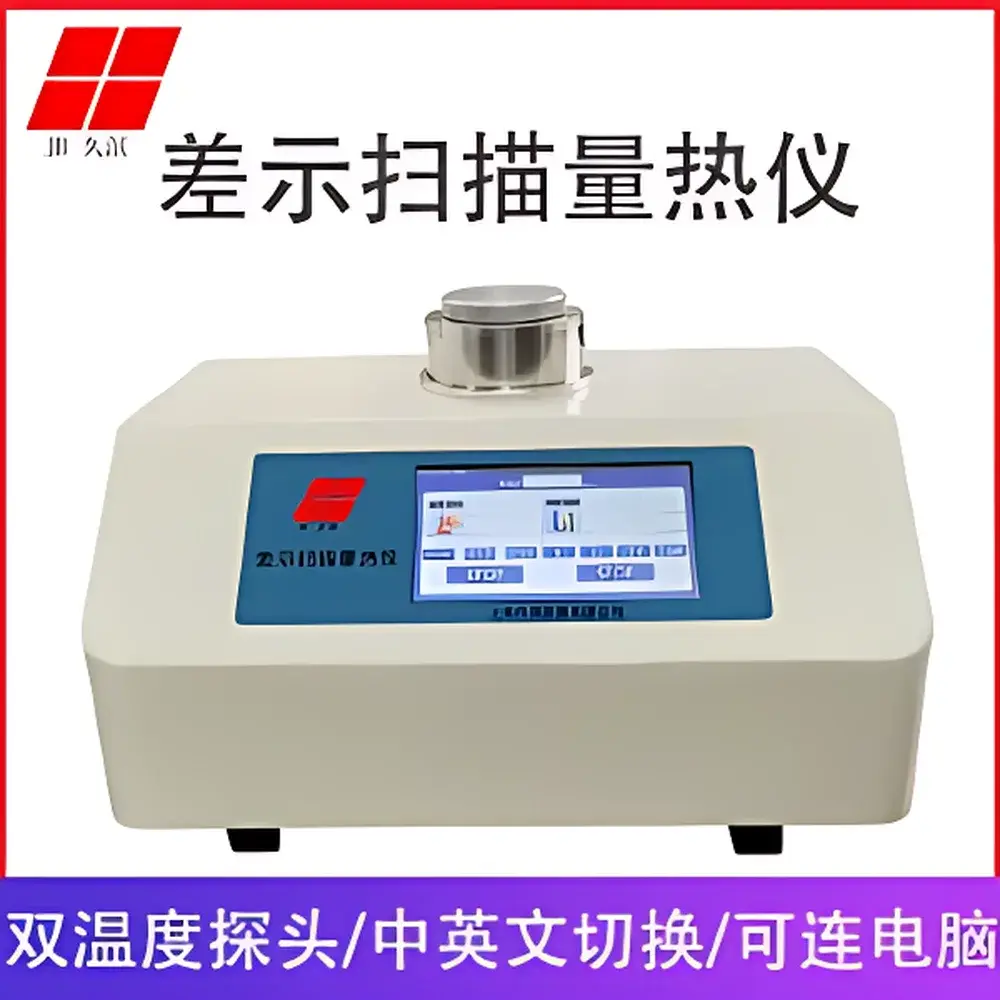

Jiubin JB-DSC-800 Differential Scanning Calorimeter
| Brand | Jiubin |
|---|---|
| Origin | Shanghai, China |
| Model | JB-DSC-800 |
| Sample Capacity | Single |
| Instrument Type | DSC |
| Temperature Range | Ambient to 800 °C |
| Heating/Cooling Rate | 0.1–100 K/min |
| Display | 7-inch 24-bit color TFT touchscreen |
| Control Core | ARM Cortex-M3 microcontroller |
| Communication | USB 2.0 bidirectional interface |
| Sensor Material | High-stability alloy thermopile |
| Furnace Design | Fully enclosed metallic furnace housing |
Overview
The Jiubin JB-DSC-800 Differential Scanning Calorimeter is a precision thermal analysis instrument engineered for quantitative measurement of heat flow differences between a sample and an inert reference as a function of temperature or time. Operating on the principle of power-compensated DSC, it delivers high-resolution detection of endothermic and exothermic transitions—including glass transition temperature (Tg), melting point (Tm), crystallization onset (Tc), solid-solid phase transformations, oxidative induction time (OIT), and enthalpy changes associated with curing, crosslinking, or decomposition. Designed for rigorous laboratory environments, the JB-DSC-800 supports materials characterization across polymer science, pharmaceutical development, metallurgy, food science, and advanced ceramics—where reproducible thermal event detection within ±0.1 °C accuracy and baseline stability <5 µW over extended runs are essential.
Key Features
- Fully enclosed metallic furnace architecture minimizes thermal radiation loss and enhances signal-to-noise ratio—resulting in improved sensitivity (detectable heat flow change ≤0.1 µW) and superior baseline flatness over wide temperature ranges.
- Imported high-purity alloy thermopile sensor exhibits long-term resistance to oxidation and chemical corrosion, ensuring consistent calibration integrity during repeated exposure to aggressive volatiles or reactive atmospheres (e.g., O2, N2, Ar).
- ARM Cortex-M3 embedded controller enables real-time closed-loop temperature regulation with dynamic response and minimal overshoot—even at extreme ramp rates up to 100 K/min.
- Integrated 7-inch full-color LCD capacitive touchscreen provides intuitive local operation, live thermogram visualization, status diagnostics, and immediate access to method parameters without external PC dependency.
- USB 2.0 bidirectional communication protocol ensures seamless data streaming and remote instrument control compatible with Windows-based thermal analysis software suites.
Sample Compatibility & Compliance
The JB-DSC-800 accommodates standard aluminum, gold-plated aluminum, and high-temperature ceramic crucibles (up to 800 °C), supporting solid powders, films, granules, fibers, and small-volume liquid samples (≤30 mg). It complies with core methodology standards referenced in ASTM E794 (melting and crystallization temperatures), ASTM E1356 (glass transition determination), ISO 11357 series (polymers), and USP <1151> (thermal analysis in pharmaceuticals). While not pre-certified for 21 CFR Part 11, its software architecture supports audit trail logging, user-level access control, and electronic signature integration when deployed in GLP/GMP-regulated workflows.
Software & Data Management
The bundled thermal analysis software enables automated baseline correction, peak deconvolution, multi-step kinetic modeling (e.g., Ozawa-Flynn-Wall), and quantitative enthalpy integration. All raw data files (.dsc) retain full metadata—including instrument ID, operator name, date/time stamp, atmospheric conditions, and calibration history. Export options include CSV, TXT, and universal .tdf formats compatible with third-party statistical or chemometric platforms (e.g., MATLAB, OriginLab, JMP). Data integrity safeguards include write-protected archives, version-controlled method templates, and configurable auto-backup intervals.
Applications
- Determination of Tg in amorphous polymers and copolymers for formulation optimization and aging studies.
- Quantification of crystallinity degree in semi-crystalline thermoplastics (e.g., PP, PET, PEEK) via fusion enthalpy normalization.
- Stability assessment of active pharmaceutical ingredients (APIs) under accelerated thermal stress, including polymorphic interconversion kinetics.
- Oxidative induction time (OIT) evaluation of polyolefins per ASTM D3895, critical for predicting long-term service life in piping or geomembrane applications.
- Thermal behavior mapping of battery electrode materials (e.g., cathode delithiation exotherms, SEI formation enthalpies) under controlled inert gas purge.
FAQ
What is the maximum operating temperature for the JB-DSC-800?
The instrument achieves stable operation up to 800 °C with appropriate crucible selection and purge gas flow control.
Can the system perform modulated DSC (MDSC)?
No—the JB-DSC-800 implements conventional single-heating-rate DSC only; MDSC capability requires additional hardware and is not supported.
Is calibration traceable to NIST standards?
Yes—factory calibration uses certified reference materials (indium, zinc, tin) with documented uncertainty budgets traceable to national metrology institutes.
What purge gases are compatible?
Nitrogen, argon, oxygen, and synthetic air are supported via standard mass-flow controller integration; optional dual-gas switching module available.
Does the software support automated reporting per ISO/IEC 17025 requirements?
Report templates can be customized to include required elements (e.g., uncertainty statements, equipment IDs, environmental conditions); full accreditation compliance depends on lab-specific validation protocols.
