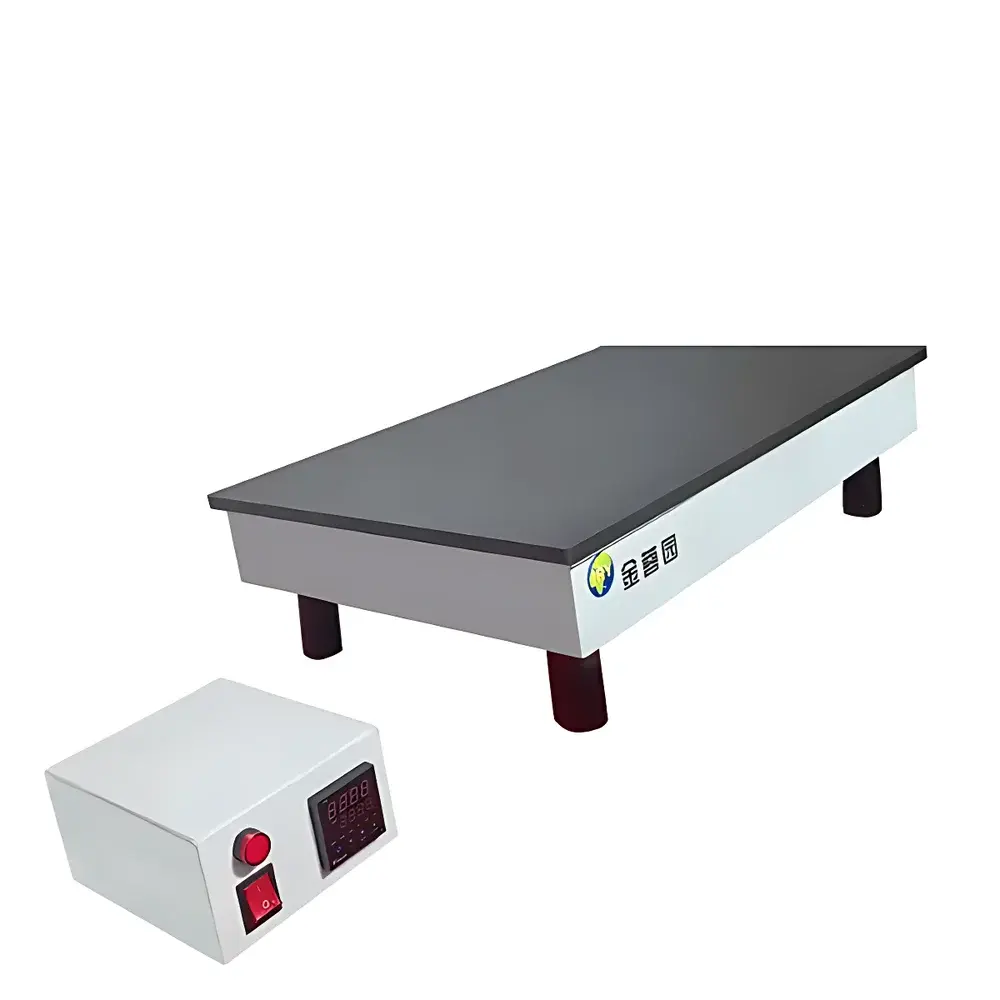

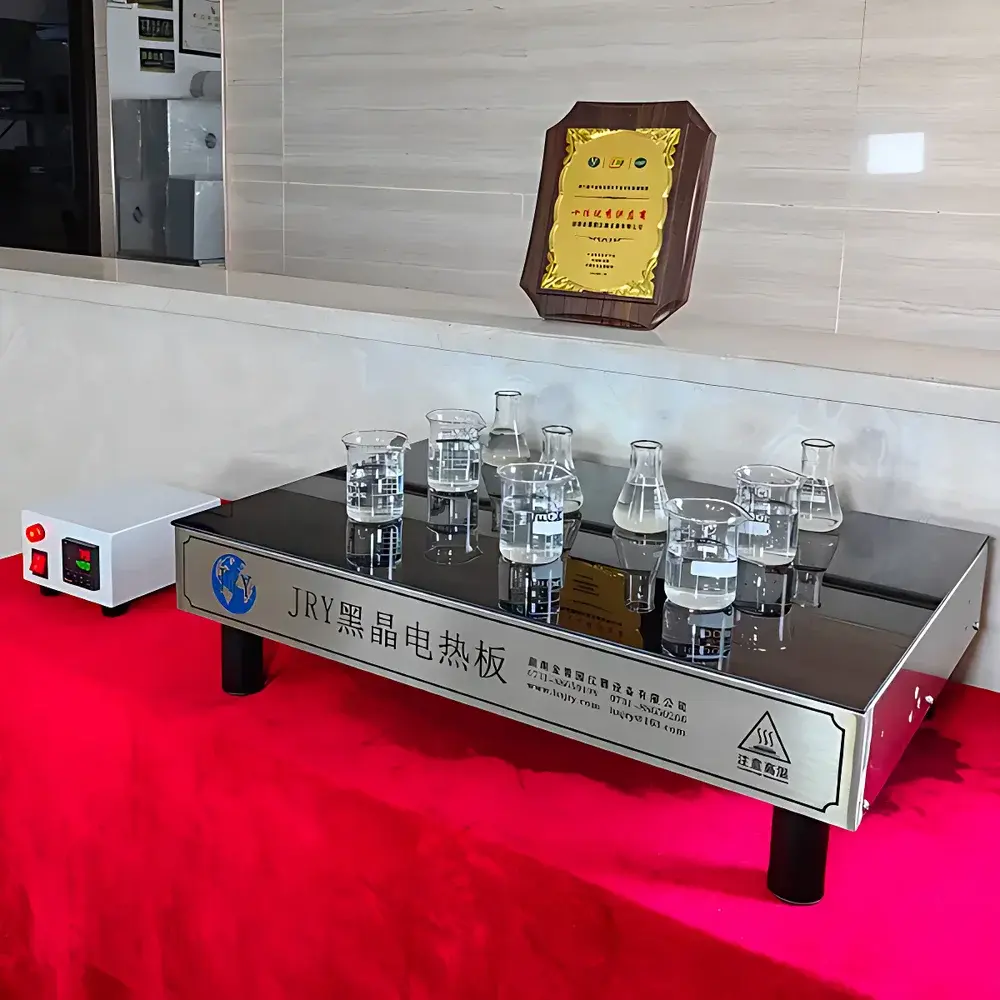

JRYHJ Black Crystal Ceramic Electric Heating Plate

Overview

The JRYHJ Black Crystal Ceramic Electric Heating Plate is an industrial-grade laboratory heating platform engineered for precise, stable, and corrosion-resistant thermal treatment of samples during digestion, evaporation, fusion, drying, and acid removal procedures. Unlike conventional stainless-steel or aluminum hotplates, the JRYHJ utilizes a monolithic black crystal ceramic panel composed of a CaO–Al₂O₃–SiO₂ composite — a material selected for its exceptional chemical inertness against concentrated mineral acids (e.g., HNO₃, HCl, HF, H₂SO₄), alkalis, and organic solvents, as well as its outstanding thermal stability up to 1000 °C peak tolerance. The unit operates on resistive heating via embedded Cr20Ni80 alloy heating elements arranged in a uniform serpentine pattern beneath the full-surface panel, enabling rapid heat transfer and minimizing thermal gradients across the 400 × 600 mm active zone. Its design conforms to ISO 9001-certified manufacturing and service protocols, supporting GLP-compliant workflows in regulated environments where traceability, repeatability, and long-term reliability are mandatory.

Key Features

• Full-surface black crystal ceramic plate (400 × 600 mm) with certified resistance to thermal shock (ΔT = 700 °C) and continuous operation at ≤450 °C — ideal for high-acidity microwave digestion prep and open-vessel reflux.
• PID-integrated digital controller with ±1 °C setpoint accuracy, real-time temperature feedback, and auto-tuning capability for consistent ramp/soak profiles.
• Robust powder-coated steel enclosure rated for laboratory-grade corrosion resistance under humid, acidic fume hood conditions.
• Integrated earth leakage protection (30 mA trip threshold), over-temperature cut-off (hardware-limited at 480 °C), and power-on self-diagnostic routine.
• No open flame, no exposed coils — fully enclosed heating architecture compliant with NFPA 45 and OSHA Lab Standard 29 CFR 1910.1450 requirements for safe handling of volatile reagents.
• Capable of sustained operation >48 hours without performance degradation — validated per IEC 61000-4-30 voltage fluctuation immunity testing.

Sample Compatibility & Compliance

The JRYHJ accommodates standard borosilicate glassware (e.g., 250 mL Erlenmeyer flasks, 100 mL beakers, quartz crucibles) and PTFE/Teflon vessels used in EPA Method 3050B, ASTM D5177, ISO 11466, and USP heavy metal digestion protocols. Its chemically inert surface eliminates metal ion leaching risks associated with stainless-steel plates, ensuring analytical integrity in ICP-MS, AAS, and IC applications. The device meets CE marking requirements (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU), carries RoHS 2011/65/EU compliance documentation, and supports audit-ready operation under FDA 21 CFR Part 11 when paired with optional programmable controllers featuring electronic signature and audit trail logging.

Software & Data Management

While the base JRYHJ model features standalone PID control, optional accessories include a DIN-rail-mounted programmable temperature controller (model JRY-TC4) supporting up to 8-segment ramp-soak profiles, RS485 Modbus RTU communication, and integration into LabVIEW™ or SCADA systems via ASCII protocol. All firmware adheres to IEC 62443-3-3 cybersecurity guidelines for industrial control devices. Data export is supported in CSV format via USB interface, enabling direct import into LIMS platforms such as Thermo Fisher SampleManager or LabWare LIMS for sample tracking and QC record retention.

Applications

• Acid digestion of soil, sediment, sludge, and biological tissues per EPA 3050B, 3051A, and 3052 methods.
• Open-vessel wet ashing of food matrices prior to heavy metal analysis (Cd, Pb, As, Hg).
• Thermal pretreatment of polymer composites and catalysts in materials science labs.
• Drying and constant-weight determination of filter papers in gravimetric analysis (ASTM D2974).
• Pre-concentration of aqueous environmental extracts by gentle evaporation under nitrogen blanket.
• Controlled fusion of silicates and refractory oxides using lithium metaborate flux (ISO 12677).

FAQ

Is the black crystal ceramic panel resistant to hydrofluoric acid (HF)?
Yes — the CaO–Al₂O₃–SiO₂ composition demonstrates measurable resistance to short-term HF exposure (≤5% v/v, ≤30 min), though prolonged contact is not recommended; use PTFE-coated trays for extended HF work.
Can the JRYHJ be used inside a fume hood without airflow interference?
Yes — its solid-state convection-free heating mechanism eliminates air current disruption, making it suitable for Class II biosafety cabinets and ducted fume hoods.
Does the unit support GLP-compliant calibration verification?
Yes — NIST-traceable PT100 probe ports are available on optional models; calibration certificates per ISO/IEC 17025 are issued upon request.
What is the expected service life under continuous 450 °C operation?
Based on accelerated aging tests, the ceramic panel maintains structural integrity and thermal uniformity for ≥15,000 operational hours at 450 °C, assuming proper cooling cycles between runs.
Is remote monitoring possible without third-party hardware?
Not on the base model; however, the JRY-TC4 programmable controller provides Ethernet/Wi-Fi gateway compatibility for cloud-based temperature logging and alarm notifications.
