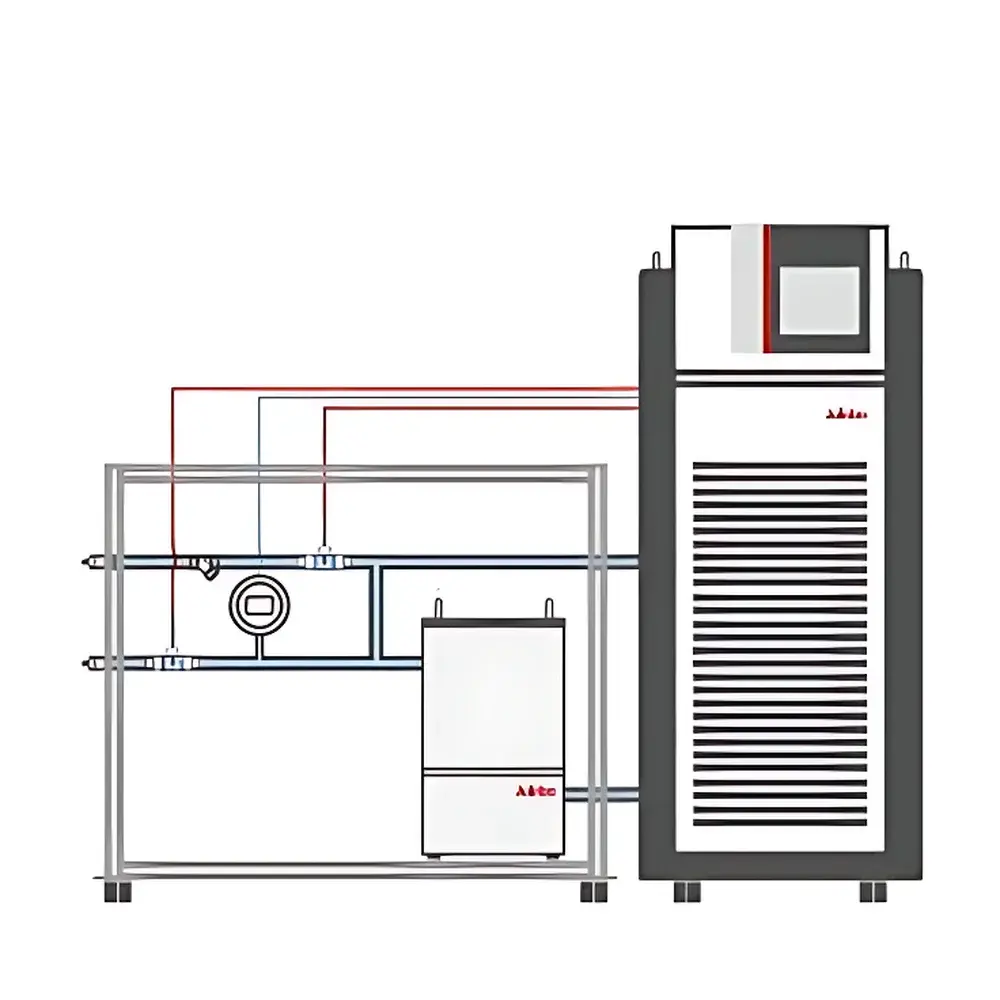

JULABO ABT-85 Automotive Airbag Thermal Cycling & Environmental Simulation System

Overview

The JULABO ABT-85 is a purpose-built environmental simulation system engineered for the accelerated thermal aging and functional validation of automotive airbag modules under rigorously controlled climatic conditions. Unlike general-purpose temperature chambers, the ABT-85 integrates high-fidelity thermal cycling, dynamic pressure-controlled fluid circulation, and programmable environmental stress sequencing—specifically aligned with ISO 16750-4 (Road vehicles — Environmental conditions and testing for electrical and electronic equipment — Part 4: Climatic loads), SAE J1211, and OEM-specific airbag qualification protocols (e.g., Ford WSS-M99P1111-A, GM GMW3172). Its core function is to replicate the cumulative thermal-mechanical exposure profile experienced across the full life cycle of an airbag module: logistics (cold-chain transport), long-term storage (low-temperature warehouse conditions), vehicle integration (under-hood or dashboard mounting), and in-service operation—including repeated thermal transients during engine start-stop cycles, seasonal ambient swings, and localized heating from adjacent electronics. The system employs a closed-loop, two-stage refrigeration architecture with EHC (Enhanced Heat Exchange Control) segmented impingement technology to achieve rapid ramp rates (≥3 K/min between −40 °C and +85 °C in external loop simulations) while maintaining long-term stability required for extended dwell tests.

Key Features

• Intelligent dual-stage circulation pump with selectable pressure setpoints (0.48–3.2 bar) and flow modulation (35–80 L/min), enabling precise replication of hydraulic loading on inflator housings and gas generator interfaces.
• ICC (Intelligent Climate Control) algorithm delivering ±0.01 °C short-term stability and ±0.05 °C over 24-hour dwell periods—validated per ASTM E742 and traceable to PTB-certified reference sensors.
• EHC high-efficiency segmented heat exchange technology optimizes refrigerant distribution across evaporator surfaces, reducing thermal lag and extending compressor service intervals beyond 15,000 operating hours.
• ACC (Active Condensation Control) enables sub-zero cooling initiation directly from elevated soak temperatures (e.g., +85 °C → −40 °C in <18 min), eliminating condensation-induced thermal shock risks during rapid downramps.
• Hydraulic-sealed fluid path compatible with Thermal HL80 synthetic heat transfer fluid—rated for continuous operation from −80 °C to +150 °C and certified for use in ISO 16750-compliant test rigs.
• Dual redundant filtration (10 µm particulate + activated carbon adsorption) prevents contamination migration into DUT cooling jackets or sensor manifolds.
• Front-access operator interface with 5.7″ industrial-grade capacitive touchscreen; rear-mounted fluid and power connections ensure clean integration into ISO 17025-accredited test bays.

Sample Compatibility & Compliance

The ABT-85 accommodates full airbag assemblies—including driver-side, passenger-side, side-curtain, and knee-airbag modules—as well as standalone inflators, pyrotechnic initiators, and diagnostic squibs. Its modular fluid manifold supports parallel testing of up to three independent DUTs via configurable flow splitting and pressure balancing. All thermal profiles comply with regulatory audit requirements: data logging meets FDA 21 CFR Part 11 (electronic records/signatures), includes GLP/GMP-compliant audit trails, and supports IQ/OQ/PQ documentation packages. System calibration certificates are issued with NIST-traceable uncertainty budgets and conform to ISO/IEC 17025:2017 Clause 6.5.2 for measurement traceability.

Software & Data Management

Control and monitoring are managed via JULABO’s LabSoft Pro v4.2 platform—a Windows-based application supporting multi-user role permissions, real-time PID parameter tuning, and synchronized acquisition of temperature, pressure, flow, and power consumption. Test sequences are defined using IEC 61131-3 structured text, allowing conditional branching (e.g., “hold at −40 °C until internal thermistor drift <0.02 K/h”). Raw data exports in CSV and HDF5 formats include embedded metadata (timestamp, operator ID, calibration status). Optional integration with LabVIEW, MATLAB, or MES systems is enabled via native OPC UA server and Modbus TCP gateways.

Applications

• Accelerated life testing per ISO 16750-4 Annex B (thermal shock, cyclic humidity, combined stress).
• Validation of cold-start reliability for sodium azide-free inflators under European winter logistics conditions (EN 15194).
• Thermal derating analysis of MEMS-based crash sensors integrated into airbag control units (ACUs).
• Correlation of benchtop thermal cycling data with field failure modes (e.g., connector fretting corrosion, propellant binder microcracking).
• Support for ASAM MCD-2 MC (ASAM ASAP2) compliant ECU-in-the-loop (EIL) test benches simulating thermal feedback loops.

FAQ

Does the ABT-85 support humidity conditioning?
No—humidity control is outside its design scope. It is optimized for high-precision thermal cycling and fluid-mediated thermal load application. For combined temperature/humidity testing, JULABO recommends integration with a complementary climatic chamber via external signal synchronization.
Can the system operate continuously at −70 °C?
Yes—the two-stage compressor and EHC heat exchanger enable uninterrupted operation at −70 °C for durations exceeding 720 hours, validated per IEC 60068-2-1 (cold test). Ambient temperature must remain ≤25 °C with ≥1 m clearance on all sides.
Is Thermal HL80 fluid supplied with the system?
A 20-L commissioning fill is included. Full replenishment kits (100 L) and fluid analysis services (FTIR, acid number, viscosity) are available under JULABO’s FluidCare program.
What safety certifications does the ABT-85 hold?
CE marked per Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU; conforms to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions); carries UL recognition for North American installation (E352283).
