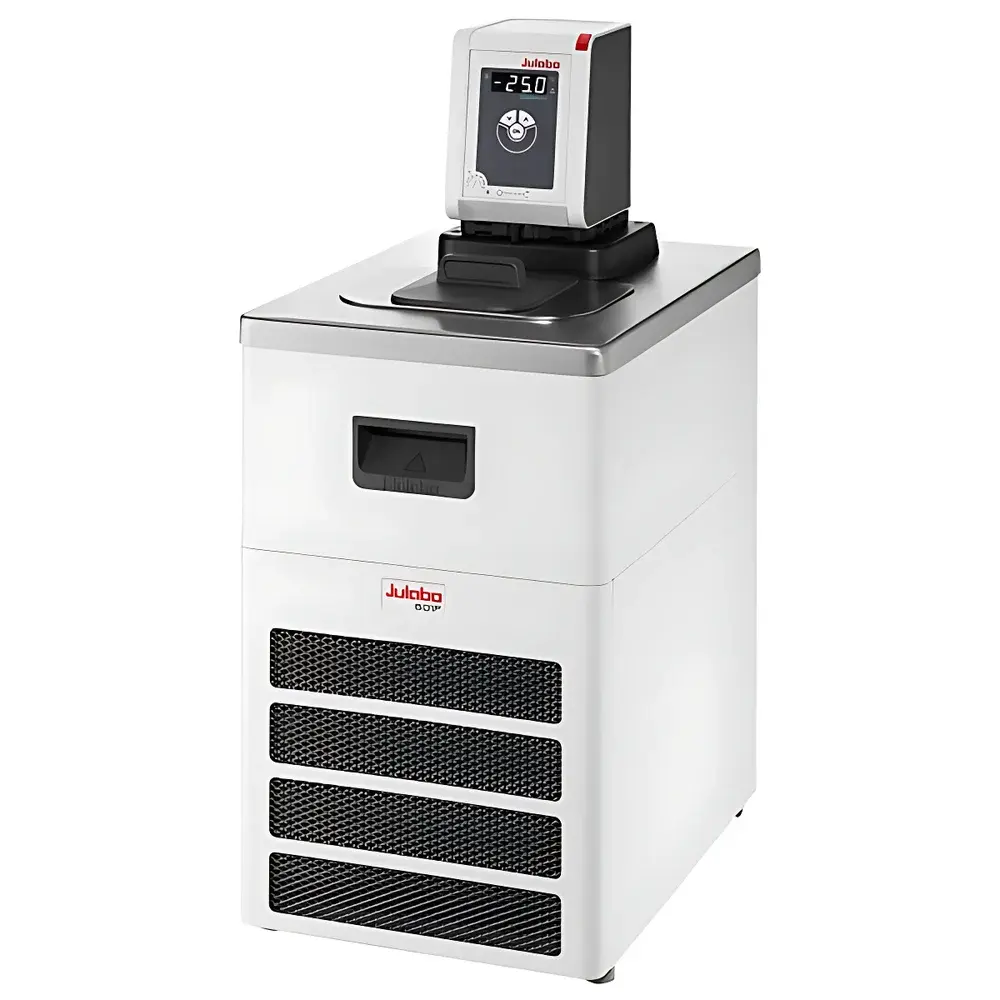

Julabo CORIO CD-601F Universal Heating and Cooling Circulating Bath

Overview

The Julabo CORIO CD-601F is a high-precision, air-cooled universal heating and cooling circulating bath engineered for demanding laboratory and pilot-scale applications requiring stable, bidirectional temperature control across an exceptionally wide operational range—from −40 °C to +150 °C. Unlike conventional single-function baths, the CD-601F integrates a robust single-stage compressor system with R452A refrigerant—a low-global-warming-potential (GWP = 2140) alternative compliant with EU F-Gas Regulation (EU No. 517/2014)—and a 2 kW resistive heating module, enabling seamless transition between sub-zero chilling and high-temperature thermostating without hardware modification. Its thermodynamic architecture employs PID-controlled feedback loops with 0.01 °C resolution and ±0.03 °C stability at setpoint—performance validated per DIN 12876-1 for Class III (FL) safety certification, indicating suitability for flammable liquid environments. The bath’s stainless-steel reservoir features a recessed evaporator coil design, maximizing usable volume (8–10 L) while maintaining uniform thermal distribution and minimizing dead zones during external circulation.

Key Features

• Wide temperature span: −40 °C to +150 °C with ±0.03 °C stability at any setpoint within range
• Air-cooled single-stage compression with R452A refrigerant—no water chiller or external condenser required
• High-flow external circulation pump (15 L/min, 0.35 bar max pressure) with M16×1 threaded port and included dual-diameter (8 mm / 12 mm) hose fittings
• Optimized thermal geometry: recessed cooling coil, removable ventilation grille, and side-vent-free compressor housing—enabling dense rack-mounting in shared lab spaces
• User interface: backlit monochrome LCD display with intuitive menu navigation, 0.01–0.1 °C adjustable resolution, and real-time monitoring of bath temp, setpoint, flow status, and error codes
• Integrated USB interface for firmware updates, remote parameter configuration, and time-stamped data logging via Julabo’s optional LabView-compatible software suite
• Full safety compliance: DIN 12876-1 Class III (FL) certified; includes automatic overtemperature cutoff, dry-run protection, refrigerant leak detection, and integrated drain valve with stainless-steel bath cover

Sample Compatibility & Compliance

The CD-601F supports compatibility with a broad spectrum of heat transfer media—including water, water-glycol mixtures, silicone oils, and low-viscosity synthetic heat-transfer fluids—subject to chemical resistance verification against 316 stainless steel and EPDM seals. Its Class III (FL) certification confirms safe operation with flammable liquids (e.g., ethanol, acetone, hexane) under controlled conditions, satisfying requirements outlined in ISO 8573-1 (compressed air purity), IEC 61010-1 (electrical safety), and EN 61326-1 (EMC). For regulated environments, the device supports audit-ready operation when paired with Julabo’s optional software package, which provides electronic signatures, user access levels, and 21 CFR Part 11–compliant data integrity features including immutable audit trails and change history logs.

Software & Data Management

While standalone operation requires no PC, the USB port enables integration into automated workflows via Julabo’s proprietary CORIO Control Software (Windows-compatible). This application permits full remote control—including ramp/soak programming, multi-step temperature profiles, and real-time graphing—and exports timestamped CSV files containing bath temperature, setpoint deviation, pump status, and compressor duty cycle. All logged data retain traceability metadata (operator ID, instrument serial number, calibration timestamp), supporting GLP/GMP documentation standards. Firmware updates are delivered digitally and validated cryptographically to ensure system integrity—critical for laboratories undergoing FDA, ISO 17025, or CAP accreditation audits.

Applications

The CD-601F serves as a primary temperature source for applications requiring precise, dynamic thermal management: viscosity measurements in rotational rheometers (e.g., Brookfield, Anton Paar), calibration of RTDs and thermocouples per ASTM E230/E77, jacketed reactor temperature control in organic synthesis, stability testing of pharmaceutical formulations under ICH Q1A(R3) guidelines, and thermal conditioning of optical components during interferometric alignment. Its high flow rate and pressure head make it suitable for closed-loop cooling of laser diodes, CCD detectors, and HPLC column ovens—particularly where ambient air cooling is insufficient or vibration-sensitive.

FAQ

What types of heat transfer fluids are compatible with the CD-601F?
Water, 30–50% aqueous glycol solutions, and silicone oils (e.g., DC200 series) are commonly used. Always verify fluid compatibility with 316 stainless steel and EPDM gaskets before extended operation.
Does the unit support external temperature sensing for process control?
Yes—via optional PT100 probe input (sold separately), enabling cascade control using an external sensor placed in the sample or reactor jacket.
Is the CD-601F suitable for continuous operation at −40 °C?
It is rated for continuous operation across its full temperature range, though sustained sub-zero use requires periodic defrost cycles and proper fluid selection to prevent crystallization or increased viscosity.
How is calibration traceability maintained?
Julabo provides factory calibration certificates (NIST-traceable reference standards) with each unit; field recalibration is supported using external reference thermometers meeting ISO/IEC 17025 requirements.
Can multiple CD-601F units be networked for centralized monitoring?
Not natively via Ethernet, but USB-connected units can be managed concurrently through the CORIO Control Software on a single host PC—ideal for QC labs operating parallel test stations.
