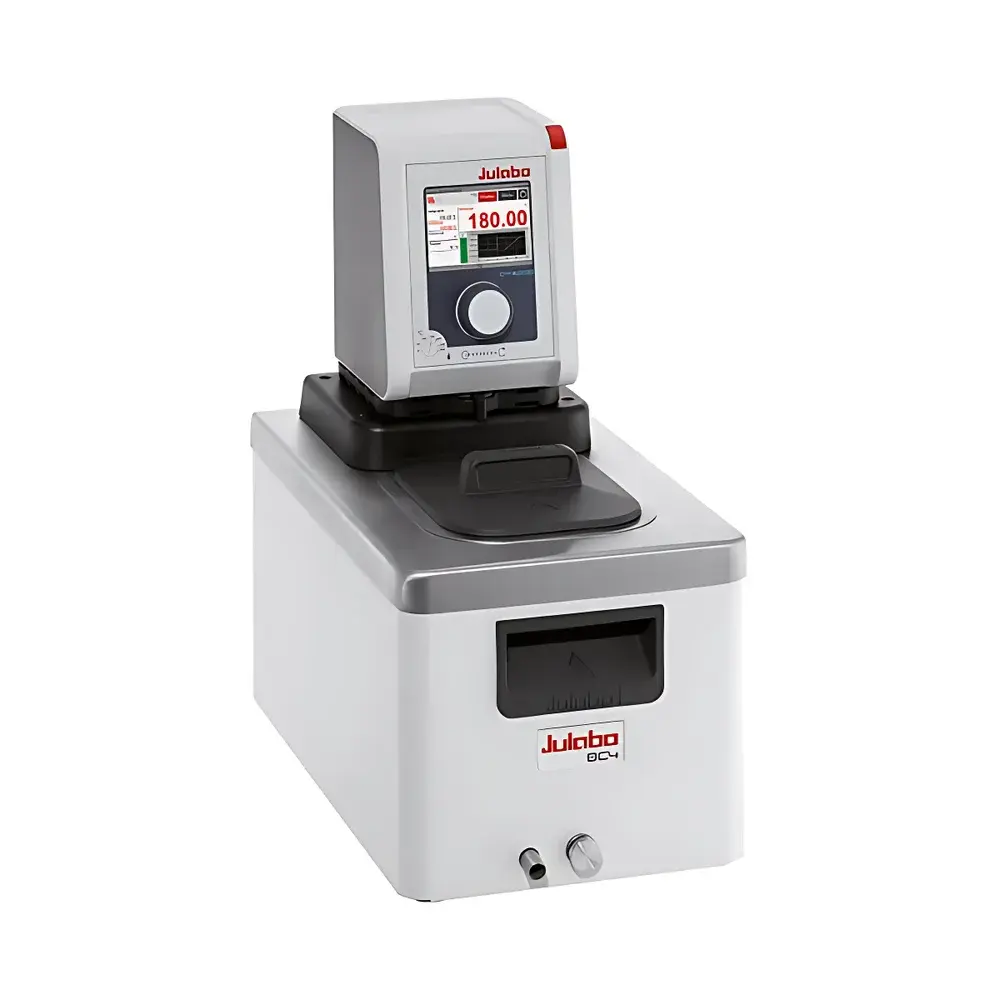

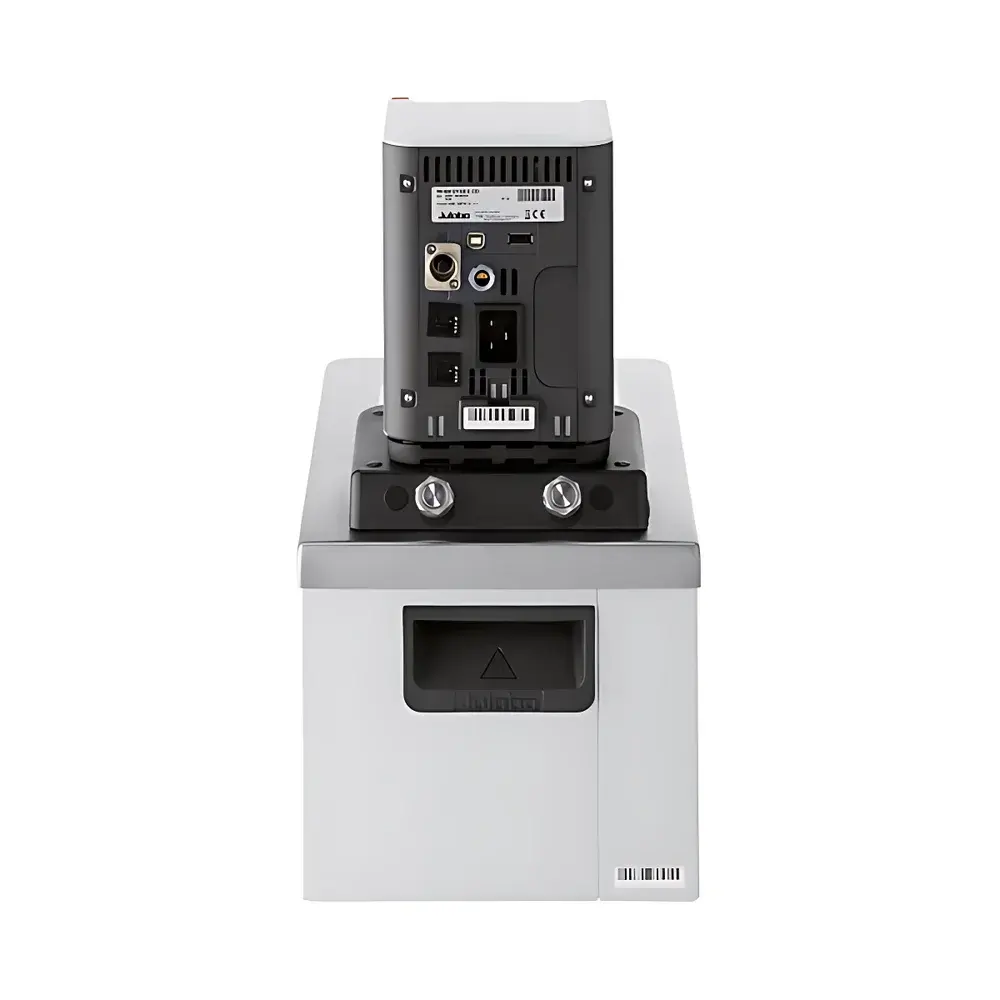

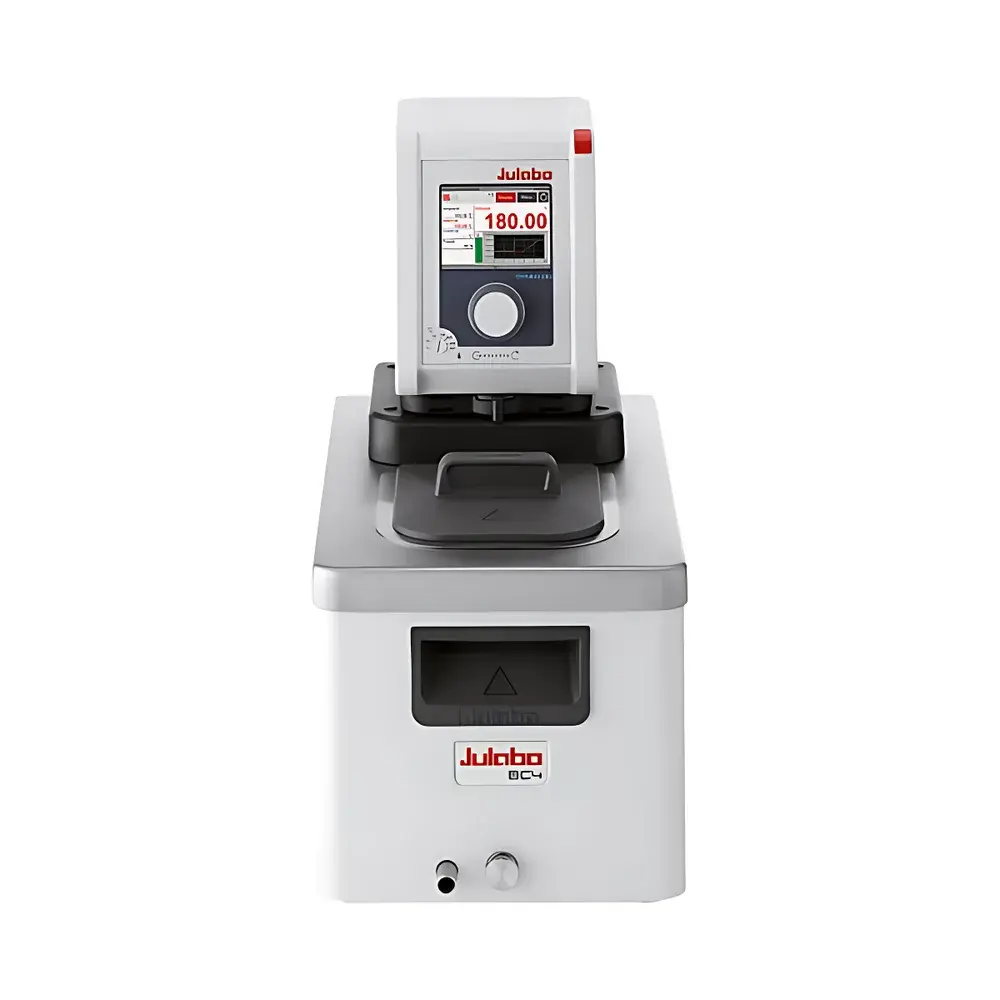

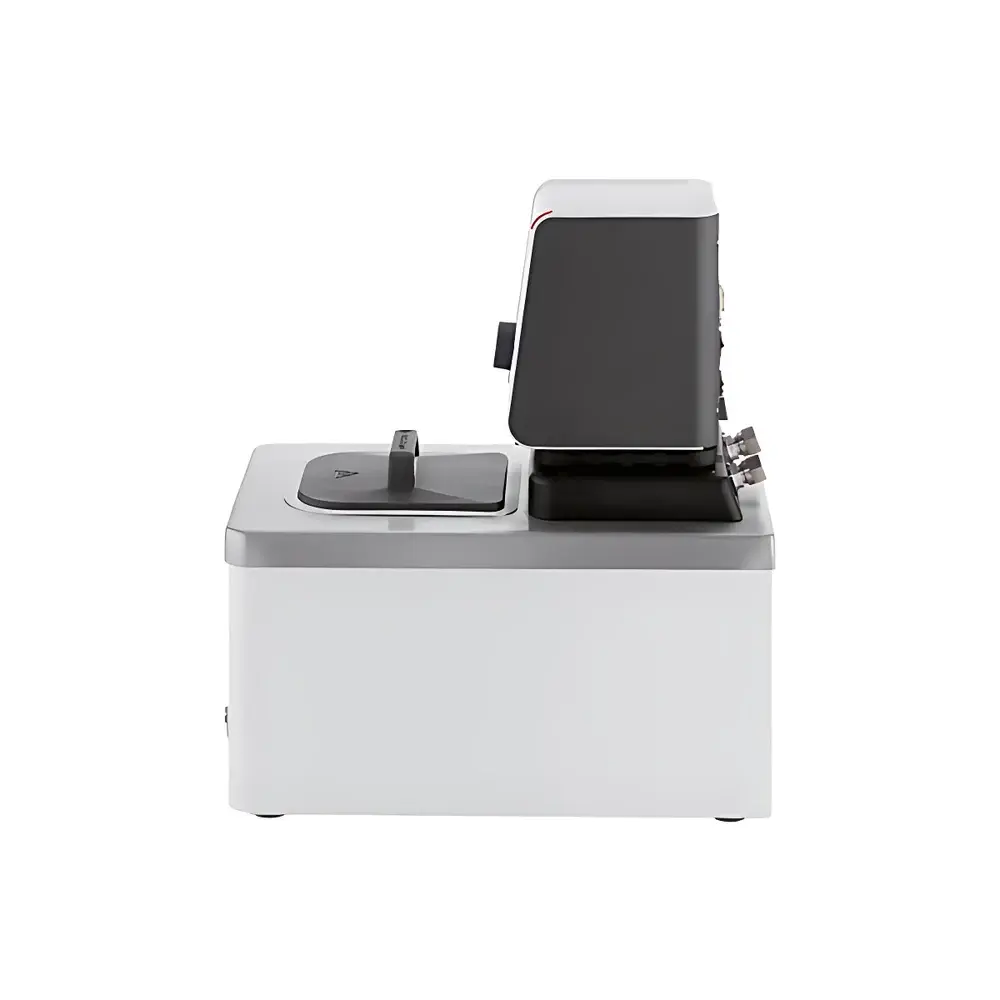

Julabo DYNEO DD-BC4 Programmable Heating Circulating Bath

Overview

The Julabo DYNEO DD-BC4 is a high-precision, programmable heating circulating bath engineered for demanding laboratory and industrial applications requiring stable thermal control across extended temperature ranges (+5 to 200 °C). Utilizing advanced PID2 digital temperature regulation architecture, the system delivers exceptional thermal stability (±0.01 °C) and repeatability—critical for kinetic studies, material testing, calibration traceability, and process validation workflows. Its dual-circuit design supports both internal bath temperature control and external jacketed reactor or heat exchanger regulation via integrated circulation pump and configurable external sensor feedback (PT100). The unit complies with DIN 12876-1 Class III (FL), permitting safe operation with flammable heat transfer fluids such as silicone oils and glycols—enabling use in pharmaceutical dissolution, polymer processing, and catalyst evaluation environments where fire safety and fluid compatibility are non-negotiable.

Key Features

• PID2 adaptive temperature control algorithm with real-time parameter optimization and dynamic load compensation
• 3.5″ high-resolution TFT color display supporting multi-language UI (English, Chinese, German, French, Spanish)
• Rotary encoder (flywheel-style) interface with tactile feedback and hierarchical menu navigation for rapid parameter entry
• ATC3 multi-point temperature calibration protocol—supports up to three independent PT100 reference points for metrological traceability
• TCF (Temperature Control Flexibility) mode enabling simultaneous internal/external setpoint coordination, power limiting, and ΔT differential constraints
• Continuously adjustable circulation pump (8–27 L/min, 0.1–0.7 bar pressure) with front-panel toggle for seamless internal/external flow ratio selection
• Integrated cooling coil compatible with tap water or chilled water supply—eliminates need for separate chiller integration in moderate sub-ambient transitions
• Patented pyramidal multi-segment bath cover minimizing evaporation loss and surface contact temperature (<45 °C at 200 °C bath setpoint)
• Multi-layer vacuum-insulated stainless steel bath chamber ensuring low thermal leakage and operator safety
• Dual USB ports: one for data logging to USB flash drive (CSV format), the other for firmware updates or service diagnostics

Sample Compatibility & Compliance

The DD-BC4 accommodates a broad range of sample configurations through its modular external circulation interface (M16×1 thread, supplied with 8 mm and 12 mm adapters). It supports immersion probes, jacketed glass reactors (e.g., 1–5 L vessels), calorimetric cells, and inline viscometers. All models meet DIN 12876-1 Class III (FL) requirements for equipment used with flammable liquids—validated via explosion-proof housing design, temperature-limited surface heating, and redundant overtemperature cutoffs (hardware + software). The system supports GLP/GMP-aligned operation: black-box fault logging captures timestamped error events (including sensor drift, pump stall, communication timeout), while optional RS232 or analog outputs enable integration into SCADA or LIMS platforms compliant with FDA 21 CFR Part 11 audit trail requirements.

Software & Data Management

No proprietary software installation is required—the DD-BC4 operates autonomously with full local control. However, USB-based data export enables post-run analysis in Excel or MATLAB. Logged parameters include bath temperature, external sensor reading, pump speed %, power output %, and alarm status—all time-stamped at user-selectable intervals (1 s to 60 min). The BLACK BOX diagnostic log retains the last 1,000 operational events with timestamps and error codes, accessible without external tools. For automated environments, the RS232 variant supports ASCII command protocol (SCPI-compatible) for remote start/stop, setpoint modification, and real-time telemetry polling. Analog output variants provide isolated 0–10 V or 4–20 mA signals proportional to bath temperature or pump speed—suitable for PLC interfacing in pilot-scale bioreactor or extrusion line control systems.

Applications

• Pharmaceutical: Dissolution testing per USP , accelerated stability studies (ICH Q1A), and excipient thermal behavior mapping
• Materials Science: Polymer melt rheology pre-conditioning, thermoset curing profile validation, and nanomaterial dispersion temperature control
• Chemistry: Exothermic reaction quenching, Grignard reagent synthesis temperature maintenance, and crystallization kinetics experiments
• Calibration Labs: Reference thermometer calibration against fixed points (e.g., gallium melt at 29.7646 °C) using ATC3 multi-point verification
• Quality Control: Viscosity measurement standardization (ASTM D445), density meter thermostating (ASTM D1298), and refractometer temperature compensation

FAQ

Can the DD-BC4 operate with silicone oil at 200 °C without degradation?
Yes—the bath chamber, seals, and pump wetted parts are rated for continuous operation at 200 °C with standard silicone heat transfer fluids (e.g., DC200 series). Thermal oxidation resistance is enhanced by the low-surface-temperature cover and precise power modulation.
Is external cooling mandatory for operation below ambient temperature?
No—the DD-BC4 is a heating-only bath. Cooling functionality requires connection to an external chilled water source (e.g., facility loop or recirculating chiller) via the integrated coil. It does not incorporate refrigeration compressors.
How is temperature uniformity validated across the bath volume?
Julabo specifies axial/radial uniformity as ≤ ±0.02 °C at 100 °C (measured per DIN 12876-2 Annex B using 9-point probe array). Users may verify this with NIST-traceable PT100 probes at defined depth intervals.
Does the USB data logger support real-time streaming to a PC?
No—USB logging is batch-mode only (stored on removable drive). Real-time telemetry requires RS232 or analog output configuration.
What maintenance intervals are recommended for the circulation pump and seals?
Under normal use with clean, low-viscosity fluids, pump inspection is recommended every 12 months. Seal replacement is typically required only after 3–5 years or upon observed leakage—no routine lubrication is needed due to ceramic shaft and graphite bearing design.
