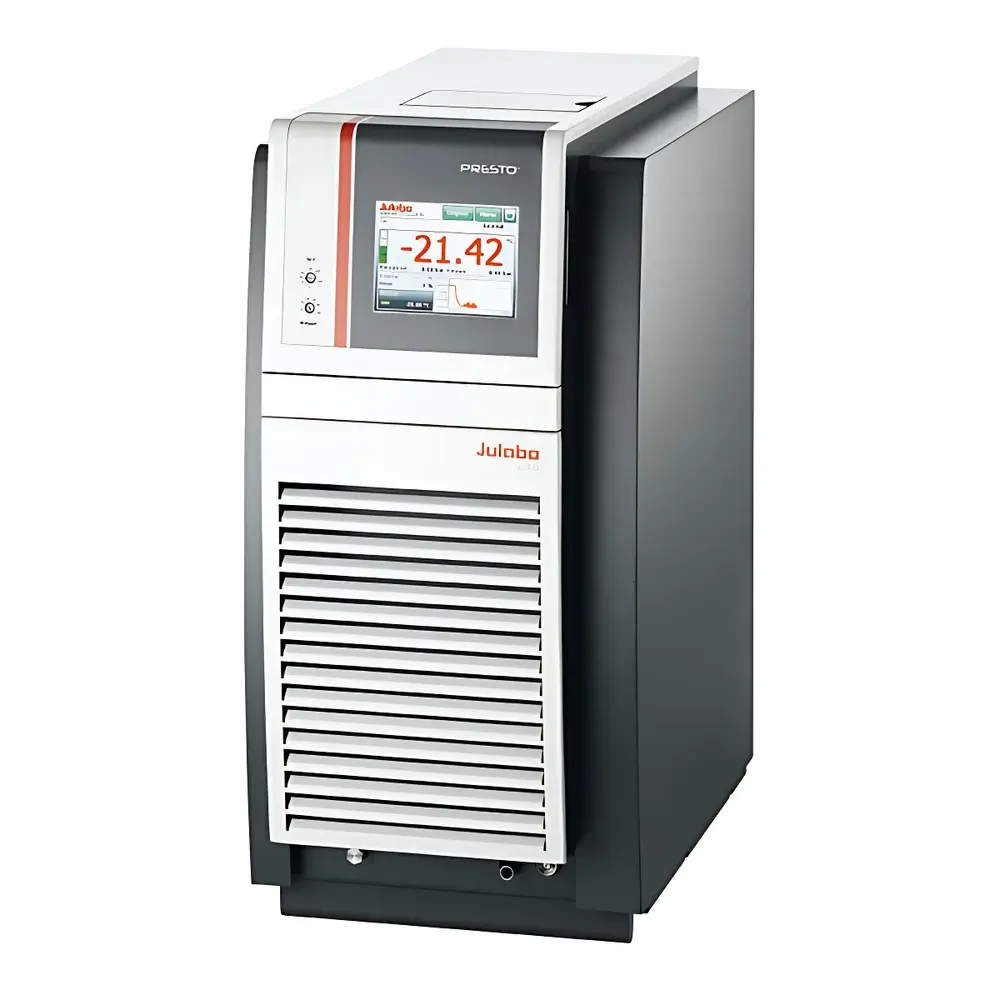

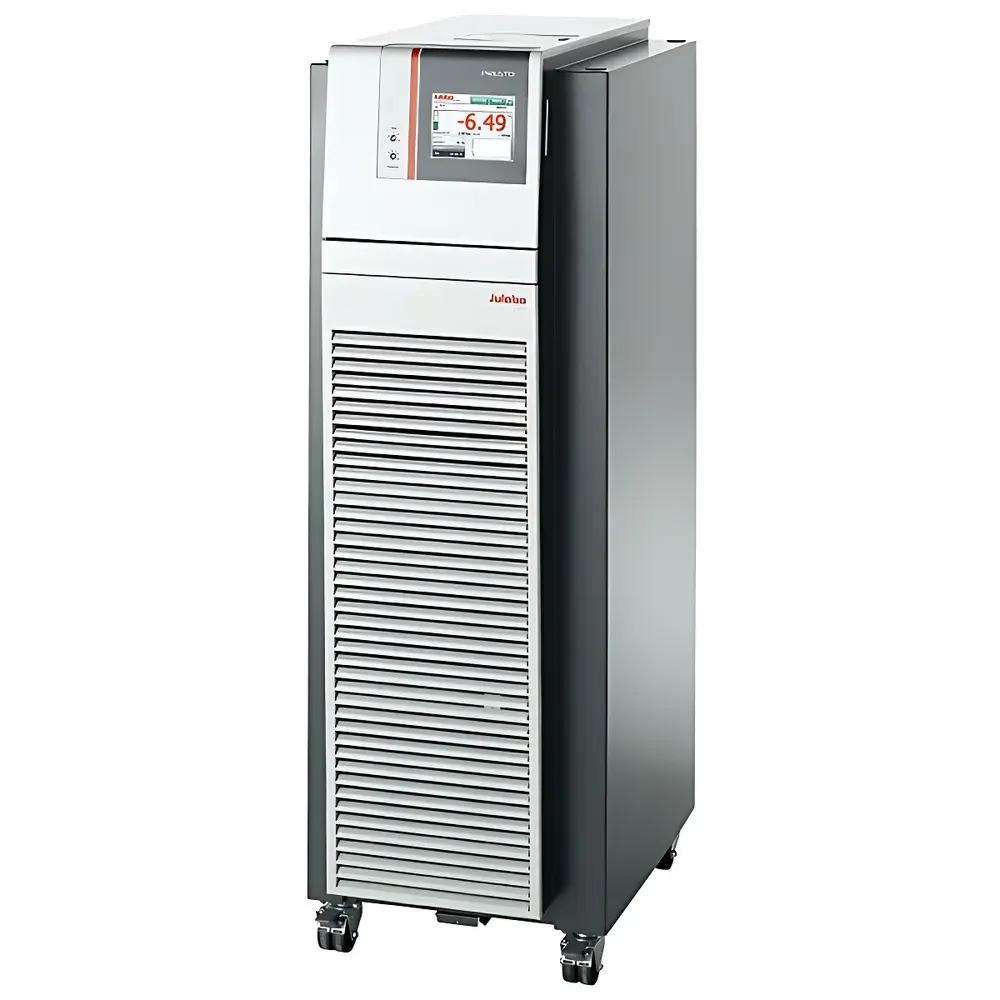

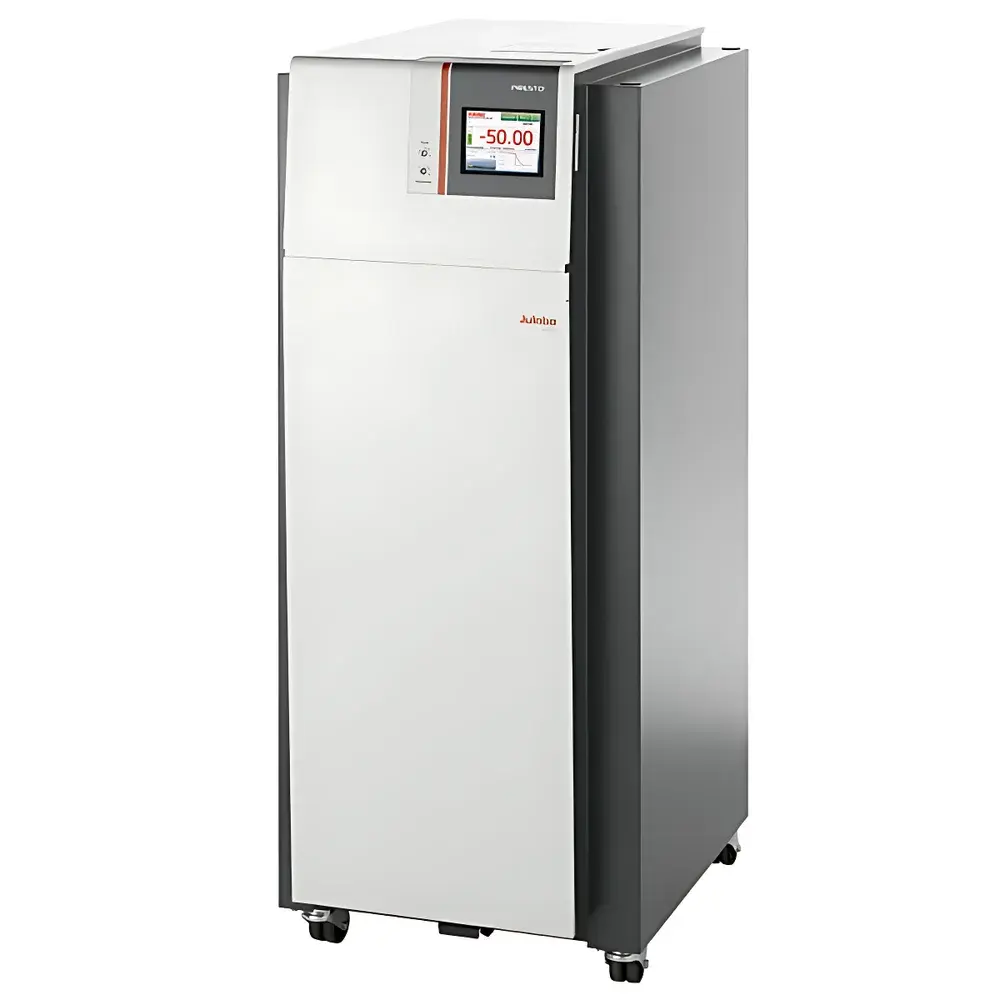

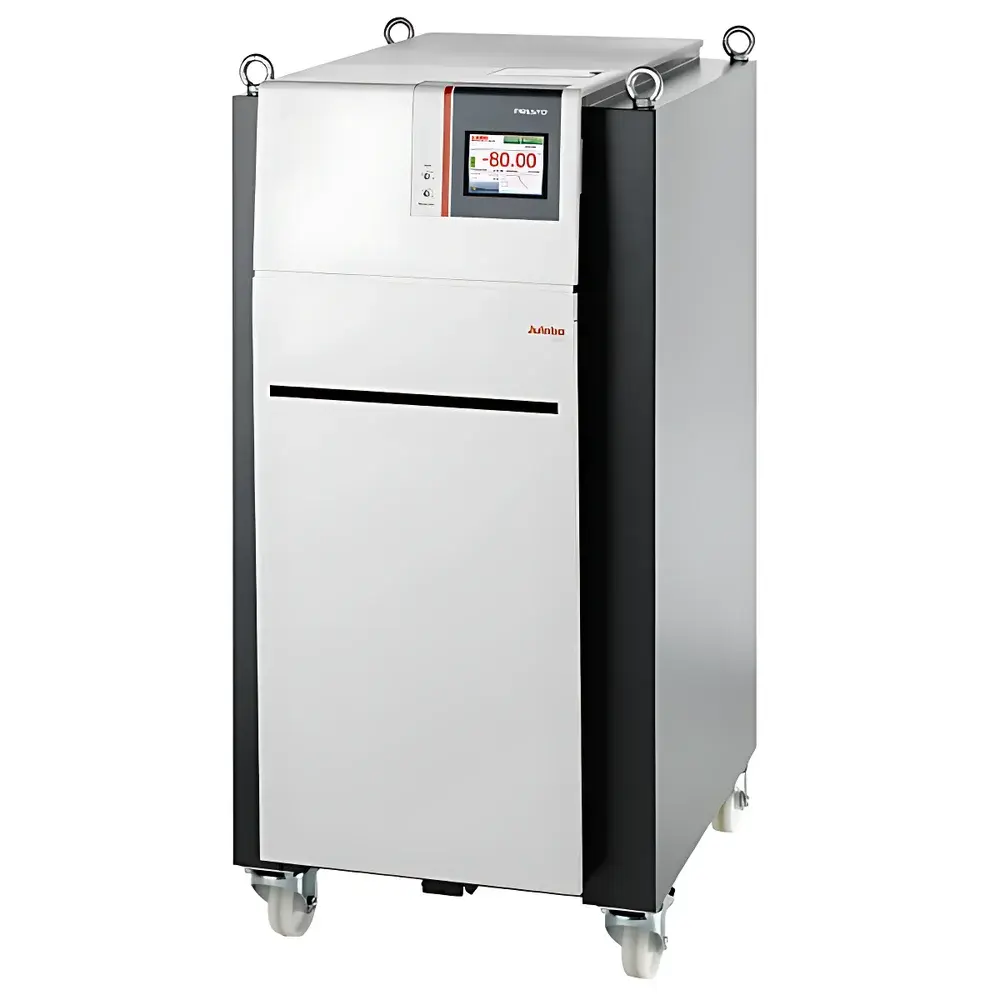

JULABO PRESTO W50 Closed-Loop High-Precision Dynamic Temperature Control System

Overview

The JULABO PRESTO W50 is a closed-loop, high-precision dynamic temperature control system engineered for demanding external process applications—particularly jacketed reactor temperature management, calorimetric studies, and precision material testing under rapid thermal transients. Unlike conventional circulators that rely on static bath stability, the PRESTO W50 implements JULABO’s proprietary Dynamic Temperature Control (DTC) concept—a methodology first introduced in 1989 with the ATS prototype and refined over three decades of industrial deployment. DTC integrates real-time thermal load compensation, multi-stage cascade refrigeration, and adaptive ICC (Intelligent Cascade Control) algorithms to maintain setpoint accuracy while enabling controlled ramp rates up to 15 °C/min across its full operating span. The system operates within a single thermal fluid medium—Thermal HL—eliminating the need for bath replacement when transitioning between cryogenic and high-temperature regimes. Its sealed architecture prevents volatile oil vapor emission, ensures frost-free operation down to −50 °C, and extends fluid service life beyond 5,000 operational hours under GLP-compliant usage conditions.

Key Features

• Wide operational range: −50 °C to +250 °C with single-fluid compatibility (Thermal HL)
• High-dynamic ICC control delivering temperature stability of ±0.05 °C (typ.) at setpoints ≥0 °C; ±0.1 °C at extreme low-temperature setpoints
• Integrated dual-mode thermoelectric/compressor-based refrigeration with optimized heat recovery pathways
• High-capacity magnetic-drive circulation pump (35–76 L/min, 0.48–3.2 bar) supporting long-line external loops up to 30 m total length
• Hermetically sealed fluid circuit with hydraulic vapor barrier, eliminating odor emission and reducing maintenance intervals
• Touchscreen HMI with programmable ramp/soak profiles, event logging, and password-protected parameter access levels
• Compliance-ready architecture: supports audit trails, electronic signatures, and 21 CFR Part 11–compliant data export via optional software package

Sample Compatibility & Compliance

The PRESTO W50 is designed for integration with externally jacketed vessels—including glass reactors (1–50 L), stainless-steel pilot-scale reactors, and analytical instrumentation requiring precise thermal boundary conditions (e.g., DSC sample chambers, rheometer Peltier stages). Its sealed loop design meets ISO 17025 requirements for traceable thermal calibration environments and aligns with ASTM E2847 (Standard Practice for Calibration of Thermal Analyzers) for reference temperature uniformity verification. All wetted components comply with EU REACH Annex XIV restrictions and FDA 21 CFR 177.2600 for indirect food-contact-compatible thermal fluids. The system supports GMP/GLP workflows through configurable user roles, change control logs, and automated certificate-of-performance generation per IEC 61000-4-30 Class A power quality standards.

Software & Data Management

JULABO’s optional TEMPcontrol Pro software enables remote monitoring, multi-device synchronization, and automated report generation compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Real-time data streams include PID output values, compressor duty cycles, fluid inlet/outlet ΔT, and pump current draw—exportable as CSV or PDF with embedded digital signatures. The embedded web server supports TLS 1.2 encryption and LDAP authentication. Firmware updates are digitally signed and validated prior to installation, ensuring integrity throughout the device lifecycle. Data retention policies are configurable per site-specific SOPs, with optional cloud backup to AWS S3 buckets meeting ISO/IEC 27001 certification requirements.

Applications

• Exothermic/endothermic reaction control in pharmaceutical synthesis (ICH Q5, Q7)
• Temperature-programmed aging studies for polymer stability assessment (ISO 11357-3)
• Calibration of RTDs, thermistors, and infrared sensors against NIST-traceable references
• Thermal conditioning of optical components during interferometric alignment
• Dynamic viscosity profiling of shear-thinning fluids using coupled rheometer-circulator setups
• Accelerated shelf-life testing of biologics under variable thermal stress protocols

FAQ

What distinguishes dynamic temperature control from standard recirculating chillers?
Dynamic control employs predictive load modeling and multi-stage refrigerant staging to actively compensate for transient thermal loads—whereas conventional chillers respond reactively, resulting in overshoot and prolonged stabilization times.

Can the PRESTO W50 operate continuously at −50 °C with full heating capacity?
Yes—the system maintains rated heating power (6.0 kW) across its entire range; however, net cooling capacity declines progressively below −40 °C, necessitating careful thermal budgeting for combined heating/cooling duty cycles.

Is Thermal HL fluid compatible with ASTM D6793 specifications for synthetic heat-transfer fluids?
Yes—Thermal HL conforms to ASTM D6793 Type II (non-aqueous, low-volatility, oxidation-stable) and carries UL Recognition for Class IIIA flammability rating.

Does the system support validation documentation packages for regulated laboratories?
Yes—JULABO provides IQ/OQ documentation templates aligned with ASTM E2500-13 and EU Annex 15, including sensor calibration certificates, loop performance verification records, and FAT/SAT test reports.
