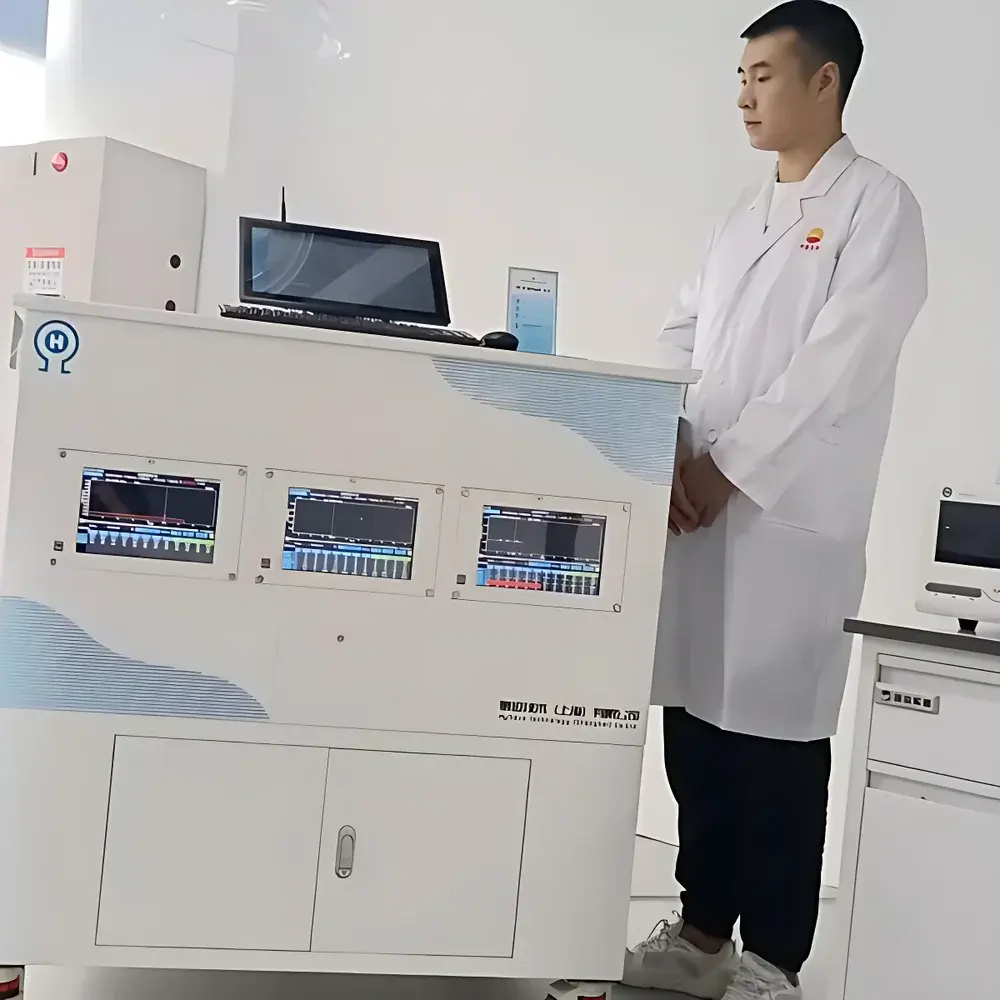

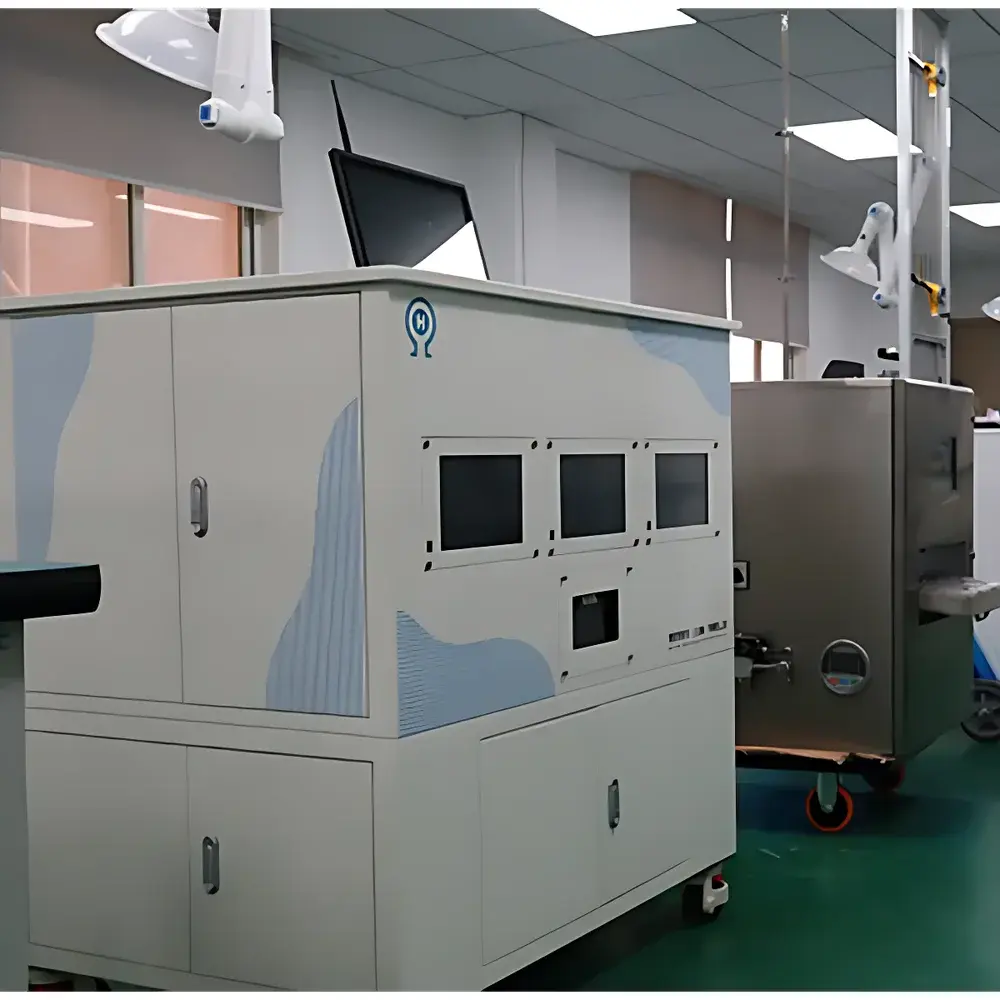

KA hytrace Mobile Hydrogen Quality Analyzer for Fuel Cell Applications

Overview

The KA hytrace Mobile Hydrogen Quality Analyzer is a purpose-built, integrated gas chromatographic system engineered for rapid, field-deployable compliance testing of hydrogen fuel per ISO 14687:2019 and GB/T 37244–2018. Unlike conventional laboratory-based GC systems requiring multiple instruments and manual sample handling, the hytrace platform consolidates detection of all 13 critical impurities—including N₂, O₂, CO, CO₂, CH₄, Ar, H₂S, COS, MeSH, CS₂, DMS, HCHO, NH₃, organic/inorganic halides, and H₂O—into a single mobile unit. Its core architecture employs parallel multi-channel gas chromatography coupled with four orthogonal detection modalities: Electron Capture Detector (ECD), Thermal Conductivity Detector (TCD), Flame Ionization Detector (FID), and a dedicated online absorption ion chromatography (IC) module. This hybrid configuration enables simultaneous separation and quantification across diverse chemical classes—permanent gases, hydrocarbons, sulfur compounds, nitrogenous species, carbonyls, and halogenated analytes—without pre-concentration for most target impurities. The system operates on a fully inert, high-integrity fluidic path, minimizing adsorption losses and ensuring trace-level reproducibility in ppbv-range measurements.

Key Features

• Integrated Multi-Detector Architecture: Combines ECD, TCD, FID, and online IC within one chassis, eliminating inter-instrument calibration drift and enabling concurrent analysis of all 13 ISO 14687 impurities in ≤30 minutes per injection.
• ppbv-Level Direct-Injection Sulfur Analysis: Utilizes an enhanced plasma discharge detector (EPD) with non-adsorptive sample introduction and real-time chromatographic noise suppression algorithms—enabling sub-0.5 ppbv detection of H₂S, COS, MeSH, CS₂, and DMS without cryogenic pre-concentration.
• Asynchronous Parallel Chromatography: Independent temperature-programmed columns and detectors operate concurrently; each channel executes its own retention time profile without synchronization constraints, reducing total cycle time while preserving resolution.
• Trace-Level Dynamic Dilution System: Based on sonic nozzle technology, this valve-free, sensorless dilution module delivers certified accuracy of ±0.5% and flow repeatability <0.10% across dilution ratios from 1:2 to 1:3500—critical for calibrating highly adsorptive species such as NH₃, HCHO, and organic acids.
• Mobile-Optimized Fluidic Management: Electromagnetically regulated pressure-matching interface ensures seamless integration with high-pressure hydrogen sources (e.g., electrolyzers, tube trailers, or station dispensers), maintaining stable inlet conditions across variable supply pressures (up to 100 bar).
• One-Touch Workflow Automation: Unified software controls injection, oven ramping, detector acquisition, data reduction, and report generation—minimizing operator intervention and supporting GLP-compliant audit trails.

Sample Compatibility & Compliance

The hytrace analyzer is validated for direct analysis of gaseous hydrogen samples at pressures up to 100 bar and purity levels ≥99.97 mol%. It meets the full analytical scope defined in ISO 14687:2019 Annex A and GB/T 37244–2018, including specification limits for total sulfur (≤4 nmol/mol), formaldehyde (≤10 nmol/mol), ammonia (≤100 nmol/mol), and halides (≤50 nmol/mol). All internal wetted surfaces undergo ultra-high-purity passivation (electropolished stainless steel with SilcoNert® or Sulfinert® coating), ensuring minimal memory effects and long-term stability for reactive impurities. The system supports full 21 CFR Part 11-compliant electronic records, including user authentication, instrument event logging, and immutable raw data archiving. It has undergone third-party verification by the China Industrial Gases Association’s Technical Committee on Gas Analysis Instruments and was listed in the National Energy Administration’s 2022 Third Batch of “First-of-a-Kind Energy Equipment” catalog.

Software & Data Management

The hytrace Control Suite is a Windows-based application designed for laboratory and field use. It provides real-time chromatogram visualization, automated peak integration using retention time locking and spectral deconvolution, and built-in compliance reporting templates aligned with ISO 14687 and GB/T 37244. All calibration curves are stored with metadata (date, operator, standard lot, uncertainty budget), and calibration history is traceable via version-controlled method files. Raw data (.cdf) and processed reports (.pdf/.xlsx) are automatically timestamped and digitally signed. Audit trail functionality logs every user action—including method edits, calibration updates, and result approvals—with immutable timestamps and operator IDs. Data export supports LIMS integration via ASTM E1384-compliant XML schema.

Applications

• Quality assurance at PEM fuel cell hydrogen production facilities (alkaline/PEM electrolyzers)
• In-line and at-point-of-use monitoring at hydrogen refueling stations (HRS)
• Validation of hydrogen transport and storage integrity (tube trailers, liquid dewars)
• Commissioning and periodic verification of hydrogen purification units (PSA, membrane separators)
• Third-party certification laboratories performing ISO 14687 conformance testing
• R&D environments evaluating novel catalysts, membranes, or impurity removal technologies

FAQ

Does the hytrace system require external calibration gases for daily operation?
No—its integrated sonic nozzle dilution system enables on-board generation of certified trace standards from primary reference materials, reducing dependency on commercial cylinder gases.
Can the system analyze hydrogen directly from a 700-bar refueling dispenser?
Yes—the pressure-matching module regulates inlet pressure to match detector and column requirements, supporting direct sampling from 350–700 bar sources without intermediate regulators or manual decompression.
Is the software compliant with FDA 21 CFR Part 11?
Yes—electronic signatures, role-based access control, audit trail generation, and data immutability are fully implemented per Part 11 requirements.
What maintenance intervals are recommended for field deployment?
Column conditioning every 200 injections; EPD electrode cleaning every 500 injections; carrier gas filter replacement every 6 months or 1,000 operating hours—whichever occurs first.
How is method transfer handled between laboratory and mobile units?
All methods are stored as portable .mth files containing complete instrument parameters, calibration data, and processing rules—ensuring identical performance across distributed hytrace installations.
