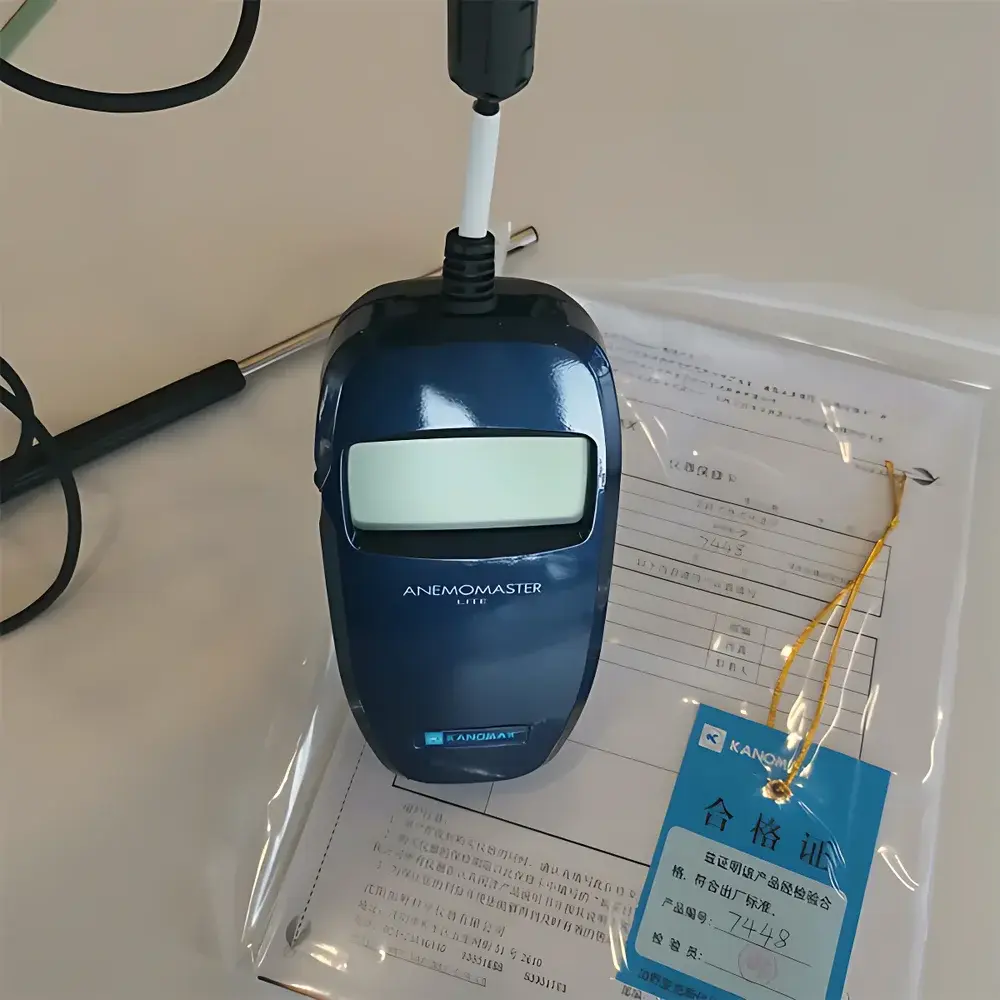

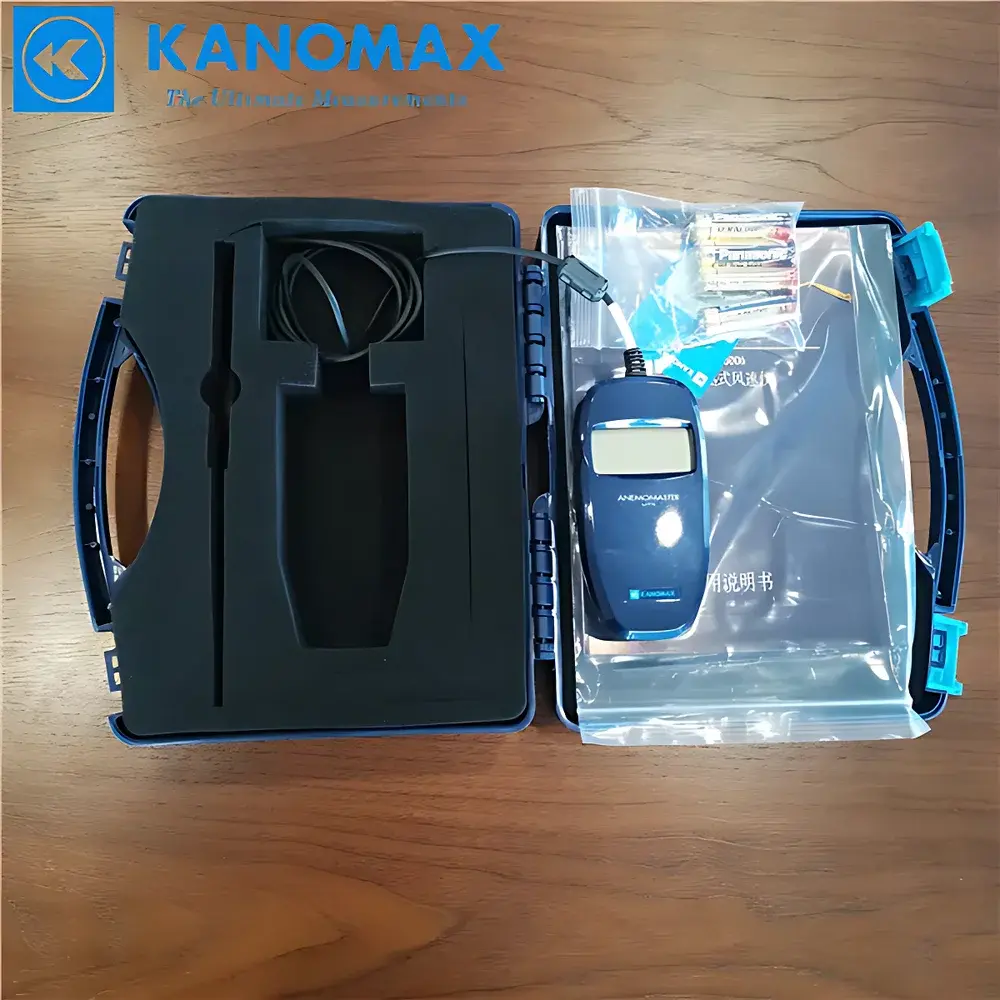

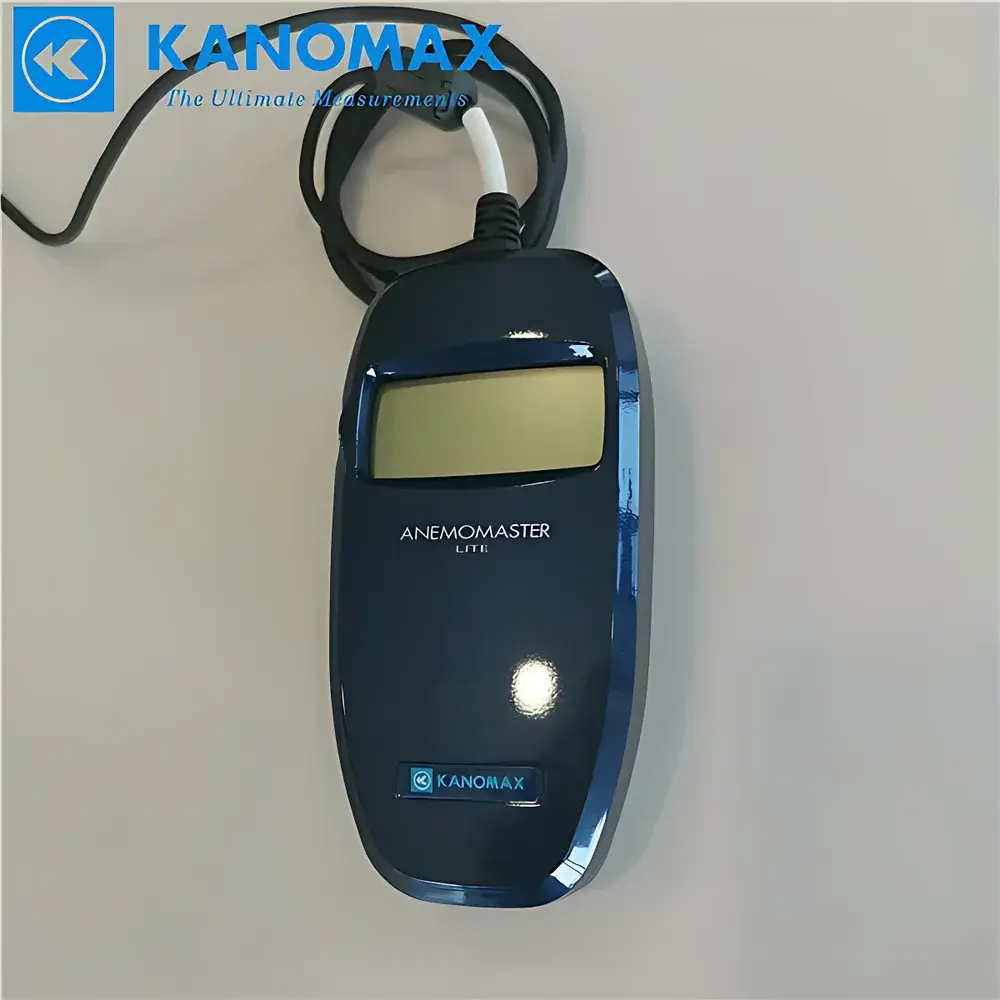

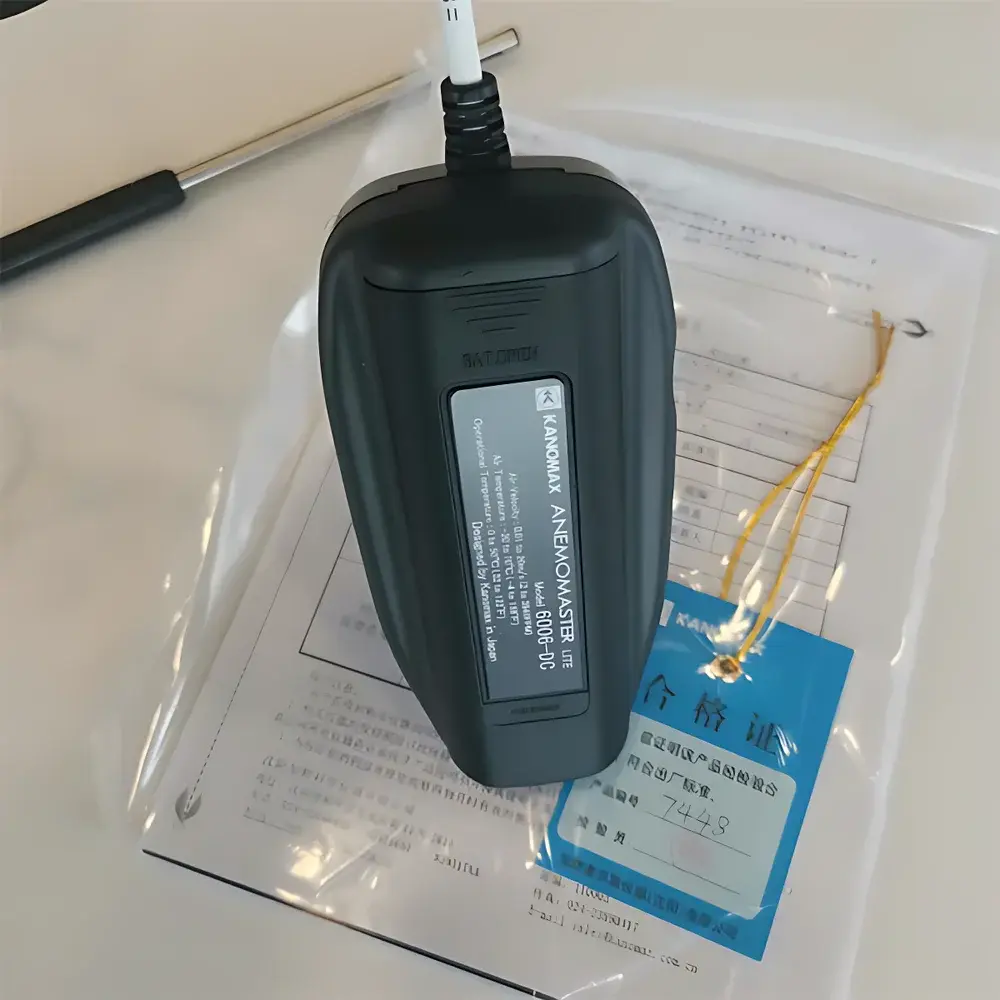

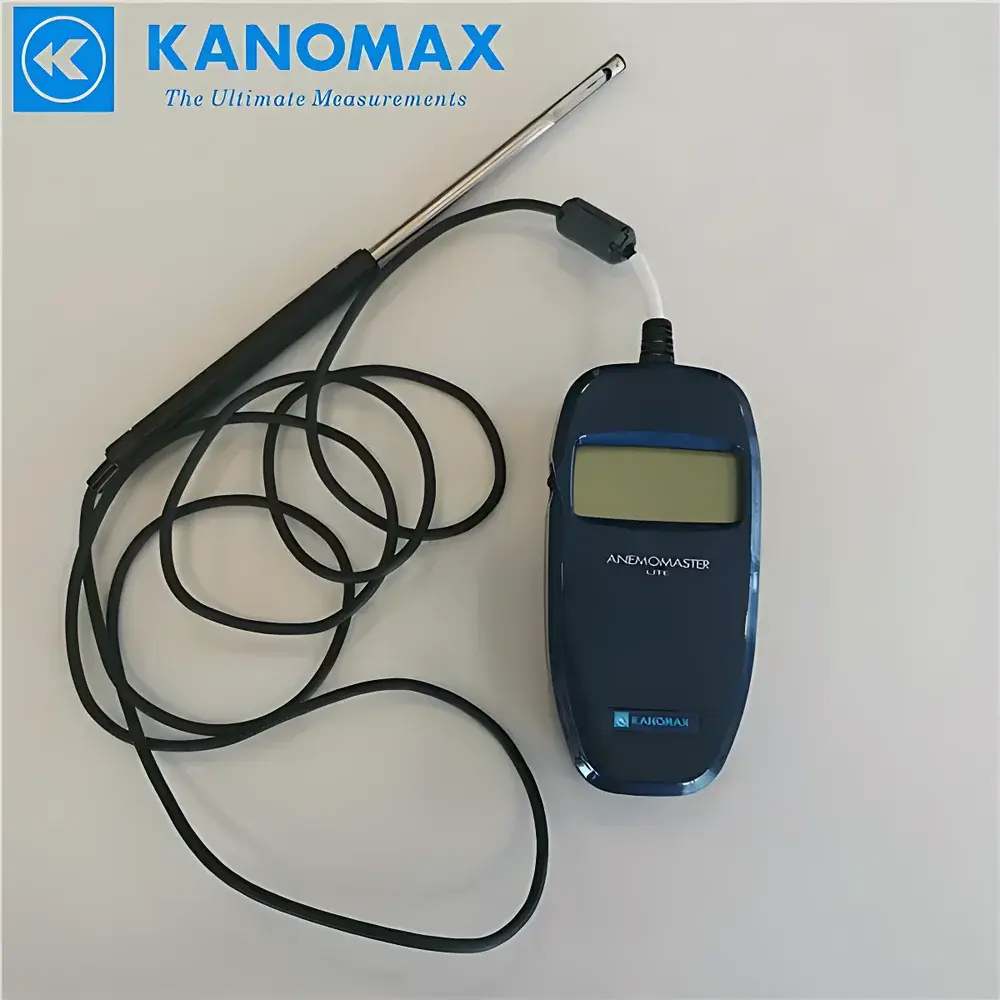

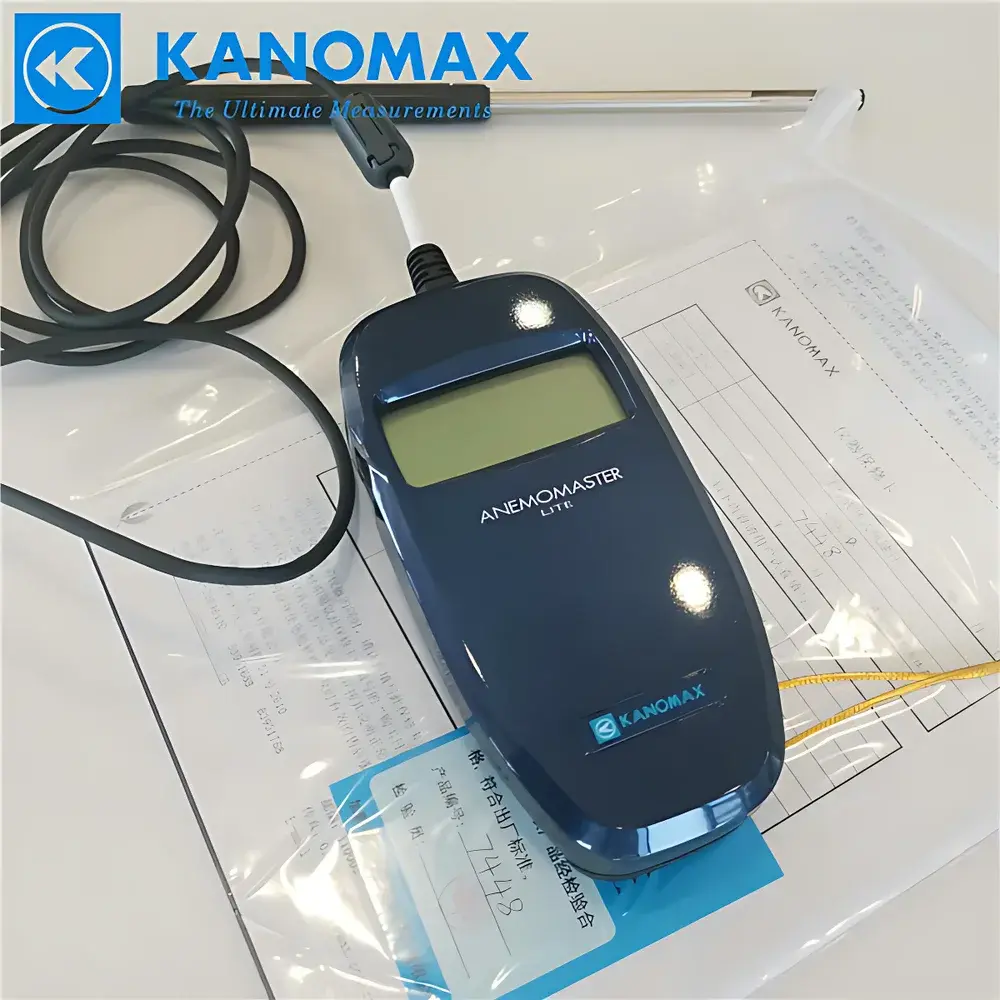

KANOMAX 6006 Handheld Thermal Anemometer

Overview

The KANOMAX 6006 Handheld Thermal Anemometer is a precision-engineered instrument for quantitative measurement of air velocity and ambient temperature in low- to medium-velocity airflow environments. Based on constant-temperature anemometry (CTA), the device employs a thermally sensitive platinum resistor probe maintained at a fixed temperature differential above ambient. Convective heat loss from the sensor correlates directly with local air velocity—enabling real-time, linearized output calibrated across its full operational range of 0.01–20.0 m/s. Its compact, ergonomic design integrates seamlessly into field service workflows, laboratory validation protocols, and HVAC commissioning tasks where portability, repeatability, and traceable thermal compensation are essential. Unlike cup or vane anemometers, the 6006 delivers stable readings at near-zero velocities—critical for laminar flow characterization, cleanroom monitoring, and ventilation system balancing per ASHRAE Standard 111 and ISO 16813.

Key Features

• Single-button operation interface optimized for glove-compatible use in industrial and field settings
• Interchangeable, factory-calibrated thermal probes ensuring metrological continuity across multiple units and replacement cycles
• Integrated temperature compensation circuitry maintaining ±5% accuracy within the primary calibration envelope (10–40°C ambient), validated per IEC 60751 Class B tolerances
• Dual-parameter simultaneous display: wind speed (m/s or fpm) and temperature (°C or °F), with user-selectable averaging modes (FAST: 1 s, SLOW: 5 s)
• High-resolution digital readout: 0.01 m/s resolution below 10 m/s; 0.1 m/s above—aligned with ANSI/ASHRAE Guideline 12–2020 data granularity requirements
• Robust mechanical architecture: IP54-rated housing (IEC 60529), operating capability from −20°C to +70°C at probe tip, and 5–40°C for electronics stability
• Battery status indication (4-segment LED), data hold function, and configurable display units via DIP switch—supporting multi-site international deployment without software dependency

Sample Compatibility & Compliance

The KANOMAX 6006 is validated for use with ambient air under standard atmospheric pressure (86–106 kPa). It is not intended for corrosive, explosive, or particulate-laden gas streams exceeding ISO 14644-1 Class 8 contamination limits. Probe geometry (Ø6.1 mm shaft, Ø10.6 mm sensing tip) enables access to ducts ≥50 mm diameter and grilles with minimal flow disturbance. The instrument conforms to electromagnetic compatibility requirements per EN 61326-1:2013 and meets safety standards IEC 61010-1:2010 for handheld portable electrical equipment. While not certified for intrinsic safety (ATEX/IECEx), it supports GLP-aligned documentation workflows when used in HVAC performance verification per ISO 16813 and cleanroom qualification per ISO 14644-3 Annex B.

Software & Data Management

The 6006 operates as a standalone, firmware-based instrument with no embedded memory or PC connectivity. All measurements are displayed in real time; no internal logging or USB/Bluetooth transmission is provided. This architecture ensures immunity to software obsolescence, cyber vulnerabilities, and driver conflicts—making it suitable for regulated environments where audit trail simplicity and deterministic behavior are prioritized over digital data capture. Users requiring traceable records may pair the unit with external dataloggers or manual entry into LIMS systems compliant with 21 CFR Part 11 (when accompanied by procedural controls for operator identification and timestamp validation). Calibration certificates issued by accredited laboratories (e.g., JCSS-certified providers in Japan) include uncertainty budgets traceable to NMIJ standards.

Applications

• HVAC system commissioning and routine maintenance—including diffuser testing, duct traverse surveys, and exhaust hood face velocity verification per ANSI/ASHRAE 110
• Industrial hygiene assessments for worker exposure to airborne contaminants, aligned with ACGIH TLV® guidelines on airflow-dependent dilution rates
• Environmental chamber and incubator airflow uniformity mapping during IQ/OQ protocols
• Validation of laminar flow hoods and biosafety cabinets per NSF/ANSI 49 and EN 12469
• Educational laboratory instruction in fluid mechanics and thermal environmental engineering
• Field verification of fan coil unit output, VAV box actuation, and terminal device performance

FAQ

Is the KANOMAX 6006 suitable for outdoor wind measurement?
No—it is engineered for indoor and sheltered environmental applications where turbulence, precipitation, and rapid thermal transients are minimized. Outdoor use may exceed specified humidity and temperature operating limits and compromise long-term probe stability.
Can the probe be replaced in the field without recalibration?
Yes—the probe is designed as a modular, pre-calibrated component. Each replacement probe ships with a unique calibration certificate referencing its individual sensitivity curve; no user recalibration is required.
Does the unit meet FDA or ISO 13485 requirements for medical device manufacturing environments?
While the 6006 itself is not a medical device, its metrological performance supports environmental monitoring in ISO 13485-certified facilities when deployed per documented SOPs and included in equipment qualification protocols (IQ/OQ/PQ).
What is the recommended calibration interval?
Annual calibration is advised for routine quality control use. In high-usage or critical compliance applications (e.g., pharmaceutical cleanrooms), semi-annual verification against a NIST-traceable reference anemometer is recommended.
Is the 6006 compatible with KANOMAX’s legacy accessories such as extension rods or tripod mounts?
Yes—mechanical interfaces and electrical pinouts remain consistent with prior-generation models including the discontinued 6004, enabling seamless integration of existing ancillary hardware.
