Kanomax 6006 Hot-Wire Anemometer

Overview

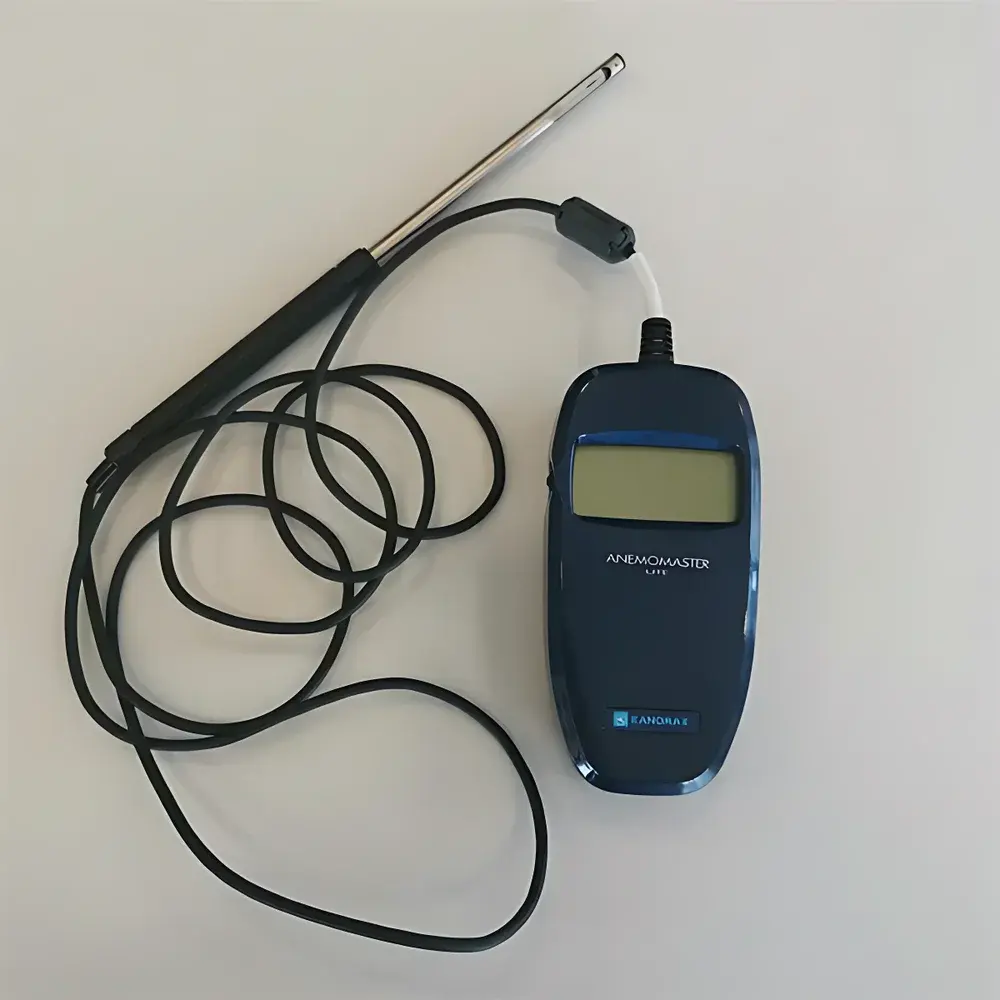

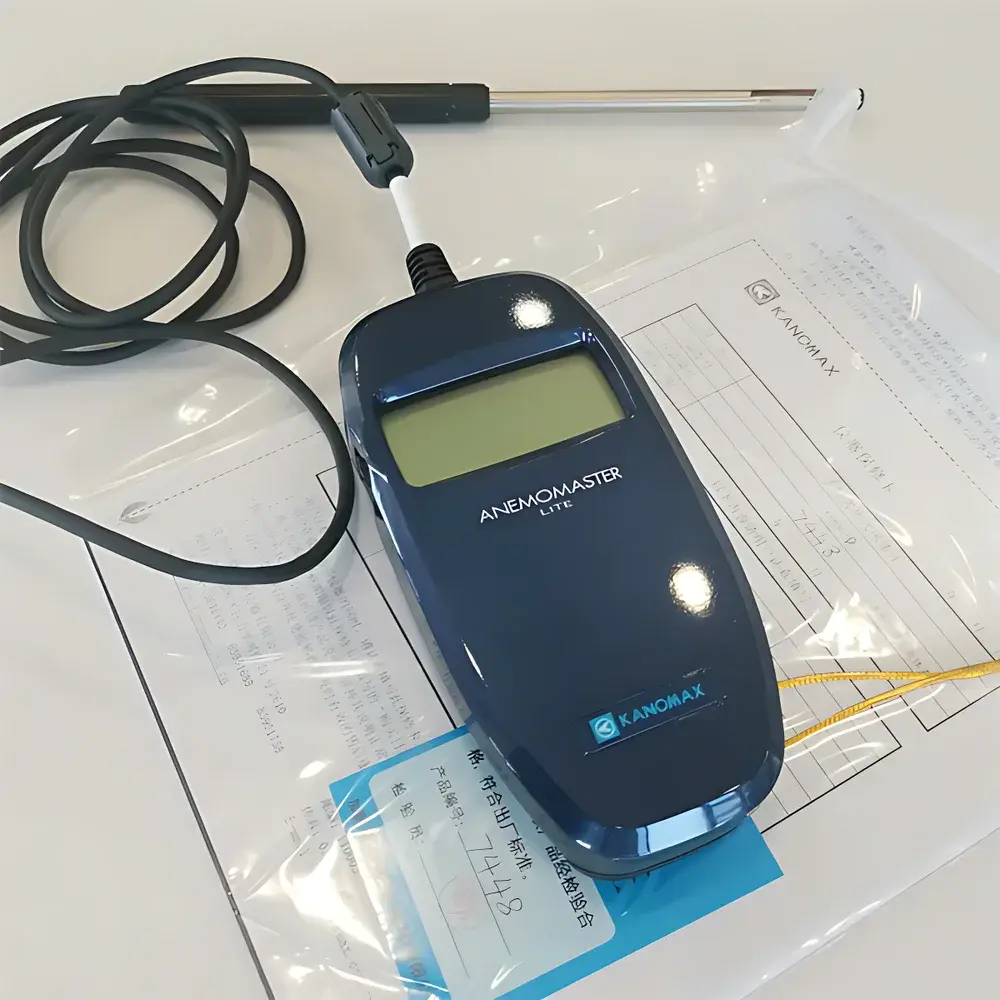

The Kanomax 6006 Hot-Wire Anemometer is a compact, handheld environmental monitoring instrument engineered for precise, real-time measurement of air velocity and ambient temperature in controlled and industrial environments. Based on constant-temperature anemometry (CTA), the device employs a fine platinum-wire sensor whose electrical resistance changes proportionally with convective heat loss—directly correlating to local airflow velocity. This principle ensures high sensitivity at low velocities (down to 0.01 m/s), making the 6006 particularly suitable for laminar flow verification, cleanroom certification (ISO 14644-3), HVAC balancing, and laboratory ventilation assessment. Its dual-sensor capability enables simultaneous acquisition of wind speed and temperature without requiring separate instruments or sequential measurements—reducing procedural variability and improving data integrity in time-sensitive field evaluations.

Key Features

• Hot-wire sensing technology with automatic zero-point compensation for stable baseline performance across varying thermal conditions.

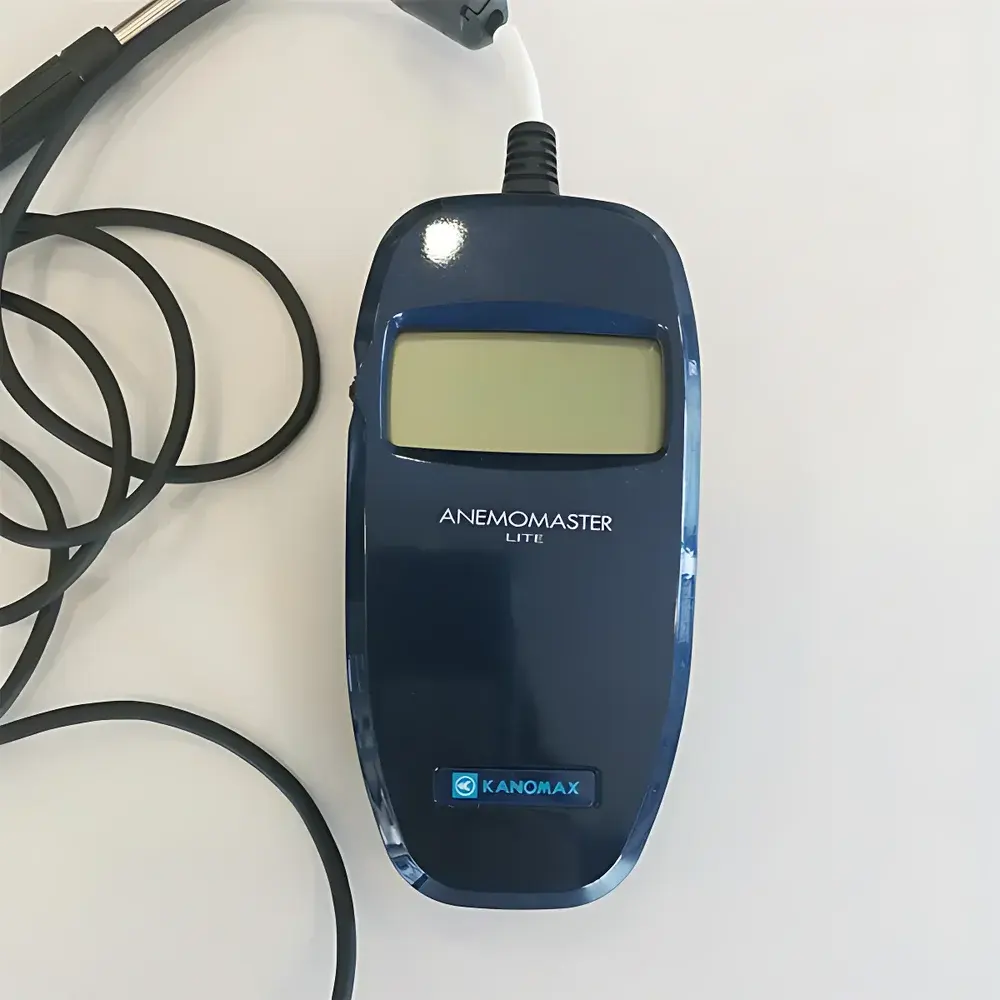

• Integrated dual-parameter display showing real-time wind speed (m/s) and temperature (°C) on a high-contrast LCD screen with backlight.
• Ergonomic, palm-sized housing (60 × 120 × 34 mm) designed for single-hand operation in confined spaces such as ductwork access points, biosafety cabinets, and ISO Class 5–8 cleanroom hoods.
• Interchangeable probe configuration supports optional extension rods and angled tips—enabling measurements in hard-to-reach locations while maintaining mechanical stability and thermal isolation.
• Battery-powered operation (4 × AA) delivers up to 20 hours of continuous use; low-battery indicator alerts users prior to voltage drop-induced measurement drift.
• Robust construction compliant with IP54-rated ingress protection against dust and splashing water—suitable for both indoor and semi-outdoor environmental surveys.

Sample Compatibility & Compliance

The Kanomax 6006 is optimized for gaseous media under standard atmospheric conditions (101.3 kPa, 25 °C). It is validated for use in non-corrosive, non-explosive, particle-free airstreams typical of pharmaceutical cleanrooms, microelectronics fabrication facilities, hospital isolation rooms, and academic research labs. While not intrinsically safe, its low-power design and absence of moving parts minimize ignition risk in general-purpose settings. The instrument meets JIS C 1510:2018 requirements for hot-wire anemometers and aligns with measurement traceability protocols referenced in ISO/IEC 17025-accredited calibration laboratories. Data generated with the 6006 supports compliance documentation for ISO 14644-1 (cleanroom classification), ASHRAE Standard 110 (fume hood performance), and EU GMP Annex 1 (airflow uniformity testing).

Software & Data Management

The Kanomax 6006 operates as a standalone field instrument and does not include onboard memory or USB/Bluetooth connectivity. However, it supports manual data logging via external recording devices or spreadsheet-based capture during qualification audits. For regulated environments requiring audit trails, users may integrate the 6006 into broader environmental monitoring systems using analog output adapters (e.g., 0–5 V or 4–20 mA transducers, sold separately). All measurements adhere to GLP-aligned documentation practices when paired with standardized SOPs—including operator ID, location tag, timestamp, and environmental context notes. Calibration certificates issued by Kanomax-authorized service centers are traceable to NMIJ (National Metrology Institute of Japan) standards and include uncertainty budgets per ISO/IEC 17025 Clause 7.6.

Applications

• Cleanroom airflow mapping and ISO 14644-3 velocity uniformity validation.
• HVAC system commissioning, duct traverse surveys, and filter face velocity checks.
• Local exhaust ventilation (LEV) performance testing per HSE HSG258 guidelines.
• Biological safety cabinet (BSC) inflow and downflow velocity verification (NSF/ANSI 49).
• Thermal comfort studies in office buildings and healthcare facilities (ASHRAE 55).
• Educational demonstrations of boundary layer development and forced convection principles.

FAQ

What is the recommended calibration interval for the Kanomax 6006?
Kanomax recommends annual calibration under routine use; more frequent calibration (e.g., quarterly) is advised when used in critical GMP or ISO-certified environments or following mechanical shock or exposure to condensation.
Can the 6006 measure turbulent or pulsating flows accurately?
Yes—the hot-wire sensor’s intrinsic frequency response exceeds 100 Hz, enabling resolution of transient fluctuations common in variable-air-volume (VAV) systems and fan-driven enclosures.
Is the temperature sensor independently calibrated from the velocity sensor?
Yes—both sensors undergo separate factory calibration with individual correction coefficients stored in firmware; cross-sensitivity between parameters is less than ±0.2 °C per 10 m/s change in airflow.
Does the 6006 support data export or PC interface?
No—the unit lacks digital communication ports; however, analog output modules compatible with third-party DAQ systems are available through Kanomax distributors.
How does humidity affect measurement accuracy?
At relative humidity levels between 20–85% RH (non-condensing), humidity-induced error remains within ±0.3 m/s due to integrated thermal compensation algorithms; operation outside this range requires derating per Kanomax Technical Bulletin TB-6006-02.
