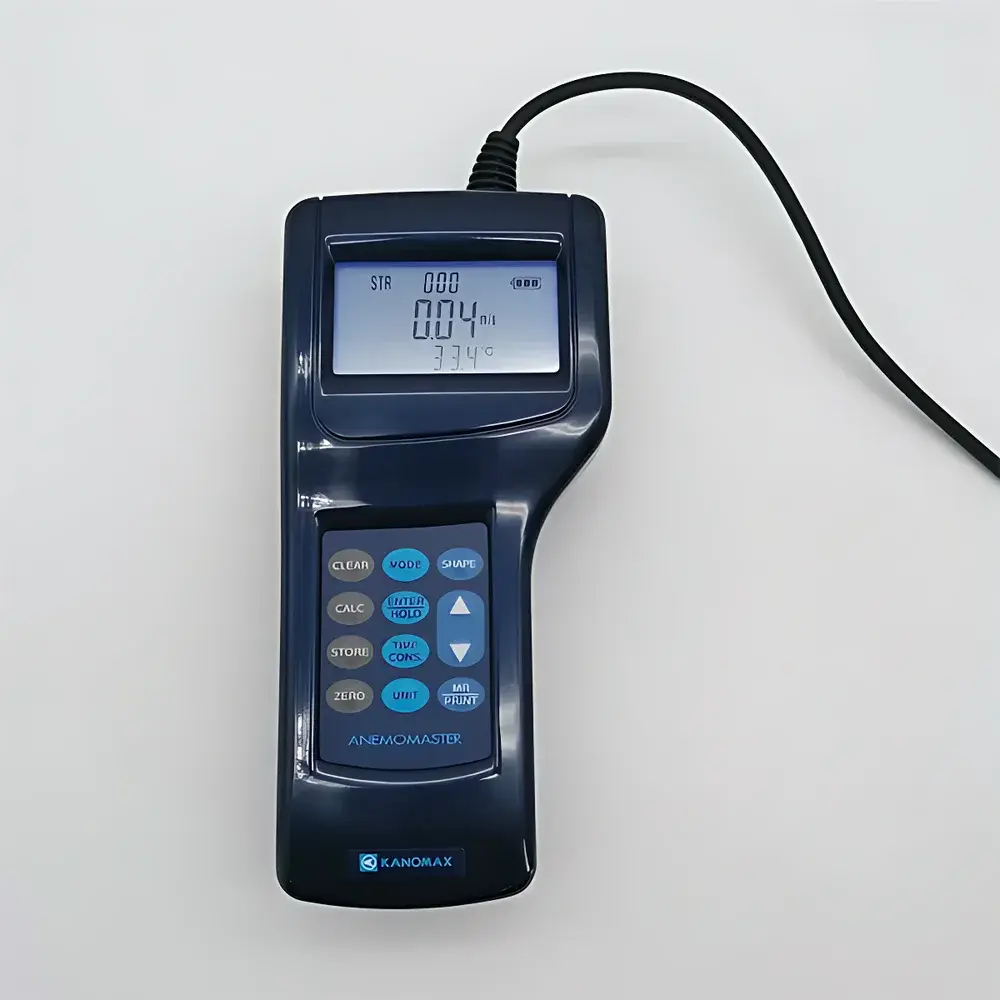

Kanomax 6036-0C / 6036-BC Smart Environmental Anemometer & Air Flow Meter

Overview

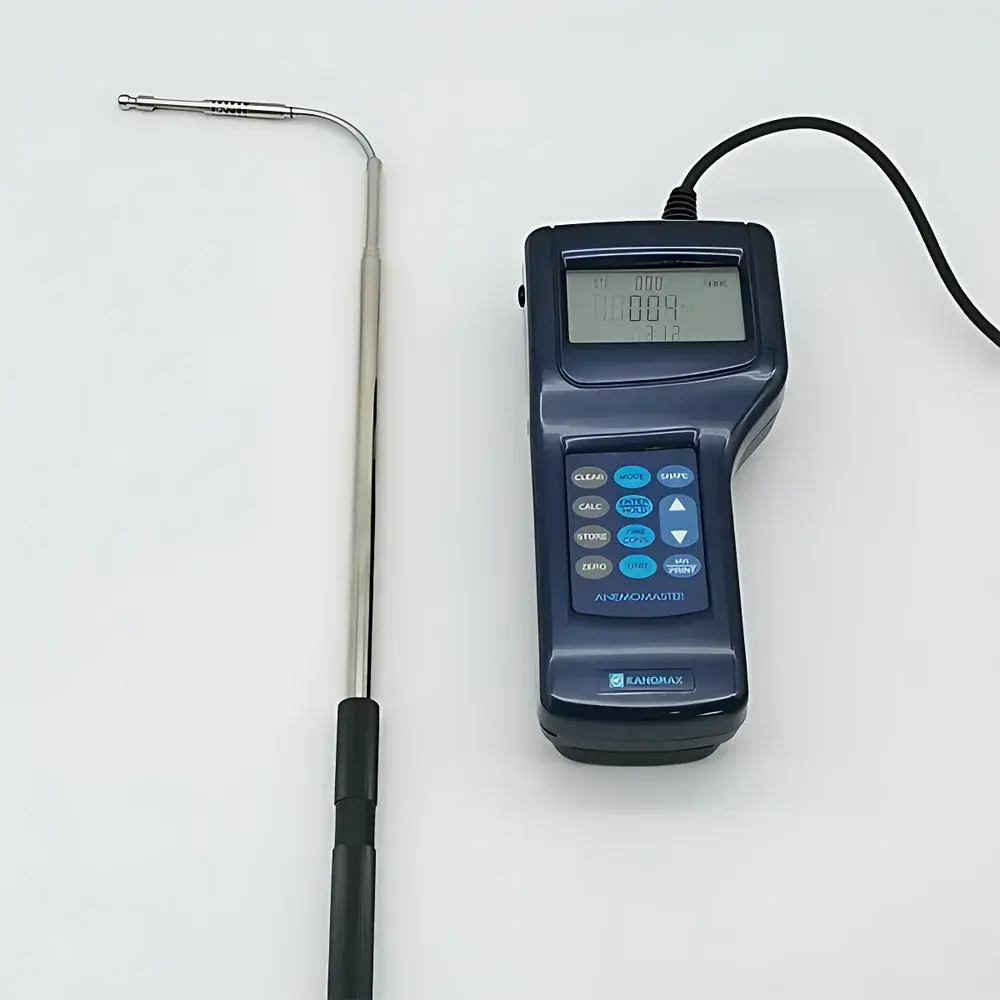

The Kanomax 6036-0C and 6036-BC are handheld, multi-parameter environmental measurement instruments engineered for precision air velocity, volumetric flow, temperature, and differential pressure assessment in HVAC commissioning, cleanroom validation, industrial ventilation audits, and laboratory airflow characterization. Built upon constant-temperature anemometry (CTA) principles, the device employs a thermally sensitive probe element whose heat dissipation correlates directly with local air velocity—enabling stable, low-flow sensitivity down to 0.01 m/s without mechanical moving parts. Unlike cup or vane anemometers, thermal sensing delivers rapid response times (<100 ms), minimal flow disturbance, and consistent performance across turbulent, laminar, and bidirectional airstreams. The integrated probe features flexible articulation and telescopic extension, permitting access to duct interiors, grilles, filters, and confined test points without disassembly. All measurements are referenced to standard ambient conditions (25 °C, 101.325 kPa), with automatic compensation applied for real-time density correction during volumetric flow calculation.

Key Features

• Simultaneous real-time acquisition of air velocity, temperature, differential pressure, and derived volumetric flow rate
• Thermally compensated thermal anemometer sensor with factory-calibrated traceability to JIS Z 8001 and ISO/IEC 17025-accredited standards
• Configurable duct geometry input (rectangular, circular, oval) with automatic cross-sectional area calculation for accurate flow integration
• On-device statistical analysis: min/max/avg values, standard deviation, and time-stamped logging per measurement sequence
• USB interface compliant with CDC ACM class protocol—no driver installation required on Windows/macOS/Linux hosts
• Ruggedized ABS+PC housing rated IP54 for dust and splash resistance; operational within −20 °C to +70 °C ambient range
• Battery-powered operation (4 × AA, alkaline or Ni-MH) supporting ≥12 hours continuous use; low-battery indicator and auto-shutdown

Sample Compatibility & Compliance

The 6036 series is validated for use in non-corrosive, non-explosive, particle-free airstreams typical of indoor environmental monitoring and HVAC system diagnostics. It complies with ISO 16813:2006 (HVAC design and testing), ASHRAE Guideline 12-2020 (commissioning of HVAC systems), and JIS B 7553 (anemometer performance specifications). While not intrinsically safe, its low-power thermal sensor and absence of ignition sources permit deployment in Class I, Division 2 hazardous locations per NEC Article 500 when used with appropriate barriers. For GLP/GMP-regulated environments, the instrument supports audit-ready data export and timestamped record integrity—though full 21 CFR Part 11 compliance requires supplemental software validation protocols administered by the end user.

Software & Data Management

Kanomax provides the proprietary KANOMAX Data Viewer (v3.2+) for Windows-based post-processing, visualization, and report generation. The application imports native .KDF files containing raw sensor timestamps, calibrated values, duct geometry metadata, and statistical summaries. Export formats include CSV, PDF, and Excel-compatible XLSX—enabling integration with LIMS, CMMS, or QA documentation workflows. Each stored record includes unique session ID, operator ID field (user-definable), and firmware version stamp. Firmware updates are delivered via USB and preserve all calibration coefficients; no recalibration is required after update. Data encryption is not implemented at the device level; secure transfer and storage must be managed externally per organizational IT policy.

Applications

• HVAC balancing and TAB (Testing, Adjusting, Balancing) per NEBB and AABC standards
• Cleanroom ISO 14644-3 airflow uniformity mapping and face velocity verification
• Fume hood face velocity surveys and containment validation (ANSI/AIHA Z9.5)
• Exhaust stack and supply duct volumetric flow quantification using traverse point averaging
• Filter bank leakage screening via upstream/downstream velocity profiling
• Academic and industrial aerodynamic research requiring portable, multi-sensor synchronization

FAQ

Does the 6036 require annual recalibration?
Yes—Kanomax recommends traceable recalibration every 12 months or after any physical impact, exposure to condensation, or measurement drift exceeding ±2% of full scale.
Can the probe measure reverse airflow direction?
No—the thermal sensor is unidirectional; it reports magnitude only. Bidirectional flow assessment requires manual probe reorientation and sign assignment in post-processing.
Is the pressure sensor suitable for static pressure measurement in ducts?
Yes, when connected via optional pitot-static tube (e.g., Kanomax 6160 series) and zeroed in situ; the built-in sensor measures differential pressure only.
What is the maximum allowable particulate concentration for reliable operation?
Operation is limited to environments with ≤10 mg/m³ total suspended particulates; higher concentrations risk thermal sensor fouling and require periodic cleaning per maintenance manual Section 4.2.
Does the device support Modbus or analog output for SCADA integration?
No—only USB serial communication is supported. External signal conversion requires third-party USB-to-Modbus gateways with custom mapping configuration.
