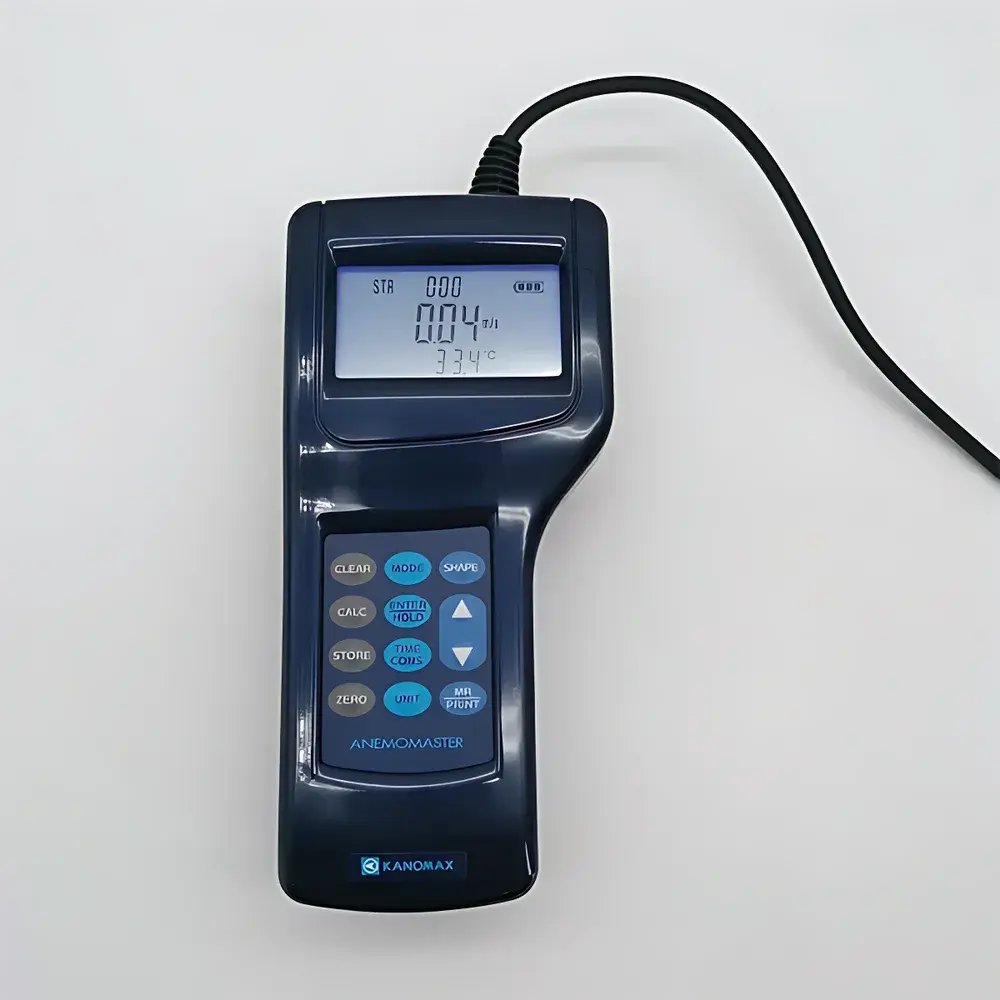

Kanomax 6036-0C / 6036-BC Smart Environmental Tester (Thermal Anemometer with Multi-Parameter Monitoring)
| Brand | Kanomax |
|---|---|
| Origin | Japan |
| Instrument Type | Thermal Anemometer |
| Measurement Range | 0.01–30.0 m/s |
| Accuracy | ±3% of reading (wind speed), ±0.5 °C (temperature), ±3% of reading (pressure, ±5 kPa full scale) |
| Resolution | ±2% of reading |
| Operating Temperature | −20 to +70 °C |
| Operating Humidity | 2.0–98.0% RH |
| Data Storage Capacity | 1500 records |
| Interface | USB |
| Dimensions | 66 × 51 × 188 mm |
| Weight | 400 g (without batteries) |
| Compliance | Designed for ISO 14644-1/3 cleanroom qualification, GMP-compliant environmental monitoring workflows |
Overview
The Kanomax 6036-0C and 6036-BC Smart Environmental Tester is a handheld, multi-parameter thermal anemometer engineered for precision air velocity, volumetric airflow, temperature, and differential pressure measurement in controlled environments. Based on constant-temperature anemometry (CTA), the instrument employs a heated platinum resistance sensor whose cooling rate correlates directly with local air velocity—enabling stable, low-range sensitivity down to 0.01 m/s. Its integrated computational engine calculates real-time volumetric airflow (m³/h or CFM) when users input duct geometry (rectangular, circular, or irregular cross-sections) and dimensions—making it especially suited for HVAC validation, cleanroom certification (ISO 14644-1 Class 5–8), and pharmaceutical facility qualification per EU GMP Annex 1 and FDA Guidance for Industry on Environmental Monitoring.
Key Features
- Simultaneous measurement of air velocity (0.01–30.0 m/s), temperature (−20 to +70 °C), and differential pressure (±5 kPa) with independent accuracy specifications

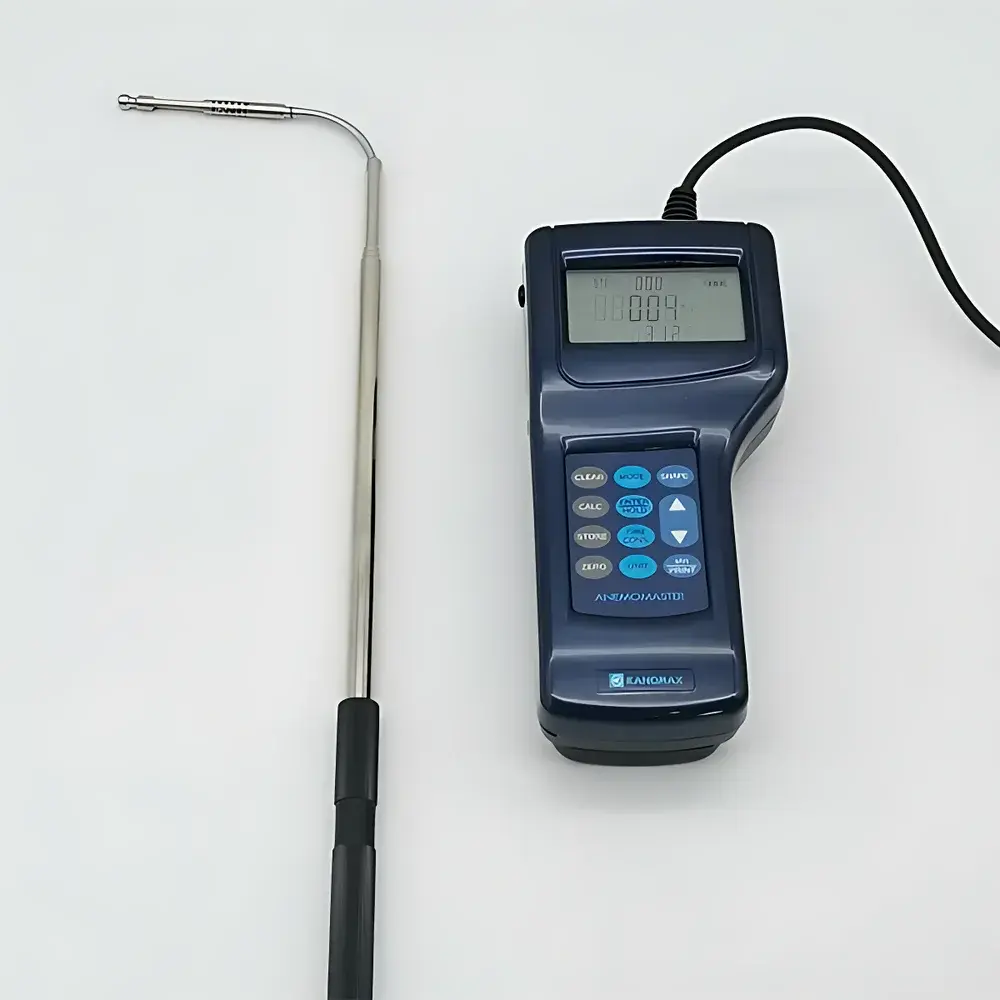

- Flexible, articulating probe with 360° rotation and telescopic extension (up to 1.2 m) for access to duct interiors, laminar flow hoods, and HEPA filter banks
- On-device statistical analysis: real-time calculation of mean, max, min, and standard deviation across user-defined sampling intervals
- Internal memory stores up to 1500 timestamped data sets—including date/time stamp, measurement mode, and environmental conditions
- USB interface enables direct connection to Windows-based PCs for live streaming and post-processing using Kanomax’s proprietary Data Viewer software (v3.2+)
- Rugged, ergonomic housing (66 × 51 × 188 mm; 400 g) with IP54-rated ingress protection against dust and water splashes during routine cleanroom operation
Sample Compatibility & Compliance
The 6036 series is validated for use in non-hazardous, non-corrosive indoor environments typical of pharmaceutical manufacturing suites, medical device assembly cleanrooms, semiconductor fabrication support areas, and biotech R&D laboratories. It meets mechanical and electrical safety requirements per IEC 61010-1:2010 for measurement equipment used in industrial and laboratory settings. While not intrinsically safe, its low-power thermal sensor design ensures compatibility with ISO 14644-3 testing protocols for airflow uniformity, recovery time, and turbulence assessment. The instrument supports documentation traceability required under 21 CFR Part 11 when used with audit-trail-enabled software configurations—though native firmware does not include electronic signature functionality.
Software & Data Management
Kanomax Data Viewer (Windows-compatible, included) provides real-time graphing, export to CSV/Excel, and customizable report templates aligned with ISO/IEC 17025 reporting conventions. Raw data files retain metadata including sensor calibration ID, operator ID (manually entered), and ambient RH/T at time of capture. Exported datasets are compatible with LIMS integration via standardized CSV schema. Firmware updates are distributed through Kanomax’s official support portal and require USB cable connection; version history and release notes are publicly archived for regulatory review. No cloud synchronization or remote telemetry is implemented—ensuring full data sovereignty for regulated users.
Applications
- Cleanroom airflow mapping and ISO 14644-1 classification verification
- HEPA filter integrity testing support (velocity uniformity checks pre- and post-filter change)
- Pharmaceutical isolator and RABS performance qualification (air change rate, directional airflow)
- Environmental monitoring system (EMS) commissioning and periodic requalification
- Medical device packaging line ventilation validation (EN ISO 11143 compliance support)
- Academic and industrial HVAC research requiring portable, multi-sensor correlation
FAQ
Does the 6036-0C/6036-BC comply with ISO 14644-3 for cleanroom testing?
Yes—it is routinely deployed for ISO 14644-3 Annex B velocity uniformity and turbulence measurements when operated per manufacturer-recommended probe positioning and averaging protocols.
Is calibration traceable to NIST or JCSS standards?
Each unit ships with a factory calibration certificate traceable to JCSS-accredited standards; optional UKAS-accredited recalibration services are available through authorized Kanomax service centers.
Can the device measure airflow in round ducts with irregular surface conditions?
Yes—the built-in duct calculator accepts diameter input and applies logarithmic averaging algorithms to compensate for boundary layer effects; however, ISO 14644-3 recommends ≥10 measurement points per cross-section for Class A/B zones.
What battery type does it use, and what is typical field runtime?
It operates on four AA alkaline cells (included), delivering ~12 hours of continuous measurement at 1 Hz sampling; low-battery warning appears 30 minutes prior to shutdown.
Is the USB interface compatible with modern Windows 10/11 systems without legacy drivers?
Yes—plug-and-play HID-compliant interface requires no additional driver installation on Windows 10 v1903 or later; signed INF files provided for enterprise deployment via Group Policy.
