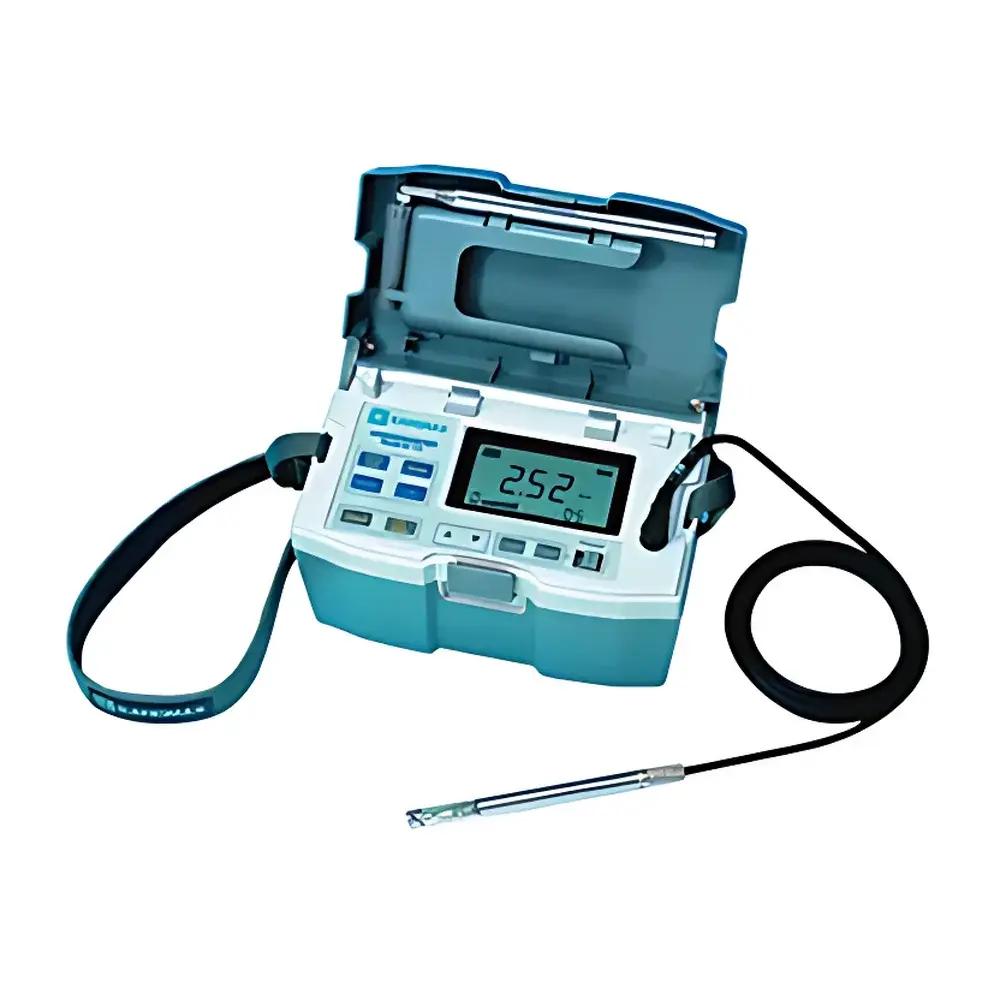

KANOMAX 6113 Intelligent Thermal Anemometer

Overview

The KANOMAX 6113 Intelligent Thermal Anemometer is a precision-engineered, multi-parameter environmental measurement instrument designed for reliable, real-time quantification of air velocity, temperature, and differential pressure in industrial HVAC systems, cleanroom validation, ductwork commissioning, and laboratory airflow characterization. Utilizing constant-temperature anemometry (CTA) — a well-established thermal sensing principle — the device maintains a heated sensor element at a fixed temperature above ambient; convective heat loss from the element correlates directly with local air velocity, enabling high-reproducibility measurements across turbulent and laminar flow regimes. Its robust mechanical architecture, IP-rated probe housing, and thermally stable electronics support operation in demanding environments including high-temperature ducts (up to 100 °C) and humidified enclosures. The instrument complies with fundamental metrological requirements outlined in ISO 16813 (HVAC testing), ASTM D1079 (airflow measurement standards), and supports traceable calibration protocols aligned with ISO/IEC 17025-accredited laboratories.

Key Features

• Simultaneous real-time acquisition of air velocity (0.1–50.0 m/s), ambient temperature (0–100 °C), and differential pressure (via optional pressure probe)
• High-resolution 0.1 m/s velocity resolution with stated accuracy of ±(3% of reading ± 0.1) m/s over full range
• Interchangeable probe design: standardized thermal anemometer probes are mechanically and electrically compatible across KANOMAX 6113 units, enabling rapid field replacement without recalibration or software reconfiguration
• Integrated thermal printer for on-site documentation — all measured parameters, timestamps, and statistical summaries (min/max/average) printed directly from instrument interface
• Onboard memory stores up to 100 complete measurement sets, each containing timestamped velocity, temperature, and pressure values, with embedded statistical engine computing real-time min, max, and arithmetic mean
• Large backlit LCD display with intuitive icon-based menu navigation; all primary functions accessible via single-button execution (e.g., print, store, reset stats)
• Standard RS-232C serial interface for bidirectional communication with PCs or data loggers; optional analog output module (0–5 V or 4–20 mA) available for integration into building management systems (BMS) or SCADA networks

Sample Compatibility & Compliance

The KANOMAX 6113 is optimized for gaseous media under standard atmospheric conditions and is validated for use in dry to moderately humid air (5–80 %RH). Its thermal sensor design exhibits minimal sensitivity to particulate loading typical in HVAC return air or exhaust ducts, though prolonged exposure to oil mist, condensate, or corrosive gases is not recommended without protective filtration. Probe interchangeability ensures consistent performance across multiple instruments when used in multi-point survey applications — a critical advantage during ISO 14644-3 cleanroom certification or ASHRAE 111 airflow uniformity testing. The unit meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not intrinsically safe, it is suitable for non-hazardous area classification per IEC 60079-0.

Software & Data Management

Data export is supported via RS-232C using ASCII protocol with configurable baud rates (9600–115200 bps), enabling seamless ingestion into Excel, MATLAB, or custom QA/QC databases. Raw datasets include UTC timestamps, measurement mode flags, and probe identification codes. Although no proprietary PC software is bundled, the open communication protocol facilitates integration with GLP-compliant laboratory information management systems (LIMS) and supports audit-trail generation when paired with timestamp-verified logging software. All stored data retains integrity through power cycles; memory retention exceeds 10 years under normal storage conditions. Firmware updates are performed via serial interface and require KANOMAX-issued binary files — version control is maintained per ISO 9001 documentation procedures.

Applications

• HVAC system balancing and commissioning per ASHRAE Guideline 1 and ISO 16813
• Cleanroom airflow visualization and velocity uniformity mapping (ISO 14644-3 Class 5–8)
• Pharmaceutical facility environmental monitoring (EU GMP Annex 1, FDA CFR 21 Part 211)
• Duct traverse surveys for volumetric flow calculation (using ISO 10780 methodology)
• Validation of fume hoods, biosafety cabinets, and laminar flow workstations
• Industrial process ventilation assessment and energy efficiency audits
• Academic and research airflow studies requiring portable, multi-parameter field instrumentation

FAQ

Is the KANOMAX 6113 suitable for high-temperature duct measurements?

Yes — the probe and main unit are rated for continuous operation at ambient temperatures up to 100 °C, making it appropriate for supply air ducts and industrial exhaust streams.
Can the built-in printer operate without a PC connection?

Yes — the thermal printer is fully self-contained and activated via dedicated front-panel controls; no external host or driver installation is required.
Does the instrument support calibration traceability to national standards?

Yes — KANOMAX provides NIST-traceable calibration certificates upon request; field calibration verification kits (including reference hot-wire anemometers and wind tunnels) are available through authorized service centers.
What is the expected service life of the thermal sensor element?

Under normal operating conditions (non-corrosive, particle-free air), the platinum-coated sensor exhibits >50,000 hours MTBF; periodic zero-check and span verification are recommended every 6 months per ISO/IEC 17025 quality assurance protocols.
Is analog output included as standard equipment?

No — the 0–5 V / 4–20 mA analog output module is an optional accessory; ordering code must be specified at time of purchase.
