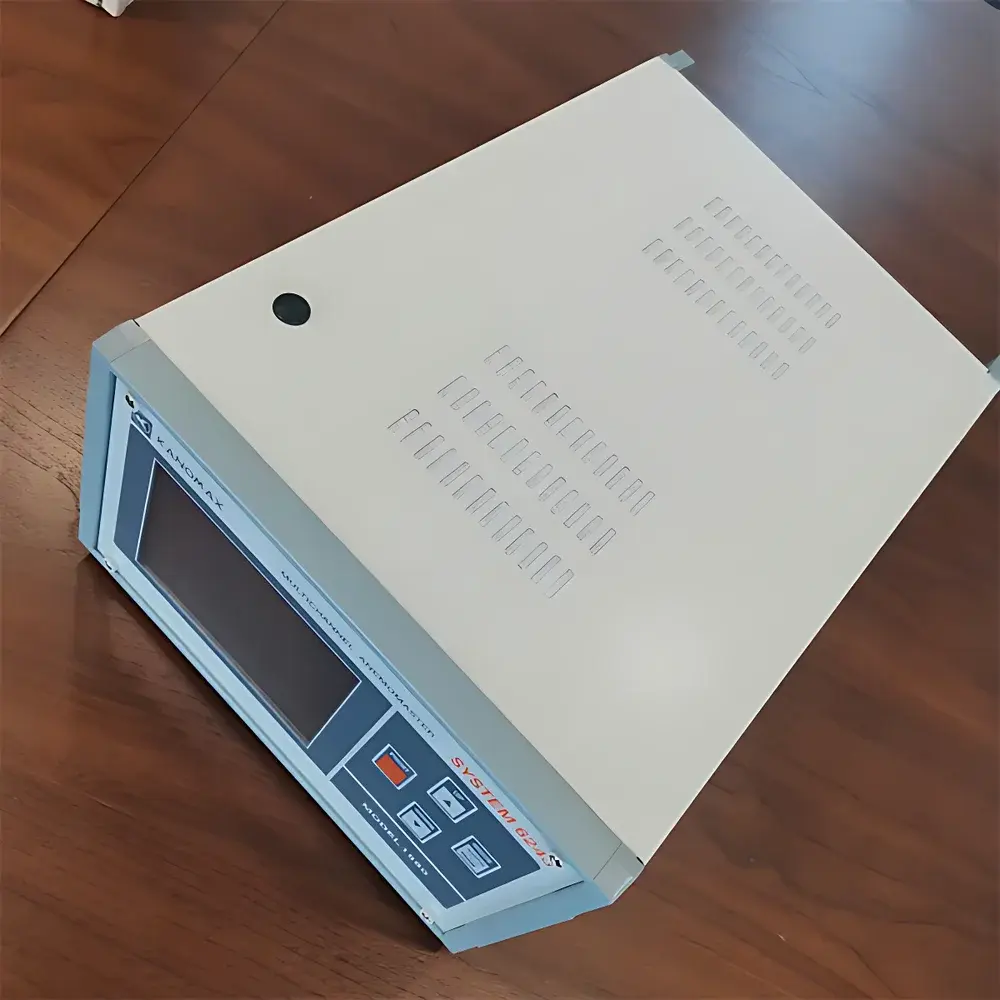

Kanomax 6242/6243 Multi-Point Environmental Monitoring System for Semiconductor Cleanroom Airflow Management

Overview

The Kanomax 6242/6243 Multi-Point Environmental Monitoring System is a modular, high-channel-count instrumentation platform engineered for precision airflow characterization and environmental parameter validation in semiconductor fabrication cleanrooms, microelectronics assembly zones, and controlled manufacturing environments. Built upon thermal anemometry principles—where heat transfer from a heated sensing element correlates directly with local air velocity—the system delivers traceable, real-time measurements of air velocity, temperature, relative humidity, and differential pressure across spatially distributed points. Unlike single-point handheld instruments, the 6242/6243 architecture enables synchronized, time-aligned acquisition across up to 320 discrete measurement locations, supporting ISO 14644-3 airflow uniformity mapping, ASHRAE 110 tracer gas containment verification, and EU GMP Annex 1 airflow visualization requirements. Its design prioritizes metrological integrity, long-term stability under continuous operation, and compatibility with cleanroom-grade installation practices—including non-intrusive mounting, ESD-safe construction, and low-outgassing materials.

Key Features

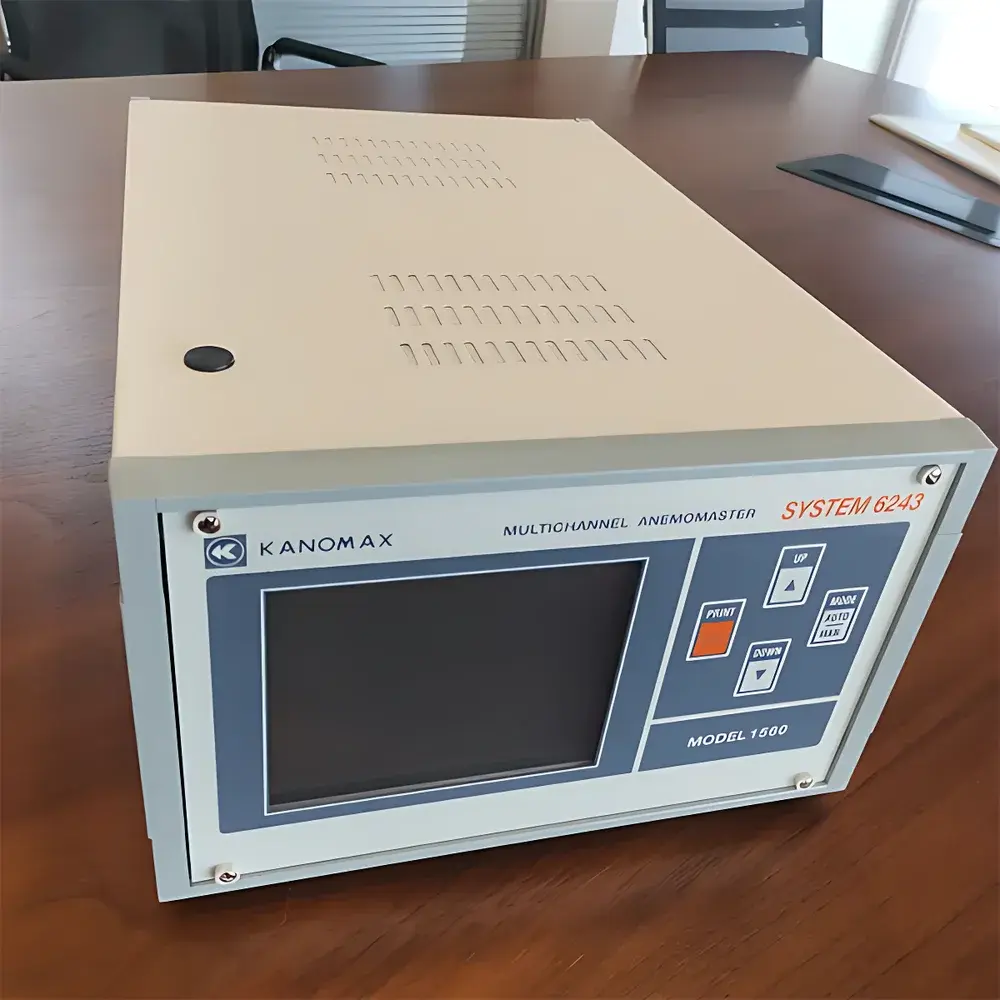

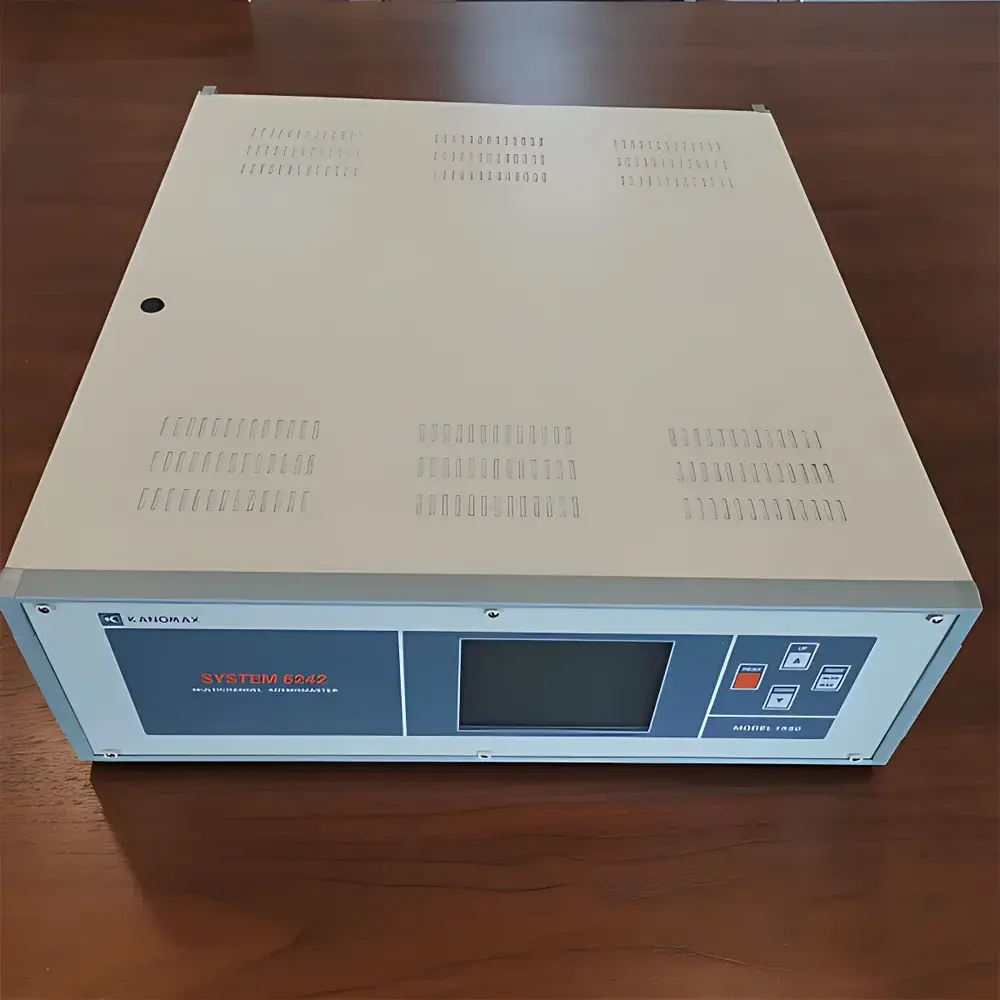

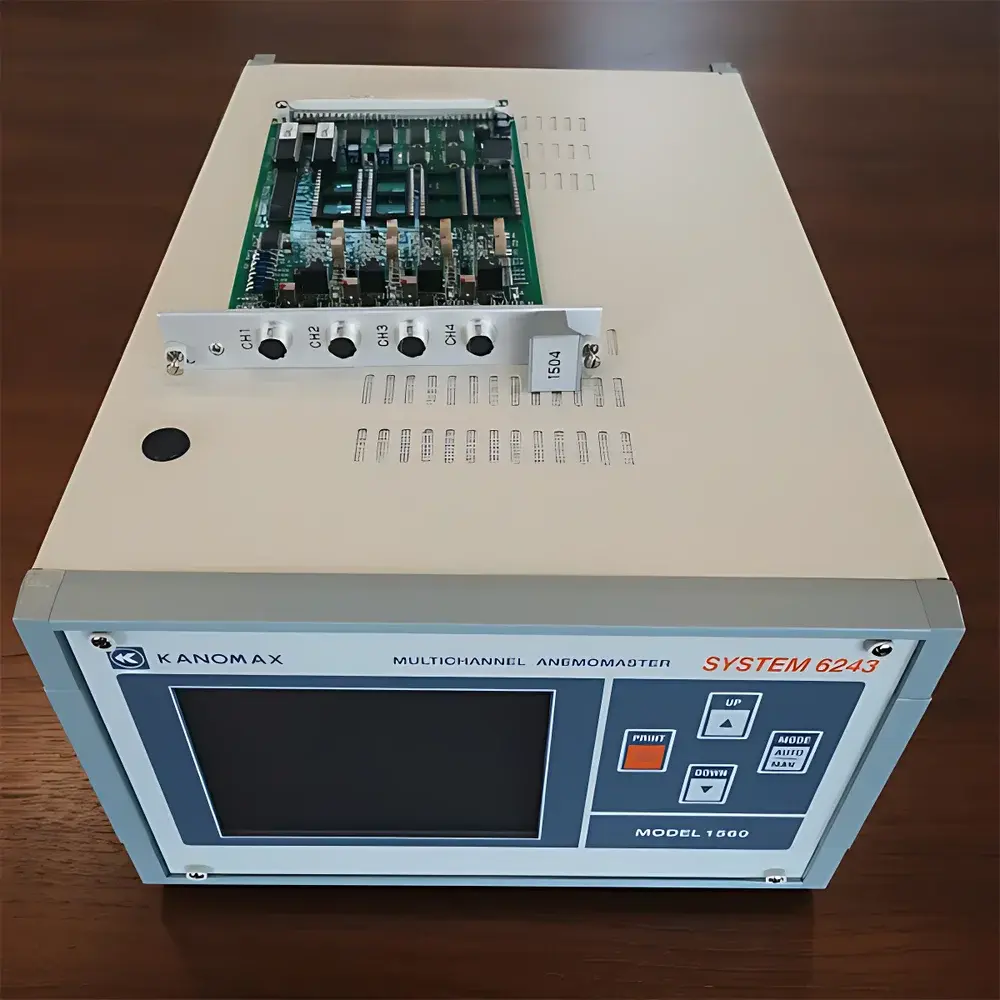

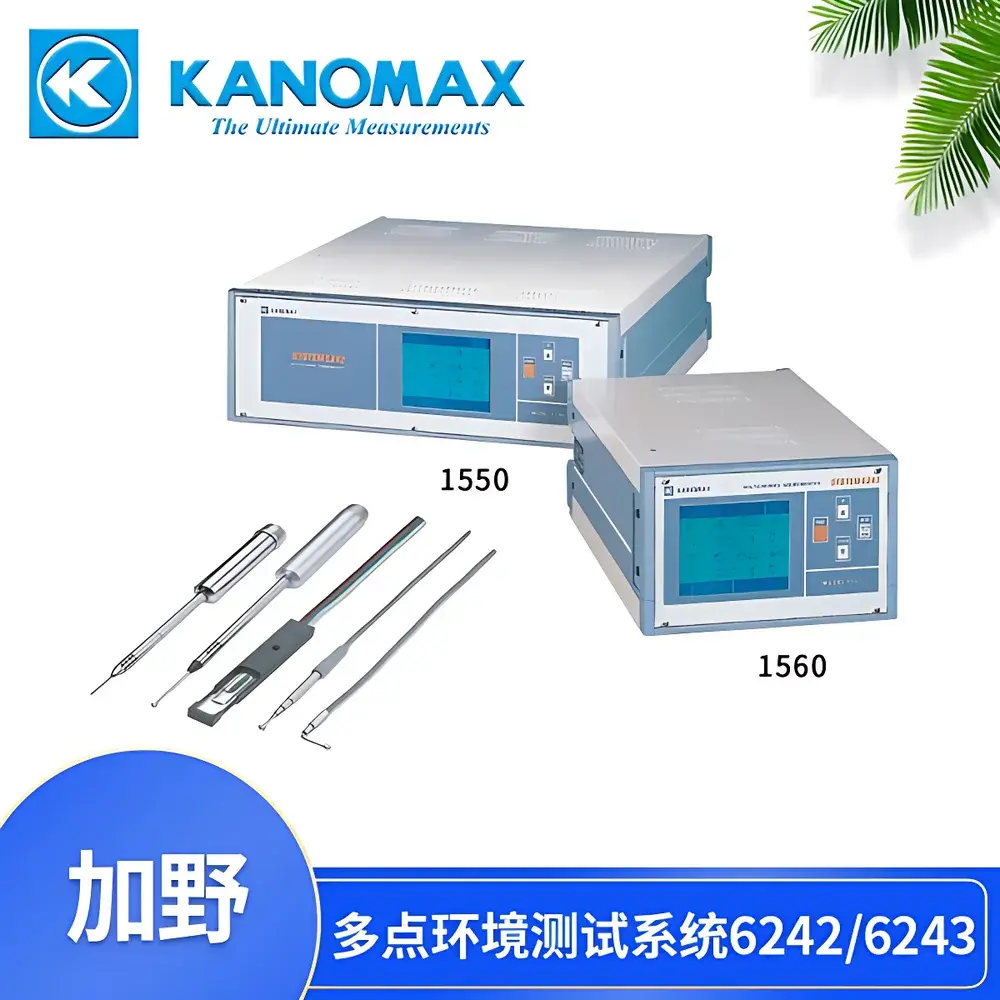

• Modular mainframe architecture: Kanomax 1550 (16-slot capacity) and 1560 (6-slot capacity) units support flexible system scaling and redundancy planning.
• Hot-wire and hot-film anemometer probe compatibility: Enables selection of velocity probes optimized for laminar flow profiling (e.g., 6511 series), turbulent duct monitoring (e.g., 6522), or low-velocity cleanroom applications (e.g., <0.1 m/s sensitivity).
• Simultaneous multi-parameter acquisition: Each channel captures velocity, temperature, RH, and differential pressure in lockstep—critical for calculating volumetric flow, identifying thermal stratification, and detecting pressure boundary breaches.
• High-resolution analog output (0.01 m/s velocity resolution) with ±0.5 % FS accuracy across full dynamic range, certified per NIST-traceable calibration protocols.
• RS-232C serial interface supports integration with SCADA, MES, and building management systems (BMS); optional Ethernet gateway kits available for TCP/IP-based data streaming.
• Ruggedized industrial enclosure rated IP20; designed for 24/7 operation in Class 10–Class 1000 cleanroom environments with validated electromagnetic compatibility (EMC) per IEC 61326-1.

Sample Compatibility & Compliance

The 6242/6243 system is validated for use with standard ISO 14644-compliant sampling grids, ISO/IEC 17025-accredited calibration standards, and ASTM D1896-22 airflow test procedures. All sensor modules comply with RoHS 2011/65/EU and REACH (EC) No. 1907/2006. The system supports audit-ready data logging aligned with FDA 21 CFR Part 11 requirements when paired with Kanomax’s optional secure software package (v5.2+), including electronic signatures, user access levels, and immutable audit trails. Calibration certificates include uncertainty budgets compliant with ISO/IEC 17025:2017 Annex A.5 for velocity (k=2, expanded uncertainty ≤ ±0.8 % of reading), temperature (±0.3 °C), and RH (±2 % RH at 23 °C/50 % RH).

Software & Data Management

Kanomax’s proprietary KAN-LOG v6.1 software provides comprehensive configuration, real-time visualization, statistical analysis (mean, SD, Cp/Cpk, trend charts), and automated report generation (PDF/CSV/XLSX). It supports custom alarm thresholds per channel, multi-axis time-series overlays, and ISO 14644-3 airflow uniformity pass/fail evaluation per measurement grid point. Raw data files are stored in binary format with embedded metadata (timestamp, channel ID, calibration date, operator ID). Exported datasets retain full traceability for GLP/GMP documentation workflows. Optional cloud synchronization module enables remote monitoring and alerting via email/SMS upon threshold violation.

Applications

• ISO Class 3–5 cleanroom airflow uniformity mapping (supply HEPA filter face velocity profiling, return grilles, and workbench cross-sections).
• Duct traverse surveys for HVAC commissioning and requalification per ISO 14644-3 Annex B and SMIC/SEMI S2 guidelines.
• Local exhaust ventilation (LEV) performance validation in etch, deposition, and lithography tool enclosures.
• Environmental qualification of wafer transport carriers, FOUPs, and mini-environments during process transfer studies.
• Root cause analysis of particle excursions correlated with transient airflow deviations or thermal drift events.
• Supporting PQ (Performance Qualification) protocols for new fab line installations and annual requalification cycles.

FAQ

What is the maximum number of measurement points supported by a single 6242/6243 system?

A single 1550 main unit supports up to 16 channels; cascading five 1550 units enables up to 320 synchronized measurement points.
Can the system measure both supply and exhaust airflow simultaneously?

Yes—by configuring differential pressure modules across duct sections and pairing them with velocity probes, volumetric flow rate (m³/h) can be calculated in real time for both supply and exhaust streams.
Is calibration traceable to national standards?

All factory calibrations are performed using NIST-traceable reference standards, with full uncertainty budgets documented per ISO/IEC 17025.
Does the system meet FDA 21 CFR Part 11 requirements for electronic records?

When used with KAN-LOG Secure Edition and configured user roles, audit trail logging, and digital signature modules, the system satisfies Part 11 technical controls for closed systems.
Are probes compatible with ISO 14644-3 grid spacing requirements (e.g., 0.3 m intervals)?

Yes—compact probe designs (e.g., 6511 series, Ø6 mm stem) allow precise placement within standard ISO grid layouts without disrupting laminar flow patterns.
