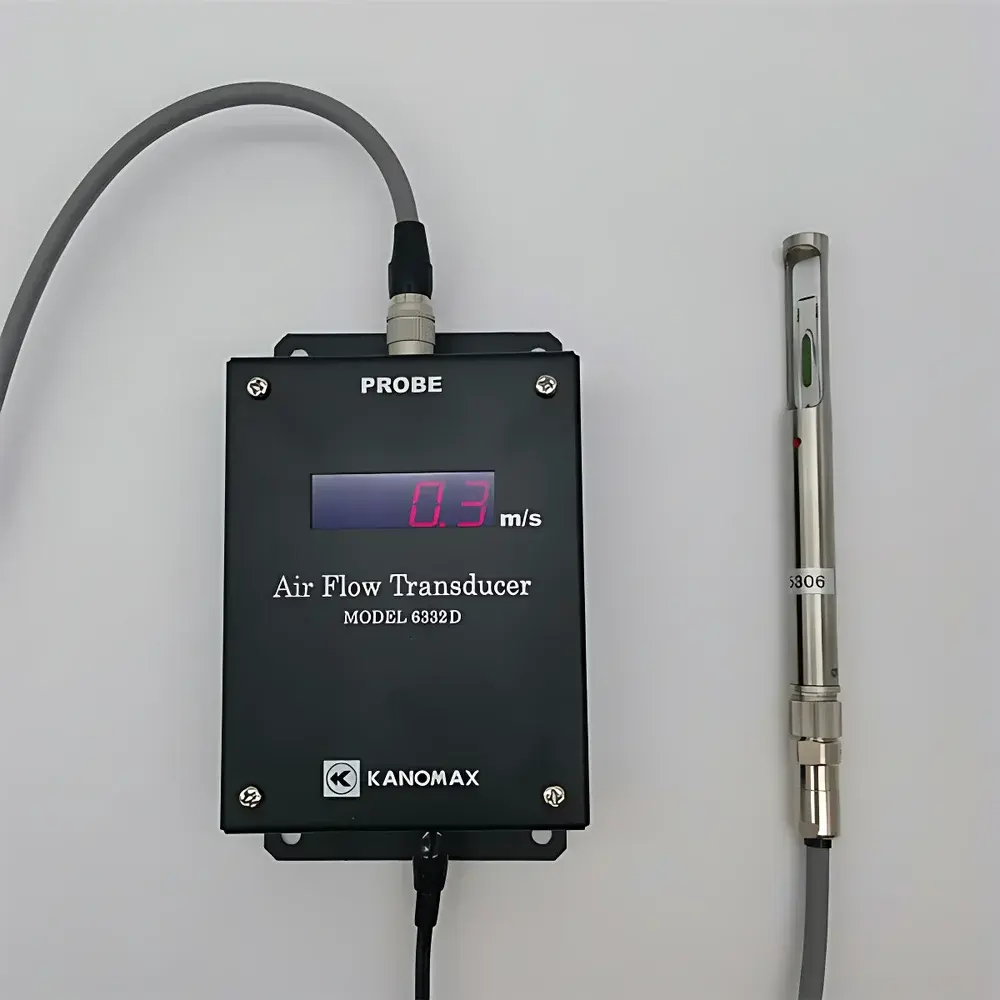

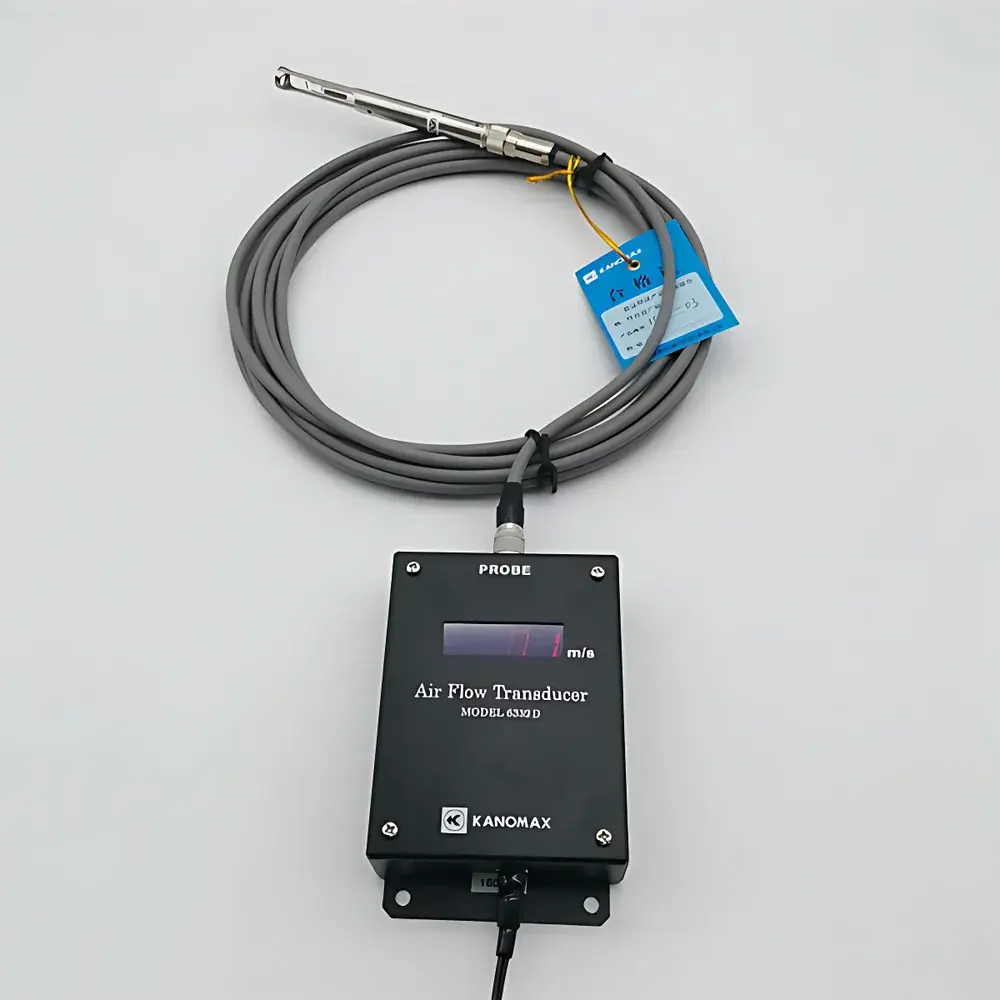

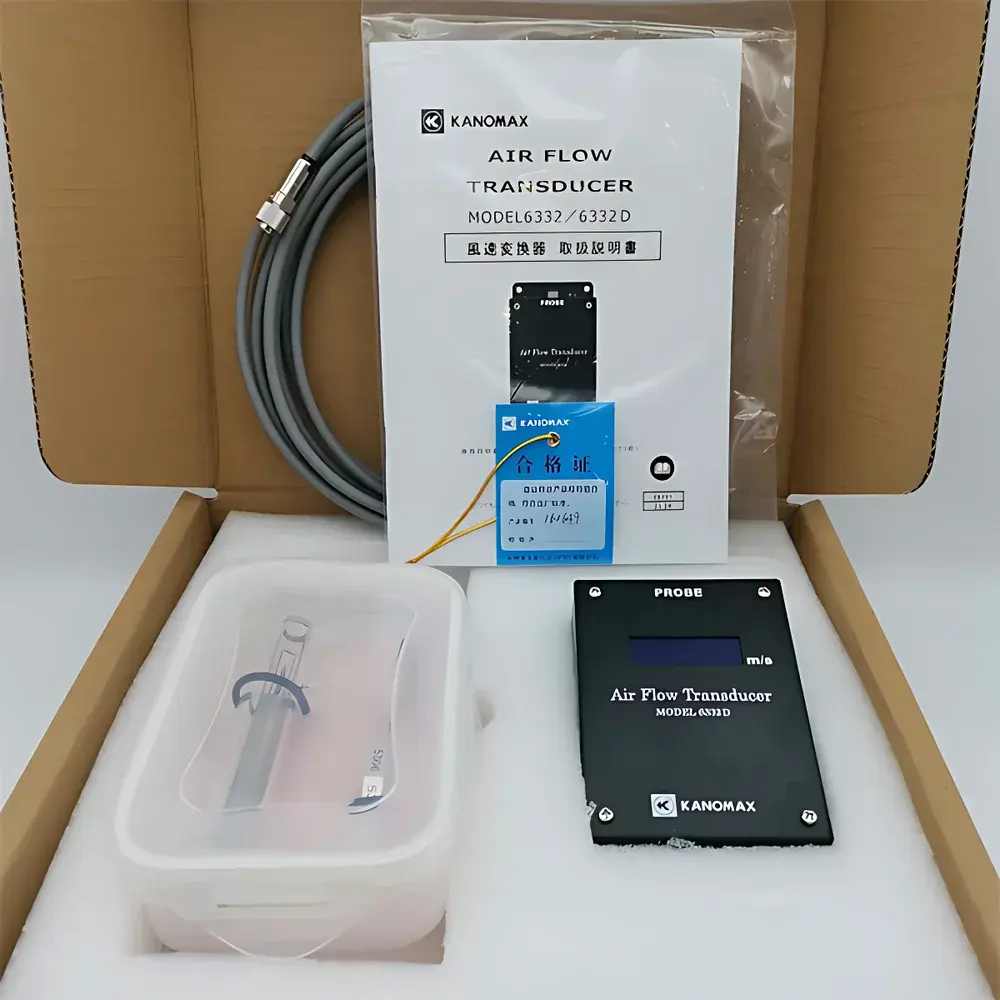

Kanomax 6332D Thermal Anemometer Transmitter for ECU Thermal Management
| Brand | Kanomax |
|---|---|
| Origin | Liaoning, China (Manufactured under Kanomax Japan technical specification & quality control) |
| Model | 6332D |
| Instrument Type | Thermal Anemometer Transmitter |
| Resolution | 0.01 m/s (dependent on probe selection) |
| Measurement Range | Probe-dependent (e.g., 0.1–30 m/s standard probes |
| Output | 4–20 mA or 0–5 V analog output |
| Display | Integrated LCD (backlit, real-time wind speed only) |
| Power Supply | DC 12 V ±2 V |
| Dimensions | 128 × 78 × 30 mm |
| Weight | 320 g |
| Probe Interface | Standardized interchangeable thermal probe socket (10 compatible probe models certified per Kanomax TS-63xx series) |
Overview
The Kanomax 6332D Thermal Anemometer Transmitter is an engineered solution for continuous, high-stability wind velocity monitoring in demanding thermal management applications—particularly within automotive electronic control unit (ECU) cooling validation, HVAC airflow verification, and cleanroom air distribution audits. Operating on constant-temperature anemometry (CTA) principles, the device measures convective heat loss from a heated platinum sensor element to derive volumetric airflow velocity with high temporal resolution and minimal drift. Unlike cup or vane anemometers, the 6332D’s thermal sensing architecture delivers true low-velocity sensitivity (down to 0.1 m/s), directional independence, and immunity to turbulence-induced mechanical wear—critical for long-term deployment in engine bay simulations, climate chamber testing, and duct-mounted thermal feedback loops.
Key Features

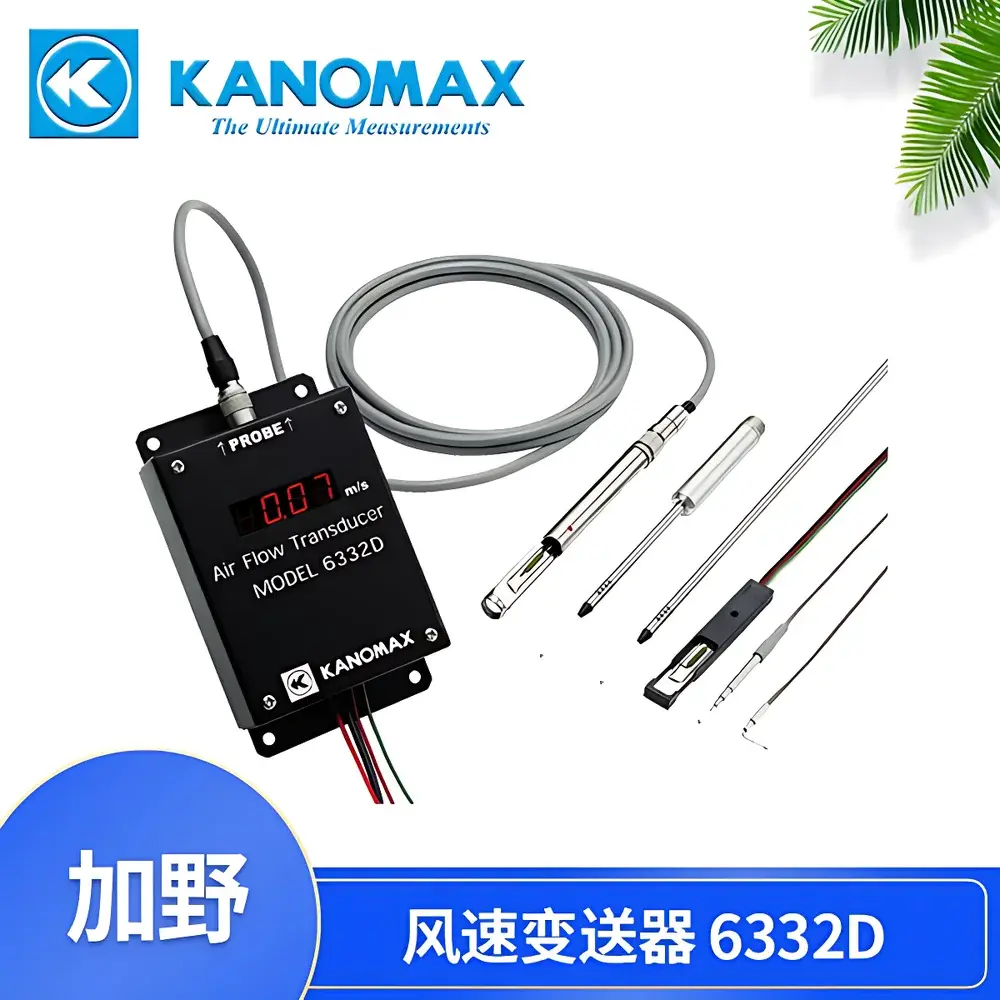

- Modular probe architecture supporting 10 Kanomax-certified thermal probes—including straight, bent, retractable, high-temperature (up to 150 °C), and low-flow (0.05–5 m/s) variants—enabling application-specific configuration without instrument replacement.
- Integrated backlit LCD display providing real-time wind speed readout calibrated to the attached probe’s certified range and sensitivity curve.
- Dual-mode analog output (field-selectable 4–20 mA or 0–5 V) compliant with industrial SCADA and PLC input standards, supporting loop-powered operation and noise-immune signal transmission over distances up to 300 m.
- Multi-unit daisy-chaining capability via RS-485 Modbus RTU interface (optional module), permitting synchronized multi-point velocity acquisition across duct arrays or ECU cooling channels without external data loggers.
- Ruggedized aluminum-alloy housing (IP54 rated), compact footprint (128 × 78 × 30 mm), and DC 12 V power requirement optimized for integration into automotive test benches and embedded thermal control systems.
Sample Compatibility & Compliance
The 6332D is validated for use with non-corrosive, particle-free air and inert gas streams typical of laboratory, manufacturing, and vehicle thermal test environments. It complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. When paired with Kanomax traceable calibration probes (e.g., TS-6312, TS-6325), measurement uncertainty meets ISO/IEC 17025 requirements for accredited laboratories. The transmitter supports GLP-compliant documentation workflows when integrated with Kanomax’s optional KAN-LOG software—providing audit trails, calibration certificate linking, and user-access-controlled parameter logging per FDA 21 CFR Part 11 Annex 11 guidance.
Software & Data Management
While the 6332D operates as a standalone analog transmitter, it integrates seamlessly with Kanomax’s KAN-LOG v3.2 data acquisition suite (Windows-based). This software enables time-synchronized multi-channel trending, statistical analysis (min/max/avg/std dev), alarm thresholding, and export to CSV, Excel, or PDF formats. All calibration metadata—including probe serial number, date, reference standard (NIST-traceable), and correction coefficients—is embedded in exported datasets. For automated test systems, the optional RS-485 interface supports Modbus RTU register mapping for direct integration with LabVIEW, MATLAB, or custom Python-based DAQ platforms.
Applications
- Automotive ECU thermal validation: Real-time airflow mapping across heatsink fins and cooling ducts during thermal cycling and load-step tests.
- HVAC system commissioning: Duct traverse measurements and static pressure–flow correlation per ASHRAE Guideline 12-2020.
- Environmental chamber uniformity assessment: Multi-point velocity profiling to verify ISO 14644-3 Class 5–8 cleanroom air patterns.
- Electronics cooling R&D: Boundary layer characterization near PCBs, fans, and heat pipes under varying ambient conditions.
- Industrial process monitoring: Continuous ventilation rate verification in battery cell dry rooms and semiconductor fab tool exhaust lines.
FAQ
Is the 6332D suitable for measuring airflow in humid or condensing environments?
No—thermal anemometers are sensitive to moisture-induced thermal loading errors. Use only in dry air or inert gas streams with relative humidity below 80 % RH and no condensation risk. For wet environments, consider hot-wire probes with hydrophobic coating (e.g., Kanomax TS-6340-H) or pitot-static alternatives.
Can the analog output be scaled to match a specific engineering unit range?
Yes—the 4–20 mA or 0–5 V output is linearly proportional to the full-scale range of the installed probe. Scaling is configured via DIP switches or KAN-LOG software and documented in the calibration certificate.
Does the 6332D require annual recalibration?
Per ISO/IEC 17025 and Kanomax’s recommended practice, field verification against a NIST-traceable reference anemometer is advised every 12 months—or after mechanical shock, exposure to particulates, or extreme temperature excursions.
What probe models are included in the 10-compatible set?
Standard offerings include TS-6312 (0.1–30 m/s, straight), TS-6325 (0.05–10 m/s, low-flow), TS-6330 (90° bent), TS-6340 (150 °C high-temp), TS-6350 (retractable), TS-6360 (dual-sensor differential), and four specialized variants for duct mounting, cleanroom sampling, and OEM integration.
Is firmware upgrade support available?
Yes—Kanomax provides free firmware updates via USB-to-serial adapter and KAN-LOG utility. Updates maintain backward compatibility with all certified probes and preserve existing calibration parameters.
