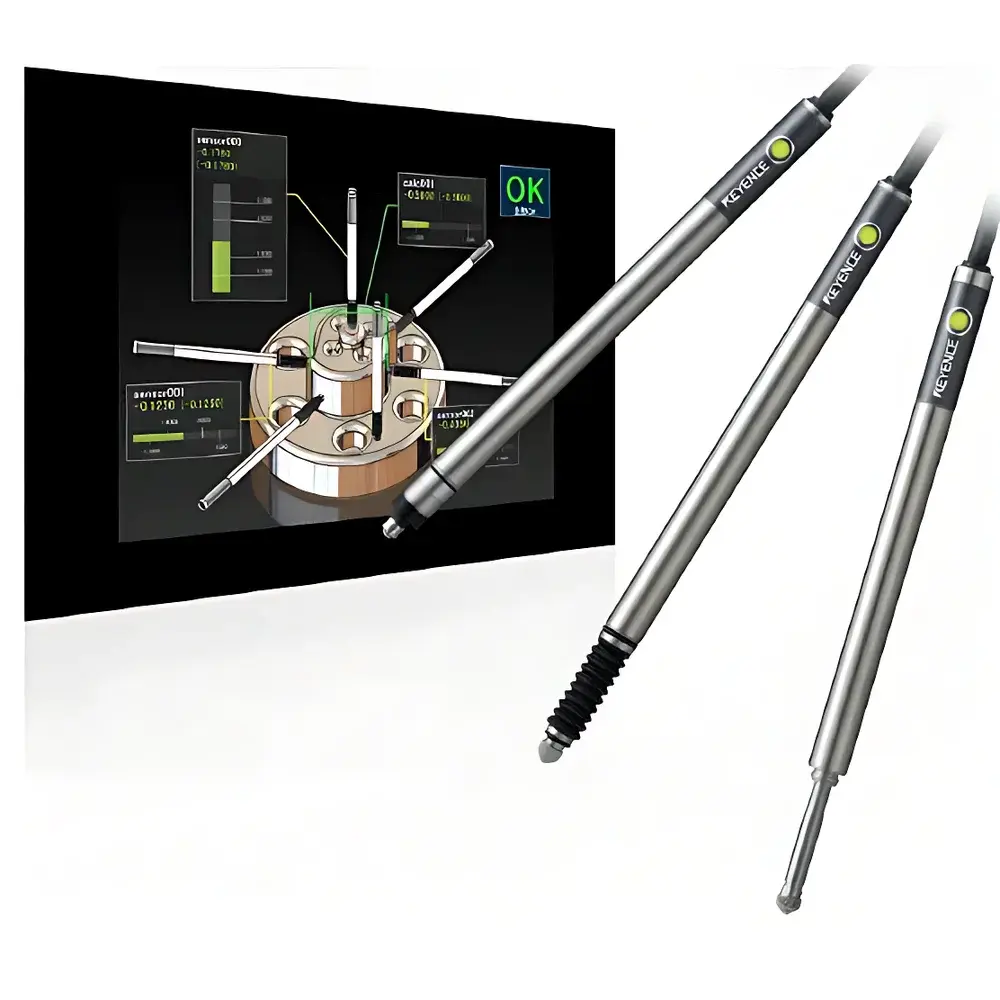

KEYENCE GT2 High-Precision Contact Digital Sensor

Overview

The KEYENCE GT2 High-Precision Contact Digital Sensor is an industrial-grade displacement and dimensional measurement instrument engineered for repeatable, sub-micron-level linear position feedback in automated manufacturing, quality control, and offline metrology environments. It operates on a high-resolution optical incremental encoder principle—specifically utilizing KEYENCE’s proprietary Gap-Logic Grating Scale Pulse System II—which eliminates mechanical hysteresis and cyclic error commonly associated with traditional potentiometric or magnetic linear sensors. This non-contact optical readout mechanism (within the sensor head) coupled with robust physical contact probing ensures absolute traceability of displacement without cumulative drift over repeated cycles. Designed for integration into inline automation cells, dedicated inspection machines, and manual benchtop test stations, the GT2 delivers stable analog and digital output under dynamic motion profiles, including short-cycle high-speed conveyance systems where timing precision and signal integrity are critical.

Key Features

• Optical grating-based displacement sensing with Gap-Logic Pulse System II architecture—ensures zero hysteresis, no backlash, and immunity to thermal drift-induced loop error.
• NEMA Type 13 / IP67-rated housing—provides full protection against dust ingress, oil mist, coolant splash, and incidental water exposure, enabling reliable operation in machine tool, automotive assembly, and metalworking environments.
• Proven mechanical durability: rated for ≥200 million actuation cycles—significantly reducing unplanned downtime and scheduled maintenance intervals compared to conventional tactile probes.
• Flexible cabling system: includes robot-grade, oil-resistant, freely cuttable coaxial cables with electroplated shielding—optimized for continuous flexing in robotic arm applications and harsh industrial settings.
• Multi-protocol fieldbus support: native compatibility with EtherNet/IP, EtherCAT, DeviceNet, RS-232C, BCD, and TCP/IP—enabling seamless integration with major PLC platforms (e.g., Rockwell Automation, Siemens, Omron, Mitsubishi) without protocol gateways.
• USB interface variant available—supports direct connection to Windows-based PCs for configuration, real-time data logging, and rapid prototyping of custom inspection logic.

Sample Compatibility & Compliance

The GT2 is compatible with rigid metallic, ceramic, and composite workpieces requiring tactile surface contact for dimensional verification—including machined parts, stamped components, castings, and precision-ground fixtures. Its probe tip design accommodates flat, curved, and slightly inclined surfaces without compromising linearity. The sensor complies with IEC 60529 (IP67), NEMA 13, and ISO 13857 (safety distances) standards. For regulated industries, its deterministic response time (<100 µs), deterministic trigger latency, and consistent repeatability (±0.1 µm typical) support alignment with ISO/IEC 17025 metrological traceability requirements when calibrated per ISO/IEC 17025-accredited procedures. While not intrinsically certified for hazardous locations, its enclosure rating permits deployment adjacent to Class I, Division 2 zones when installed per NEC Article 500 guidelines.

Software & Data Management

Configuration and calibration are performed using GT-Monitor 2—a Windows-based application that supports image-assisted setup, multi-point offset registration, arithmetic function programming (e.g., min/max deviation, differential comparison, statistical filtering), and real-time waveform visualization. The software enables export of timestamped CSV datasets with user-defined metadata fields (e.g., part ID, operator code, station ID), facilitating integration into MES or SPC platforms. Audit trails—including parameter changes, calibration events, and firmware updates—are automatically logged and exportable for GLP/GMP documentation. USB-connected units support passive data streaming at up to 10 kHz sampling rate; networked variants support buffered acquisition with configurable trigger conditions and edge-triggered event logging compliant with FDA 21 CFR Part 11 electronic record requirements when deployed with validated IT infrastructure.

Applications

• Automated in-line thickness and height verification of sheet metal, battery electrodes, and semiconductor wafers.
• End-of-line go/no-go gauging for press-fit depth, bolt protrusion, and seal compression in automotive powertrain assembly.
• Benchtop dimensional validation of medical device components (e.g., catheter hubs, syringe barrels) per ISO 13485 quality system protocols.
• Tool wear monitoring via periodic probe-tip displacement tracking on CNC turning centers and grinding machines.
• Calibration reference transfer between coordinate measuring machines (CMMs) and shop-floor gaging stations.

FAQ

What is the maximum recommended sampling frequency for real-time closed-loop control?
The GT2 supports up to 10 kHz analog output bandwidth and 1 kHz digital position update rate via USB; for high-speed PLC synchronization, EtherCAT or EtherNet/IP implementations achieve deterministic cycle times down to 125 µs.
Can the GT2 be used in vacuum or cleanroom environments?
No—the IP67 sealing is optimized for industrial contamination, not particle generation or outgassing; it is not rated for ISO Class 5 or better cleanrooms nor vacuum-compatible enclosures.
Is third-party calibration documentation provided with shipment?
Standard units ship with a factory verification report (non-accredited); accredited calibration certificates traceable to NIST or JCSS standards are available as optional add-ons upon request.
Does GT-Monitor 2 support scripting or API-based automation?
GT-Monitor 2 does not expose public APIs; however, the GT2’s TCP/IP and RS-232C interfaces support ASCII command sets for external host control, enabling integration with LabVIEW, Python, or custom SCADA systems.
What is the typical probe tip life under continuous 24/7 operation?
Under nominal load (≤1 N axial force) and standard environmental conditions, mean time between failures (MTBF) exceeds 5 years based on accelerated lifecycle testing at 200 million cycles.
