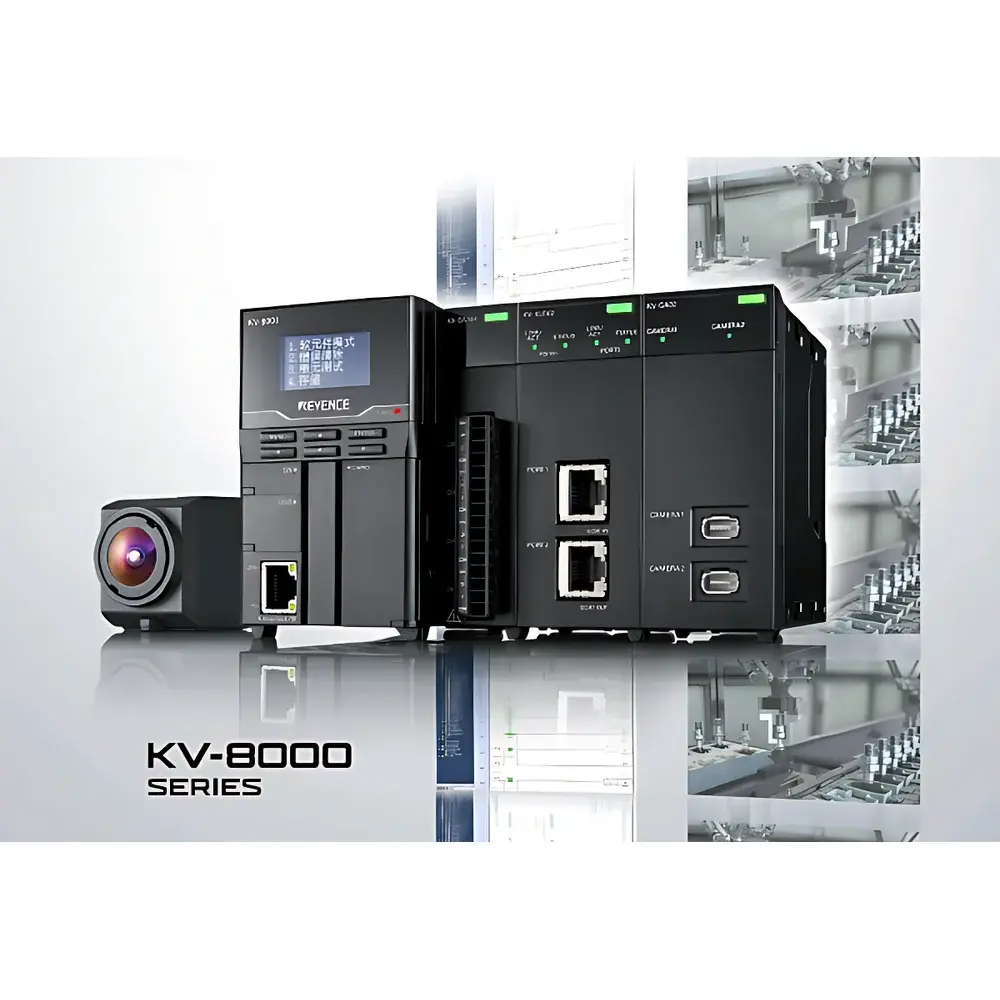

KEYENCE KV-8000 Series Programmable Logic Controller (PLC)

Overview

The KEYENCE KV-8000 Series is a high-integration, high-reliability programmable logic controller engineered for mission-critical industrial automation environments where uptime, traceability, and deterministic response are non-negotiable. Unlike conventional PLCs, the KV-8000 embeds a synchronized multi-domain data acquisition architecture—simultaneously capturing I/O status, ladder logic execution timing, vision system outputs (when integrated with KEYENCE CV-X or XG-X series cameras), motion control events, and internal soft element transitions—with microsecond-level time stamping across all channels. This architecture enables true root-cause analysis of process interruptions by reconstructing the precise temporal sequence of hardware signals, software logic states, and peripheral device interactions. Designed for continuous operation in ISO 13849-1 PL e / IEC 61508 SIL2-compliant safety-integrated lines, the KV-8000 serves as both a real-time controller and an embedded diagnostic recorder—eliminating reliance on external SCADA historians or post-mortem logic tracing tools.

Key Features

• Integrated Fault Forensics Engine: Automatically records all soft elements (R, T, C, D registers), I/O statuses, camera trigger events, and motion axis positions in a time-synchronized buffer without requiring external logging configuration.
• Time-Synchronized Playback: Replays historical data streams—including ladder scan cycles, input transition timestamps, and vision inspection results—in precise chronological alignment to isolate timing anomalies such as signal skew, interlock condition violations, or sensor mis-triggering.
• Root-Cause Mapping: Generates hierarchical dependency trees linking abnormal outputs (e.g., unexpected stop command) to upstream soft elements and physical inputs, supporting structured failure mode analysis per ISO 14971 principles.
• Self-Documenting Operation: Maintains full audit trail of parameter changes, program modifications, and user login sessions—supporting GLP/GMP-aligned change control requirements under FDA 21 CFR Part 11 when deployed with optional secure authentication modules.
• Robust Real-Time Architecture: Dual-core ARM Cortex-A9 processor with deterministic RTOS kernel ensures sub-millisecond I/O update cycles and guaranteed worst-case execution time (WCET) for safety-related tasks.
• Modular Expansion Support: Compatible with KEYENCE’s full ecosystem of analog/digital I/O units, motion controllers, safety I/O blocks, and fieldbus gateways (CC-Link IE TSN, EtherNet/IP, PROFINET).

Sample Compatibility & Compliance

The KV-8000 is designed for integration into diverse industrial settings—including automotive assembly lines, semiconductor front-end equipment, pharmaceutical packaging systems, and food & beverage filling stations—where mechanical wear, operator input errors, and sensor drift contribute significantly to unplanned downtime. It complies with electromagnetic compatibility standards IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission), meets UL 508 and CE Machinery Directive 2006/42/EC requirements, and supports functional safety applications up to PL e per ISO 13849-1 when used with certified safety I/O modules. Its environmental rating (IP20 enclosure, operating temperature −10 °C to +55 °C) aligns with Class A industrial control cabinet deployment per IEC 60721-3-3.

Software & Data Management

Programming and diagnostics are performed using KEYENCE’s proprietary KV Studio software (v5.0+), which provides native support for ladder logic, structured text (IEC 61131-3), and sequential function chart (SFC) development. The software includes built-in simulation, cross-reference navigation, and version-controlled project archiving. All recorded operational data—including up to 10 million timestamped events stored onboard—can be exported in CSV or XML format for offline analysis in third-party statistical process control (SPC) platforms. Audit logs capture user actions with ISO 8601 timestamps, user IDs, and action types (e.g., “Program Download”, “Parameter Write”), fulfilling traceability mandates for regulated manufacturing environments.

Applications

• Automotive component assembly lines requiring synchronized motion, vision inspection, and torque monitoring with full fault replay capability.
• Pharmaceutical blister packaging machines needing validated parameter change tracking and event correlation between HMI commands, servo drives, and vision reject triggers.
• Semiconductor wafer handling systems where nanosecond-level timing consistency between vacuum actuators, position sensors, and ESD-safe conveyors must be verified post-failure.
• Fully automated battery module stacking cells where thermal runaway mitigation depends on real-time correlation of temperature sensor readings, contactor status, and PLC logic states.
• Food processing lines subject to frequent recipe changes—leveraging the KV-8000’s parameter versioning and playback to validate correct setpoint application prior to production start.

FAQ

Does the KV-8000 support deterministic communication over time-sensitive networking (TSN)?
Yes—the KV-8000 supports CC-Link IE TSN with IEEE 802.1AS-2011 time synchronization and scheduled traffic shaping for sub-100 µs jitter in motion control applications.
Can historical data be accessed remotely for troubleshooting without physical access to the controller?
Yes—via optional KV Web Server module (KV-WEB1), enabling secure HTTPS-based access to live I/O status, event logs, and playback archives through standard web browsers.
Is ladder logic modification possible during runtime without stopping the process?
No—online editing is restricted to non-executing sections; full program download requires a controlled stop to ensure deterministic behavior and memory integrity.
How long is operational data retained in the onboard memory?
Up to 30 days of continuous high-frequency logging (1 kHz sampling) is supported depending on configured data scope; retention duration scales inversely with sampling density and channel count.
Does the KV-8000 meet cybersecurity standards for industrial control systems?
It implements role-based access control, TLS 1.2 encrypted communications, and firmware signature verification—aligned with IEC 62443-4-2 SL2 requirements when deployed with recommended network segmentation and firewall policies.
