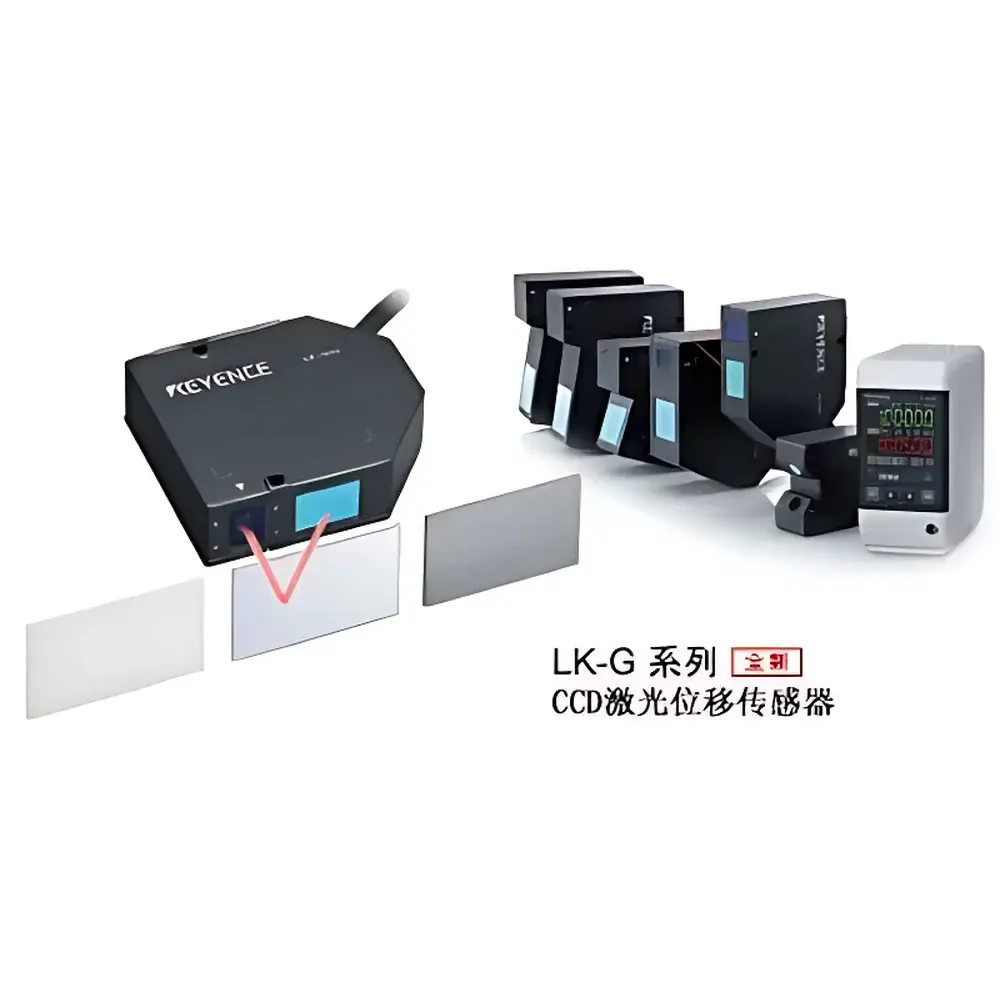

KEYENCE LK-G5000 Ultra-High-Speed & High-Precision CMOS Laser Displacement Sensor

Overview

The KEYENCE LK-G5000 is an ultra-high-speed, high-precision laser displacement sensor engineered for demanding industrial metrology applications where nanometer-level repeatability, microsecond response times, and robust signal stability are non-negotiable. It operates on the principle of triangulation-based laser spot position detection, utilizing a custom-designed dual-port CMOS image sensor with synchronized pixel readout architecture. Unlike conventional single-port sensors limited by frame-rate–resolution trade-offs, the LK-G5000’s parallel data acquisition pathway enables simultaneous high-speed sampling (up to 128,000 measurements per second) and sub-micron spatial resolution—without compromising measurement fidelity across dynamic or thermally unstable environments. Its optical design integrates a proprietary High-definition Ernostar (HDE) objective lens, optimized for minimal spherical and chromatic aberration, delivering a sharply focused laser spot and a highly defined, noise-resilient received light waveform critical for consistent centroid calculation.

Key Features

• Ultra-high-speed measurement: Up to 128 kHz sampling rate with real-time analog output and digital Ethernet/IP interface.
• Dual-port CMOS sensor architecture: Enables concurrent high-frame-rate capture and high-pixel-density analysis, doubling repeatability versus legacy single-port designs.
• ABLE II adaptive control system: Dynamically balances laser pulse width, emission power, and sensor gain in real time to maintain optimal signal-to-noise ratio across varying surface reflectivity, color, and texture—eliminating manual threshold tuning.
• HDE objective lens: A precision-corrected Ernostar-type optical assembly providing diffraction-limited spot definition, enhanced depth-of-field linearity, and 2× improvement in pixel-level repeatability.
• Integrated temperature-compensated electronics: Maintains calibration stability over ambient fluctuations from 0°C to 50°C, supporting continuous operation in factory-floor environments.
• IP67-rated housing with stainless-steel front panel: Ensures resistance to dust, coolant mist, and incidental washdown exposure.

Sample Compatibility & Compliance

The LK-G5000 reliably measures displacement, thickness, step height, and vibration on diverse surfaces—including polished metals, anodized aluminum, painted plastics, ceramic substrates, and translucent films—without requiring surface preparation or retroreflective targets. Its ABLE II algorithm adapts to specular, diffuse, and semi-transparent materials in real time. The sensor complies with IEC 61326-1 (EMC for industrial environments), IEC 60947-5-2 (safety-related sensing devices), and meets CE marking requirements. Firmware supports audit-trail logging and user-access-level configuration control, facilitating alignment with ISO 9001 quality management systems and internal GLP/GMP documentation protocols.

Software & Data Management

KEYENCE’s dedicated LK-G5000 software suite (LK-G Series Configuration Tool) provides intuitive setup, real-time waveform visualization, statistical process monitoring (SPC), and multi-sensor synchronization. Raw sensor data is exportable in CSV, HDF5, or ASCII formats with timestamping traceable to NTP-synchronized system clocks. The Ethernet interface supports Modbus TCP and EtherNet/IP protocols for seamless integration into SCADA, MES, and PLC-controlled inspection stations. All configuration changes—including calibration offsets, filtering parameters, and alarm thresholds—are logged with user ID, timestamp, and pre/post values—enabling full traceability per FDA 21 CFR Part 11 requirements when deployed in regulated manufacturing settings.

Applications

• Precision thickness monitoring of lithium-ion battery electrodes during roll-to-roll coating.
• Real-time warpage detection of semiconductor wafers during thermal processing.
• Dynamic gap measurement in automotive powertrain assembly (e.g., bearing preload verification).
• Non-contact surface profile reconstruction of machined turbine blades with <1 µm Z-axis repeatability.
• High-frequency vibration analysis of MEMS components using phase-resolved displacement tracking.
• Automated dimensional verification of medical device tubing (OD/ID/wall thickness) at production-line speeds.

FAQ

What is the typical measurement range and resolution for the LK-G5000 series?
Measurement ranges vary by head model (e.g., LK-G5001: ±0.5 mm; LK-G5005: ±5 mm); resolution is specified as ≤0.005 µm at 1 kHz sampling, with repeatability of ±0.01 µm under controlled conditions.
Can the LK-G5000 operate in environments with strong ambient light or EMI?
Yes—the sensor employs narrow-band optical filtering centered at 650 nm and synchronous demodulation to reject ambient light up to 100,000 lux; its shielded metal housing and differential signaling meet IEC 61000-4-3/4-6 immunity standards.
Is firmware update capability available remotely?
Firmware updates are performed via USB or Ethernet using signed packages; remote deployment requires secure network access and administrative authentication—no cloud dependency or automatic update functionality is implemented.
Does KEYENCE provide NIST-traceable calibration certificates?
Yes—certificates conforming to ISO/IEC 17025 are available upon request, including uncertainty budgets referenced to NIST SRM 2191a (step-height standard) and calibrated interferometric reference stages.
