KEYENCE PR-M/F Ultra-Compact Photoelectric Sensor with Built-in Amplifier
| Brand | KEYENCE |
|---|---|
| Origin | Japan |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | PR-M/F |
| Price | Upon Request |
Overview

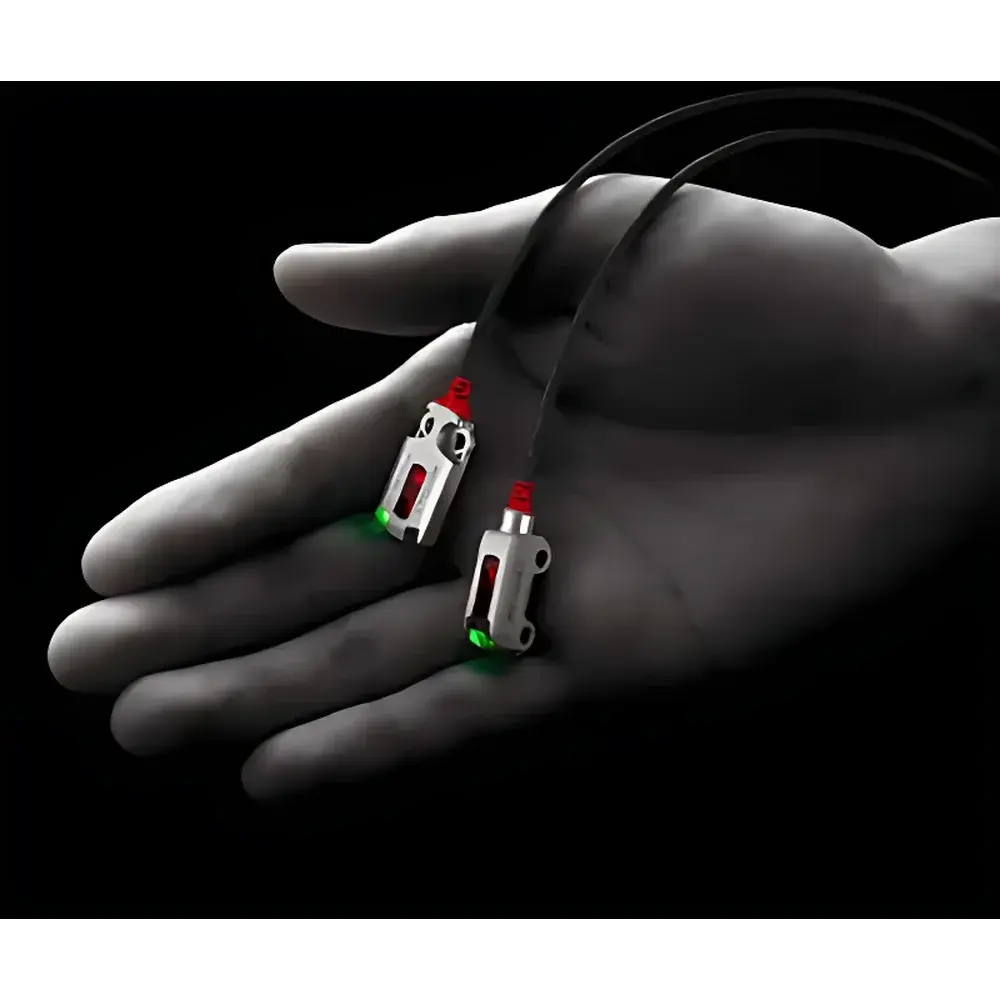

The KEYENCE PR-M/F is an ultra-compact, amplifier-integrated photoelectric sensor engineered for precision detection in space-constrained industrial automation environments. Unlike conventional miniature photoelectric sensors limited by mechanical footprint and signal conditioning requirements, the PR-M/F integrates full amplification circuitry directly into the sensing head—eliminating the need for external amplifiers or separate control units. Its operation relies on modulated pulsed infrared light (typically 850 nm) combined with advanced digital signal processing to achieve high immunity against ambient light interference—including fluorescent, LED, and sunlight exposure—without requiring mechanical shielding or optical filters. The sensor employs a through-beam or retro-reflective detection principle depending on configuration (PR-M series for through-beam; PR-F for retro-reflective), delivering reliable presence/absence verification of objects ranging from metallic components to translucent films and dark-colored plastics. Designed for integration into tight-mounting zones—such as semiconductor handling stages, compact packaging machinery, and medical device assembly lines—the PR-M/F meets rigorous demands for miniaturization without compromising robustness or functional integrity.
Key Features
- Ultra-Slim Form Factor: With a total housing thickness of only 4.5 mm and a footprint optimized for M3 mounting, the PR-M/F achieves an 81% reduction in volume compared to previous-generation ultra-compact sensors—enabling installation in previously inaccessible locations.
- Hybrid Metal-Resin Construction: Utilizes SUS316L stainless steel housing filled with impact-absorbing resin, resulting in approximately five times higher shock resistance (per IEC 60068-2-27, 30 g, 11 ms half-sine pulse) than standard aluminum or plastic housings.
- Environmental Protection: Rated IP67, IP69K, NEMA 4X, NEMA 6P, and NEMA 13—validated for continuous operation in washdown, high-humidity, dust-laden, and oil-mist environments typical of food & beverage, pharmaceutical, and automotive manufacturing.
- Multi-Angle Status Indication: Integrated bi-directional LED indicators provide clear visibility regardless of sensor orientation—vertical, horizontal, or inverted—supporting rapid visual diagnostics during commissioning and maintenance.
- Integrated L/D Output Logic: Combines Light-On (L-on) and Dark-On (D-on) output modes within a single device via configurable jumper or software setting, reducing spare part inventory and simplifying system design.
Sample Compatibility & Compliance
The PR-M/F detects objects across a broad material spectrum—including black rubber, anodized aluminum, PET film, and matte-finish composites—without requiring recalibration due to its adaptive sensitivity control algorithm. This real-time photoreceptor gain adjustment compensates for variations in target reflectivity, surface angle, and contamination buildup. The sensor complies with international electromagnetic compatibility standards (EN 61000-6-2/6-4), safety standards (IEC 61496-1/-2 for Type 2 electro-sensitive protective equipment where applicable), and environmental directives (RoHS 2011/65/EU, REACH). It supports GLP/GMP-aligned validation protocols through traceable calibration documentation and configurable response time settings (100 µs to 10 ms), facilitating integration into regulated production systems subject to FDA 21 CFR Part 11 and ISO 13485 requirements.
Software & Data Management
While the PR-M/F operates as a stand-alone analog/digital sensor with no embedded firmware update capability, it is fully compatible with KEYENCE’s standardized configuration interface via the optional PR-WB100 handheld setup tool or PC-based KEYENCE Configuration Software (v3.0+). These tools enable non-contact parameter tuning—including sensitivity threshold, response time, output mode, and stability monitoring—via infrared link. All configuration changes are stored in non-volatile memory and support audit trail generation when used in conjunction with KEYENCE’s centralized device management platform. For Industry 4.0 integration, the sensor’s discrete output signals interface seamlessly with PLCs supporting IEC 61131-3 programming environments and can be monitored via OPC UA gateways using standard digital I/O mapping.
Applications
- High-speed component positioning in SMT pick-and-place machines
- Presence verification of microfluidic cartridges in diagnostic analyzers
- Edge detection of thin-film substrates in roll-to-roll coating lines
- Tooling alignment feedback in CNC micro-machining cells
- Reject verification in blister-pack inspection systems under variable lighting
- Position confirmation of surgical instrument trays in automated sterilization logistics
FAQ
What is the maximum sensing distance for the PR-M/F series?
Sensing range depends on configuration: PR-M (through-beam) achieves up to 200 mm; PR-F (retro-reflective) reaches 100 mm with standard reflector—both subject to target reflectivity and environmental conditions.
Can the PR-M/F be used in vacuum environments?
No—while rated for high-pressure washdown (IP69K), the hybrid housing is not designed for vacuum-rated sealing; alternative KEYENCE vacuum-compatible models (e.g., PZ-V series) are recommended.
Is analog output available on this model?
No—the PR-M/F provides only discrete NPN/PNP switching outputs; analog variants require the separate PR-A series amplifier units.
Does it support IO-Link communication?
No—this is a discrete-output sensor without fieldbus integration; for IO-Link functionality, consider KEYENCE’s IV Series or LJ-V line profile sensors.
What is the operating temperature range?
−25 °C to +55 °C (non-condensing), validated per IEC 60068-2-1/2 testing protocols.
