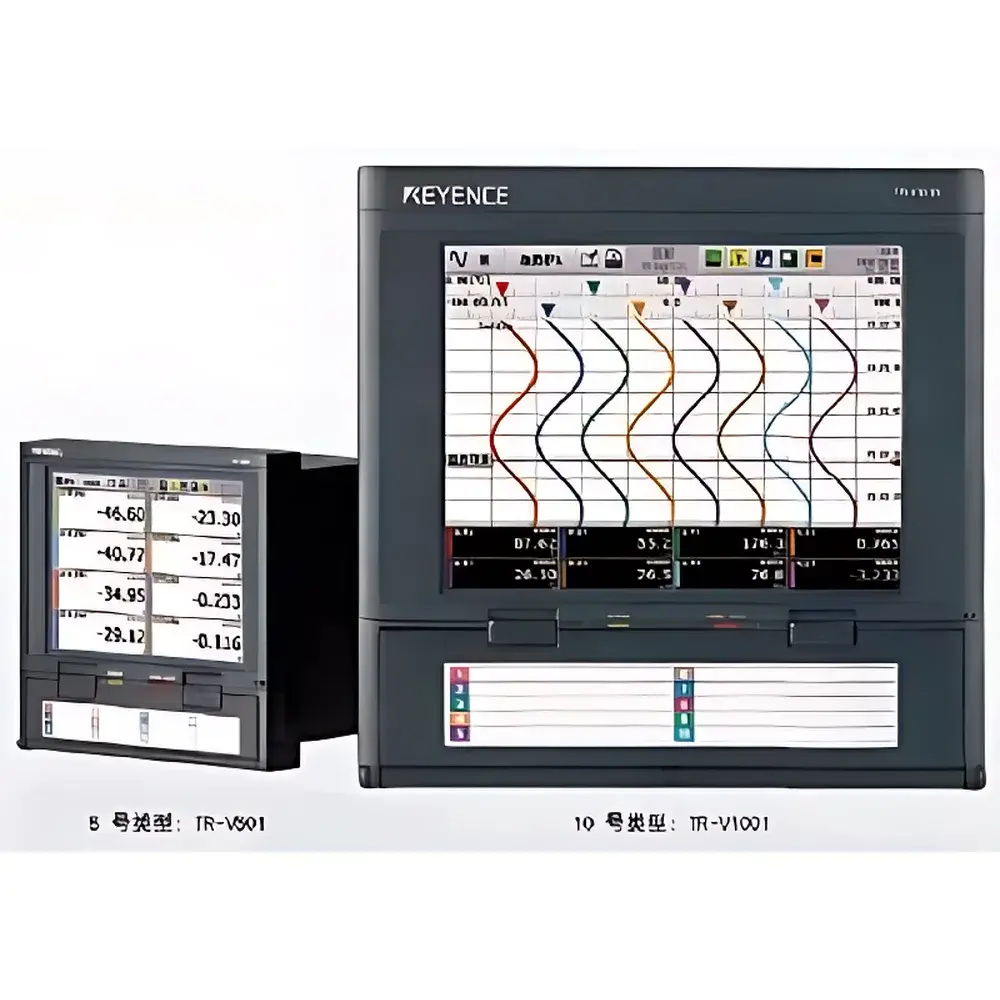

KEYENCE TR-V1001 Touchscreen Paperless Recorder

Overview

The KEYENCE TR-V1001 is a high-integration, touchscreen-enabled paperless recorder engineered for continuous, high-fidelity data acquisition and visualization in industrial process monitoring, quality assurance, and laboratory environments. Unlike legacy chart recorders or basic data loggers, the TR-V1001 employs a capacitive multi-touch display with haptic-optimized responsiveness—designed to replicate natural finger-based interaction such as page-flipping, drag-to-scroll, and handwritten annotation. Its architecture follows a modular, dual-unit configuration: a compact main unit housing the CPU, storage, and communication interfaces, paired with interchangeable measurement input modules supporting thermocouple, RTD, voltage, current, and pulse inputs. This separation enables precise signal conditioning at the source while maintaining system-level scalability and serviceability. The device operates on a real-time embedded OS optimized for deterministic sampling, ensuring time-synchronized acquisition across up to 32 channels (depending on module configuration) with timestamp resolution down to 1 ms. It meets core functional safety and electromagnetic compatibility requirements per IEC 61326-1 and IEC 61000-6-2/6-4, making it suitable for deployment in regulated manufacturing settings.

Key Features

• Capacitive 10.4-inch TFT-LCD touchscreen with pressure-sensitive handwriting recognition—enabling intuitive annotation, waveform marking, and gesture-based navigation (e.g., swipe-to-scroll, pinch-to-zoom)
• Ultra-slim mechanical design: 35 mm depth (TR-V1001), among the thinnest in its class—reducing panel cutout space by up to 40% versus conventional recorders
• Modular input architecture: Supports hot-swappable analog/digital I/O modules (TR-M series), configurable for thermocouple (J/K/T/E/R/S/B/N), Pt100/Pt1000 RTDs, ±10 V, 0–20 mA, 4–20 mA, and frequency/pulse inputs
• Real-time waveform comparison function: Overlay up to four historical or reference traces on-screen with delta deviation highlighting and pass/fail threshold masking
• Embedded non-volatile storage (8 GB internal flash + optional microSD slot) with automatic cyclic logging and event-triggered archive—supports FAT32 and exFAT file systems
• Dual Ethernet ports (100BASE-TX) with support for Modbus TCP, EtherNet/IP, and OPC UA (compliant with OPC Foundation certification v1.04), enabling seamless integration into SCADA and MES platforms

Sample Compatibility & Compliance

The TR-V1001 accepts direct sensor inputs without external signal conditioners for standard industrial transducers and probes. Its input modules are calibrated per ISO/IEC 17025-accredited procedures and traceable to NMIJ (National Metrology Institute of Japan) standards. The device complies with CE marking requirements under the EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. For pharmaceutical and medical device manufacturing, it supports audit-trail-enabling operation when configured with optional password-protected user roles and electronic signature capability—aligning with FDA 21 CFR Part 11 principles for electronic records and signatures. While not certified as GMP-compliant out-of-the-box, its firmware and configuration logs meet GLP documentation integrity criteria when deployed with validated installation and operational qualification protocols.

Software & Data Management

KEYENCE provides the free TR-Viewer PC software for offline analysis, report generation, and configuration backup. TR-Viewer supports CSV, Excel (.xlsx), and PDF export with customizable templates—including compliance-ready formats for ISO 9001 clause 8.5.2 (control of production and service provision). All recorded data is stored in a proprietary but openly documented binary format (.trd), with public SDKs available for third-party parsing in Python, MATLAB, and LabVIEW. Firmware updates are delivered via signed packages verified through SHA-256 hash validation. Configuration changes—including scaling factors, alarm thresholds, and channel naming—are logged with timestamps, operator ID, and pre/post values—providing full change history for internal audits.

Applications

• Thermal profiling in oven and furnace validation (e.g., ASTM E2251-22 for temperature uniformity mapping)
• Batch process monitoring in food & beverage and chemical manufacturing—tracking temperature, pressure, flow, and pH trends against SOP-defined setpoints
• Environmental chamber validation per ISO 17025 and ICH Q5C guidelines
• Equipment qualification (IQ/OQ) for packaging lines, sterilizers, and cleanroom HVAC systems
• Field-deployed transient capture during commissioning—leveraging built-in battery backup (optional) and ruggedized enclosure (IP65 front panel rating)

FAQ

Does the TR-V1001 support alarm output relays?

Yes—up to eight programmable relay outputs (dry contact, 250 VAC/30 VDC, 2 A) are available via optional TR-RY expansion module.
Can historical data be exported without proprietary software?

Yes—the .trd files contain ASCII headers and structured binary payload; KEYENCE publishes full format specifications and provides open-source Python reference parsers on GitHub.
Is the touchscreen compatible with gloved operation?

The display supports operation with standard cotton or nitrile gloves (≥0.3 mm thickness); capacitive sensitivity is adjustable per channel in system settings.
What is the maximum sampling interval across all channels?

Minimum interval is 100 ms per channel in synchronous mode; asynchronous mode allows independent intervals from 100 ms to 24 hours per channel.
How is calibration maintained over time?

Input modules feature auto-zero and span calibration routines triggered manually or scheduled; full calibration certificates (with uncertainty budgets) are issued by KEYENCE-certified labs upon request.
