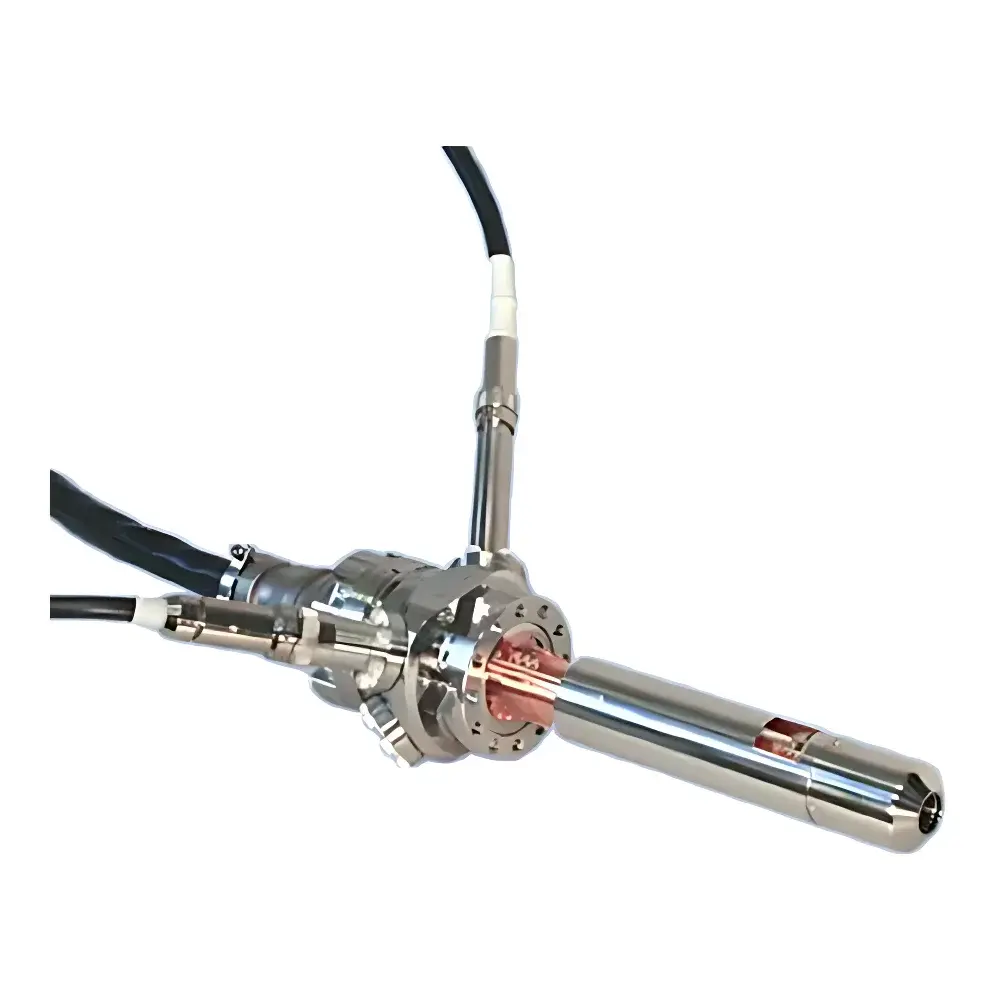

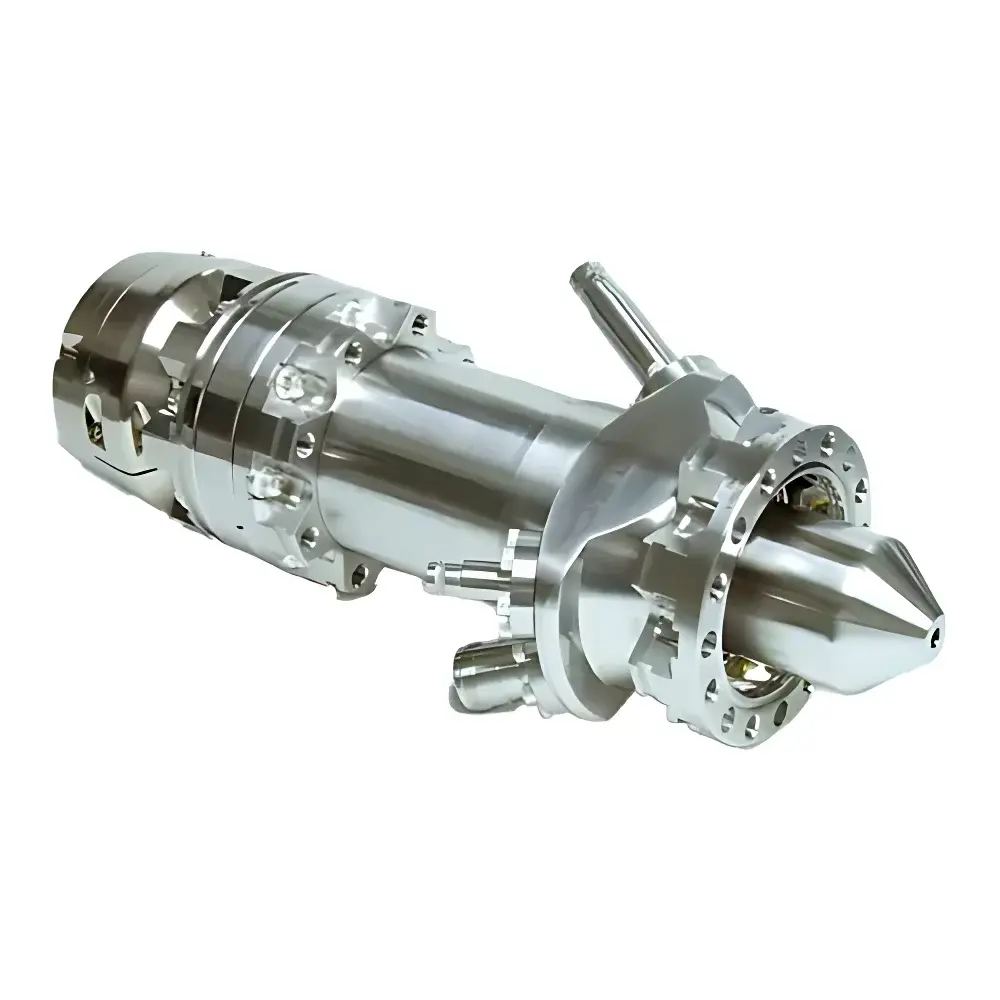

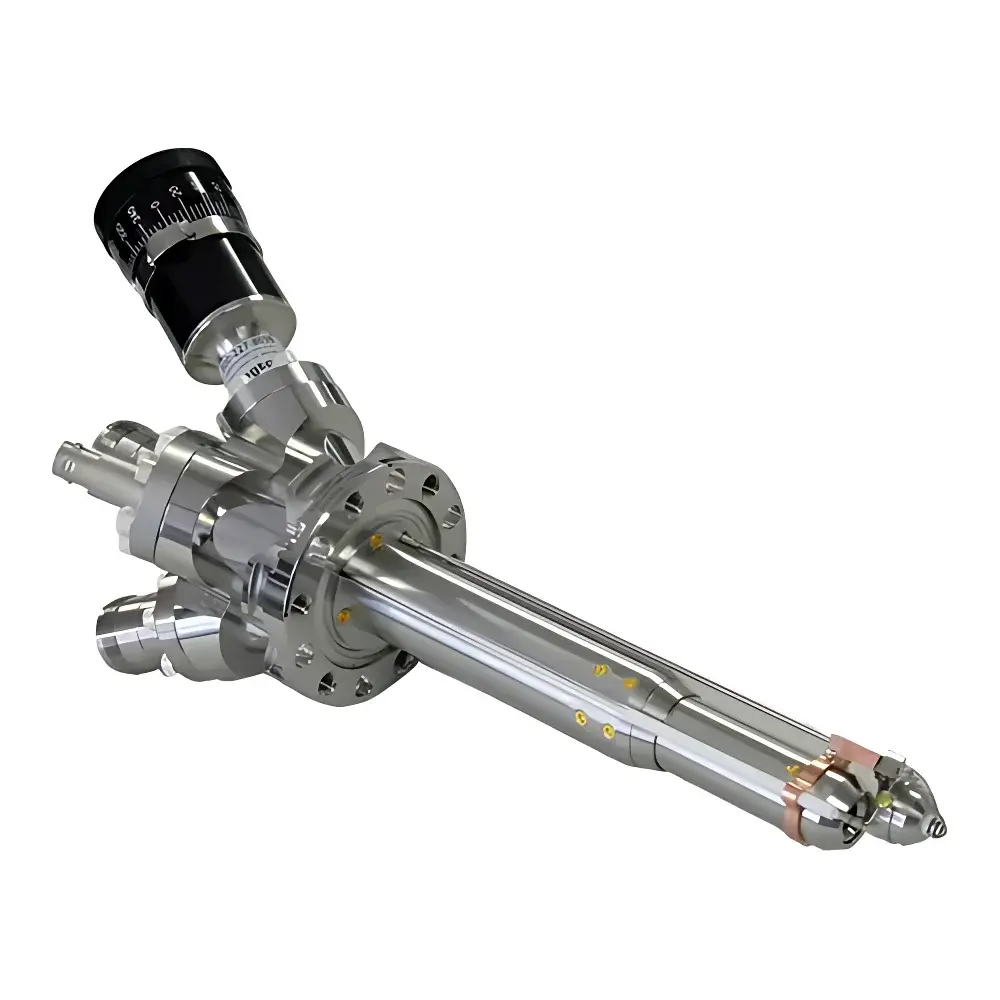

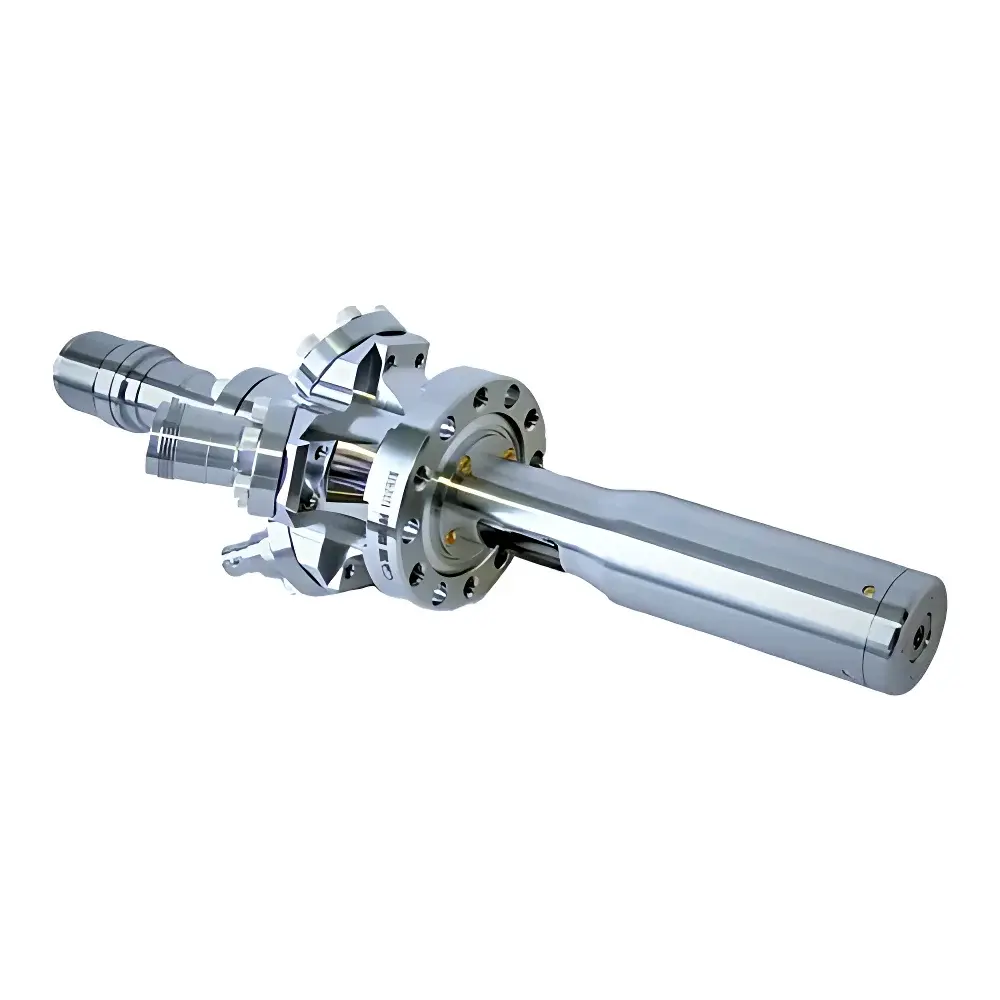

Kimball Physics IMG-4212 / IGPS-3212 Ion Gun System

Overview

The Kimball Physics IMG-4212 and IGPS-3212 are high-stability, differentially pumped ion gun systems engineered for precision surface modification, ion-assisted deposition (IAD), charge neutralization, and in-situ sample conditioning in ultra-high vacuum (UHV) and high-vacuum environments. These instruments operate on the principle of thermionic or cold-cathode ion generation, followed by electrostatic acceleration and focusing of noble gas ions—typically Ar⁺, O₂⁺, or N₂⁺—to deliver a well-defined, controllable ion beam to target substrates. Designed for integration into UHV chambers (≤1×10⁻⁹ Torr base pressure), both models support active beam steering, energy filtering, and real-time current monitoring via integrated Faraday cup diagnostics. The IMG-4212 is optimized for broad-beam applications requiring uniform irradiation over large-area samples (up to 25 mm diameter), while the IGPS-3212 offers enhanced energy resolution and improved beam collimation for focused ion beam (FIB)-adjacent tasks such as localized sputter cleaning or low-dose pre-analysis conditioning.

Key Features

• Dual-mode operation: Selectable thermionic LaB₆ cathode (IMG-4212) or cold-cathode hollow cathode (IGPS-3212) for flexible ion source lifetime and stability trade-offs
• Electrostatic beam optics with three-element extraction lens and two-stage acceleration column enabling precise energy control (±0.5% setpoint accuracy)
• Integrated differential pumping stages maintain source region at ~10⁻⁵ Torr while preserving chamber vacuum integrity
• Motorized beam deflection (±5° in X/Y) and manual focus adjustment allow dynamic beam positioning without breaking vacuum
• Real-time beam current readout via calibrated Faraday cup (resolution: 0.1 nA) with analog output and RS-232/USB interface
• Front-panel digital display with dedicated controls for energy, current, and emission status; compatible with remote control via LabVIEW™ drivers and EPICS IOC support

Sample Compatibility & Compliance

The IMG-4212 and IGPS-3212 accommodate a wide range of conductive and insulating substrates—including Si wafers, metal foils, oxide thin films, and polymer-coated optics—without requiring conductive coatings due to optional electron flood gun integration (available as add-on module). Both systems comply with CE electromagnetic compatibility (EMC) Directive 2014/30/EU and meet IEC 61000-6-3 emission limits. For laboratories operating under GLP or GMP frameworks, the ion guns support audit-ready operation through timestamped log files (energy/current/time), user-access-level configuration locking, and optional 21 CFR Part 11–compliant software modules when paired with Kimball’s IonControl Suite v3.x. Mechanical mounting follows standard CF-63 and CF-100 flange configurations, ensuring seamless integration with major UHV platform vendors (e.g., MBE Komponenten, Scienta Omicron, SPECS).

Software & Data Management

Kimball Physics provides the IonControl Suite—a Windows-based application supporting full instrument parameter automation, sequence scripting, and synchronized data logging with external sensors (e.g., quartz crystal microbalances, residual gas analyzers). All beam parameters—including energy ramp profiles, dwell time per position, and current stabilization thresholds—are stored in XML-based configuration files with SHA-256 checksums for traceability. Raw current and voltage telemetry is sampled at 10 Hz and exported in CSV or HDF5 format for post-processing in MATLAB®, Python (NumPy/Pandas), or Igor Pro. The system supports OPC UA server integration for enterprise-level SCADA connectivity and includes built-in alarm thresholds with email/SNMP notification triggers.

Applications

• In-situ ion beam etching and surface smoothing prior to XPS, AES, or LEED analysis
• Ion-assisted deposition of optical coatings (e.g., TiO₂, SiO₂) to enhance film density and adhesion
• Charge neutralization during SEM/FIB imaging of non-conductive specimens
• Controlled surface functionalization of biomaterials and 2D materials (e.g., graphene, MoS₂)
• Calibration reference source for secondary ion mass spectrometry (SIMS) and Rutherford backscattering spectrometry (RBS) setups
• Accelerator-based radiation damage studies in nuclear materials research

FAQ

What gases are compatible with the IMG-4212 and IGPS-3212?
Both systems support Ar, O₂, N₂, Kr, Xe, and H₂ via standardized gas inlet fittings; reactive gas handling requires optional stainless-steel gas lines and leak-tight solenoid valves.
Can the ion gun be operated without breaking vacuum?
Yes—the entire ion source assembly is bakeable to 150 °C and rated for continuous UHV operation; no venting is required for routine energy or current adjustments.
Is beam energy calibration traceable to NIST standards?
Energy calibration is performed using retarding field analyzer (RFA) verification protocols aligned with ASTM E1187-20 guidelines for ion beam characterization.
What maintenance intervals are recommended?
LaB₆ filaments typically require replacement every 6–12 months under continuous use; cold-cathode sources (IGPS-3212) exhibit >20,000 hours MTBF and require only annual anode cleaning.
Does Kimball Physics provide installation and commissioning support?
Yes—on-site installation, vacuum validation, beam profiling, and operator training are available as optional service packages under contract.
