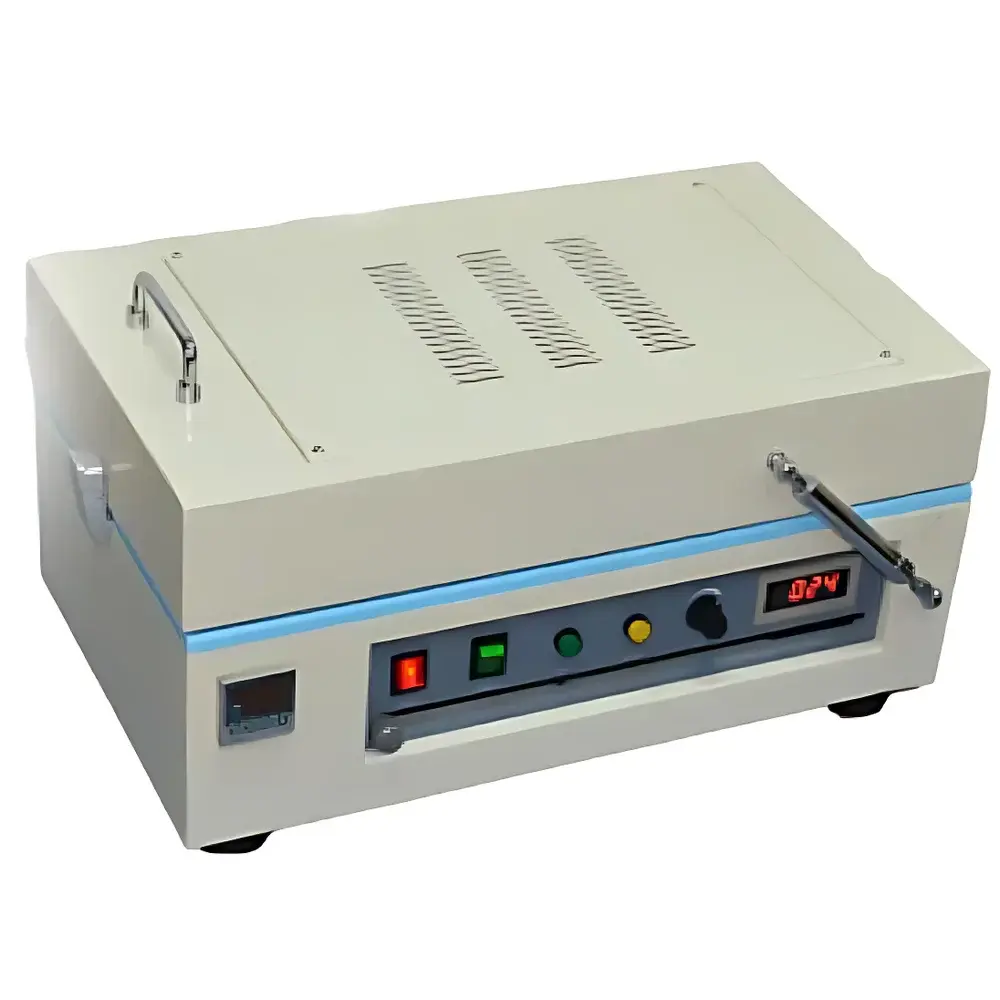

KJ GROUP MSK-AFA-IIID Benchtop Automatic Doctor Blade Coater with Integrated Vacuum-Heated Substrate Stage

Overview

The KJ GROUP MSK-AFA-IIID Benchtop Automatic Doctor Blade Coater with Integrated Vacuum-Heated Substrate Stage is an engineered solution for reproducible, controlled thin-film fabrication in R&D laboratories and quality control environments. Designed around the principle of precision doctor-blade coating—where a fixed-gap blade shears a liquid or colloidal suspension across a moving substrate—the system integrates synchronized substrate motion, vacuum-assisted immobilization, and programmable thermal conditioning to enable wet-film deposition followed by immediate in-situ drying. Unlike conventional air-dry-only coaters, the MSK-AFA-IIID employs a bottom-heated vacuum adsorption plate capable of uniform thermal delivery up to 120 °C, allowing solvent evaporation kinetics to be actively modulated during coating. This dual-stage process—coating + simultaneous thermal conditioning—minimizes edge effects, suppresses dewetting, and enhances film homogeneity, particularly for high-viscosity slurries, polymer solutions, and ceramic precursors used in battery electrode, perovskite photovoltaic, and functional coating development.

Key Features

• Infinitely variable DC motor drive (10–100 mm/s) ensures precise, repeatable coating velocity control—critical for shear-thinning fluid behavior and consistent wet-film rheology.
• Vacuum-heated substrate stage with digital PID temperature controller (±2 °C accuracy) enables real-time thermal management during deposition, supporting solvent boiling point optimization and crosslinking initiation.
• Stainless-steel KTQ150 adjustable doctor blade (150 mm width, 0–3500 µm gap range) provides mechanical stability and corrosion resistance, minimizing blade wear and ensuring long-term calibration integrity.
• Integrated vacuum adsorption (via external pump, e.g., AP-1400V oil-free unit) secures substrates—including flexible films, metal foils, glass, and silicon wafers—without edge curling or slippage.
• Automated end-of-travel reset: mechanical limit switch triggers automatic blade retraction after user-defined coating length (up to 300 mm), reducing manual intervention and operator variability.
• Dust-shielded hinged lid improves thermal retention, protects coated samples from airborne particulates, and contributes to lab safety compliance during heated operation.
• Modular accessory compatibility—including 50 mm/100 mm/150 mm micrometer-adjustable blades, HDS-150 hybrid extrusion heads, and quad-thickness precision applicators—supports method transfer across material systems and scale-up studies.

Sample Compatibility & Compliance

The MSK-AFA-IIID accommodates rigid and semi-flexible substrates up to 300 mm × 150 mm, including PET, PI, aluminum/copper foil, float glass, quartz, and silicon. Its vacuum stage ensures flatness retention even for low-tensile-strength films. All wet-path components are constructed from 304 stainless steel or anodized aluminum, meeting ISO 14644-1 Class 8 cleanroom compatibility when operated in controlled environments. The system complies with CE marking requirements under the Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. While not inherently 21 CFR Part 11 compliant, its analog temperature and speed controls may be integrated into validated workflows where electronic audit trails are managed externally via LIMS or ELN platforms. Documentation packages support GLP/GMP-aligned validation protocols, including IQ/OQ templates and traceable calibration certificates for temperature and speed sensors.

Software & Data Management

The MSK-AFA-IIID operates via front-panel digital interface with independent LED displays for speed (mm/s) and stage temperature (°C). No embedded software or PC connectivity is included by default—consistent with ISO/IEC 17025-compliant instrumentation where deterministic, non-programmable control minimizes validation burden. Optional integration with external data loggers (e.g., Omega OM-DAQPRO-5300) enables time-stamped acquisition of temperature, vacuum pressure, and motor current for process correlation studies. For regulated environments, users may implement SOP-controlled parameter lockout via physical key switches (available as accessory), satisfying ALCOA+ principles for data integrity in analytical method development.

Applications

• Battery R&D: Uniform electrode slurry coating on Cu/Al foil for Li-ion, solid-state, and Na-ion battery prototypes.
• Optoelectronics: Deposition of perovskite precursor layers, PEDOT:PSS HTLs, and ZnO ETLs on ITO/glass substrates.
• Functional coatings: Ceramic tape casting (e.g., Al₂O₃, YSZ), dielectric polymer films, and anti-reflective sol-gel layers.
• Pharmaceutical film research: Controlled coating of API-loaded hydrogels or mucoadhesive films onto synthetic membranes.
• Materials science: Shear-aligned nanocomposite films, graphene oxide dispersions, and conductive ink patterning prior to sintering.

FAQ

What vacuum pump specifications are recommended for optimal substrate adhesion?
A minimum ultimate vacuum of 10⁻¹ mbar and pumping speed ≥14 L/min (e.g., AP-1400V oil-free pump) is advised for reliable hold-down of thin foils and low-porosity substrates.
Can the MSK-AFA-IIID accommodate substrates thicker than 3 mm?
Yes—the vacuum stage design supports substrates up to 5 mm thickness; however, thermal response time increases proportionally with thermal mass, requiring extended pre-heat stabilization.
Is the KTQ150 blade compatible with aggressive solvents such as NMP or DMF?
The stainless-steel construction and PTFE-coated blade edges provide chemical resistance to common battery and coating solvents; routine cleaning with IPA or acetone is recommended post-use.
Does the system support inert-atmosphere operation?
Not natively—but the sealed chamber lid allows retrofitting with glovebox-compatible feedthroughs for gas purging (N₂, Ar) when mounted inside controlled environments.
How is temperature uniformity verified across the heating stage?
KJ GROUP provides factory calibration maps showing ≤±1.5 °C deviation across the 300 × 150 mm active zone at 120 °C, measured using NIST-traceable thermocouple arrays.
