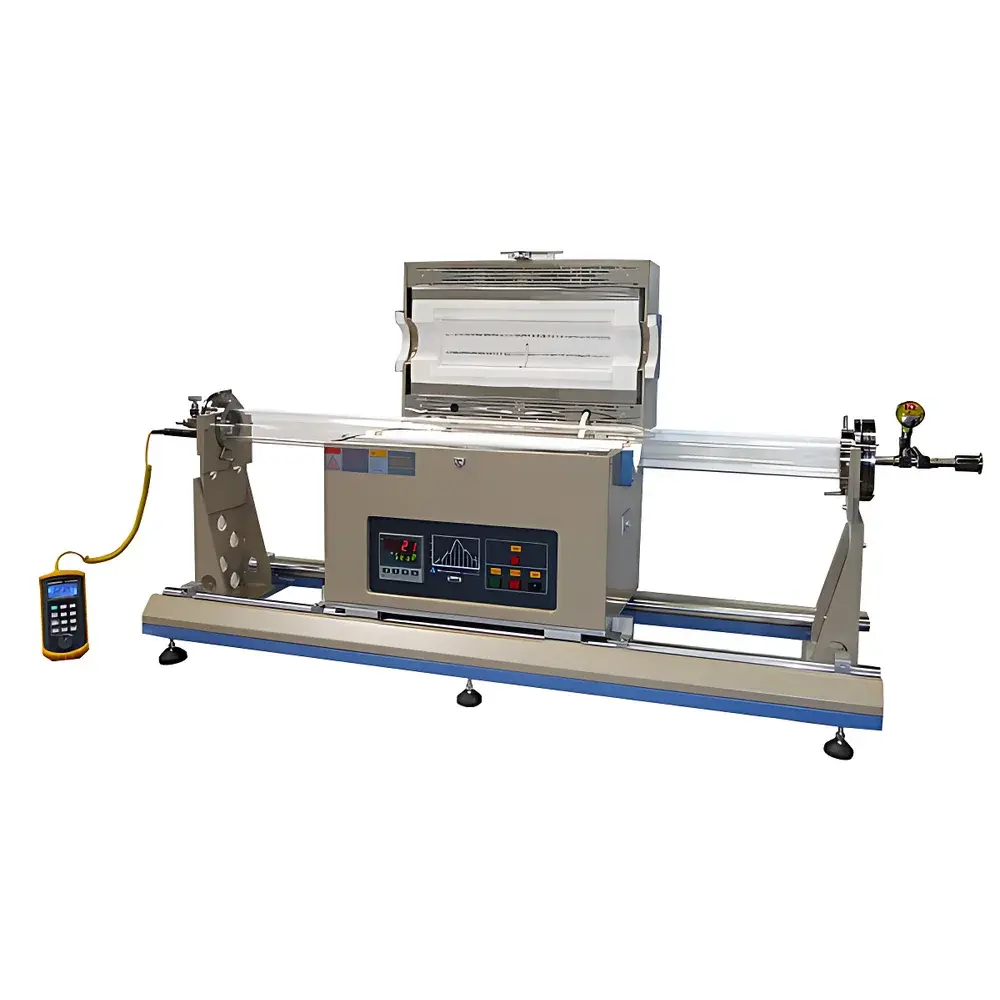

KJ GROUP OTF-1200X-80SL Single-Zone Sliding Tube Furnace with Rapid Heating/Cooling Capability

Overview

The KJ GROUP OTF-1200X-80SL is a single-zone horizontal tube furnace engineered for rapid thermal processing under controlled atmosphere conditions. Its defining mechanical feature—a manually actuated sliding rail system—enables precise spatial separation between the heated zone and the sample position, facilitating accelerated heating and cooling kinetics without reliance on active quenching hardware. The furnace operates on resistive heating via high-purity Kanthal A1 alloy elements embedded in a dual-layer stainless steel shell with forced-air cooling, ensuring surface temperatures remain below 60 °C during operation. Thermal management is further enhanced by an imported high-emissivity alumina coating applied to the interior furnace chamber, improving radiative heat transfer efficiency and mitigating thermal degradation over extended service cycles. Designed for vacuum or inert gas environments (Ar ≥99.99%), the system supports dynamic thermal profiles critical for materials synthesis, annealing, sintering, and phase transformation studies where time-resolved thermal history directly influences microstructural evolution.

Key Features

• Dual-shell construction with integrated axial fan cooling system, maintaining external casing temperature <60 °C at maximum operating conditions
• High-emissivity aluminum oxide coating on inner furnace walls for improved thermal uniformity and extended refractory life
• Manually operated Cr-plated steel sliding rails (1200 mm length) enabling rapid lateral displacement of the entire furnace body relative to stationary samples
• Quartz tube (Ø80 mm OD / Ø75 mm ID / 1400 mm L) compatible with high-purity inert or reducing atmospheres; rated for continuous use up to 1100 °C
• Dual K-type thermocouple configuration: one embedded in the heating zone wall for PID control, another inserted into the tube bore for direct sample-zone temperature monitoring
• 30-segment programmable PID controller with over-temperature cutoff, real-time profile logging, and ramp/soak capability
• CE-certified design compliant with electromagnetic compatibility (EN 61000-6-3/-6-4) and harmonic current emission (EN 61000-3-2) standards

Sample Compatibility & Compliance

The OTF-1200X-80SL accommodates cylindrical samples up to Ø70 mm in diameter and ≤1200 mm in length within its quartz tube. It is routinely deployed for thermal treatment of ceramics, thin-film substrates, battery electrode precursors, catalysts, and semiconductor wafers requiring precise dwell times at elevated temperatures. The furnace meets essential safety and performance benchmarks for laboratory-scale thermal processing equipment, including conformity with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. When operated with optional turbo-molecular pumping systems, it achieves base pressures ≤10⁻⁵ Torr—suitable for processes demanding ultra-low partial pressure environments, such as metalorganic chemical vapor deposition (MOCVD) precursor decomposition or oxygen-sensitive oxide growth. All electrical interfaces are grounded per IEC 60364-5-54 requirements, and gas inlet fittings utilize standard 6 mm double-ferrule compression connections for leak-tight argon delivery.

Software & Data Management

While the OTF-1200X-80SL utilizes a standalone front-panel PID controller, its RS485 serial interface (Modbus RTU protocol) enables integration with third-party SCADA platforms or custom LabVIEW/Python-based data acquisition systems. Users may configure automated profile execution, export timestamped temperature logs (including both setpoint and dual-sensor readings), and implement alarm-triggered event recording. For regulated environments—such as GLP-compliant materials qualification labs—the optional digital vacuum gauge with analog output supports audit-trail-capable pressure logging when paired with FDA 21 CFR Part 11–compliant software. Firmware updates are performed via USB port, and all operational parameters—including segment durations, ramp rates, and safety thresholds—are password-protected to ensure procedural integrity.

Applications

• Rapid thermal annealing (RTA) of SiC, GaN, and other wide-bandgap semiconductor substrates
• Controlled oxidation/reduction cycling of transition metal oxides for battery cathode optimization
• Graphene and 2D material synthesis via chemical vapor transport (CVT)
• Thermal stability assessment of polymer-derived ceramics under inert purge
• Calibration and validation of high-temperature sensors using traceable NIST-traceable reference thermocouples
• Pre-sintering and dewaxing of precision investment casting molds

FAQ

What cooling media does the integrated water chiller require?
Only deionized or distilled water is permitted; tap water or glycol mixtures will cause mineral buildup and premature pump failure.

Can this furnace be used under hydrogen atmosphere?
No—hydrogen service requires explosion-proof construction, specialized gas train components, and additional safety interlocks not included in this model’s certification scope.

Is the quartz tube replaceable, and what is its typical service life?
Yes; replacement tubes are available as consumables (P/N: QT-80-1400). Under proper thermal cycling protocols (<5 °C/s ramp rate above 800 °C), expected lifetime exceeds 200 cycles at 1100 °C.

Does the sliding mechanism support motorized automation?
Not natively; however, third-party linear actuators with position feedback can be retrofitted using the provided M6 mounting threads on the rail base plate.

How is temperature uniformity verified across the 120 mm hot zone?
KJ GROUP provides a factory calibration certificate documenting axial and radial uniformity mapping per ASTM E220-19 Annex A3 methodology, conducted using five calibrated K-type probes at defined grid points.
