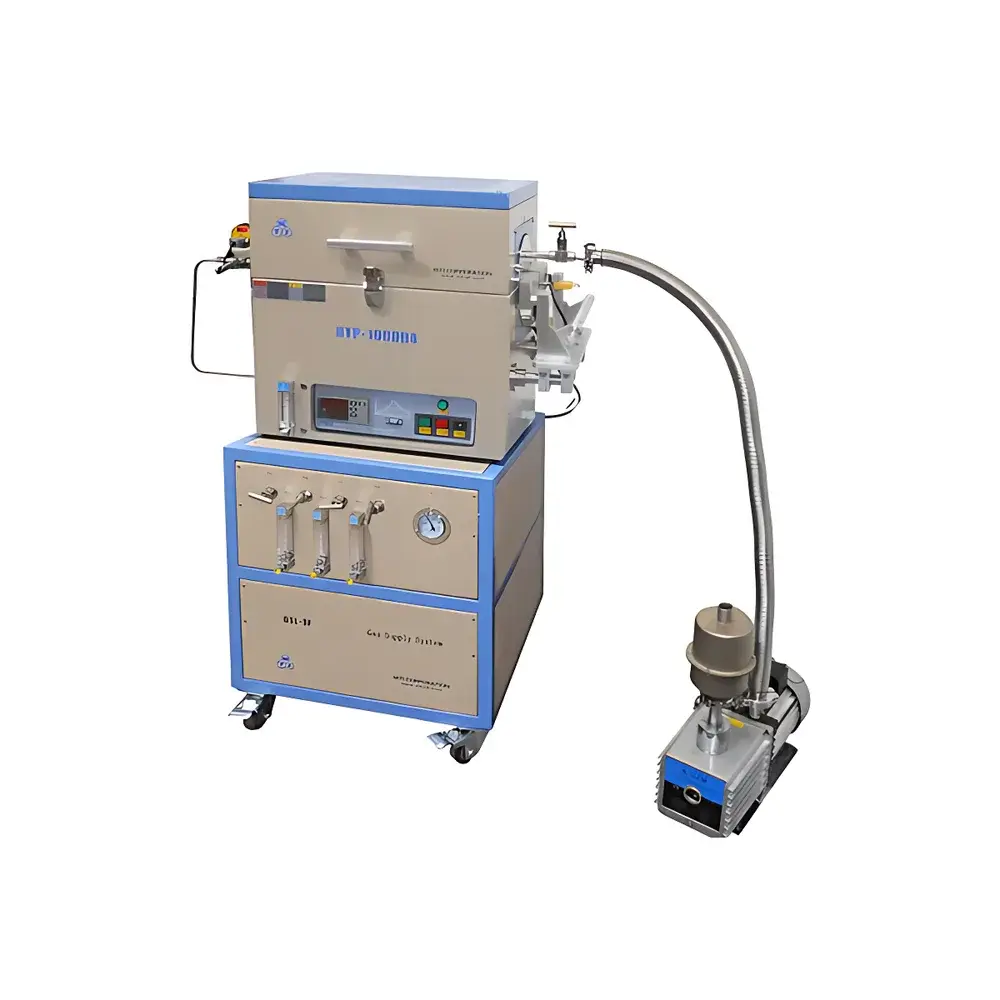

KJ GROUP RTP-1000-LV3F Rapid Thermal Processing Tube Furnace with Triple Float-Type Mass Flow Controllers

Overview

The KJ GROUP RTP-1000-LV3F is a high-performance rapid thermal processing (RTP) tube furnace engineered for precise, repeatable annealing of semiconductor wafers, photovoltaic substrates, and thin-film samples up to 3-inch diameter. It employs high-intensity infrared lamp heating—comprising multiple 10-mm-diameter, 300-mm-long IR lamps—to achieve controlled thermal transients across a 300-mm axial heating zone. Unlike conventional resistance-heated tube furnaces, this system delivers exceptional ramp rates (up to 50 °C/s from ambient to 800 °C) while maintaining tight temperature uniformity (±0.5 °C) and minimal thermal mass lag. The furnace integrates a vacuum-capable quartz tube (Ø110 mm OD / Ø103 mm ID / 380 mm L) sealed via stainless-steel water-cooled flanges with dual high-temperature O-rings, enabling stable operation under inert or reducing atmospheres at pressures down to 1×10⁻³ torr. Its architecture supports both atmospheric and low-pressure RTP protocols essential for dopant activation, oxide growth, silicide formation, and metalorganic chemical vapor deposition (MOCVD) pre- and post-treatment.

Key Features

• Dual-layer Al₂O₃ fiber insulation housing with structural steel frame—eliminates requirement for external air or water cooling during standard operation.
• Internally coated alumina ceramic lining on the furnace chamber wall—enhances infrared reflectivity, improves thermal efficiency, and extends service life under repeated thermal cycling.
• SCR-driven PID temperature controller with 30-segment programmable ramp-soak profiles; includes over-temperature cutoff and thermocouple break detection for fail-safe operation.
• Triple independent float-type mass flow controllers (40–400 cc/min range, ±4% full-scale accuracy) for precise, real-time gas blending of Ar, N₂, H₂, or forming gas mixtures—critical for reproducible surface chemistry control.
• RS485 serial interface compliant with Modbus RTU protocol—enables integration into centralized lab automation systems and remote monitoring via third-party SCADA or custom LabVIEW-based control software.
• CE-marked design meeting EN 61000-6-2 (immunity) and EN 61000-6-4 (emission) standards; compatible with GLP/GMP environments when paired with audit-trail-capable software.

Sample Compatibility & Compliance

The RTP-1000-LV3F accommodates substrates up to 76 mm (3″) in diameter, including silicon, SiC, GaN, quartz, fused silica, and metal-coated glass. Its quartz tube geometry ensures minimal particulate generation and low metallic contamination—suitable for cleanroom-adjacent processing. For vacuum integrity above 900 °C, the water-cooled flange must be operated with ≥0.5 m³/hr deionized water flow. Argon (≥99.99% purity) is recommended as the primary process gas; optional gas lines support H₂/N₂ blends per ASTM F1577 and SEMI F57 specifications. The system complies with ISO 14644-1 Class 8 cleanroom compatibility guidelines when installed with proper exhaust ducting and filtered inlet gas supply.

Software & Data Management

The furnace communicates via RS485 using open Modbus RTU registers, allowing bidirectional data exchange—including setpoint, actual temperature, ramp rate, hold time, and flowmeter readings—for traceable process logging. When interfaced with validated PC-based control platforms (e.g., KJ’s proprietary RTPControl Suite or user-developed Python/NI LabVIEW applications), it supports 21 CFR Part 11-compliant electronic records: user authentication, audit trails, digital signatures, and immutable export of temperature vs. time curves in CSV or XML format. All firmware updates are delivered via signed HEX files with SHA-256 checksum verification.

Applications

• Activation annealing of ion-implanted dopants in Si and compound semiconductors (e.g., B, P, As).
• Growth and densification of ultra-thin gate oxides and high-k dielectrics (Al₂O₃, HfO₂).
• Crystallization of amorphous silicon and metal oxide semiconductor layers (IGZO, ZnO).
• Thermal desorption spectroscopy (TDS) sample preparation under controlled partial pressure.
• Rapid oxidation/nitridation of metal films (Ti, Ta, Co) for barrier layer engineering.
• Pre- and post-deposition thermal treatment in ALD and PECVD tool clusters.

FAQ

What vacuum level can the RTP-1000-LV3F achieve, and what pump configuration is required?
The system reaches ≤1×10⁻³ torr when paired with a certified two-stage rotary vane mechanical pump (not included) and properly leak-checked stainless-steel vacuum lines.
Is the quartz tube replaceable, and are spare tubes available?
Yes—standard Ø110 mm OD × 380 mm L quartz tubes are field-replaceable; KJ GROUP supplies OEM-grade synthetic fused silica tubes with certificate of conformance (CoC) upon request.
Can the furnace operate continuously at 1000 °C?
Continuous operation at 1000 °C is permitted only with active water cooling of the vacuum flange and verified argon purge flow ≥100 sccm to prevent quartz devitrification.
Does the system support inert gas purging prior to vacuum evacuation?
Yes—the triple-flow architecture allows sequential or simultaneous inert gas introduction, enabling purge-evacuate-refill cycles to minimize oxygen residual before heating.
What calibration documentation is provided with shipment?
Each unit ships with a factory calibration report covering thermocouple linearity (Type S, 0–1100 °C), flowmeter accuracy verification, and vacuum gauge linearity check—traceable to NIST standards where applicable.
