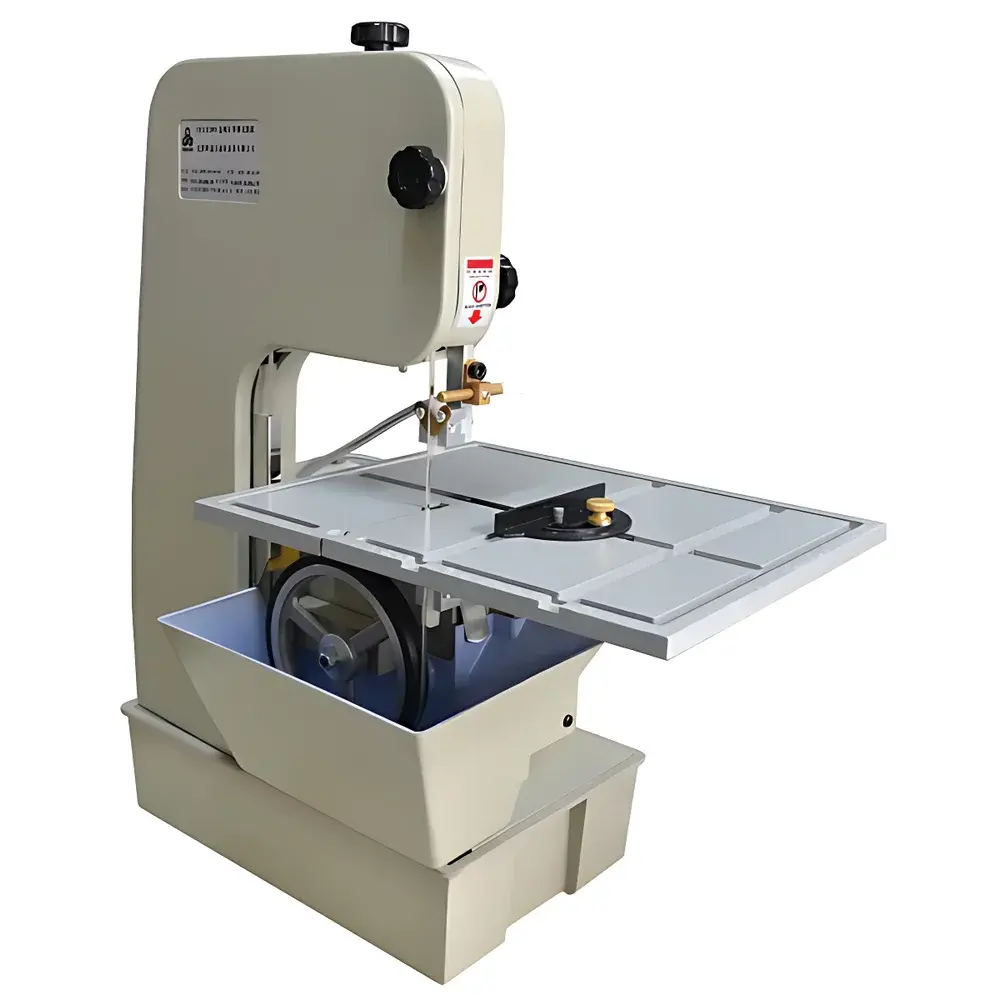

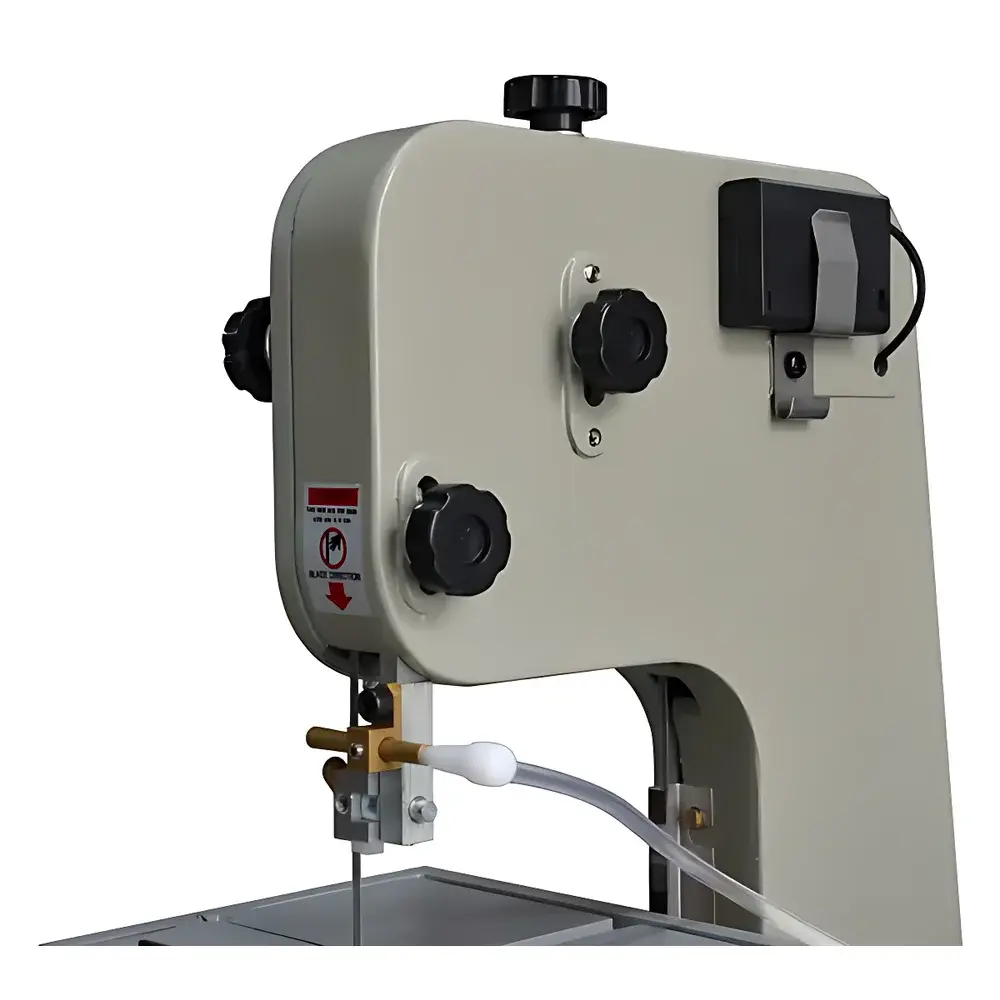

KJ GROUP SYJ-D2000 Diamond Band Saw Cutting Machine

Overview

The KJ GROUP SYJ-D2000 Diamond Band Saw Cutting Machine is a compact, benchtop precision cutting system engineered for controlled sectioning of brittle and heterogeneous materials in research laboratories, pathology units, and materials science facilities. It employs a continuous-loop electroplated diamond-impregnated band blade—tensioned across two precision-aligned pulleys—to achieve low-damage, high-accuracy cuts via abrasive sawing mechanics rather than mechanical shearing. This principle minimizes thermal stress, microcracking, and subsurface deformation—critical for preserving structural integrity in fragile specimens such as sintered ceramics, optical glass substrates, mineralogical thin sections, and biomineralized tissues. Its low-power (120 W), variable-speed motor drive ensures stable rotational torque across load fluctuations, while the rigid cast-aluminum frame and vibration-damped base suppress resonant oscillations during prolonged operation. Designed for ISO 17025-compliant sample preparation workflows, the SYJ-D2000 supports traceable, repeatable sectioning under documented operating conditions.

Key Features

• Electroplated diamond band blade (945 mm circumference) with uniform diamond distribution and high bond strength—optimized for extended service life and consistent kerf geometry.
• Adjustable rotating cutting guide fence enabling angular cuts from 0° to 45° and freehand curved profiling via manual feed control.
• Narrow kerf width (<1 mm) reduces material loss and preserves specimen volume—particularly advantageous for scarce or irreplaceable biological or geological samples.
• Integrated recirculating coolant system (water reservoir + submersible pump) maintains blade temperature and flushes debris from the cut zone, preventing clogging and thermal degradation.
• Stable linear feed mechanism with calibrated depth-stop adjustment ensures reproducible section thickness and minimal runout (±0.05 mm typical over 30 mm travel).
• Benchtop footprint (380 × 270 × 560 mm) and lightweight construction (11.5 kg) facilitate deployment in space-constrained labs, cleanrooms, or mobile histology stations.

Sample Compatibility & Compliance

The SYJ-D2000 accommodates a broad spectrum of hard-to-cut materials requiring non-impact sectioning: soda-lime and borosilicate glass, alumina and zirconia ceramics, natural stone (marble, granite, jade), polymer-matrix composites, hydrated concrete cores, and calcified biological tissues—including human and animal bone, dental enamel-dentin complexes, ossified cartilage, and vascular calcifications. In biomedical applications, it supports preparation of undecalcified histological sections compatible with subsequent grinding, polishing, and staining per ASTM E3–22 (Standard Guide for Preparation of Metallographic Specimens) and ISO 643:2021 (Micrographic Determination of Ferrite Content). The device meets CE safety directives (2014/35/EU Low Voltage Directive) and complies with IEC 61000-6-3 for electromagnetic compatibility. Optional documentation packages support GLP audit readiness, including calibration logs, maintenance records, and SOP templates aligned with FDA 21 CFR Part 11 data integrity requirements.

Software & Data Management

The SYJ-D2000 operates as a manually controlled analog instrument without embedded firmware or digital interface. All operational parameters—including feed rate, cut angle, coolant flow, and cycle timing—are set and recorded externally using laboratory notebooks or LIMS-integrated electronic logbooks. Users may implement standardized digital work instructions (e.g., PDF-based SOPs with embedded photo references) and link equipment usage to sample IDs via barcode-scanned entry into validated database systems. While no proprietary software is supplied, the machine’s mechanical repeatability enables integration into automated sample tracking pipelines when paired with external motion controllers or vision-guided positioning stages (third-party integration supported).

Applications

• Materials Science: Sectioning of sintered ceramic pellets, optical lens blanks, semiconductor wafers, and refractory brick cross-sections for SEM-EDS analysis.
• Geosciences: Preparation of oriented thin sections from fossil-bearing limestone, volcanic tuff, and metamorphic rock cores for petrographic microscopy.
• Dental & Orthopedic Research: Serial sectioning of titanium dental implants within mandibular bone blocks, hip joint prostheses in femoral heads, and spinal fusion constructs containing PEEK and hydroxyapatite scaffolds.
• Cardiovascular Pathology: Transverse slicing of coronary artery stents embedded in calcified plaque tissue for micro-CT reconstruction and histomorphometric quantification.
• Paleontology & Forensics: Non-destructive segmentation of fossilized vertebrate remains, archaeological bone fragments, and gunshot residue-embedded polymer seals.
• Industrial QA: Dimensional sampling of automotive elastomeric seals, fuel injector O-rings, and aerospace gasket materials for hardness profiling and cross-link density mapping.

FAQ

What types of diamond band blades are compatible with the SYJ-D2000?
The system accepts standard 945 mm circumference electroplated diamond band blades with nominal widths of 0.3–0.5 mm and grit sizes ranging from #120 to #240, depending on required surface finish and material hardness.
Is coolant mandatory during operation?
Yes—continuous water-based coolant circulation is required to prevent blade overheating, reduce diamond grain pull-out, and minimize thermal damage to heat-sensitive specimens such as polymer-bonded composites or unfixed soft tissues.
Can the SYJ-D2000 perform automated or programmable cuts?
No—the unit features manual feed control only; however, its mechanical repeatability allows integration with third-party CNC motion controllers for semi-automated sequencing.
What maintenance is recommended for long-term reliability?
Bi-weekly inspection of blade tension, pulley alignment, and pump function; quarterly cleaning of the water reservoir and replacement of coolant filter media (if equipped); annual verification of worktable flatness and fence angular accuracy using certified gauge blocks and optical levels.
Does the SYJ-D2000 meet regulatory requirements for clinical or diagnostic use?
It is intended for research-use-only (RUO) sample preparation and is not cleared by FDA, CE-IVD, or other regulatory bodies for in vitro diagnostic or patient-facing applications.
