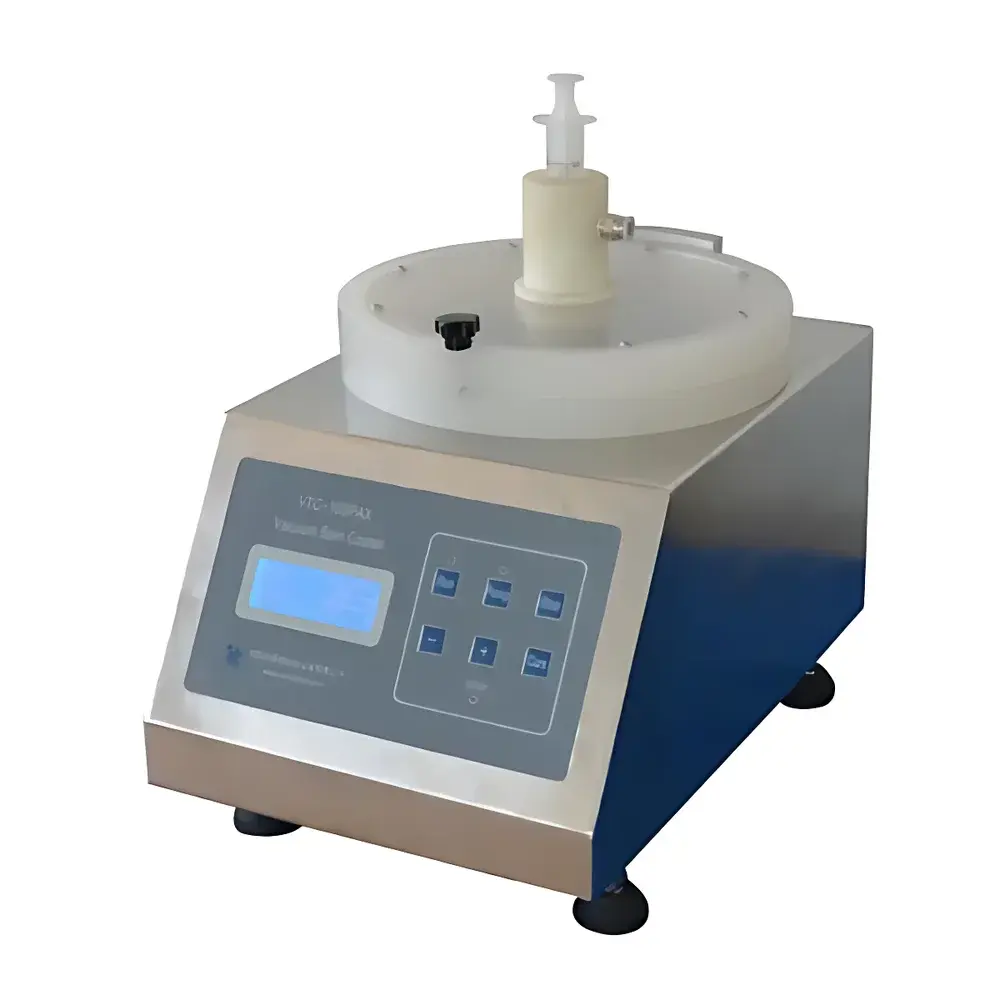

KJ GROUP VTC-100PAX Vacuum Spin Coater

Overview

The KJ GROUP VTC-100PAX Vacuum Spin Coater is a benchtop precision instrument engineered for reproducible thin-film deposition via centrifugal spin coating under controlled vacuum conditions. It operates on the principle of rotational fluid dynamics: a precisely metered volume of liquid precursor (e.g., photoresist, sol-gel solution, or polymer dispersion) is dispensed onto a substrate mounted on a high-stability chuck; rapid, programmable rotation generates uniform centrifugal force, driving solvent evaporation and film thinning while minimizing edge bead formation. Integrated vacuum aspiration (0.06–0.09 MPa) actively suppresses solvent boiling point elevation and mitigates bubble entrapment—critical for achieving sub-micron thickness control and eliminating pinholes in sensitive optical or electronic coatings. Designed for cleanroom-compatible operation, the VTC-100PAX delivers consistent film uniformity (<±3% thickness variation across 100 mm wafers) without requiring operator intervention during spin cycles.

Key Features

• High-resolution programmable motion control with independent adjustment of speed, acceleration, and dwell time per step—enabling multi-stage spin protocols (e.g., low-speed dispense → ramp-up → high-speed thinning → deceleration)
• Six fully customizable recipes stored in non-volatile memory, each supporting up to nine sequential steps for complex coating sequences such as bilayer resist processing or gradient film synthesis
• Digital PID-regulated DC motor delivering stable rotational speeds from 500 to 10,000 rpm with acceleration controllability between 100 and 2,000 rpm/s—ensuring repeatable shear history across substrates
• Vacuum-assisted chuck interface with standardized 6 mm OD rear-mounted vacuum port, compatible with external vacuum pumps meeting ISO 8573-1 Class 4 purity requirements
• Compact footprint (270 × 430 × 400 mm) and lightweight aluminum alloy chassis (12 kg), optimized for integration into fume hoods, gloveboxes, or laminar flow benches
• Front-panel LCD interface with intuitive navigation and real-time parameter feedback—no PC dependency for routine operation

Sample Compatibility & Compliance

The VTC-100PAX accommodates rigid, flat substrates up to 150 mm in diameter—including silicon wafers (up to 6-inch), glass slides, quartz plates, metal foils, and ceramic substrates. Chuck geometry supports both vacuum-suction and mechanical clamping configurations (adapter kits available). All wetted surfaces are chemically inert (anodized aluminum, PTFE-sealed vacuum lines), ensuring compatibility with common solvents (acetone, IPA, PGMEA, toluene, DMF) and mild etchants. The system complies with IEC 61010-1:2010 for laboratory electrical safety and meets CE marking requirements for EMC (EN 61326-1) and low-voltage directive (2014/35/EU). While not certified for GMP production environments, its deterministic process repeatability supports GLP-compliant R&D documentation when paired with external audit trails.

Software & Data Management

The VTC-100PAX operates autonomously via its embedded firmware—no proprietary software installation required. All recipe parameters (speed, time, acceleration) are logged internally with timestamping upon execution completion. For traceability, users may manually record run IDs, substrate lot numbers, and environmental conditions (temperature/humidity) in laboratory notebooks or LIMS. Optional RS-232 or USB-to-serial interface (available upon request) enables integration with third-party data acquisition systems for automated log export. Though not natively 21 CFR Part 11 compliant, the device supports procedural controls aligned with FDA-recognized validation practices—e.g., password-protected recipe editing, version-controlled protocol backups, and manual signature verification for critical coating steps.

Applications

• Microelectronics: Photoresist spin coating for maskless lithography, MEMS fabrication, and semiconductor prototyping
• Optics & Photonics: Anti-reflective, high-refractive-index, or chiral thin films on lenses, filters, and waveguides
• Energy Research: Uniform deposition of perovskite precursors, organic photovoltaic layers, and solid-state electrolyte films
• Materials Science: Sol-gel derived metal oxide coatings (TiO₂, SiO₂, ZnO), graphene oxide dispersions, and nanocomposite thin films
• Biomedical Engineering: Controlled coating of bioactive polymers (PLGA, chitosan) on implantable sensor substrates

FAQ

What vacuum pump specifications are recommended for optimal performance?
A two-stage rotary vane pump capable of reaching ≤0.05 MPa absolute pressure (≤50 mbar) with oil mist filtration is recommended. Pump flow rate should exceed 12 L/min to ensure rapid chamber evacuation within <8 seconds.
Can the VTC-100PAX accommodate non-circular substrates?
Yes—custom chucks with adjustable clamping fixtures are available for rectangular glass slides (up to 120 × 120 mm) or irregular geometries, provided substrate flatness deviation remains <10 µm over the active area.
Is remote monitoring or Ethernet connectivity supported?
No native Ethernet or Wi-Fi interface is integrated; however, optional analog voltage output (0–10 V) for real-time speed monitoring can be added via factory configuration.
How often does the vacuum seal require maintenance?
Under standard use (≤10 cycles/day), the silicone O-ring seal at the chuck interface maintains integrity for ≥12 months; visual inspection and light silicone grease reapplication are advised every 6 months.
Does KJ GROUP provide IQ/OQ documentation packages?
Yes—validated installation and operational qualification templates (aligned with ISO/IEC 17025 and ASTM E2500) are available upon purchase order, including calibration certificates for motor encoder and vacuum sensor.
