KNF CSD840 Dual-Channel Chemical-Resistant Diaphragm Vacuum System

Overview

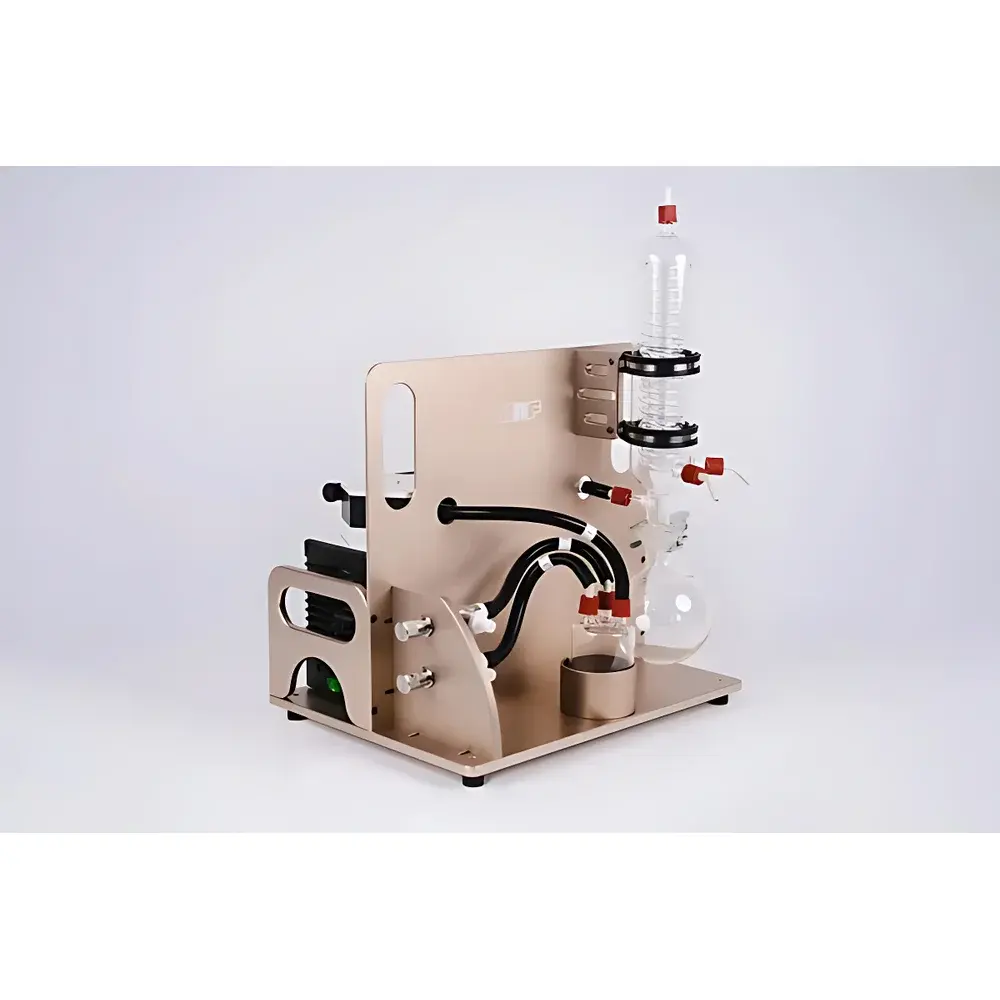

The KNF CSD840 Dual-Channel Chemical-Resistant Diaphragm Vacuum System is an engineered solution for laboratories requiring reliable, oil-free vacuum generation across two independent process lines. Built upon KNF’s proven diaphragm pump architecture, the system operates on positive displacement principles—using PTFE-coated diaphragms and perfluoroelastomer (FFPM) valve seats to deliver consistent volumetric flow without lubrication or hydrocarbon contamination. Its modular configuration integrates a dual-pump manifold, precision stainless-steel flow control valves, a high-efficiency condenser with optional jacketed design, and a chemical-resistant separator bottle—all pre-aligned on a rigid mounting frame. Designed for continuous operation under ambient conditions (+5 to +40 °C), the CSD840 meets the stringent demands of analytical sample preparation, rotary evaporation, filtration, and solvent recovery workflows where chemical compatibility, low noise (<52 dB(A)), and long-term stability are non-negotiable.

Key Features

• Dual independent vacuum channels—each equipped with a calibrated stainless-steel needle valve for precise, repeatable flow regulation without cross-talk
• Chemically inert wetted path: PTFE diaphragms, FFPM valve seats, and borosilicate glass separator bottle ensure compatibility with aggressive solvents (e.g., acetone, chloroform, THF, concentrated acids/bases)
• Integrated condensation module featuring a high-surface-area coiled condenser; optional double-jacketed version supports chilled coolant circulation for enhanced vapor capture efficiency
• No-oil, maintenance-free operation—eliminates risk of oil backstreaming, reduces downtime, and complies with ISO 8573-1 Class 0 air purity requirements for vacuum applications
• Robust thermal management: built-in overheat protection switch and redundant fuse safeguard motor integrity during extended 24/7 duty cycles
• Compact footprint (305 × 352 × 398 mm) optimized for benchtop integration in regulated environments including GLP and GMP laboratories

Sample Compatibility & Compliance

The CSD840 accommodates a broad spectrum of volatile and corrosive media typical in pharmaceutical development, environmental testing, and academic synthesis labs. Its materials set conforms to USP Class VI biocompatibility standards for polymer components and meets ASTM D471 resistance criteria for elastomers exposed to organic solvents. The system is CE-marked per Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. All electrical components comply with IEC 61000-6-3 emission limits. When operated within specified temperature and pressure ranges, the CSD840 supports audit-ready documentation per FDA 21 CFR Part 11 when paired with validated data acquisition software (see Software & Data Management section).

Software & Data Management

While the CSD840 operates as a standalone analog system, its modular interface enables seamless integration with third-party process monitoring platforms via 0–10 V analog output signals (optional add-on). KNF provides calibration certificates traceable to national standards (DKD/DAkkS) for initial commissioning. For laboratories implementing electronic lab notebooks (ELN) or LIMS, the system’s mechanical simplicity ensures stable baseline performance—reducing variability in time-stamped vacuum-dependent protocols such as lyophilization cycle validation or distillation endpoint detection. Audit trails for maintenance logs, calibration dates, and component replacements can be maintained manually or imported into compliant digital quality systems.

Applications

• Routine and high-throughput rotary evaporation of heat-sensitive compounds under controlled vacuum gradients
• Vacuum-assisted filtration of aggressive reaction mixtures in API synthesis and catalyst recovery
• Controlled solvent removal in preparative chromatography fraction collection
• Gas-phase sampling and headspace analysis support for GC and GC-MS workflows

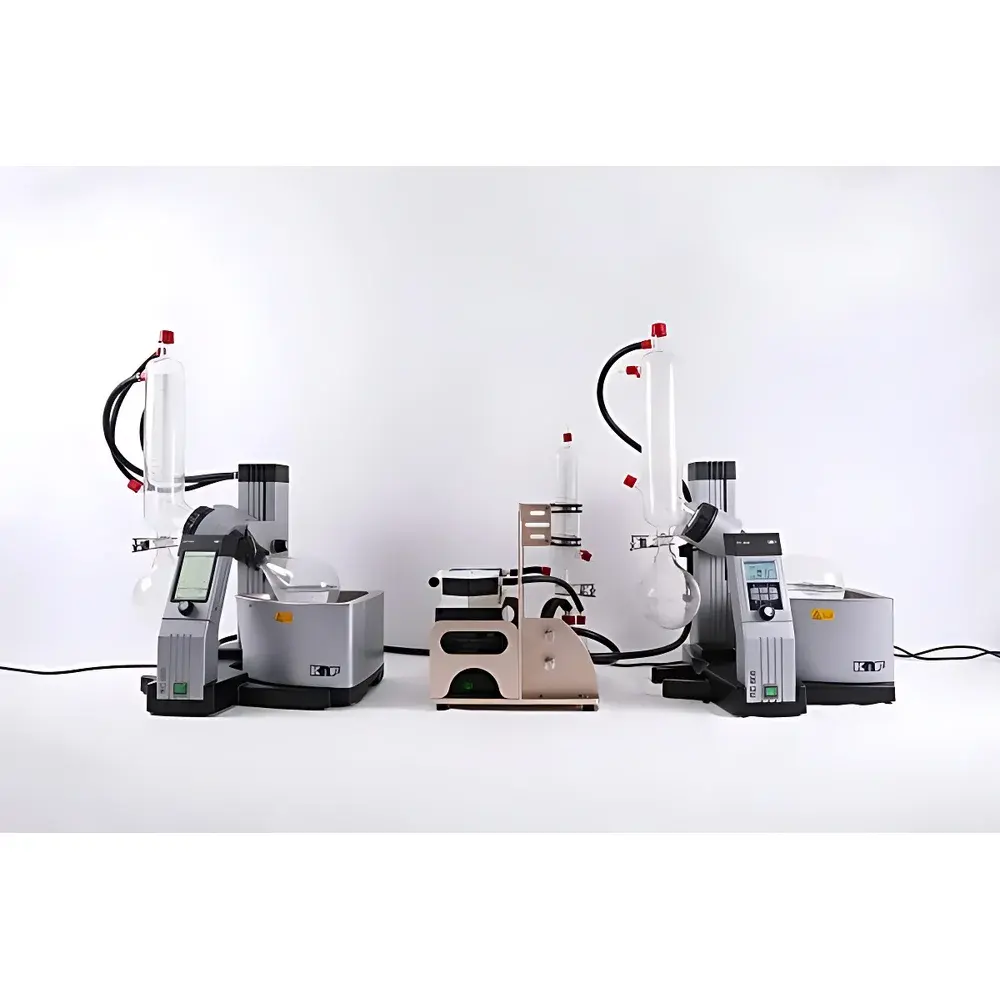

• Evacuation of gloveboxes and desiccators requiring chemically inert vacuum sources
• Environmental testing setups involving acid gas scrubbing or VOC abatement loops

FAQ

Can the CSD840 be used with halogenated solvents such as dichloromethane or carbon tetrachloride?

Yes—the PTFE diaphragms and FFPM valve materials provide excellent resistance to halogenated organics per ASTM D471 testing protocols.
Is the condenser compatible with circulating chillers?

The optional jacketed condenser accepts standard 6 mm ID/8 mm OD coolant tubing and supports temperature control from −20 °C to +60 °C.
Does the system include vacuum gauging?

No—vacuum measurement requires external instrumentation; KNF recommends compatible capacitance manometers (e.g., MKS Baratron series) for accurate sub-mbar readouts.
What is the expected service life under continuous operation?

Based on accelerated lifetime testing at rated load, KNF specifies ≥20,000 hours MTBF for the diaphragm assembly under nominal conditions.
Are replacement parts available globally?

Yes—diaphragm kits, valve plates, and O-rings are stocked by KNF’s authorized distribution network in North America, EMEA, and APAC regions with standard lead times under 5 business days.
