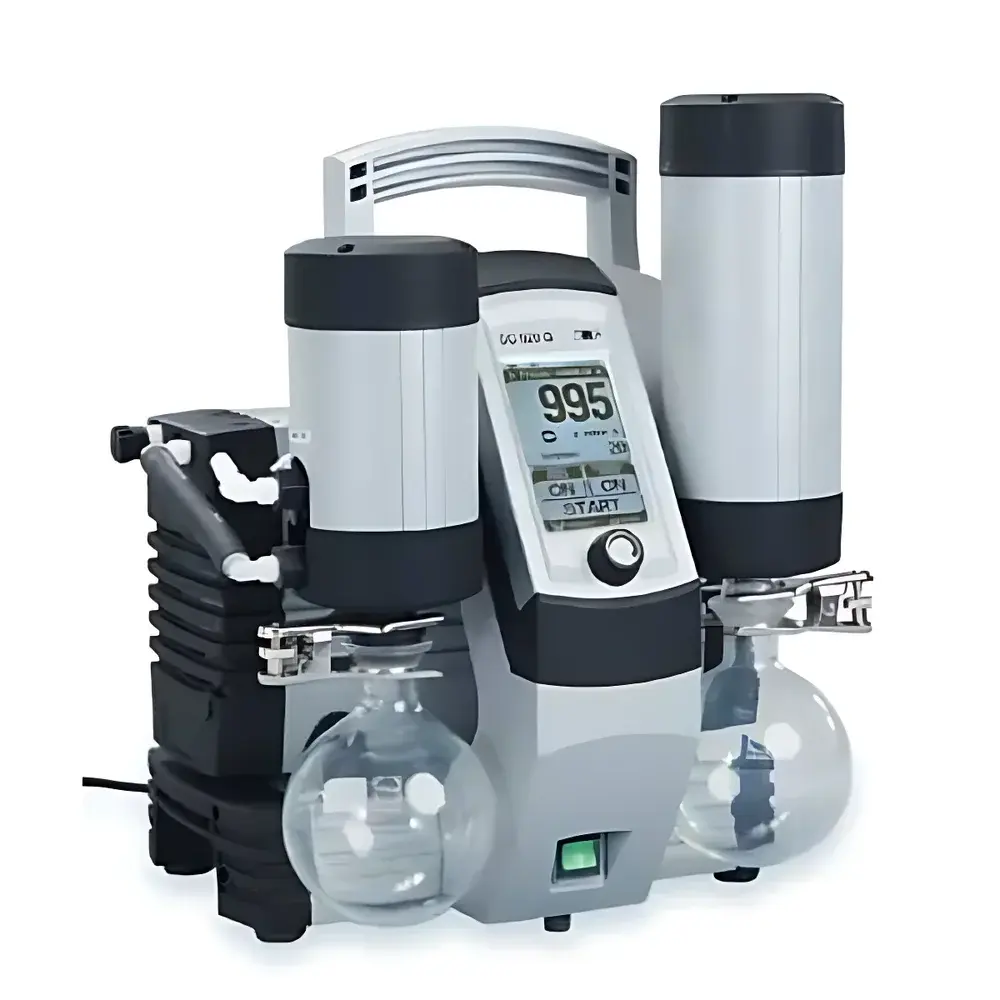

KNF SC920G Remote Wireless-Controlled Diaphragm Vacuum System

Overview

The KNF SC920G is a fully integrated, oil-free diaphragm vacuum system engineered for precision pressure control and reliable long-term operation in demanding laboratory environments. Unlike conventional single-pump setups, the SC920G combines a high-efficiency N950 diaphragm pump with an embedded digital controller, vacuum sensor, condensate trap, and cooling-coil-equipped solvent recovery module — all housed in a compact, vibration-damped chassis. Its core measurement principle relies on real-time feedback from a built-in piezoresistive vacuum transducer (range: 0.1–1000 mbar), enabling closed-loop PID regulation of motor speed via DC inverter technology. This architecture ensures stable setpoint maintenance across variable load conditions — critical for applications such as rotary evaporation, vacuum-assisted filtration, and controlled solvent removal where pressure drift directly impacts yield, purity, or thermal degradation risk.

Key Features

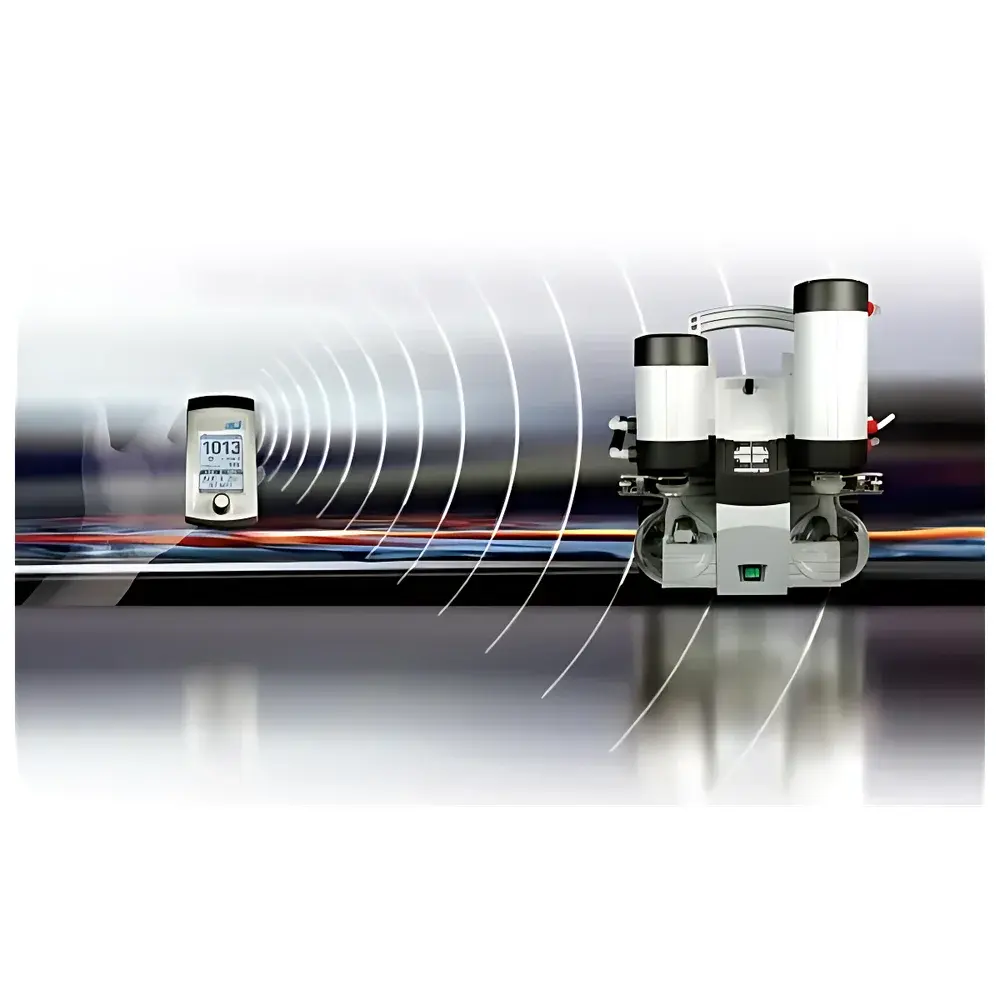

• Wireless remote operation via KNF SmartControl mobile app (Bluetooth 5.0 + optional Wi-Fi module) — supports real-time vacuum monitoring, ramp/hold programming, and alarm notifications without physical interface access
• Intelligent solvent boiling point detection algorithm: automatically identifies optimal vacuum setpoints for mixed-solvent systems by analyzing pressure-temperature response curves during initial ramp-up
• Integrated cold trap with Peltier-cooled condensation surface (−10 °C typical) and auto-drain valve — enhances solvent recovery efficiency >92% for acetone, ethanol, ethyl acetate, and dichloromethane
• Ultra-quiet operation (<52 dB(A) at 1 m) achieved through balanced dual-head diaphragm design, acoustic enclosure, and active vibration isolation mounts
• Energy-optimized DC inverter motor (150 W nominal) delivers dynamic speed modulation between 0–100% RPM, reducing power consumption up to 40% versus fixed-speed equivalents during partial-load operation
• IP54-rated enclosure with corrosion-resistant stainless-steel inlet filter and chemically inert EPDM/PFA wetted materials — compatible with aggressive solvents including HCl(aq), HNO₃, and THF

Sample Compatibility & Compliance

The SC920G is validated for use with aqueous, organic, and mildly corrosive vapors encountered in pharmaceutical QC, academic synthesis labs, and materials science workflows. Its oil-free pumping mechanism eliminates hydrocarbon contamination risks—essential for GC-MS sample prep, lyophilization pre-treatment, and semiconductor cleaning validation. All electrical and mechanical components conform to IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards. The control firmware supports audit trail generation per FDA 21 CFR Part 11 requirements when paired with KNF LabManager software (optional). System documentation includes full traceable calibration certificates for the integrated vacuum sensor (NIST-traceable, ±0.5% FS accuracy).

Software & Data Management

KNF LabManager (v3.2+) provides desktop-based configuration, method storage, and GLP-compliant data logging. Each vacuum profile — including target pressure, ramp rate, hold duration, and condensate volume estimates — is timestamped, user-ID tagged, and exportable in CSV or PDF formats. The software enables batch-mode scheduling for unattended overnight operations and integrates with LIMS via OPC UA protocol. All firmware updates are delivered digitally with SHA-256 signature verification; no physical dongles or proprietary drivers required. Local data retention is configurable (30–365 days), with automatic overwrite policies aligned with institutional data governance policies.

Applications

• Vacuum-assisted filtration of nanoparticle suspensions and cell lysates using 0.22 µm PTFE membranes

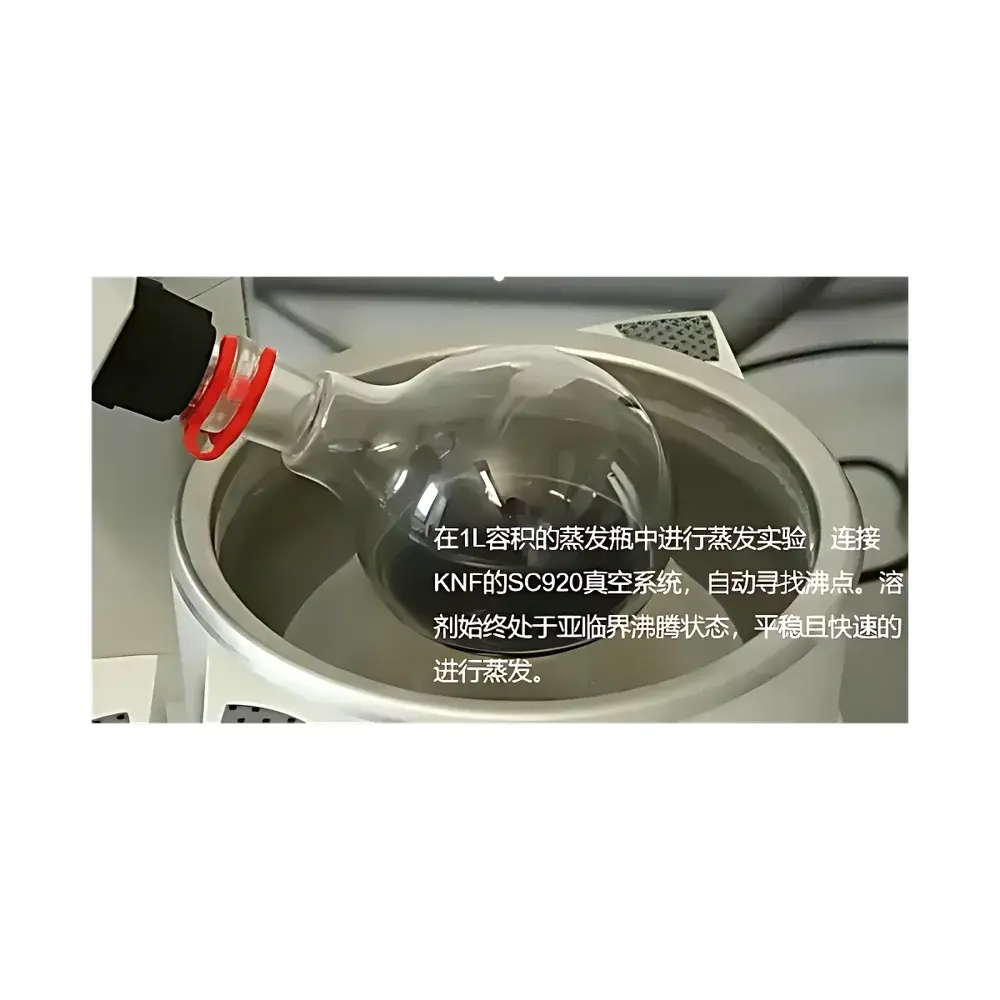

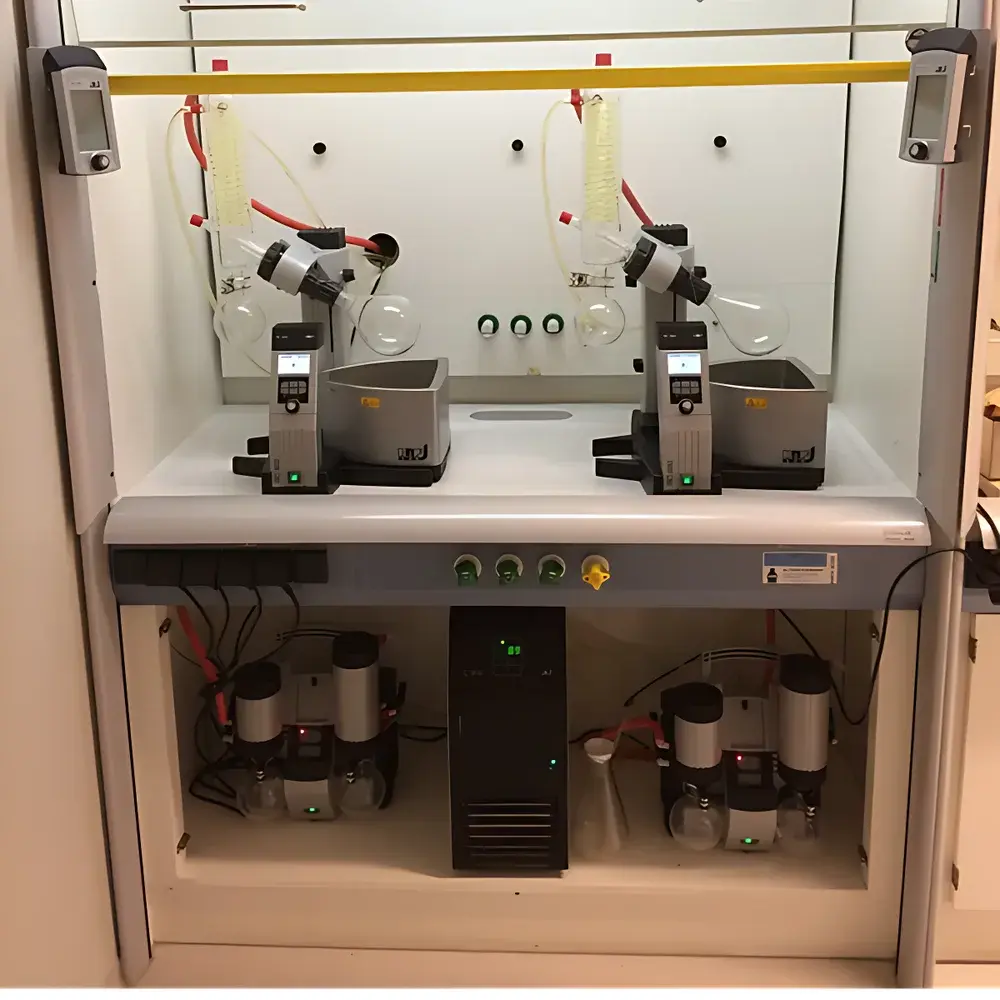

• Rotary evaporation of heat-sensitive natural product extracts under programmable pressure ramps (e.g., 100 → 20 → 2 mbar over 15 min)
• Deaeration of polymer precursor solutions prior to spin-coating or 3D printing resin preparation
• Controlled drying of aerogels and MOFs under <5 mbar to prevent structural collapse
• Gel electrophoresis buffer degassing to eliminate bubble formation during high-voltage runs
• Pre-concentration of environmental water samples via vacuum manifold-assisted solid-phase extraction

FAQ

Does the SC920G support integration with third-party lab automation platforms?
Yes — it exposes RESTful API endpoints for pressure setpoint control, status polling, and fault reporting. Drivers are available for LabVIEW, Python (PySerial/Requests), and Beckhoff TwinCAT.

What maintenance intervals are recommended for routine operation?
Diaphragm replacement every 12,000 hours (≈2 years at 16 h/day); inlet filter cleaning every 2 weeks in high-particulate environments; vacuum sensor recalibration annually or after exposure to >1000 ppm solvent vapor.

Can the system operate continuously at ultimate vacuum (2 mbar)?
Yes — thermal management and motor duty cycle are rated for indefinite operation at ≤5 mbar. Sustained 2 mbar operation is verified per ISO 8573-1 Class 4 for particulate and oil-free air quality.

Is the condensate trap compatible with chlorinated solvents?
Yes — all wetted surfaces use PFA-lined traps and EPDM seals rated for continuous contact with methylene chloride, chloroform, and carbon tetrachloride per ASTM D1418 guidelines.
