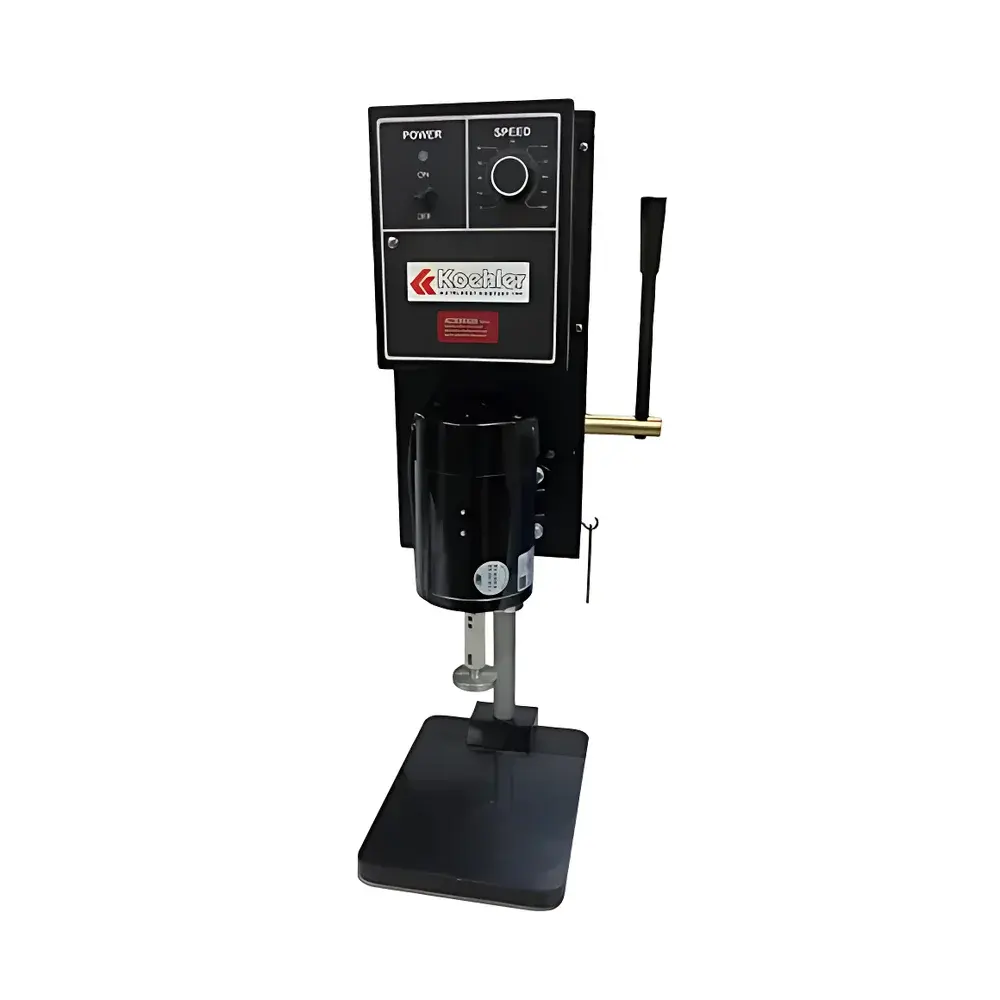

Koehler K17989 Grease Corrosion Resistance Tester

Overview

The Koehler K17989 Grease Corrosion Resistance Tester is a precision-engineered laboratory instrument designed to evaluate the ability of lubricating greases to inhibit corrosion on ferrous bearing surfaces under controlled environmental stress. It operates on the principle of accelerated corrosion simulation—mimicking real-world service conditions where grease-lubricated rolling-element bearings are exposed to moisture and mild mechanical agitation. The test method is grounded in standardized tribocorrosion protocols: a cleaned, grease-lubricated bearing is subjected to brief rotational shearing (60 s ± 3 s at 1750 rpm under light axial thrust load), followed by static exposure to saturated humidity (100% RH) at 52 °C ± 1 °C for 48 h ± 0.5 h. Post-exposure, the outer raceway is solvent-cleaned and visually inspected per defined acceptance criteria—specifically, the presence of any corrosion spot ≥1 mm in diameter constitutes failure. This deterministic pass/fail assessment provides reproducible comparative data essential for formulation screening, quality control, and regulatory conformance.

Key Features

• Engineered compliance with ASTM D1743 (Standard Test Method for Determining Corrosion Preventive Properties of Lubricating Greases), ASTM D4950 (Classification and Specification for Automotive Service Greases), and ASTM D5969 (Standard Test Method for Corrosion Protection by Lubricating Greases Using the Humidity Cabinet Method)
• Integrated 1750 rpm variable-speed induction motor with calibrated torque output, ensuring consistent thrust loading during the 60-second distribution phase
• Dedicated bearing mounting assembly with precision-machined spindle and adjustable thrust loading mechanism to replicate realistic contact geometry and load distribution
• Thermally stable chamber interface for seamless integration with external humidity cabinets or environmental test chambers meeting IEC 60068-2-3 (IEC 60068-2-78) requirements
• Modular design facilitates rapid bearing changeover and cleaning; all wetted components are constructed from corrosion-resistant stainless steel and anodized aluminum
• No embedded software or touchscreen—designed for operational simplicity, long-term reliability, and compatibility with GLP-compliant manual recordkeeping workflows

Sample Compatibility & Compliance

The K17989 accommodates standard 6204-type deep-groove ball bearings (inner diameter 20 mm, outer diameter 47 mm, width 14 mm), as specified in ASTM D1743. It supports testing of lithium-, calcium-, polyurea-, and complex-soap-based greases, as well as specialty formulations containing corrosion inhibitors (e.g., benzotriazole derivatives, phosphates, or amine salts). All test procedures align with ISO/IEC 17025:2017 general requirements for the competence of testing and calibration laboratories. While the instrument itself does not generate electronic audit trails, its mechanical repeatability and adherence to fixed-time/temperature/humidity parameters ensure traceability when used within documented SOPs compliant with FDA 21 CFR Part 11 (when paired with validated paper-based or LIMS-integrated data capture systems).

Software & Data Management

The K17989 is a fully mechanical, analog-operated instrument with no onboard firmware, display, or digital connectivity. Data acquisition and reporting are performed externally using laboratory-defined templates aligned with ASTM reporting requirements (e.g., test date, grease batch ID, bearing lot number, environmental chamber log, observer initials, and pass/fail determination with photographic evidence). For labs implementing electronic records, the device integrates seamlessly with validated LIMS platforms via manual entry or barcode-scanned metadata. Its design eliminates cybersecurity risks associated with embedded controllers and simplifies 21 CFR Part 11 validation—only the procedural documentation, calibration logs, and operator training records require formal qualification.

Applications

• Quality assurance of finished grease batches prior to release, especially for automotive, railway, and wind turbine OEM specifications
• Comparative evaluation of corrosion inhibitor efficacy during grease R&D, including dose-response studies and synergist screening
• Root-cause analysis of field failures linked to rust formation in sealed-for-life applications
• Supporting regulatory submissions requiring ASTM D1743 data (e.g., US DoD MIL-PRF-10924H, SAE J310, NLGI GC-LB certification)
• Teaching laboratories demonstrating fundamental principles of lubricant film persistence, water displacement, and electrochemical surface protection

FAQ

Does the K17989 include a humidity chamber?
No—the K17989 tester performs only the mechanical distribution step; it must be used in conjunction with a separately validated humidity cabinet meeting ASTM D1743 temperature and RH tolerances.
Can non-standard bearing sizes be tested?
Only 6204-type bearings are supported per ASTM D1743; alternative geometries require method deviation justification and re-validation.
Is calibration required for the motor speed?
Yes—annual verification of 1750 rpm ±10 rpm using a certified tachometer is recommended and documented per ISO/IEC 17025 calibration management requirements.
What maintenance is needed?
Bi-weekly inspection of thrust loading components, monthly lubrication of motor bearings, and quarterly verification of spindle runout using a dial indicator (max. 0.025 mm TIR).
How is operator bias minimized during visual inspection?
ASTM D1743 mandates use of 10× magnification and standardized lighting (≥500 lux cool white); labs must define and train on pass/fail criteria using reference photomicrographs included in internal SOPs.
