Konica Minolta CM-600d Portable Spectrophotometer

Overview

The Konica Minolta CM-600d is a high-precision portable spectrophotometer engineered for reliable color measurement in dynamic industrial environments. Utilizing a d/8° optical geometry with a calibrated integrating sphere and pulsed xenon lamp illumination, the instrument delivers stable, repeatable spectral data across the visible spectrum (400–700 nm). Unlike filter-based tristimulus meters, the CM-600d captures full reflectance spectra at 10 nm intervals, enabling accurate calculation of CIE standard color spaces—including CIELAB, CIELCH, and CMYK—as well as specialized indices such as Yellowness Index (ASTM E313), Whiteness (CIE/ISO 11475), and metamerism index. Its compact vertical form factor, ergonomic grip, and low-mass chassis (approx. 600 g) are optimized for extended handheld operation—whether on automotive assembly lines, textile dyeing floors, packaging inspection stations, or food processing facilities where ambient lighting and surface geometry vary significantly.

Key Features

• High repeatability performance: ΔE*ab ≤ 0.04 (average, 12 measurements on white ceramic tile per ISO 13655)
• Full-spectrum acquisition via 32-channel silicon photodiode array with thermoelectric stabilization

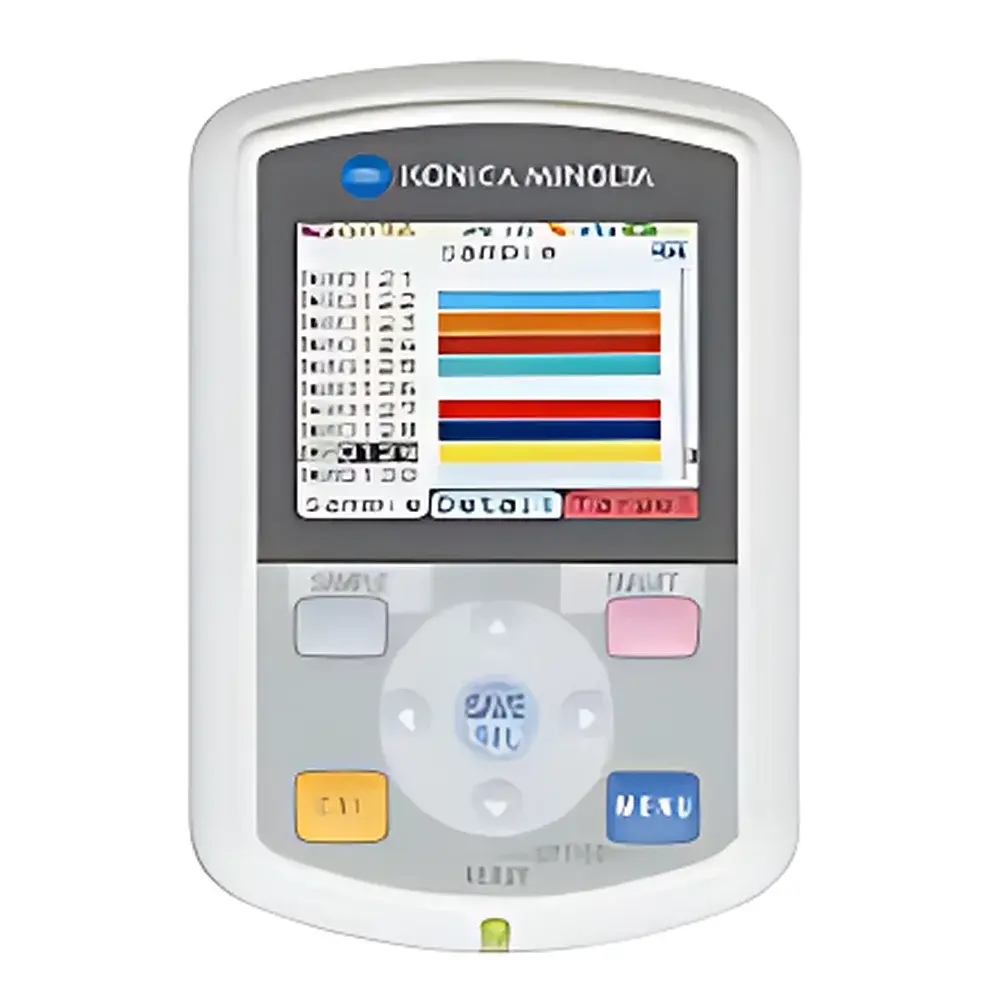

• Color LCD display with intuitive icon-driven UI and real-time color visualization—including on-screen color patch comparison against stored standards
• Bluetooth® 4.0 wireless communication for direct data streaming to Windows/macOS PCs, iOS/Android tablets, and select thermal printers—fully compliant with Bluetooth SIG Serial Port Profile (SPP)
• Dual connectivity: USB 2.0 interface supports mass storage mode and virtual COM port for legacy software integration
• Robust mechanical design: IP54-rated enclosure (IEC 60529) for dust and splash resistance; shock-absorbing rubberized grip zones; reinforced measurement port with scratch-resistant sapphire window
• Onboard memory stores up to 1,000 measurement records with timestamp, operator ID, and GPS metadata (when paired with compatible mobile device)

Sample Compatibility & Compliance

The CM-600d accommodates flat, curved, textured, and slightly recessed surfaces through its vertically oriented probe head and tapered measurement nozzle. The Ø8 mm measuring aperture ensures sufficient sampling area for most industrial substrates—including painted metal, injection-molded plastics, woven fabrics, coated paper, and baked enamel finishes—while maintaining spatial uniformity per CIE Publication 15:2018. It complies with international colorimetric standards including ISO 7724-1 (instrumental color measurement), ISO 11664-4 (CIELAB definition), ASTM E308 (computation of tristimulus values), and JIS Z 8722 (method for color difference evaluation). Data integrity meets GLP/GMP documentation requirements when used with Konica Minolta’s SpectraMagic NX software, which provides full audit trail, user access control, and electronic signature support per FDA 21 CFR Part 11.

Software & Data Management

SpectraMagic NX (v2.9+) serves as the primary desktop application for configuration, calibration validation, statistical process control (SPC), and report generation. It supports multi-instrument fleet management, tolerance mapping using rectangular or elliptical ΔE limits, and automated pass/fail flagging based on user-defined criteria. Measurement data exports natively to CSV, XML, and PDF formats; raw spectral files (.qtx) retain full 10 nm resolution for third-party spectral analysis. Cloud synchronization via Konica Minolta’s optional ColorEdge Portal enables secure cross-site collaboration, version-controlled standard libraries, and remote firmware updates—all without requiring local IT infrastructure changes.

Applications

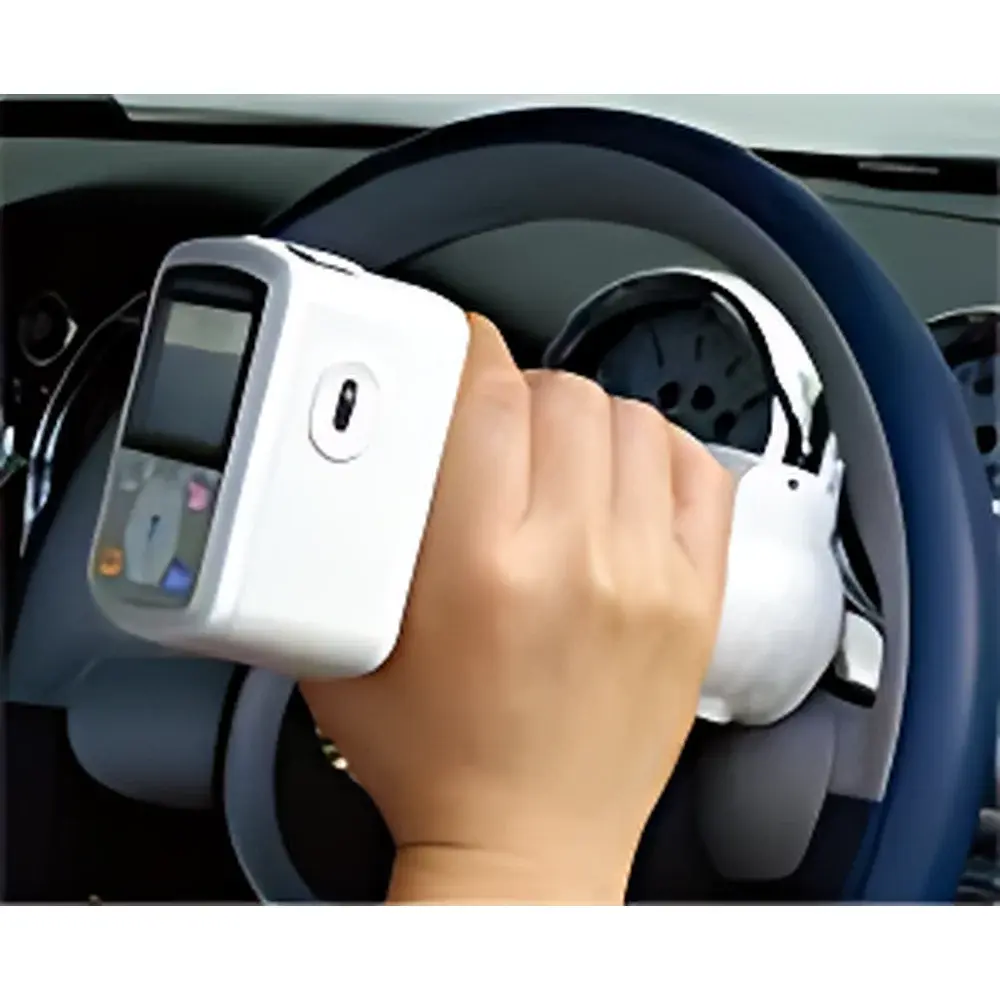

The CM-600d is routinely deployed in quality assurance workflows across regulated and non-regulated sectors. In automotive Tier-1 suppliers, it verifies color consistency of interior trim components under varying illuminants (D65, A, F2) per SAE J1545. In textile mills, it quantifies batch-to-batch dye lot variation against master standards while compensating for fabric weave effects via multi-angle averaging. Packaging converters use it to validate spot-color fidelity on flexographic and gravure prints, especially critical for pharmaceutical blister packaging where color coding affects patient safety. Food manufacturers apply it to monitor browning kinetics in roasted coffee beans or pigment stability in fruit-based beverages—correlating instrumental ΔE shifts with sensory panel outcomes per ISO 8586.

FAQ

Does the CM-600d support UV calibration for fluorescent materials?
No—this model lacks a UV-cut filter or adjustable UV component; for fluorescing samples (e.g., optical brighteners), the CM-700d or CM-3600A is recommended.
Can I perform inter-instrument agreement testing between CM-600d units?
Yes—using Konica Minolta’s Inter-Instrument Agreement (IIA) protocol with certified ceramic tiles and SpectraMagic NX’s built-in IIA report generator.
Is battery life sufficient for an 8-hour production shift?
With alkaline AA batteries, typical runtime exceeds 3,000 measurements; rechargeable Ni-MH packs extend this to ~5,000 readings under standard conditions (23°C, 50% display brightness).
How often must the instrument be recalibrated?
Factory calibration remains valid for 12 months under normal use; however, daily zero and white calibration using included standards is required before critical measurements per ISO 13655 Clause 7.3.
Does Bluetooth pairing require proprietary drivers?
No—standard Bluetooth Serial Port Profile (SPP) ensures plug-and-play compatibility with Windows 10/11, macOS 12+, and Android 8.0+ without additional software installation.
