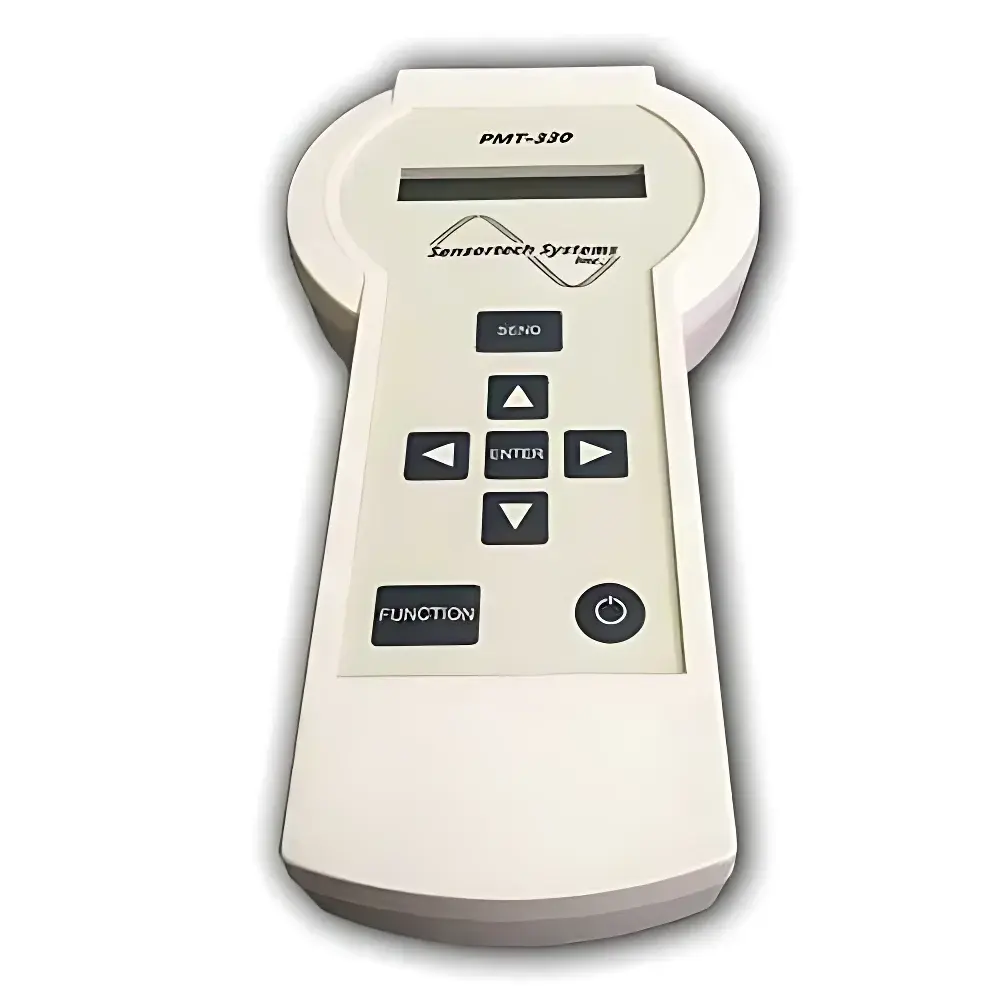

KPM Sensortech PMT-330 Portable Radio Frequency Moisture Analyzer for Wood, Paperboard, and Gypsum Board
| Brand | KPM Sensortech |
|---|---|
| Origin | USA |
| Model | PMT-330 |
| Type | Capacitance-Based RF Moisture Analyzer |
| Application | Non-Destructive In-Line and Spot Measurement in Lumber, Plywood, Particleboard, Corrugated Paperboard, and Gypsum Wallboard |
| Compliance | Meets ASTM D4442 (Wood), ISO 8781-3 (Paper & Board), and ASTM C117 (Gypsum) moisture test method principles |
Overview
The KPM Sensortech PMT-330 is a handheld, battery-powered radio frequency (RF) capacitance moisture analyzer engineered for rapid, non-destructive moisture content (MC) assessment in hygroscopic sheet and bulk materials. Unlike oven-dry gravimetric methods or near-infrared (NIR) systems requiring calibration transfer across material types, the PMT-330 operates on low-frequency RF dielectric measurement (typically 1–10 MHz), where the real part of complex permittivity correlates directly with volumetric water content in cellulose- and calcium sulfate-based matrices. Its dual-sensor electrode array enables depth-sensitive measurement up to 25 mm—critical for detecting subsurface moisture gradients in lumber stacks, pressed gypsum board, and multi-ply paperboard without surface preparation or sample removal. Designed for field and production-floor use, the instrument delivers repeatable readings within ±0.3% MC (dry basis) under controlled temperature and density conditions, supporting quality control, drying process validation, and compliance documentation per ASTM, ISO, and industry-specific moisture specification limits.
Key Features
- True portable architecture: Weighs under 1.2 kg with integrated rechargeable Li-ion battery (up to 12 hours continuous operation)
- Dual-depth RF sensing: Simultaneous near-surface (0–6 mm) and bulk (6–25 mm) moisture profiling via switchable electrode configurations
- Material-specific calibration libraries: Pre-loaded curves for softwood/hardwood species (e.g., SPF, Southern Yellow Pine), OSB, MDF, corrugated medium/liner, and Type X gypsum board
- Real-time temperature compensation: Integrated thermistor corrects for ambient and substrate thermal drift (range: 5–45°C)
- Ruggedized industrial housing: IP54-rated enclosure with rubberized grip and drop-tested to 1.2 m onto concrete
- On-device data logging: Stores up to 10,000 timestamped readings with GPS metadata (optional external module)
Sample Compatibility & Compliance
The PMT-330 is validated for use across three primary industrial material classes: dimensional lumber and engineered wood products (ASTM D4442-22 compliant measurement protocol), paperboard and packaging substrates (aligned with ISO 8781-3:2017 for moisture determination by electrical methods), and gypsum wallboard (consistent with ASTM C117-21 practice for moisture content evaluation prior to finishing). It does not require destructive sampling, chemical reagents, or environmental chamber conditioning. Calibration traceability is maintained through NIST-traceable reference standards supplied with each unit. The device supports audit-ready reporting for GLP and ISO 9001 quality management systems, including user-defined pass/fail thresholds and batch-level statistical summaries (mean, SD, min/max).
Software & Data Management
KPM’s proprietary MoistureLink™ Desktop Suite (Windows/macOS compatible) enables full firmware updates, library customization, and advanced data export. Raw RF impedance spectra, compensated moisture values, and environmental parameters are exported in CSV and XML formats compatible with LIMS, SAP QM, and MES platforms. Audit trail functionality records all user actions—including calibration edits, sensor configuration changes, and data deletions—with time-stamped, tamper-evident logs meeting FDA 21 CFR Part 11 requirements for electronic records and signatures. Optional cloud synchronization allows centralized fleet monitoring for multi-site operations.
Applications
- Real-time moisture verification during kiln drying and air-drying staging of hardwood and softwood lumber
- In-process QC of gypsum board at manufacturing lines to prevent blistering, warping, or joint compound adhesion failure
- Acceptance testing of recycled fiberboard and particleboard prior to lamination or coating
- Moisture mapping of warehouse-stored paper reels to mitigate mold risk and tensile strength degradation
- Forensic investigation of water intrusion in building assemblies using comparative baseline scans
- Validation of moisture barrier integrity in composite panel fabrication
FAQ
Does the PMT-330 require periodic recalibration against oven-dry standards?
Yes—annual verification using ASTM D4442 reference samples is recommended; KPM provides certified calibration kits with documented uncertainty budgets.
Can it measure moisture in painted or laminated wood surfaces?
Surface coatings up to 0.5 mm thick (e.g., acrylic primer, thin PVC film) do not significantly attenuate RF signal penetration; thicker or metallic coatings require mechanical exposure of substrate.
Is operator training required for regulatory compliance?
KPM offers ISO/IEC 17025-aligned competency assessments and SOP development support for users implementing the device in GMP or certified lab environments.
How does temperature affect measurement accuracy?
The built-in thermistor automatically compensates for thermal effects on dielectric response; however, measurements outside 10–35°C ambient range should be accompanied by density correction factors provided in the technical manual.
What is the minimum sample thickness for reliable reading?
For accurate volumetric moisture quantification, minimum thickness must exceed the probe’s effective penetration depth—12 mm for standard wood mode and 18 mm for gypsum mode—to avoid backside interference artifacts.
