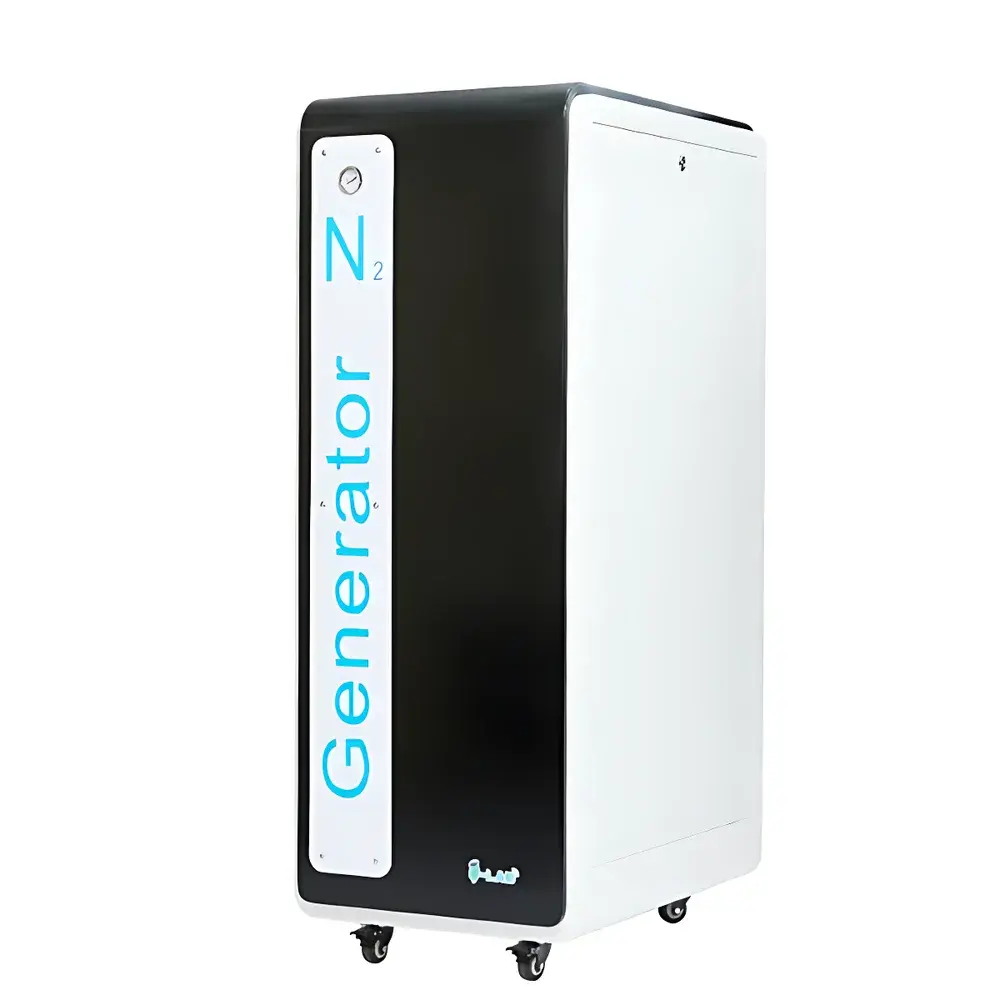

i-Lab KL80-0 Nitrogen Generator

Overview

The i-Lab KL80-0 Nitrogen Generator is an engineered solution for continuous, on-demand high-purity nitrogen supply in regulated laboratory and industrial environments. It operates on the principle of hollow fiber membrane gas separation—a physical, dry process wherein compressed air is passed across semi-permeable polymeric membranes that selectively permeate oxygen, water vapor, and CO₂ faster than nitrogen, resulting in a nitrogen-enriched stream. This technology eliminates the need for consumables (e.g., desiccants or catalysts), avoids chemical regeneration cycles, and delivers stable ≥99.9% nitrogen purity without secondary purification stages. Designed for integration into centralized gas distribution systems, the KL80-0 serves as a foundational unit capable of scaling from 80 L/min base flow to 1000 L/min via modular expansion—making it suitable for multi-instrument labs, GMP-compliant pharmaceutical production lines, and continuous-process industrial facilities requiring uninterrupted, contamination-controlled nitrogen.

Key Features

• Modular architecture supporting seamless flow scalability—from single-instrument deployment to enterprise-level cluster supply (up to 1000 L/min)
• Hollow fiber membrane core sourced from globally qualified suppliers, optimized for long-term flux stability and resistance to oil carryover and humidity fluctuations
• Integrated multi-stage filtration: coalescing pre-filter (0.01 µm absolute rating), catalytic hydrocarbon removal, and deep desiccant drying—ensuring compliance with ISO 8573-1 Class 2:2:2 for particles, water, and oil content
• Dual-stage pressure regulation with internal buffer tank to dampen pulsation, minimize compressor cycling frequency, and extend service life of upstream air compressors
• Intelligent energy management: automatic transition to low-power standby mode upon reaching target pressure, reducing average power draw by up to 30% during non-peak demand periods
• Comprehensive safety subsystem including real-time pressure monitoring, overpressure cut-off, leak detection via differential flow sensing, and fail-safe shutdown protocol

Sample Compatibility & Compliance

The KL80-0 is validated for use with sensitive analytical instrumentation—including LC-MS/MS, GC-MS, ICP-MS, and elemental analyzers—where trace-level hydrocarbon, moisture, or particulate contamination can compromise data integrity or cause column degradation. Its output meets ASTM D6349-22 specifications for instrument-grade nitrogen and aligns with USP and EP 2.5.27 requirements for inert gas quality in pharmaceutical manufacturing. The system supports audit-ready operation under GLP and GMP frameworks, with optional analog/digital I/O for integration into facility SCADA systems and configurable event logging for 21 CFR Part 11-compliant record retention when paired with validated software platforms.

Software & Data Management

While the KL80-0 operates as a standalone hardware system with intuitive front-panel controls and LED status indicators, it includes RS-485 Modbus RTU and 4–20 mA analog outputs for remote monitoring and control. These interfaces enable integration with laboratory information management systems (LIMS), building automation systems (BAS), or centralized gas management dashboards. Optional firmware upgrades support time-stamped operational logs—including runtime hours, pressure profiles, alarm history, and filter life estimation—facilitating predictive maintenance planning and regulatory documentation. All firmware adheres to IEC 62443-3-3 security guidelines for industrial control devices.

Applications

• Centralized nitrogen supply for multi-station LC-MS and GC-MS laboratories, eliminating cylinder logistics and associated safety hazards
• Inert atmosphere generation in lyophilization chambers, reactor purging, and blanketing during API synthesis per ICH Q5C and Q7 guidance
• Food packaging line nitrogen flushing to inhibit lipid oxidation and microbial growth, compliant with FDA 21 CFR 184.1541 and EC No. 1333/2008
• Industrial pipeline blow-down, weld purge, and catalyst passivation in petrochemical and fine chemical manufacturing
• Calibration gas dilution systems requiring consistent, low-moisture nitrogen carrier gas

FAQ

What is the expected service life of the hollow fiber membrane module?
Under typical operating conditions (inlet air meeting ISO 8573-1 Class 2:2:2, ambient temperature 10–35°C), the membrane stack is rated for ≥15,000 hours of continuous operation with scheduled preventive maintenance.
Can the KL80-0 be integrated with existing compressed air infrastructure?
Yes—the unit requires clean, oil-free, dried compressed air input (minimum 7 bar, dew point ≤−40°C). It is compatible with standard rotary screw or oil-free piston compressors and integrates seamlessly with ASME-certified receiver tanks and coalescing filters.
Does the system require routine consumable replacement?
Yes—pre-filters and desiccant cartridges require replacement every 6–12 months depending on air quality and duty cycle; membrane modules are field-replaceable but typically last 3–5 years under proper upstream air treatment.
Is remote diagnostics supported?
Standard Modbus RTU enables basic parameter readout and alarm status polling; advanced diagnostic telemetry (e.g., membrane performance trending, pressure decay analysis) is available via optional i-Lab Connect gateway firmware.
How does the KL80-0 ensure nitrogen purity consistency across variable flow demands?
Through proprietary cross-flow membrane geometry and adaptive backpressure regulation, the system maintains ≥99.9% N₂ purity across its full 0–100% flow range without sacrificing pressure stability or introducing transient impurity spikes.
