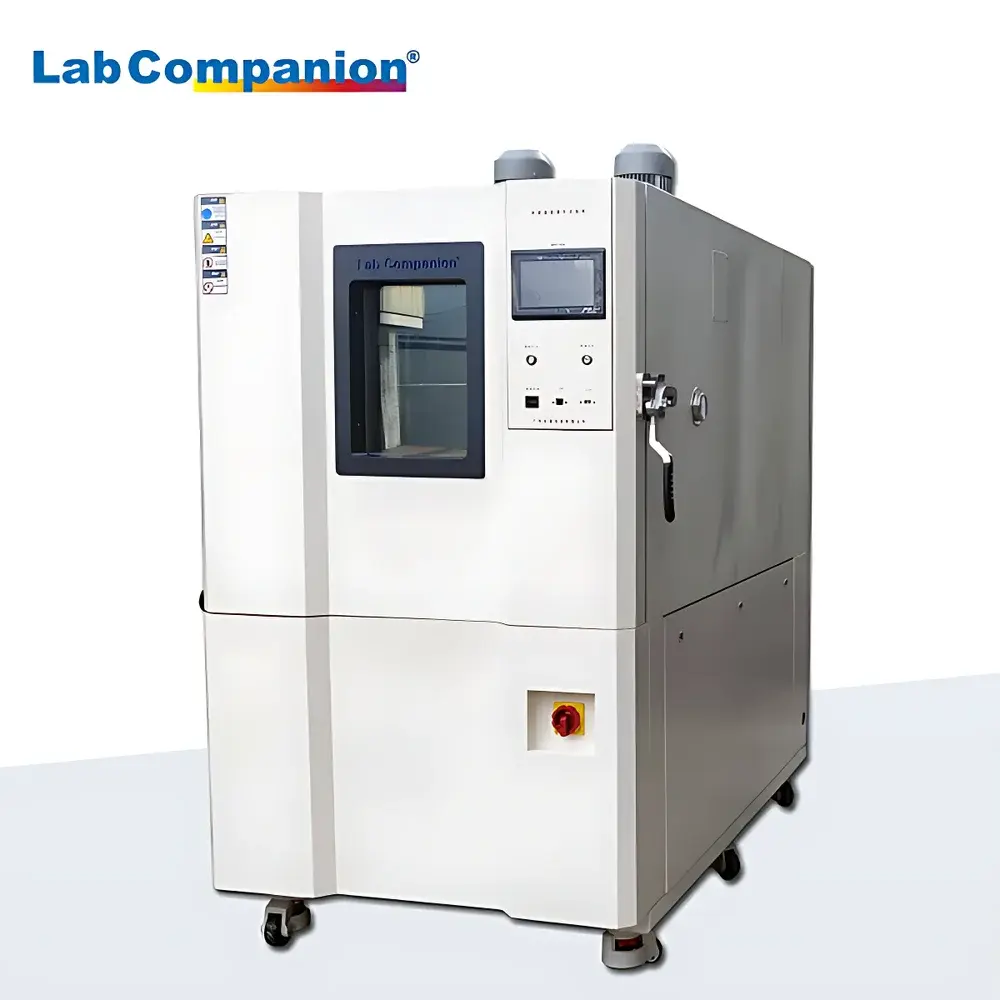

LabCompanion TC-400 Rapid Temperature Transition Chamber
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TC-400-6 |
| Temperature Range | -70 °C to +150 °C |
| Temperature Deviation | ±2.0 °C |
| Ramp Rates | 5–25 °C/min (linear or non-linear profiles) |
| Internal Dimensions (W×H×D) | 600 × 600 × 500 mm |
| Compliance | GB/T 5170.2–2008 |
Overview
The LabCompanion TC-400 Rapid Temperature Transition Chamber is an engineered environmental test system designed for accelerated thermal cycling validation of electronic components, automotive modules, aerospace subsystems, and polymer-based materials. It operates on a dual-refrigeration architecture—combining high-efficiency mechanical compression cooling with optional liquid nitrogen (LN₂) assist—to achieve precise, repeatable, and programmable temperature transitions across the full operational range of –70 °C to +150 °C. Unlike standard thermal chambers, the TC-400 is specifically configured for rapid transition testing per IEC 60068-2-14 (Change of Temperature), MIL-STD-810H Method 503.6, and JEDEC JESD22-A104D. Its control system maintains traceable thermal profiles under load, supporting both linear and non-linear ramp sequences with dwell stabilization at setpoints.
Key Features
- Programmable ramp rates from 5 °C/min up to 25 °C/min (standard); optional LN₂-assisted configuration extends cooling rate to 30 °C/min
- High-stability chamber core with multi-zone PID-controlled heating/cooling loops and insulated double-wall construction
- Temperature uniformity ≤ ±1.5 °C (at 100 mm from chamber walls, per GB/T 5170.2–2008)
- Real-time deviation monitoring with automatic alarm thresholds and data logging at configurable intervals (1–60 sec)
- Touchscreen HMI with embedded test profile editor, USB export, and Ethernet connectivity for remote supervision
- Compliance-ready architecture: supports audit trails, user-level access control, and calibration certificate management
Sample Compatibility & Compliance
The TC-400 accommodates samples up to 30 kg with unrestricted airflow paths—optimized for PCB assemblies, battery cells, sensor housings, and molded plastic enclosures. Chamber interior dimensions (600 × 600 × 500 mm W×H×D) provide adequate clearance for thermocouple placement and thermal mass distribution per ASTM E2293–22 guidelines. The system meets national verification standards GB/T 5170.2–2008 (temperature performance) and GB/T 5170.5–2017 (humidity performance where applicable). While the TC-400-6 variant is dry-cycle only (no humidity control), its thermal specifications remain fully aligned with ISO/IEC 17025 accredited lab requirements for equipment qualification. All firmware and calibration records are retained for GLP/GMP audit readiness.
Software & Data Management
The embedded LabCompanion TestSuite v3.2 firmware provides full cycle definition—including multi-segment ramps, dwell times, overshoot suppression, and conditional branching (e.g., “hold until internal sensor reads ≤ –40 °C”). Data is logged in CSV and proprietary .LCT binary formats, with timestamps synchronized to NTP servers. Exported files include metadata such as operator ID, chamber serial number, calibration due date, and environmental ambient conditions. Optional PC software enables automated report generation compliant with FDA 21 CFR Part 11—featuring electronic signatures, audit trail review, and role-based permissions (Admin, Operator, Reviewer). Raw sensor data (PT100 inputs, compressor status, fan speed) is accessible via Modbus TCP for integration into MES or SCADA platforms.
Applications
- Thermal shock screening of BGA solder joints and MEMS packaging per IPC-9701A
- Qualification testing of EV battery modules under extreme cold-start and fast-charge thermal transients
- Material embrittlement assessment of elastomers and thermoplastics between –55 °C and +125 °C
- Reliability validation of avionics controllers subjected to aircraft cabin pressure–temperature coupling profiles
- Process window definition for reflow soldering and conformal coating cure cycles
- Accelerated life testing (ALT) using time-temperature superposition models (e.g., Arrhenius, Eyring)
FAQ
What is the difference between the TC-400 and TH-series chambers?
The TC-series chambers are dry-cycle only (no humidity control), optimized for maximum thermal ramp rate and stability. TH-series models integrate steam-based humidification and meet IEC 60068-2-78 for combined temperature/humidity testing.
Can the TC-400 be calibrated to ISO/IEC 17025 standards?
Yes—the chamber includes dedicated PT100 sensor ports for third-party field calibration; LabCompanion provides NIST-traceable calibration certificates with each unit.
Is LN₂ consumption monitored or regulated by the controller?
Yes—integrated mass flow sensors and solenoid valve feedback enable closed-loop LN₂ dosing, minimizing waste and ensuring consistent cooling kinetics across batches.
Does the system support custom test sequence import via CSV or XML?
Yes—TestSuite v3.2 accepts externally authored profile files with full segment parameter mapping (ramp rate, dwell, tolerance band, safety limits).
What maintenance intervals are recommended for sustained ramp-rate performance?
Compressor oil and refrigerant levels should be verified every 1,500 operating hours; LN₂ injection nozzles require cleaning every 6 months under continuous high-rate operation.
