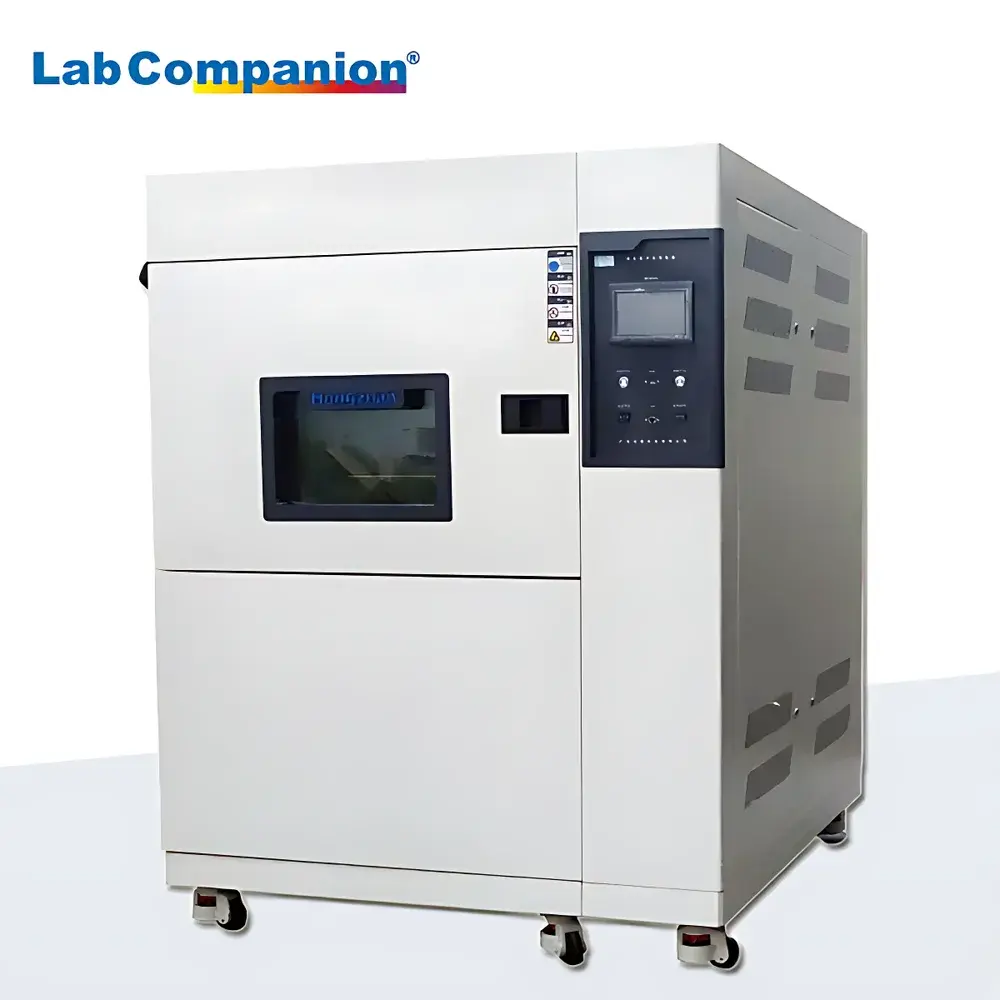

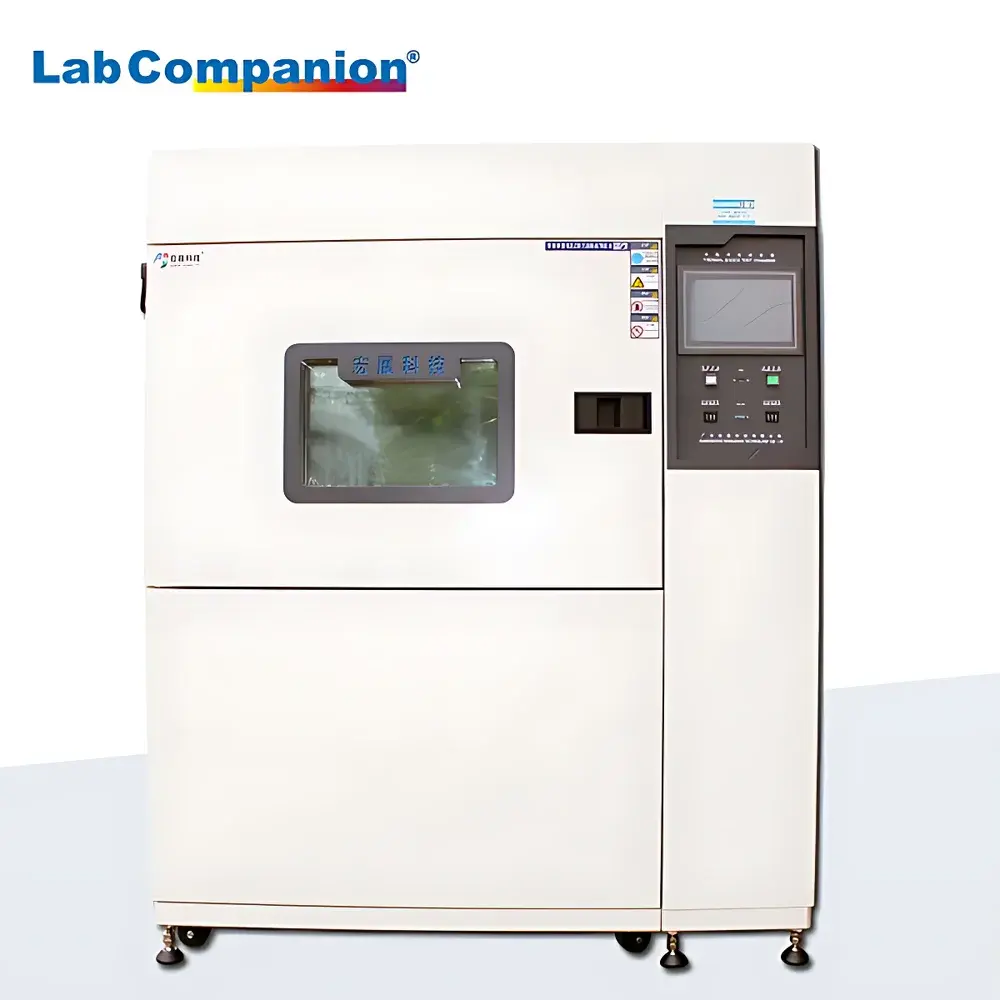

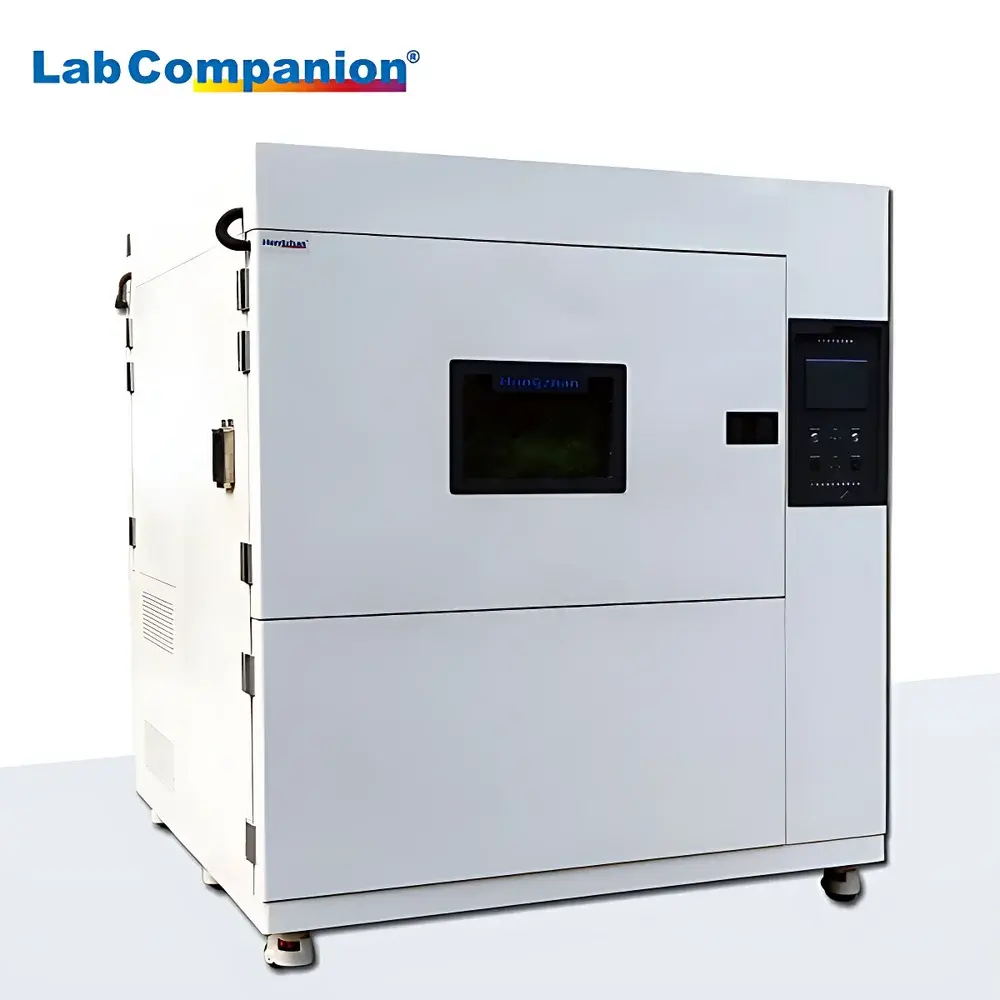

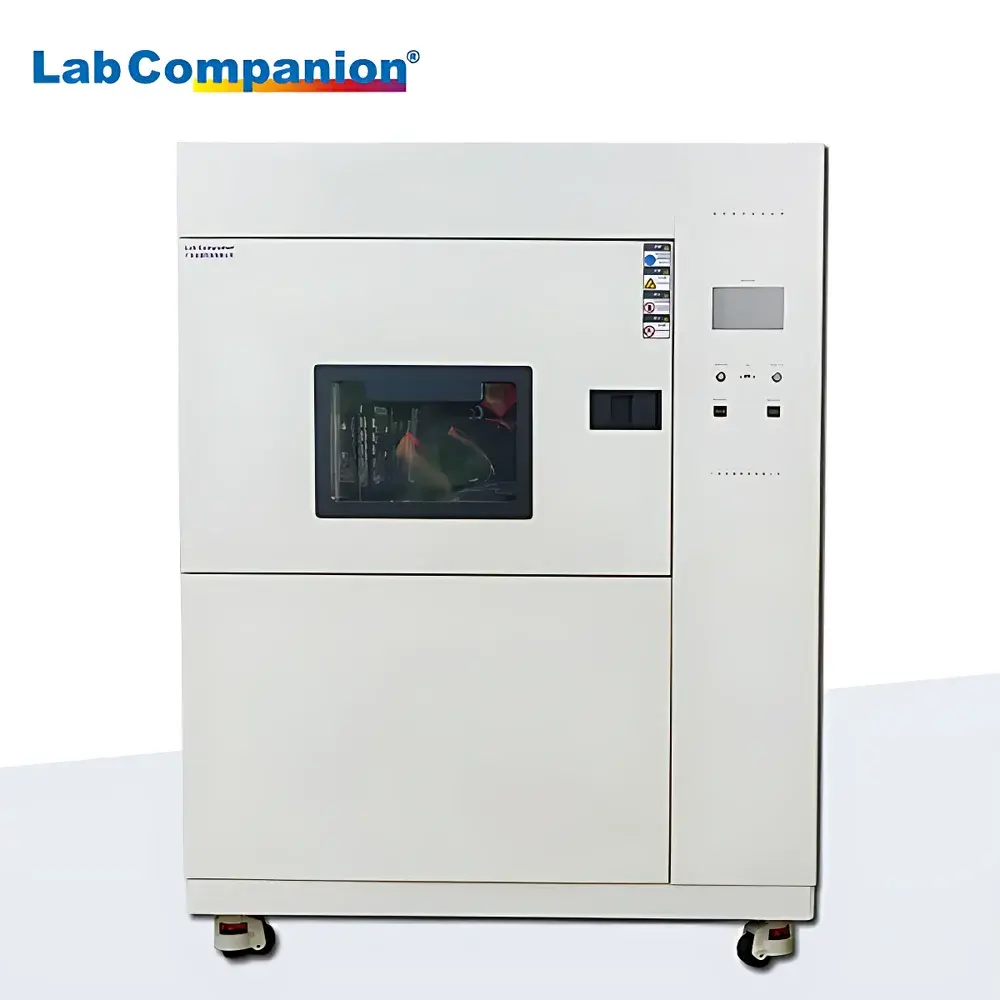

LabCompanion TSU-80W Three-Zone Thermal Shock Test Chamber
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TSU-80W |
| High-Temperature Range | +60 °C to +200 °C |
| Low-Temperature Range | −78 °C to 0 °C |
| Thermal Shock Range | −55 °C to +150 °C |
| Temperature Stability | ±2 °C |
| Heating Rate | +60 °C to +200 °C ≤ 20 min |
| Cooling Rate | +20 °C to −75 °C ≤ 60 min |
Overview
The LabCompanion TSU-80W is a precision-engineered three-zone thermal shock test chamber designed for accelerated reliability assessment of electronic components, aerospace materials, automotive modules, and hermetically sealed devices under extreme transient temperature conditions. Unlike two-chamber (hot/cold) configurations, the TSU-80W employs a dedicated test zone isolated from independent high-temperature and low-temperature reservoirs—enabling rapid, repeatable, and contamination-free thermal transitions without residual heat or moisture carryover. Its operational principle relies on pneumatically actuated damper doors that physically isolate the test specimen within the central chamber while sequentially exposing it to pre-conditioned air streams from either reservoir. This architecture ensures strict adherence to ASTM D5229/D5229M, MIL-STD-810H Method 503.7, and IEC 60068-2-14 (Test Nb), where controlled dwell times, transition rates, and thermal overshoot limits are critical for failure mode identification in solder joints, conformal coatings, and multilayer ceramic capacitors.
Key Features
- Three-compartment architecture with thermally decoupled hot chamber (+60 °C to +200 °C), cold chamber (−78 °C to 0 °C), and insulated test chamber—eliminating cross-contamination and enabling true zero-dwell thermal cycling
- Pneumatic door actuation system with <1.5 s switching time and position feedback sensors for traceable cycle integrity
- Temperature stability maintained at ±2 °C across the full shock range (−55 °C to +150 °C) under load, verified per ISO 17025-accredited calibration protocols
- Heating rate of ≥6 °C/min and cooling rate of ≥1.2 °C/min (from +20 °C to −75 °C), compliant with JEDEC JESD22-A104E Class G requirements
- Stainless-steel interior (SUS304), double-glazed observation window with anti-fog heating, and integrated over-temperature/over-pressure safety interlocks
- Programmable test profiles supporting up to 999 cycles, variable dwell times (1–999 min), and user-defined ramp/soak sequences
Sample Compatibility & Compliance
The TSU-80W accommodates specimens up to 7.5 kg with a maximum footprint of 500 mm (W) × 400 mm (H) × 400 mm (D). Its internal chamber volume (80 L) supports standard JEDEC trays, PCB assemblies, MEMS packages, and small engine control units. All thermal transitions meet the stringent repeatability criteria defined in IPC-9701A for interconnect stress testing and satisfy GLP-compliant environmental qualification per IATF 16949 clause 8.5.1.2. The system is compatible with external data loggers for 21 CFR Part 11 audit trails when paired with optional Ethernet-enabled controllers and timestamped CSV export.
Software & Data Management
Equipped with LabCompanion’s TC-Manager v4.2 software, the TSU-80W provides real-time monitoring of chamber temperatures, door status, compressor discharge pressure, and heater current draw. The interface supports dual-language UI (English/Chinese), password-protected parameter locking, and automatic generation of test reports compliant with ISO/IEC 17025 documentation requirements. All temperature logs are stored with millisecond timestamps, and raw data exports include metadata such as operator ID, calibration certificate number, and ambient lab conditions (recorded via optional external sensor input).
Applications
- Qualification testing of lead-free solder joints per IPC-J-STD-020D
- Thermal fatigue evaluation of wafer-level chip-scale packages (WLCSP)
- Validation of adhesive bond integrity in optical sensor housings
- Screening of battery module thermal runaway propagation thresholds
- Accelerated aging of polymer-based gaskets and seals used in avionics enclosures
- Failure analysis root cause correlation between thermal shock exposure and post-test X-ray CT imaging
FAQ
What standards does the TSU-80W comply with for thermal shock validation?
It meets the physical performance requirements of ASTM D5229, IEC 60068-2-14, MIL-STD-810H Method 503.7, and JEDEC JESD22-A104E.
Is the temperature recovery time verified with load?
Yes—recovery time ≤5 minutes is specified for a standardized plastic-encapsulated IC (7.5 kg, 25 °C ambient), per manufacturer’s test report TR-TSU-80W-2024-003.
Can the system be integrated into a centralized lab management network?
Yes, via Modbus TCP or optional OPC UA server module for SCADA-level integration and remote supervision.
What maintenance intervals are recommended for long-term stability?
Compressor oil and refrigerant filter replacement every 24 months; door seal inspection and calibration verification annually, traceable to NIST-traceable reference standards.
Does the chamber support nitrogen purge for oxygen-sensitive samples?
An optional inert gas purging kit (NGP-1) is available, delivering ≤100 ppm O₂ residual concentration during cold-phase transitions.
