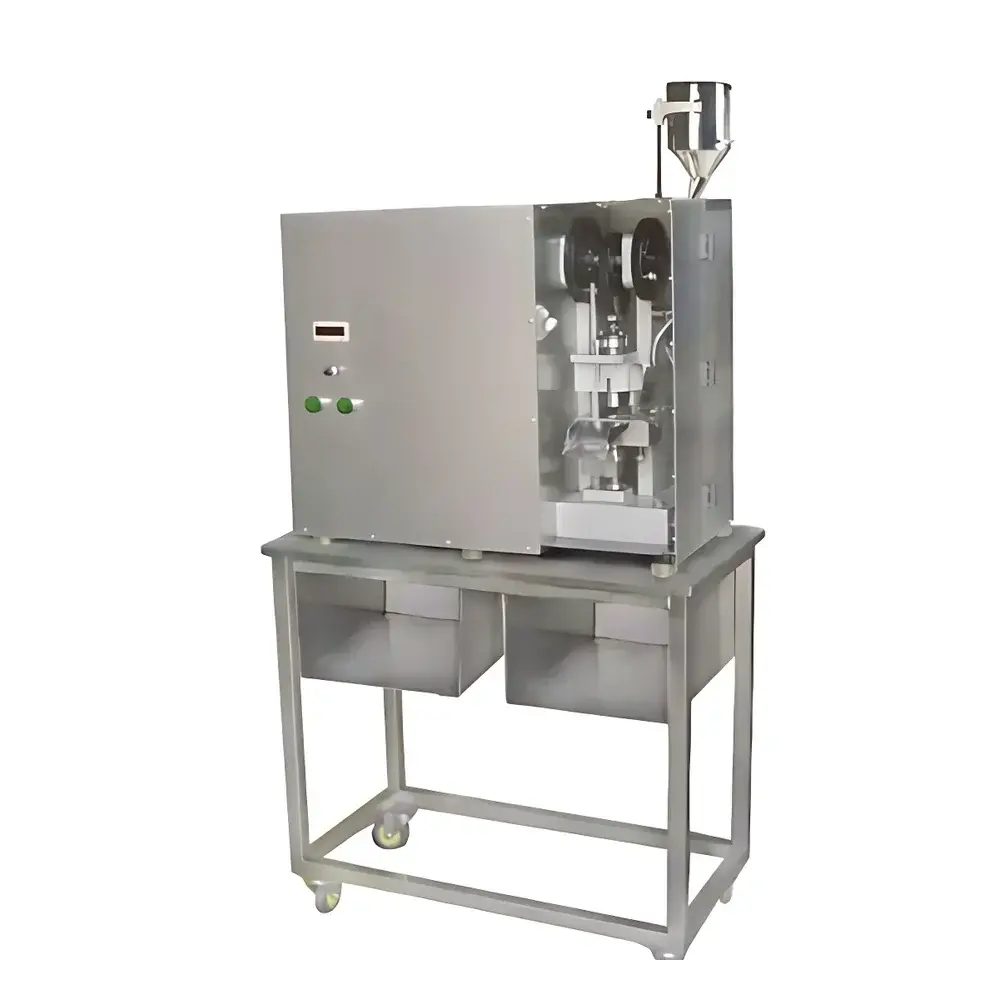

Laboratory-Scale Single-Station Tablet Press YC-1400 by PILOTECH

Overview

The PILOTECH YC-1400 Laboratory-Scale Single-Station Tablet Press is an engineered solution for early-phase pharmaceutical formulation development, academic research, and small-batch solid dosage manufacturing. Based on the mechanical principle of uniaxial compression using a single upper punch and fixed lower die cavity, the YC-1400 applies controlled force to compress powder blends into mechanically stable tablets under reproducible dwell-time and pressure conditions. Its compact, freestanding design eliminates dependency on external utilities or mounting infrastructure—requiring only standard AC power input. As the smallest commercially available single-punch press with full motorized actuation and jog-reverse capability, it supports rapid iteration cycles in formulation screening, excipient compatibility testing, and preclinical tablet prototyping.

Key Features

• Fully automated operation with intuitive push-button interface and programmable speed control (0–140 tablets/min, infinitely variable)
• Jog-reverse mechanism enables precise manual repositioning of the punch train during setup or troubleshooting—critical for optimizing fill depth and ejection behavior without disassembly
• Interchangeable die sets accommodating 3 mm to 20 mm diameter cavities, supporting round, oblong, and custom-profile tablets (e.g., scored, embossed, or irregular geometries upon request)
• Modular hopper integration option for continuous feeding during extended runs; optional vibration-assisted feeders available for cohesive or low-density powders
• Structural integrity ensured via 304 stainless steel chassis and FDA-compliant 316 stainless steel contact surfaces—including punches, dies, and turret components—to resist corrosion and facilitate cleaning validation
• Integrated mobility system with locking casters allows seamless relocation between fume hoods, glove boxes, and analytical workstations without recalibration

Sample Compatibility & Compliance

The YC-1400 accommodates a broad spectrum of powder formulations, including direct-compression blends, dry-granulated intermediates, and high-shear wet granules. It is routinely deployed in labs developing immediate-release, sustained-release, and orally disintegrating tablets (ODTs). While not a full GMP-certified production line device, its design adheres to foundational principles outlined in Annex 15 (Qualification and Validation) and ICH Q5A–Q5E for equipment suitability in early development. The absence of lubricants in the compression zone, combined with non-porous stainless-steel surfaces, supports cleaning verification per EU GMP Chapter 3 and USP . Documentation packages—including FAT/SAT protocols and IQ/OQ templates—are provided to support GLP-aligned lab audits.

Software & Data Management

The YC-1400 operates via embedded microcontroller logic with no proprietary software dependency. All operational parameters—including cycle count, runtime, and selected speed setting—are logged locally to non-volatile memory and exportable via USB interface. Audit trail functionality meets basic ALCOA+ criteria for laboratory notebooks: attributable, legible, contemporaneous, original, and accurate. For laboratories operating under 21 CFR Part 11 compliance requirements, optional firmware upgrade enables electronic signature capture and role-based access control (RBAC) for critical settings modification.

Applications

• Preformulation studies: compaction profiling, yield pressure determination, and tabletability assessment per ASTM D6988 and Ph. Eur. 2.9.40
• Taste-masking evaluation: rapid fabrication of placebo or active-containing mini-tablets for sensory panel testing
• Academic teaching: hands-on demonstration of powder flow, compression mechanics, and tablet defects (capping, lamination, sticking)
• Contract research organizations (CROs): generation of clinical trial material batches up to 500 g per run
• Medical device R&D: compression of radiopaque markers, bioresorbable polymer pellets, or ceramic matrix composites

FAQ

Does the YC-1400 support force monitoring or real-time compression profile recording?
No—this model does not include load cells or data acquisition hardware for in-cycle force mapping. For such capabilities, consider the PILOTECH YC-2000 series with integrated transducers and PC-based analysis software.
Can I use existing Euro-standard tooling with the YC-1400?
Yes—the die bore and punch shank dimensions conform to ISO 9479-1:2019 specifications for standard T-type and D-type tooling, ensuring interchangeability with major European suppliers.
Is validation documentation included with shipment?
A complete set of factory-verified IQ/OQ test protocols, calibration certificates for speed and stroke sensors, and material traceability reports for all 316SS components are supplied as standard.
What maintenance intervals are recommended?
Lubrication of the main cam follower and gear train is required every 200 operational hours; visual inspection of punch tip wear and die cavity surface finish is advised after each formulation change.
Can the YC-1400 be integrated into a humidity-controlled environment?
Yes—the unit operates stably at ambient RH ≤ 60% and temperature range 15–30°C. Optional desiccant-integrated feed hoppers and nitrogen purge ports are available for hygroscopic formulations.
