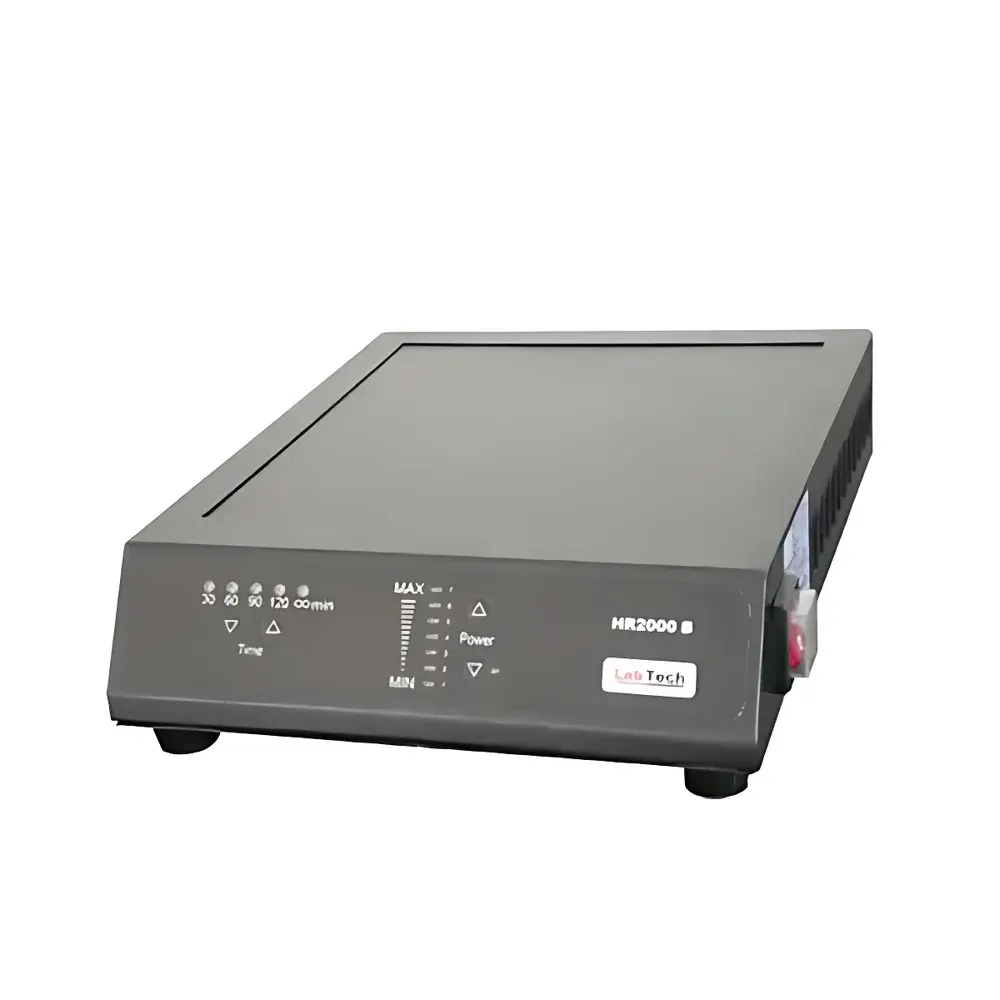

LabTech HR2000 Series Optical Wave Heating System
| Brand | LabTech |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HR2000 Series |
| Pricing | Available Upon Request |
Overview
The LabTech HR2000 Series Optical Wave Heating System represents a paradigm shift in laboratory sample thermal processing, replacing conventional resistive or convective heating with near-infrared (NIR) optical radiation as the primary energy transfer mechanism. Engineered for precision and reproducibility, this system operates on the principle of selective photonic absorption—where NIR wavelengths (typically 0.75–1.4 µm) penetrate shallowly into most solid and semi-solid samples, inducing rapid, volumetric molecular excitation without significant thermal lag. Unlike hotplate or oven-based methods that rely on conduction through container walls or ambient air convection, the HR2000 delivers directional, uniform radiant flux directly to the sample surface, minimizing thermal gradients and eliminating cold spots. This physics-based approach enables sub-second thermal response times and temperature ramp rates exceeding 10 °C/s under controlled conditions—critical for kinetic studies, moisture evaporation profiling, and pre-digestion conditioning in analytical workflows.
Key Features
- Near-infrared optical heating source with adjustable spectral output profile optimized for broad material absorption (e.g., water, organics, hydrated salts)
- Dual-mode heat transfer architecture: >85% radiative coupling supplemented by secondary conductive stabilization via thermally matched sample support platform
- Digitally regulated power output (0–100% full scale) and precise temperature setpoint control (range: ambient +5 °C to 300 °C; resolution: 0.1 °C; accuracy: ±1.5 °C)
- Programmable timer function with up to 99 hours, 59 minutes, and 59 seconds duration, supporting single-step or multi-segment heating protocols
- Corrosion-resistant housing surface treated with electrophoretic epoxy-polyester hybrid coating, certified to ASTM B117 salt-spray resistance (>500 h neutral salt fog exposure)
- Integrated overtemperature protection, open-circuit detection, and automatic shutdown upon lid removal or thermal runaway indication
Sample Compatibility & Compliance
The HR2000 Series accommodates standard laboratory vessels including borosilicate glass beakers (50–1000 mL), quartz crucibles, PTFE digestion cups, and ceramic trays—compatible with both open-vessel and covered configurations. Its non-contact heating modality eliminates cross-contamination risks associated with metal hotplates and supports GLP-compliant traceability when paired with external data loggers. The system conforms to IEC 61010-1:2010 safety requirements for electrical equipment used in laboratory environments and meets electromagnetic compatibility (EMC) standards per EN 61326-1:2013. While not intrinsically rated for hazardous locations, it is routinely deployed in ISO/IEC 17025-accredited testing laboratories for sample conditioning prior to ICP-MS, AAS, and gravimetric analysis.
Software & Data Management
The HR2000 operates via an embedded 4.3-inch capacitive touchscreen interface with intuitive icon-driven navigation. All operational parameters—including real-time temperature curve, power percentage, elapsed time, and alarm history—are stored internally for up to 1,000 cycles with timestamping. Optional RS-232 and USB-B ports enable bidirectional communication with LIMS or ELN platforms using ASCII protocol; raw data export supports CSV format for post-processing in MATLAB, Python (NumPy/Pandas), or Microsoft Excel. Audit trail functionality records user ID, parameter changes, and system events in accordance with FDA 21 CFR Part 11 principles when used with validated third-party software extensions.
Applications
- Rapid drying and moisture content determination per AOAC 950.46 and ASTM D2231
- Pre-concentration of aqueous environmental extracts prior to GC-MS analysis
- Controlled thermal activation of catalysts and sorbent materials in method development
- Accelerated solvent removal in pharmaceutical stability testing (ICH Q1A)
- Low-oxidation annealing of nanomaterial dispersions prior to DLS or TEM sample prep
- Uniform heating of calibration standards for thermogravimetric instrument validation
FAQ
What is the maximum recommended sample volume for optimal heating uniformity?
For consistent NIR penetration and minimal edge cooling effects, use volumes between 100 mL and 500 mL in standard 100 mm diameter containers.
Can the HR2000 be integrated into automated sample preparation lines?
Yes—digital I/O triggers (TTL-compatible) and Modbus RTU over RS-485 are available via optional expansion module (HR2000-IO-EXT).
Is the NIR source replaceable by the end user?
No—the proprietary halogen-quartz emitter assembly is factory-calibrated and sealed; replacement requires authorized service technician calibration.
Does the system support ramp-hold programming?
Yes—up to three independent ramp-and-hold segments can be defined via the front panel or remote command set.
How does the HR2000 compare to microwave-assisted heating systems?
Unlike microwave systems, the HR2000 provides deterministic, surface-initiated heating without cavity mode dependencies or dielectric property limitations—ideal for low-loss or heterogeneous matrices where microwave coupling is inconsistent.
