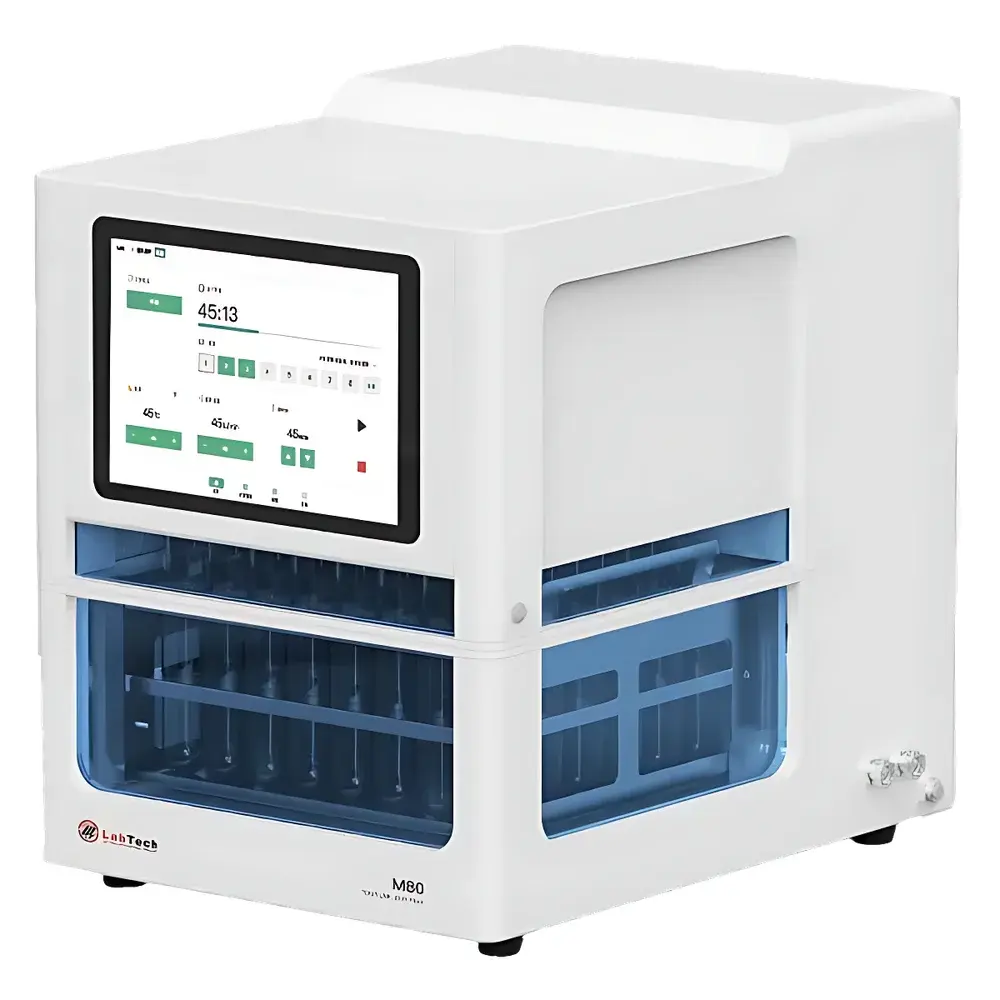

LabTech M80 Fully Automated High-Throughput Parallel Concentrator

Overview

The LabTech M80 Fully Automated High-Throughput Parallel Concentrator is an engineered solution for quantitative solvent removal in modern analytical laboratories. It operates on the principle of controlled nitrogen gas flow combined with precise water-bath heating—leveraging evaporative concentration under inert atmosphere to ensure reproducible analyte recovery across diverse sample matrices. Designed specifically for high-volume sample preparation workflows—including environmental analysis, food safety testing, clinical toxicology, and pharmaceutical QC—the M80 eliminates manual intervention by automating both thermal regulation and gas delivery dynamics. Its architecture supports parallel processing of up to 80 samples in a single run, accommodating heterogeneous sample volumes (10–60 mL) and chemistries without cross-contamination risk. Unlike conventional rotary evaporators or single-channel nitrogen evaporators, the M80 integrates real-time liquid-level tracking via motorized vertical needle descent, minimizing nitrogen consumption while maintaining consistent evaporation kinetics across all positions.

Key Features

• 80-Channel Parallel Processing: Simultaneous concentration of up to 80 samples using standardized 13–25 mm diameter tubes or custom rack configurations; compatible with common 15 mL and 50 mL conical centrifuge tubes.
• Intelligent Nitrogen Needle Tracking: Each nitrogen delivery needle moves linearly downward as solvent volume decreases, preserving optimal gas-to-surface distance and reducing nitrogen usage by up to 40% compared to fixed-height systems.
• Precision Water-Bath Temperature Control: PID-regulated heating system maintains ±0.3 °C stability across the full operating range (30–90 °C), ensuring uniform thermal input and minimizing thermal degradation of thermolabile compounds.
• Gradient Pressure Programming: Enables independent pressure control per group of channels, allowing mixed-volume batches (e.g., 15 mL and 50 mL samples) to be concentrated to endpoint simultaneously without over-evaporation or incomplete drying.
• Interlocked Safety Architecture: Electromechanical lid lock engages automatically during operation; opening triggers immediate gas shutoff and heater pause, resuming seamlessly upon closure—fully compliant with IEC 61010-1 laboratory safety standards.
• Optical Process Monitoring: Triple-side transparent acrylic enclosure with integrated white LED lighting provides unobstructed visual access to all sample positions, eliminating the need to interrupt runs for endpoint verification.

Sample Compatibility & Compliance

The M80 accommodates a broad spectrum of sample types—including aqueous extracts, organic solvent eluates (e.g., ethyl acetate, hexane, methanol), and semi-viscous biological matrices—without requiring method revalidation. Its inert stainless-steel and PTFE-wetted components resist corrosion from aggressive solvents and acidic/basic digestates. From a regulatory standpoint, the system supports GLP and GMP-aligned workflows through audit-trail-enabled software logging (user actions, parameter changes, run timestamps), and complies with ISO/IEC 17025 documentation requirements for sample preparation instrumentation. While not FDA 21 CFR Part 11–certified out-of-the-box, its data export functionality (CSV, PDF reports) facilitates integration into validated LIMS environments where electronic records are governed by internal SOPs.

Software & Data Management

The embedded Android-based operating system delivers an intuitive 7-inch capacitive touchscreen interface with multilingual support (English, Spanish, Chinese). The proprietary LabConcentrate™ software includes three core operational modes: Standard Protocol Execution, Smart Learning Mode (which analyzes prior run parameters to recommend optimized settings for new sample types), and Rack Auto-ID (scanning QR-coded racks to auto-load preconfigured methods). All method files, run logs, and calibration records are stored locally on encrypted internal storage and exportable via USB or network share. Software updates are delivered OTA (over-the-air) or via offline firmware packages, ensuring long-term maintainability without dependency on proprietary service tools.

Applications

• Environmental testing labs performing EPA Methods 505, 525.3, and 8081B—where rapid cleanup of pesticide residues from soil/water extracts demands high parallelism and low solvent carryover.
• Food and beverage QA/QC departments conducting multi-residue analysis per EU SANTE/11312/2021 guidelines, requiring consistent recoveries across >50 analytes in complex homogenates.
• Clinical toxicology units preparing urine or plasma samples for LC-MS/MS quantitation of drugs of abuse, where throughput and reproducibility directly impact turnaround time.
• Pharmaceutical R&D groups executing forced degradation studies, where parallel concentration of stressed samples under identical conditions is critical for comparative stability assessment.

FAQ

What sample tube sizes are supported on the M80?
Standard configurations include racks for 13 mm × 100 mm and 25 mm × 150 mm tubes; custom fixtures are available for microtiter plates and vial formats.
Does the M80 support method validation documentation?
Yes—full parameter logging, user authentication, and timestamped run reports meet minimum ALM (Analytical Laboratory Management) documentation requirements for ISO/IEC 17025 accreditation.
Can the instrument be integrated into a robotic sample prep line?
The M80 features RS-232 and Ethernet ports with Modbus TCP protocol support, enabling bidirectional communication with third-party liquid handlers and scheduling software.
Is nitrogen purity critical for optimal performance?
Instrument performance is validated for use with ≥99.5% pure nitrogen; higher purity (>99.99%) is recommended when concentrating trace-level analytes to minimize background interference.
How often does the water bath require maintenance?
Deionized water should be replaced weekly; annual descaling with citric acid solution is advised based on local water hardness—no scheduled downtime required.
