Labthink C612M Fully Automated Cap Torque Tester

Overview

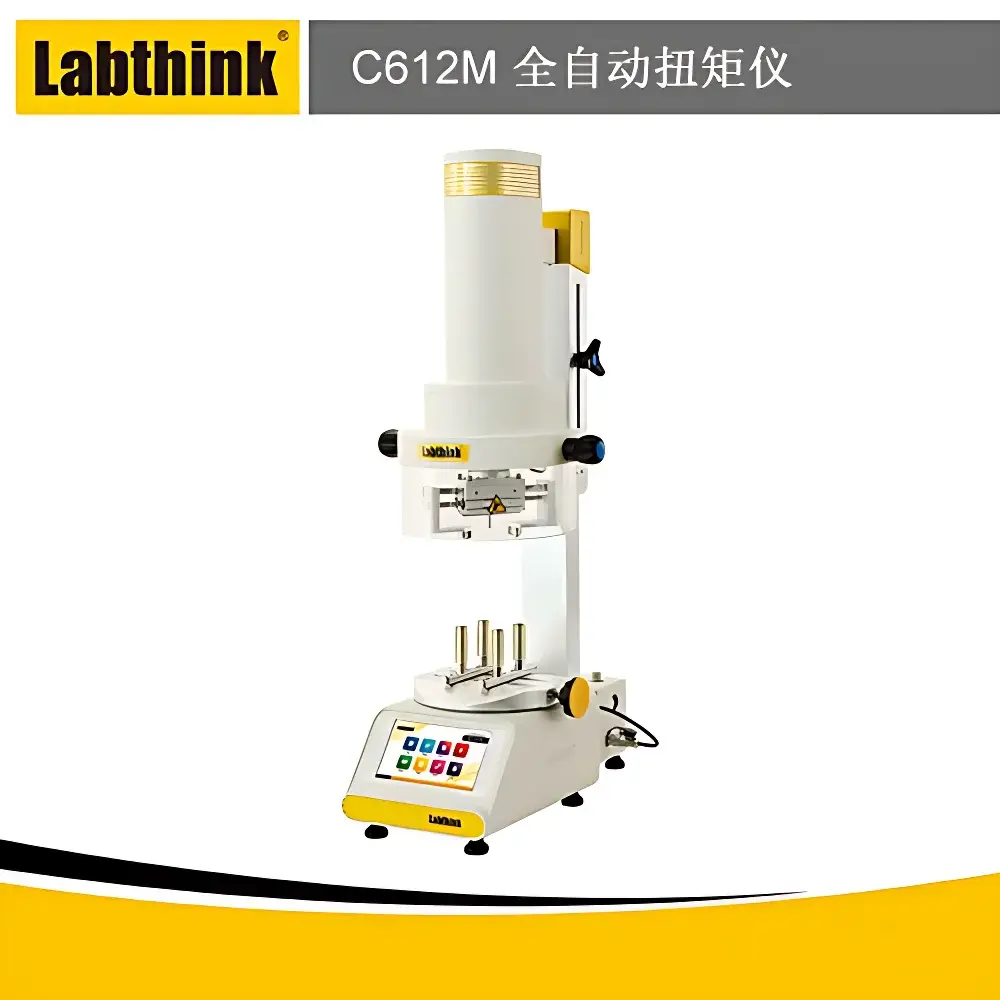

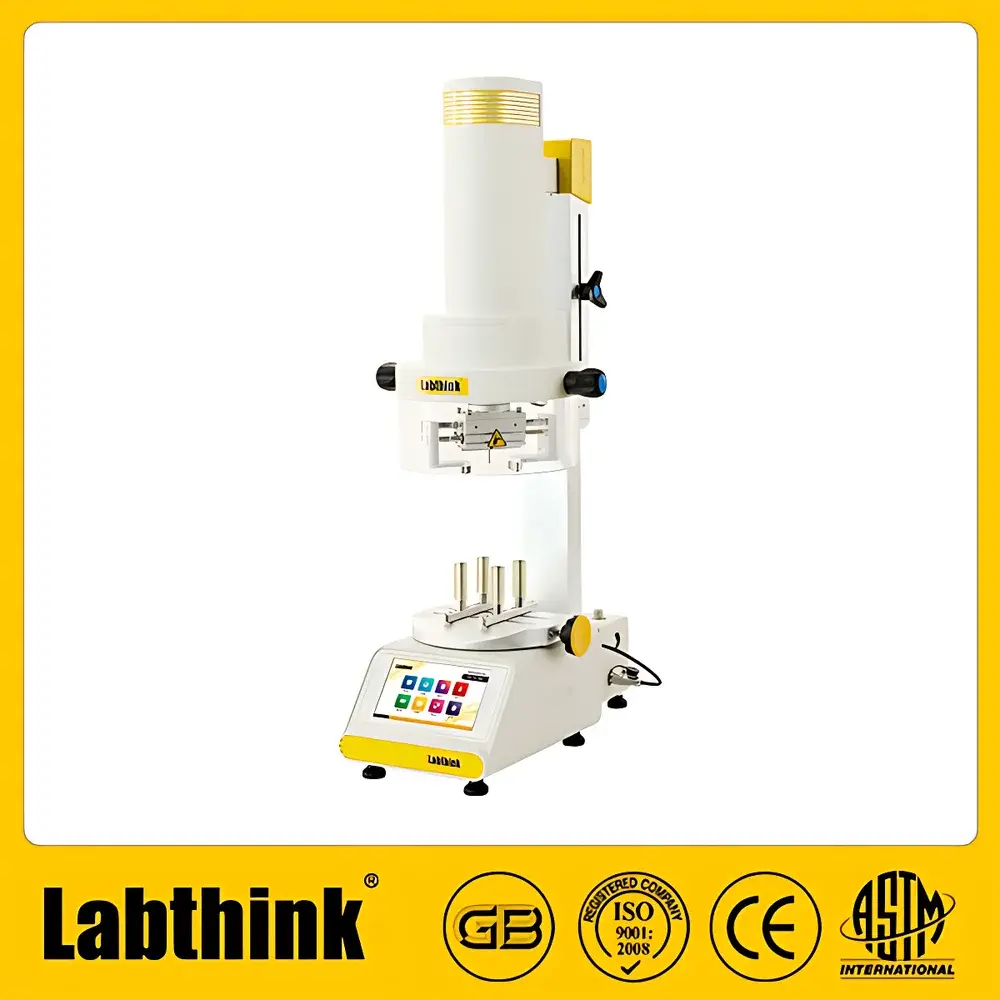

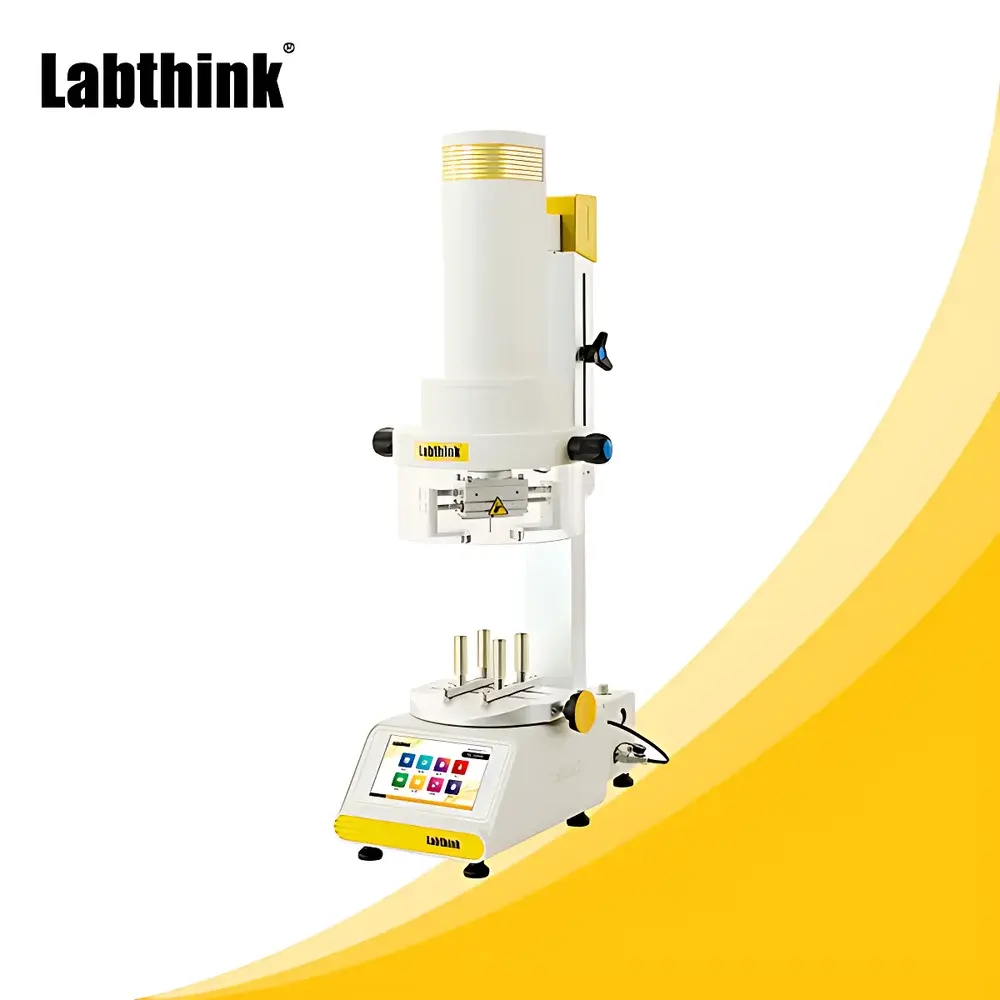

The Labthink C612M Fully Automated Cap Torque Tester is an electromechanical torsion testing system engineered for precise, repeatable measurement of opening and closing torque values on threaded closures used in rigid and semi-rigid packaging—particularly plastic, glass, and metal containers, tubes, and insulated vessels. It operates on a controlled rotational actuation principle, integrating high-resolution torque transduction with pneumatic cap engagement and motorized axial rotation to emulate real-world human-hand or production-line capping dynamics. Designed for compliance-critical environments—including pharmaceutical, nutraceutical, food & beverage, and personal care manufacturing—the C612M delivers traceable, auditable torque data aligned with regulatory expectations for process validation and quality control. Its architecture supports both offline laboratory verification and near-line process monitoring, enabling correlation between closure integrity, seal performance, and downstream consumer usability.

Key Features

• Dual-mode automated operation: Independent selection of “opening torque” and “closing torque” test protocols, each executed via patented robotic gripper mechanics that eliminate operator-induced variability in clamping force, alignment, and angular velocity.
• High-fidelity torque sensing: Equipped with a precision strain-gauge transducer (standard 5 Nm full scale; optional 20 Nm or 40 Nm ranges), delivering resolution down to 0.0001 Nm and accuracy of ±0.5% of reading (10–100% FS) and ±0.05% FS (0–10% FS).
• Pneumatically actuated cap engagement: Uses imported industrial-grade pneumatic components with low-leakage design and long service life; clamping pressure is regulated at 0.7 MPa, ensuring consistent radial preload without deformation of delicate closure surfaces.
• Adjustable mechanical parameters: User-defined rotation speed (RPM), target closing torque (with deviation <0.01 Nm), and dwell time; programmable over-torque protection and automatic zero-reset prevent sensor overload and drift.
• Industrial touchscreen HMI: 7-inch capacitive display with intuitive icon-based navigation, real-time torque vs. angle curve visualization, and dual-language support (English/Chinese); firmware upgradable remotely via USB or network interface.
• Robust data governance architecture: Built-in non-volatile memory stores up to 1200 test records with timestamps, operator ID, and test parameters; supports password-protected multi-level user access (admin, technician, viewer).

Sample Compatibility & Compliance

The C612M accommodates cylindrical and tapered closures across broad dimensional envelopes: bottle body diameters from Φ5 mm to Φ170 mm, cap diameters from Φ10 mm to Φ80 mm, and vertical heights from 20 mm to 400 mm. It is validated for use with polypropylene (PP), polyethylene (PE), aluminum, and laminated tube caps—common in pharmaceutical blister packs, ophthalmic droppers, cosmetic squeeze tubes, and carbonated beverage bottles. The instrument conforms to multiple international test standards including ASTM D2063 (Standard Test Method for Measuring Torque Required to Open or Close Rigid Containers), ASTM D3198 (Torque Testing of Screw Caps on Plastic Bottles), ASTM D3474 (Calibration of Torque Measuring Devices), BB/T 0025 (Packaging—Plastic Caps for Beverage Bottles), BB/T 0034 (Packaging—Aluminum Screw Caps), and GB/T 17876 (Plastic Caps for Beverages). Optional GMP-compliant configuration includes 21 CFR Part 11–ready audit trail logging, electronic signature support, and integration-ready DataShield™ API for LIMS or MES connectivity.

Software & Data Management

While the embedded firmware provides complete standalone functionality—including statistical summary (mean, SD, CV%), pass/fail threshold evaluation, and customizable report templates—the optional Labthink TMS Pro software extends analytical capability with advanced curve fitting, comparative batch analysis, SPC charting, and export to CSV, PDF, or XML formats. All data entries include immutable metadata: date/time stamp, operator ID, calibration status, environmental conditions (if externally logged), and instrument serial number. The system supports GLP/GMP-aligned workflows through configurable electronic signatures, role-based permissions, and tamper-evident audit logs. DataShield™ enables centralized database synchronization, remote diagnostics, and automated backup to secure cloud or on-premise servers—fully compliant with ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Applications

• Primary packaging QC: Quantifying torque consistency across production lots of PET water bottles, HDPE pharmaceutical vials, and aluminum-screw-capped juice containers.
• Seal integrity validation: Correlating torque input with leak test outcomes (e.g., ASTM F2338) and headspace oxygen ingress rates in sterile barrier systems.
• Consumer usability assessment: Benchmarking opening torque against ISO 8503-2 ergonomic thresholds to ensure accessibility for elderly or arthritic users.
• Process optimization: Supporting Design of Experiments (DoE) to determine optimal capping torque windows that balance seal strength, dispensing reliability, and child-resistant compliance (e.g., ISO 8317).
• Cross-industry extension: With custom tooling, applicable to torque verification of medical device housings, diagnostic cartridge latches, and HVAC component fasteners—subject to mechanical interface adaptation.

FAQ

What torque ranges are supported out-of-the-box?
The standard configuration includes a 5 Nm load cell; optional 20 Nm and 40 Nm transducers are available for heavy-duty closures such as industrial chemical containers or large-diameter thermos lids.
Is compressed air supply included with the system?
No—an external clean, dry air source capable of delivering 0.7 MPa (101.5 psi) is required; the unit interfaces via a standard Φ4 mm polyurethane tubing port.
Can the C612M be integrated into a factory automation network?
Yes—via optional Ethernet or RS-232 communication modules, it supports Modbus RTU/ASCII protocols for PLC synchronization and real-time data streaming to SCADA or MES platforms.
How is calibration traceability maintained?
Each transducer ships with a NIST-traceable calibration certificate; field recalibration is performed using certified reference torque standards per ISO 376, with calibration history stored within the instrument’s secure memory.
Does the system meet FDA 21 CFR Part 11 requirements?
When configured with GMP option package (including TMS Pro software, electronic signatures, and audit trail), the system satisfies predicate rule requirements for electronic records and signatures in regulated pharmaceutical and biotech environments.
