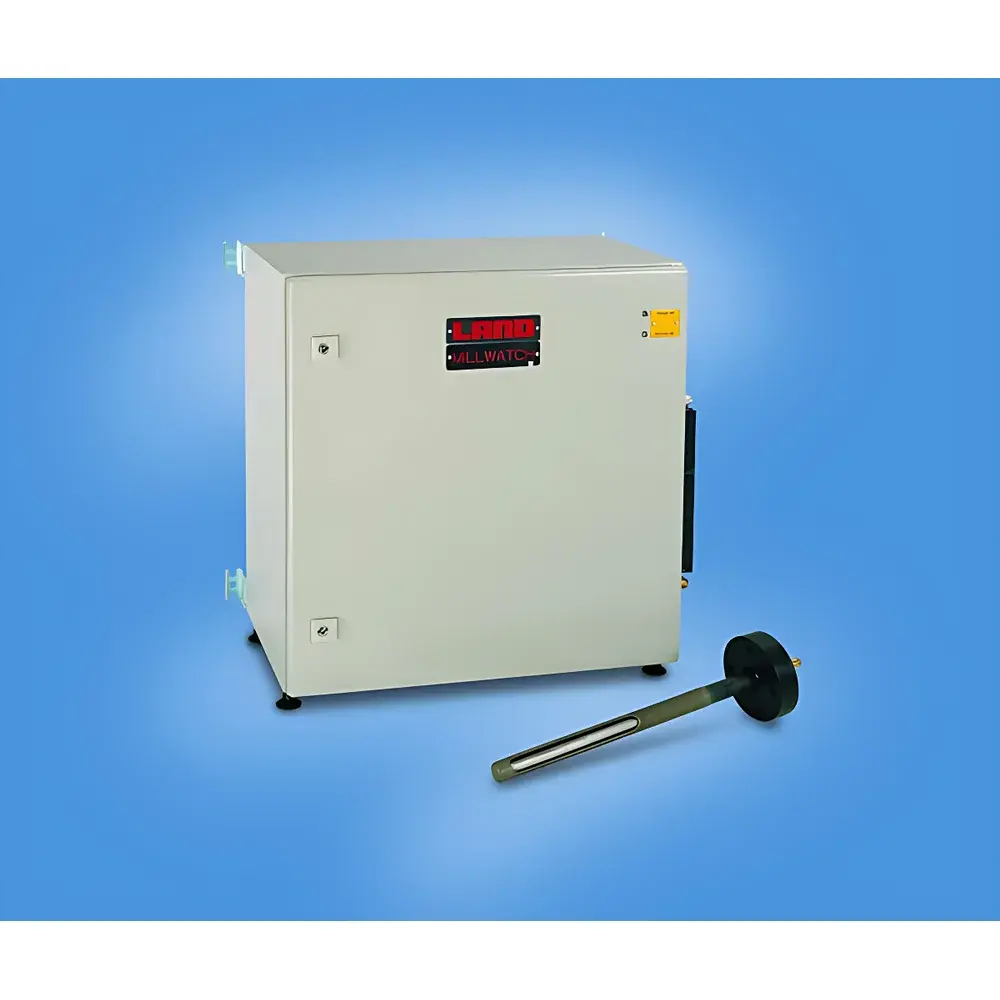

LAND MillWatch Coal Fire Early Warning System
| Brand | LAND |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MillWatch / SiloWatch |
| Pricing | Available Upon Request |
Overview
The LAND MillWatch Coal Fire Early Warning System is an industrial-grade, continuous gas monitoring solution engineered for early detection of incipient coal fires in pulverized fuel handling systems. Deployed at critical points—including coal mills, pulverizers, and storage silos—the system operates on the principle of electrochemical and/or non-dispersive infrared (NDIR) sensing to detect carbon monoxide (CO) at sub-flammable concentrations. CO serves as a reliable thermochemical indicator of low-temperature oxidation—a precursor stage to spontaneous combustion in stored or processed coal. By delivering real-time, trace-level CO concentration data with high repeatability and minimal drift, MillWatch enables predictive intervention before thermal runaway occurs, thereby mitigating fire risk, safeguarding personnel, preserving equipment integrity, and ensuring continuity of power generation or cement production processes.
Key Features
- Continuous, 24/7 CO monitoring with configurable alarm thresholds (typically 10–100 ppm range, field-adjustable per site-specific risk profiles)
- Dual-system architecture: MillWatch optimized for hot, dusty, high-velocity mill outlet environments; SiloWatch configured for lower-temperature, static silo headspace sampling
- Intrinsically safe (ATEX/IECEx-certified) sensor housings rated for Zone 20/21 coal dust environments
- Robust sample extraction via heated, particulate-filtered probe assemblies to prevent condensation and filter clogging
- Integrated zero/span calibration capability with automated verification cycles compliant with IEC 61511 functional safety requirements
- Modular design supporting redundant sensor channels and hot-swappable components for maximum uptime
Sample Compatibility & Compliance
The MillWatch system is validated for use with bituminous, sub-bituminous, and lignite coals across a wide range of moisture content (5–25 wt%), volatile matter (20–45%), and particle size distributions typical of pulverized coal injection (PCI) and direct-fired boiler applications. It complies with international standards including EN 62061 (functional safety of electrical control systems), EN 50104 (gas detectors for CO), and meets the technical prerequisites for integration into SIL 2-rated safety instrumented systems (SIS). All configurations adhere to site-specific hazardous area classification requirements and support audit readiness for ISO 50001 energy management and OHSAS 18001/ISO 45001 occupational health and safety frameworks.
Software & Data Management
MillWatch interfaces with LAND’s proprietary WatchView™ supervisory software, providing intuitive visualization of CO trends, alarm event logs, calibration history, and sensor health diagnostics. Data is timestamped, archived locally (SD card) and optionally transmitted via Modbus TCP, Profibus DP, or 4–20 mA analog outputs to DCS/SCADA platforms. Audit trails include user actions, parameter changes, and alarm acknowledgements—fully traceable for GLP/GMP-aligned operations. The system supports configurable data export formats (CSV, XML) and optional integration with enterprise asset management (EAM) systems for predictive maintenance scheduling based on sensor degradation patterns.
Applications
- Coal-fired power plants: Real-time monitoring of pulverizer outlets and bunker headspaces to prevent mill explosions and silo fires
- Cement manufacturing: Early warning during raw coal grinding and pre-blending storage
- Steel industry: Safety assurance in coal handling for coke oven feed preparation and blast furnace PCI systems
- Port terminals and bulk coal storage facilities: Continuous surveillance of stockpile ventilation zones and conveyor transfer points
- Retrofit installations: Designed for seamless integration into legacy infrastructure without process shutdown
FAQ
What is the typical response time for CO detection under MillWatch operating conditions?
Typical T90 response time is ≤30 seconds for CO concentrations ≥20 ppm, measured under standard sampling flow rates (0.5–2.0 L/min) and ambient temperatures between –10 °C and +50 °C.
Can MillWatch distinguish between CO generated by coal oxidation and CO from other sources (e.g., combustion leakage)?
While MillWatch measures total CO concentration, contextual interpretation—combined with temperature profiling, airflow data, and historical trend analysis—is required to differentiate oxidation-related CO from external ingress; advanced configurations may integrate auxiliary temperature or O₂ sensors for multivariate correlation.
Is third-party certification available for SIL compliance verification?
Yes—certification documentation from independent bodies such as exida or TÜV Rheinland is available upon request for specific system configurations meeting SIL 2 requirements per IEC 61508.
How often does the system require maintenance or recalibration?
Recommended preventive maintenance interval is every 6 months; full sensor calibration is advised annually or after exposure to extreme contamination events, following LAND’s documented procedure aligned with ISO/IEC 17025 laboratory practices.
