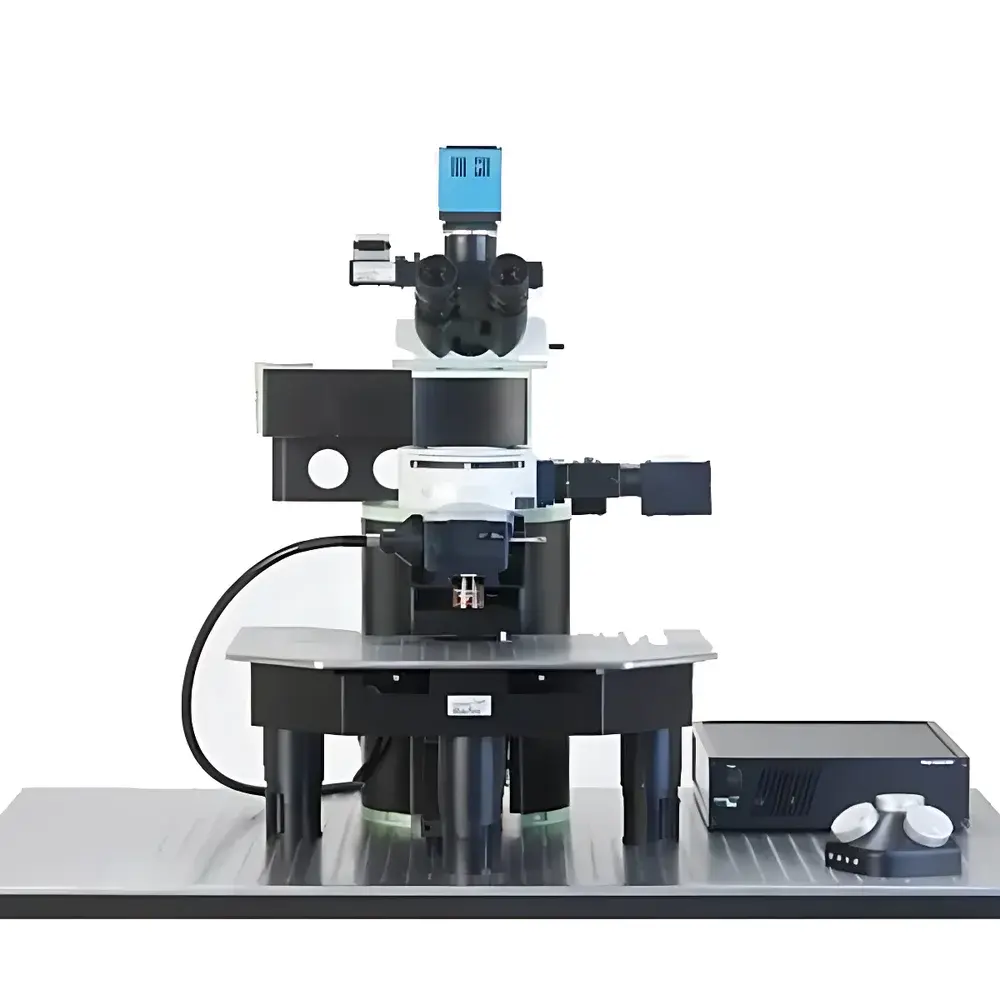

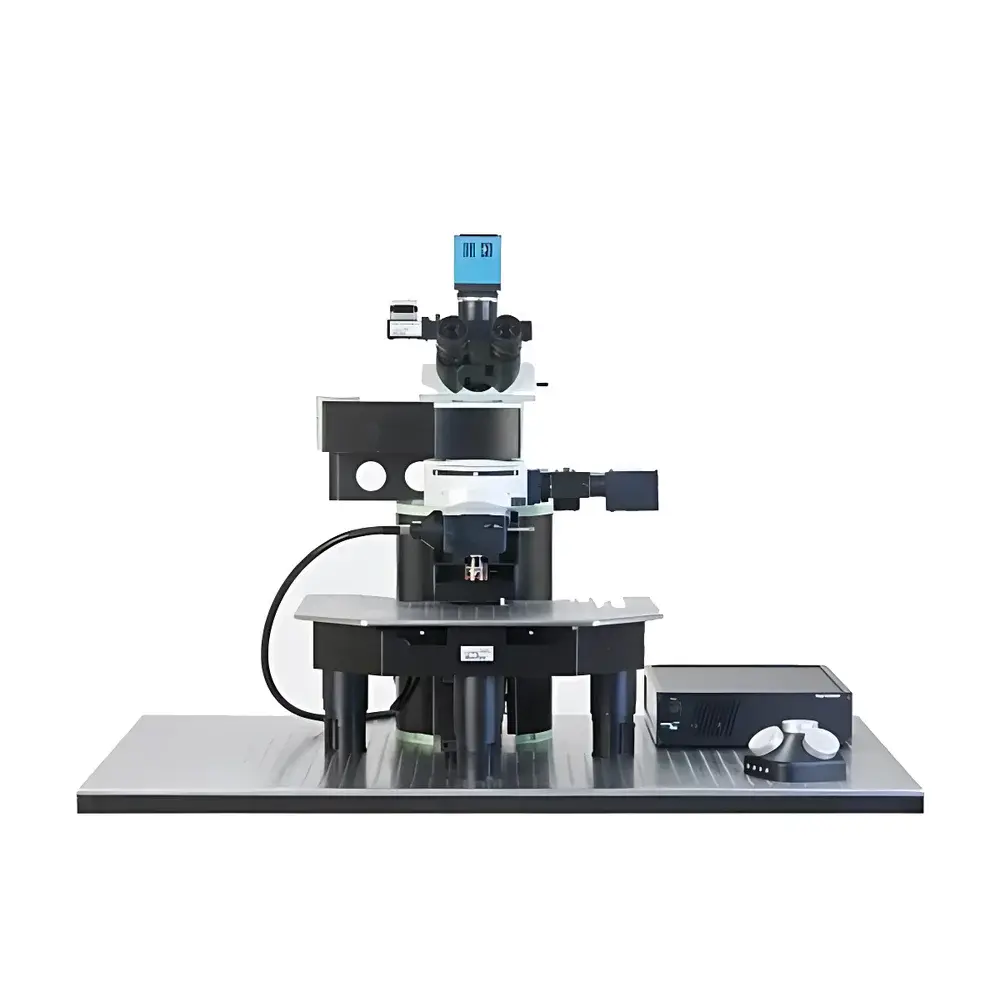

LaVision BioTec TriM Scope Two-Photon Microscope

Overview

The LaVision BioTec TriM Scope is a high-performance, research-grade two-photon laser scanning microscope engineered for deep-tissue in vivo imaging, longitudinal functional studies, and high-speed volumetric acquisition in neuroscience, immunology, and developmental biology. Based on the principle of simultaneous absorption of two near-infrared photons—enabling excitation only at the focal plane—the TriM Scope delivers intrinsic optical sectioning, reduced phototoxicity, and enhanced penetration depth (up to 1 mm in scattering tissue). Its modular architecture integrates ultrafast femtosecond lasers, precision galvo-resonant scanning optics, and a fully software-defined optical path, allowing users to dynamically reconfigure acquisition geometry without mechanical realignment.

Key Features

• Multi-beam scanning architecture: Unlike conventional single-beam systems, the TriM Scope supports user-selectable scanning modes—from standard point-scanning to parallelized multi-beam illumination—enabling up to 4× acceleration in frame rate while preserving spatial resolution and signal-to-noise ratio.
• Fully software-configurable optics: The first commercially available two-photon microscope with scan pattern, dwell time, region-of-interest (ROI), and z-step parameters adjustable in real time via ImSpector Pro—switching between ROIs in under 10 ms without hardware latency.
• Optimized detection efficiency: Accommodates up to eight non-descanned detection channels, each configurable with thermoelectrically cooled Generation III GaAsP photomultiplier tubes or avalanche photodiodes (APDs), delivering quantum efficiencies exceeding 45% in the 400–650 nm range and improving photon collection yield by up to 40% relative to conventional PMTs.
• OPO excitation compatibility: Native support for tunable optical parametric oscillator (OPO) light sources enables precise spectral matching to red-shifted fluorophores (e.g., mCherry, tdTomato) and genetically encoded indicators (e.g., jRGECO1a), facilitating multiplexed calcium and voltage imaging across spectrally overlapping probes.
• Modular beam path design: Includes motorized filter wheels, dichroic turret, and adjustable NDD relay optics, enabling rapid reconfiguration for spectral unmixing, lifetime imaging (TCSPC-ready), or simultaneous multi-color acquisition.

Sample Compatibility & Compliance

The TriM Scope is validated for use with live animal preparations—including head-fixed mice, zebrafish larvae, and ex vivo brain slices—as well as 3D organoids and thick tissue sections. Its open optical design accommodates custom stage interfaces (e.g., motorized XYZ translation, piezo-driven objective focus, thermal regulation stages) and integrates seamlessly with electrophysiology rigs and behavioral monitoring systems. All firmware and control software comply with ISO/IEC 17025 traceability requirements for measurement uncertainty documentation. Data acquisition workflows support GLP-compliant metadata tagging (including laser power, dwell time, PMT gain, and environmental timestamps) and are compatible with FDA 21 CFR Part 11–enabled audit trail modules when deployed in regulated environments.

Software & Data Management

ImSpector Pro serves as the unified acquisition, visualization, and analysis platform. It provides real-time image reconstruction, multi-dimensional tiling (x-y-z-t-λ), and GPU-accelerated deconvolution. Raw data is saved in standardized HDF5 format with embedded metadata compliant with the Open Microscopy Environment (OME) model. Export options include TIFF stacks, NIfTI volumes, and MATLAB-compatible arrays. Version-controlled script automation (via Python API) enables reproducible experiment sequencing, batch processing, and integration into CI/CD pipelines for automated QC checks. Audit logs record all parameter modifications, user logins, and file export events—fully traceable for GMP or preclinical study submissions.

Applications

• In vivo cortical calcium dynamics imaging in awake, behaving mice with cellular resolution across multiple cortical layers
• Long-term dendritic spine turnover tracking over weeks using chronic cranial windows
• High-speed vascular perfusion mapping with simultaneous plasma and RBC labeling
• Deep-tissue immune cell trafficking analysis in lymph nodes and tumors
• Functional connectivity mapping via dual-color two-photon optogenetics and activity reporting
• Developmental morphogenesis imaging in intact embryonic tissues (e.g., mouse E12.5 whole embryo)

FAQ

Does the TriM Scope support third-party laser sources beyond Ti:Sapphire?
Yes—it features universal laser coupling ports compatible with fiber-coupled OPOs, disk lasers, and ultrafast Yb-based oscillators operating between 680–1300 nm.
Can ImSpector Pro be operated remotely for core facility management?
Yes—remote desktop access, web-based status monitoring, and scheduled acquisition queues are supported via secure SSH tunneling and role-based user permissions.
Is the system compatible with adaptive optics modules?
Yes—standardized optical rails and TTL-synchronized trigger interfaces enable integration with deformable mirrors and wavefront sensors for aberration correction in deep-tissue imaging.
What maintenance protocols are required for long-term stability?
Annual calibration of galvo alignment, PMT gain linearity, and laser pulse width is recommended; full service documentation and OEM-certified field engineer support are included with extended warranty packages.
How is data integrity ensured during multi-hour acquisitions?
ImSpector Pro implements cyclic redundancy checksums per frame, automatic resume-after-interruption logic, and redundant storage mirroring to NAS or cloud endpoints via WebDAV or S3-compatible APIs.
