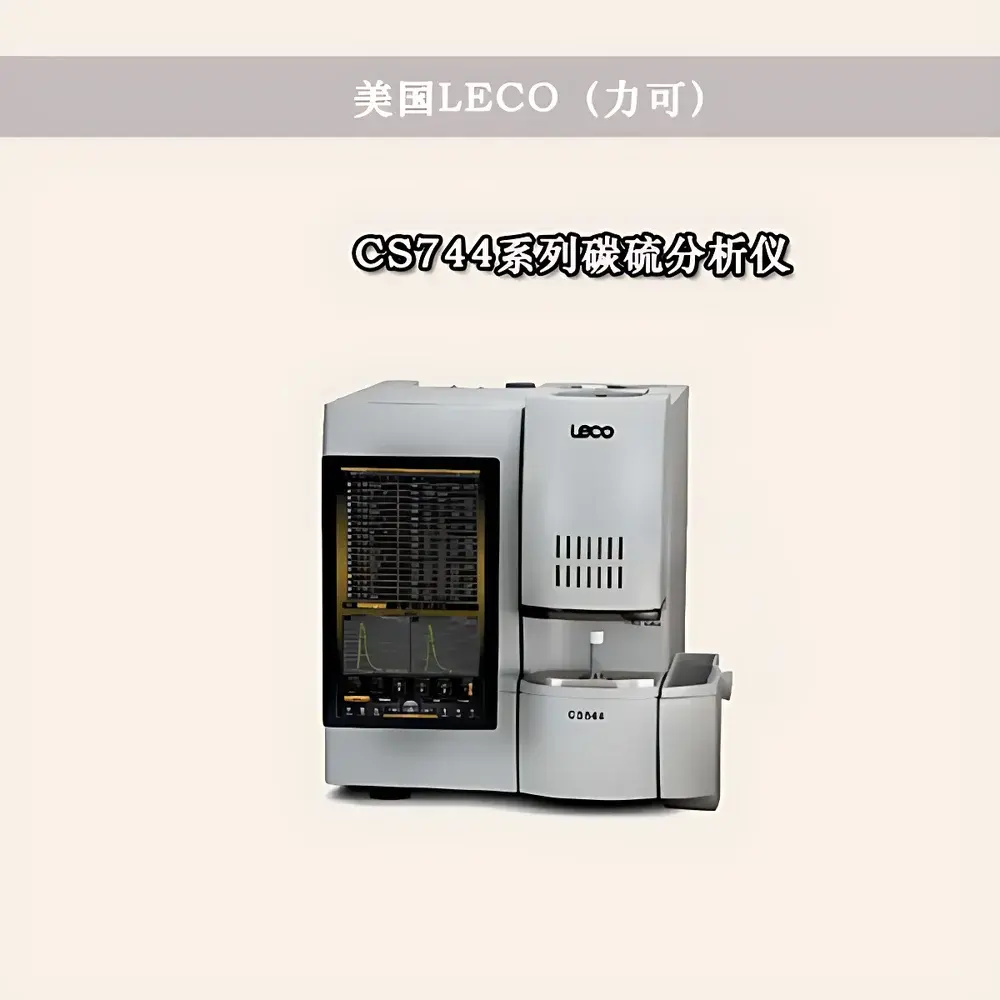

LECO CS744 Series Carbon-Sulfur Analyzer

Overview

The LECO CS744 Series Carbon-Sulfur Analyzer is a high-precision, benchtop elemental analyzer engineered for the quantitative determination of total carbon (C) and total sulfur (S) in solid inorganic matrices—including ferrous and non-ferrous metals, ores, slags, ceramics, refractories, and geological samples. It operates on the principle of high-frequency induction combustion followed by selective infrared (IR) absorption spectroscopy. Sample aliquots are combusted quantitatively in a pure oxygen atmosphere within a water-cooled, graphite crucible placed inside a 2.5 kW high-frequency furnace. The evolved CO₂ and SO₂ gases are swept through a dust removal system and moisture trap before entering dual-channel, temperature-stabilized IR detectors—each tuned to the characteristic absorption bands of CO₂ (4.26 µm) and SO₂ (7.35 µm). This architecture ensures stoichiometric conversion, minimal spectral interference, and compliance with ASTM E1019, ISO 15350, and GB/T 20123 standards for combustion-based C/S analysis.

Key Features

• High-frequency induction furnace (2.5 kW) with programmable power ramping and real-time thermal monitoring for optimized combustion efficiency across diverse sample types
• Dual-channel, thermoelectrically stabilized infrared detectors housed in a temperature-controlled optical chamber—minimizing drift from ambient fluctuations and extending detector service life
• Integrated high-vacuum dust extraction system with ceramic filter and automatic backflush capability, ensuring complete particulate removal prior to gas detection
• Optional 10-position or 60-position robotic autosampler for unattended, multi-hour sequence operation—fully synchronized with furnace ignition, gas flow, and data acquisition
• Modular gas handling subsystem including heated mass flow controllers (±0.2% FS accuracy), copper-based sulfur scrubbers, and multi-stage hydrocarbon traps to ensure baseline stability and low-noise signal resolution
• Cornerstone® software platform with embedded audit trail, electronic signature support, and full 21 CFR Part 11 compliance modules for regulated environments

Sample Compatibility & Compliance

The CS744 accommodates sample masses from 0.1 g to 1.0 g (depending on matrix and expected C/S concentration), supporting both pressed pellets and granular solids without pre-dilution in most cases. It meets ISO/IEC 17025 requirements for method validation and is routinely deployed in laboratories operating under GLP and GMP frameworks. Instrument qualification documentation—including IQ/OQ/PQ protocols, calibration verification reports, and uncertainty budgets—is available upon request. All hardware and firmware revisions are traceable via LECO’s certified revision control system, enabling full regulatory traceability for FDA, EPA, and notified body audits.

Software & Data Management

Cornerstone® v5.x is the native analytical software suite—designed exclusively for LECO combustion analyzers and validated for use in regulated QC/QA environments. It provides unified control over method development, instrument diagnostics, calibration curve management, and report generation. Key capabilities include: hierarchical user permission levels with role-based access control; automated statistical processing (RSD%, confidence intervals, outlier detection per Grubbs’ test); customizable PDF/Excel export templates compliant with internal SOPs; and secure cloud-enabled remote monitoring via Cornerstone Connect™—accessible from desktops, tablets, or smartphones using TLS 1.2 encrypted sessions. All analytical events—including calibration runs, maintenance logs, and operator interventions—are time-stamped and cryptographically signed in the audit trail.

Applications

The CS744 delivers reliable performance in metallurgical process control (e.g., steelmaking slag analysis, alloy grade verification), mining QA/QC (ore grade certification, beneficiation feedstock screening), catalyst manufacturing (carbon residue monitoring in supported metal oxides), and environmental testing labs (sulfur content in fly ash, coal ash, and incinerator residues). Its robust design enables stable operation in foundry floor environments with ambient temperatures ranging from 15–35°C and relative humidity up to 80% non-condensing. Method transfer from legacy LECO CS series instruments is fully supported via backward-compatible file import and calibration mapping.

FAQ

What sample preparation is required prior to analysis?
Minimal preparation is needed: samples must be dry, homogeneous, and free of surface oil or grease. Metallic samples are typically cut into chips or drilled swarf; powders may be pelletized with tungsten or tin additive if required for complete combustion.
Does the CS744 support simultaneous carbon and sulfur measurement?
Yes—both elements are measured concurrently in a single 60–90 second combustion cycle, with independent calibration curves and detection channels ensuring no cross-sensitivity between CO₂ and SO₂ signals.
Is the Cornerstone software validated for pharmaceutical or medical device manufacturing?
Yes—Cornerstone v5.x includes optional 21 CFR Part 11 compliance packages with electronic signature workflows, audit trail review tools, and change control documentation aligned with ICH Q9 and Annex 11 expectations.
Can the CS744 be integrated into a LIMS environment?
Yes—via ASTM E1382-compliant ASCII or XML output formats, ODBC connectivity, and RESTful API endpoints for bidirectional data exchange with major LIMS platforms including Thermo Fisher SampleManager, LabVantage, and STARLIMS.
What maintenance intervals are recommended for routine operation?
Daily: crucible cleaning and dust filter inspection; Weekly: IR cell purge gas check and flow controller calibration verification; Quarterly: detector alignment verification and furnace coil resistance measurement per LECO Service Bulletin SB-CS744-03.
